FTAF-M1303-02xx 是北亿纤通（F-tone Networks）推出的一款155Mbps 1310nm Duplex 2×5 SFF（Small Form Factor）光收发器模块。该模块采用1310nm FP激光器和PIN光电探测器，支持最高155Mbps数据速率，通过多模光纤（MMF）传输距离可达2km，适用于100BASE-FX、SONET/SDH设备互连、光纤通道链路等应用场景。
一、产品特性
- Duplex LC Multi-Mode Transceiver（双工LC多模收发器）
- Operating Data Rate up to 155Mbps（工作数据速率最高155Mbps）
- 1310nm FP laser and PIN photo-detector（1310nm FP激光器和PIN光电探测器）
- Up to 2km transmission with MMF（多模光纤传输距离达2km）
- Single 3.3V power supply（单3.3V电源供电）
- LVPECL Signal Input/Output（LVPECL信号输入/输出）
- LVTTL Transmitter Disable Input（LVTTL发送禁止输入）
- LVTTL Signal Detect Output（LVTTL信号检测输出）
- Small Form Factor 2×5 pin Package（小外形2×5引脚封装）
- Low EMI and excellent ESD protection（低电磁干扰和优异的ESD保护）
- Class I laser safety standard IEC-60825 compliant（符合IEC-60825 Class I激光安全标准）
- RoHS6 Compliance（符合RoHS6标准）
工作温度范围
- 标准级：0~70°C
- 工业级：-40~85°C
二、应用场景
- 100BASE-FX
- SONET / SDH Equipment Interconnect（SONET/SDH设备互连）
- Fiber Channel Links（光纤通道链路）
- Other Optical Links（其他光链路）
三、绝对最大额定值
| Parameter | Symbol | Min | Max | Unit |
|---|---|---|---|---|
| Storage Ambient Temperature | TSTG | -40 | 85 | °C |
| Storage Humidity | HS | 5 | 90 | % |
| Operating Humidity | HO | 5 | 85 | % |
| Power Supply Voltage | VCC | 0 | 3.6 | V |
| Soldering Temperature | 260/10 | °C/S |
四、推荐工作条件
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Operating Case Temperature | Tc | 0 | 70 | °C | FTAF-M1303-02 | |
| Operating Case Temperature | Tc | -40 | 85 | °C | FTAF-M1303-02I | |
| Power Supply Voltage | VCC | 3.135 | 3.3 | 3.465 | V | |
| Power Consumption | PW | 1 | W | |||
| Data Rate | 155 | Mbps |
五、电气特性
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Total Supply Current | ICC | 300 | mA | |||
| Transmitter | ||||||
| Transmitter Differential Input Voltage | 300 | 2400 | mV | |||
| TX_DIS Input Voltage – High | VIH | 2 | VCC | V | LVTTL | |
| TX_DIS Input Voltage – Low | VIL | 0 | 0.8 | V | LVTTL | |
| Input Differential Impedance | 85 | 100 | 115 | Ω | ||
| Receiver | ||||||
| Receiver Differential Output Voltage | 500 | 1200 | mV | AC Coupled | ||
| SD Voltage – High | VSDH | 2.4 | VCC | V | LVTTL | |
| SD Voltage – Low | VSDL | 0 | 0.4 | V | LVTTL | |
| SD Assert Time | TSDA | 100 | us | |||
| SD De-assert Time | TSDD | 100 | us | |||
| Output Differential Impedance | 90 | 100 | 110 | Ω |
六、光发射/接收特性
Note 1: Measured with PRBS 223-1 @155Mbps, ER=9dB, BER ≤1×10-12
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
|---|---|---|---|---|---|---|
| Average Output Power | POUT | -20 | -14 | dBm | ||
| Extinction Ratio | ER | 9 | dB | |||
| Center Wavelength | λC | 1260 | 1310 | 1360 | nm | |
| Spectrum Width | ∆λ | 3.5 | nm | |||
| Optical Rise Time | TR | 260 | ps | 20% to 80% | ||
| Optical Fall Time | TF | 260 | ps | 20% to 80% | ||
| Transmitter OFF Power | POFF | -45 | dBm | |||
| Output Eye Diagram | Compliant with IEEE 802.3z | |||||
| Relative Intensity Noise | -115 | dB/Hz | ||||
| Optical Return Loss Tolerance | 15 | dB | ||||
| Transmitter Reflectance | -10 | dB | ||||
| Jitter P-P | TJ | 0.1 | UI | |||
| Optical Receiver Characteristics | ||||||
| Center Wavelength | λC | 1260 | 1360 | nm | ||
| Receiver Sensitivity | SEN | -31 | dBm | Note 1 | ||
| Input Saturation Power (Overload) | SAT | -8 | dBm | |||
| SD Assert Level | SDA | -32 | dBm | |||
| SD De-assert Level | SDD | -45 | dBm | |||
| SD Hysteresis | HYS | 0.5 | 6 | dB |
七、引脚定义
Note 1: RX_SD, LVTTL logic output, with internal 10KΩ pull-up resistor.
Note 2: Tx_DIS, LVTTL logic input, with internal 10KΩ pull-up resistor.
Note 3: The mounting studs are provided for transceiver mechanical attachment to circuit board. They may also provide an optional connection of the transceiver to the equipment chassis ground. The holes in the circuit board must be tied to chassis ground. It is not recommended that the mounting studs be connected to signal ground.
| Pin No | Symbol | Name/Description | Note |
|---|---|---|---|
| 1 | VEER | Receiver Ground | |
| 2 | VCCR | Receiver Power | |
| 3 | RX_SD | Receiver Signal Detected Indication, LVTTL Output | Note1, Low: loss of signal; High: signal detected; |
| 4 | RD- | Inv. Receiver Data Out | CML output, AC coupled |
| 5 | RD+ | Receiver Data Out | CML output, AC coupled |
| 6 | VCCT | Transmitter Power | |
| 7 | VEET | Transmitter Ground | |
| 8 | Tx_DIS | Transmitter Disable, Transmitter disables on high or open. | Note 2, LVTTL input |
| 9 | TD+ | Transmit Data In | LVPECL logic input, AC coupled |
| 10 | TD- | Inv. Transmit Data In | LVPECL logic input, AC coupled |
| F | MS | Mounting Studs | Note 3 |

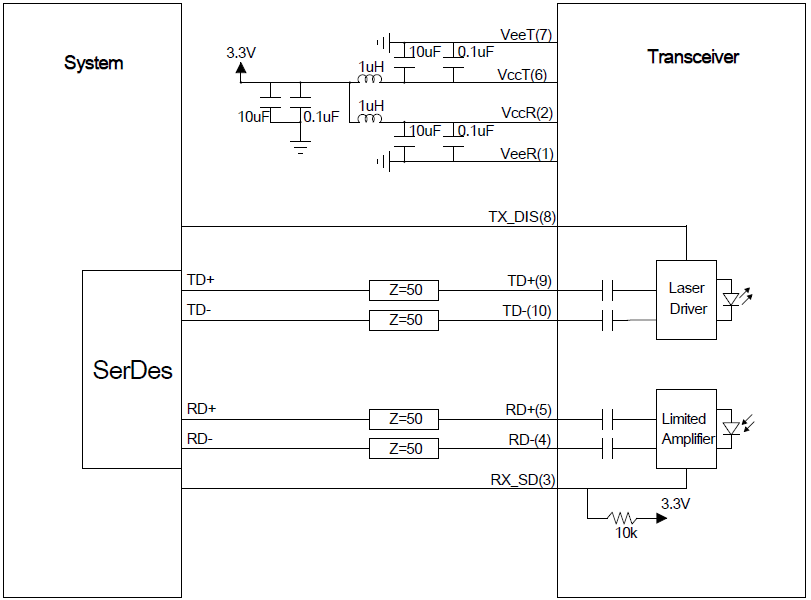

八、典型应用电路

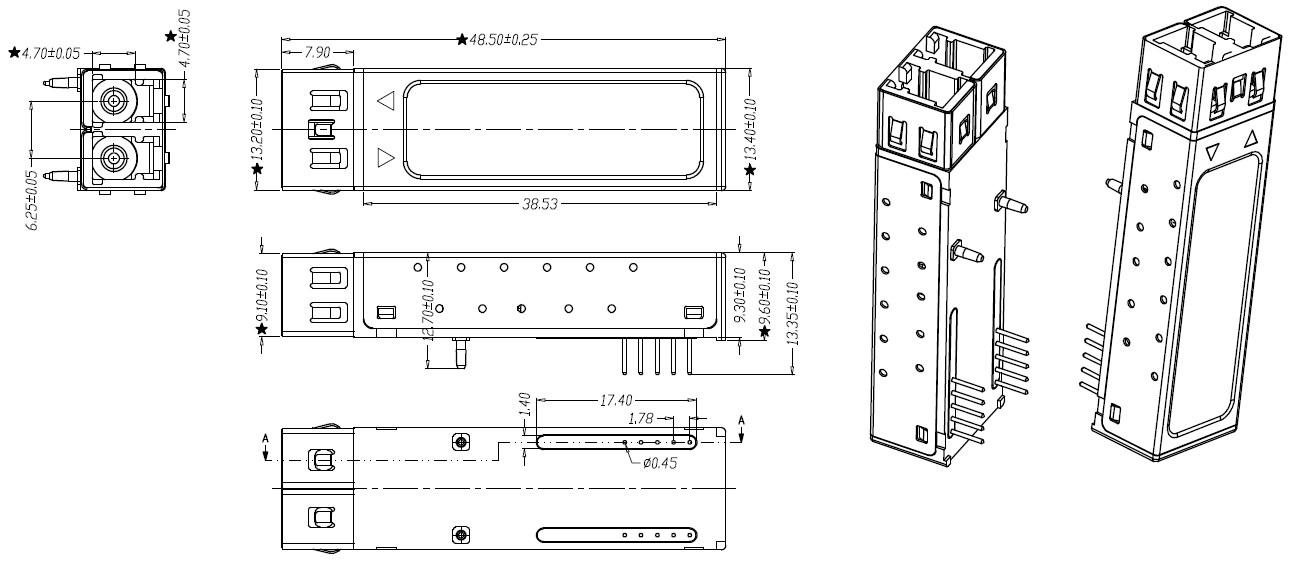

九、封装外形
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
十、产品订购信息
| Part Number | Package | Wavelength (nm) | Temperature (°C) | Fiber | Reach (km) | DDM |
|---|---|---|---|---|---|---|
| FTAF-M1303-02 | SFF 2×5 | 1310 | 0~70 | MMF | 2 | No |
| FTAF-M1303-02I | SFF 2×5 | 1310 | -40~85 | MMF | 2 | No |
