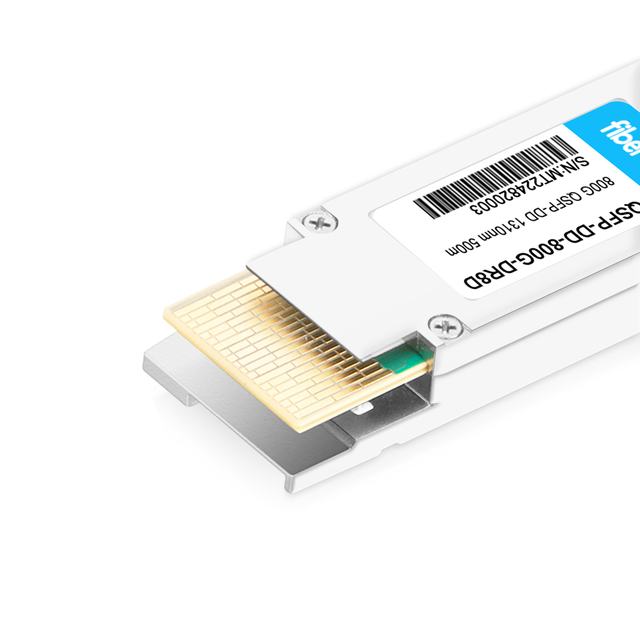

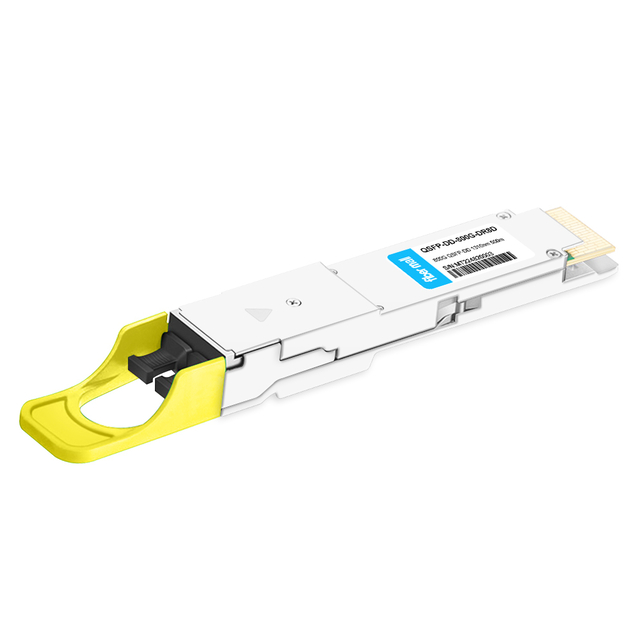

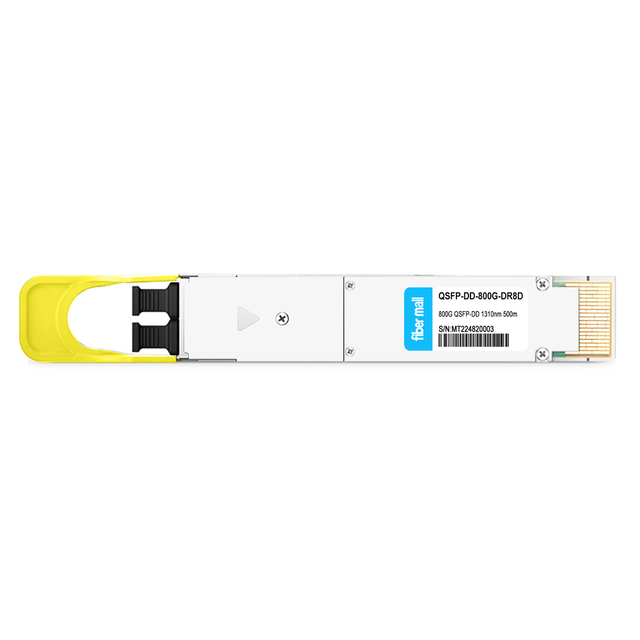

QSFP-DD-800G-DR8D — F-tone QSFP-DD-800G-DR8D QSFP-DD 8x100G DR Transceiver Module is designed for 800GBASE Ethernet throughput up to 500m over SMF with Dual MPO-12 connectors.
产品详情
| 产品参数 — F-tone | |||
| F-tone型号 | QSFP-DD-800G-DR8D | 制造商名称 | F-tone |
| 封装 | QSFP-DD | 传输速率 | 850Gbps (8x 106.25Gbps) |
| 波长 | 1310nm | 最远传输距离 | 500m |
| 调制技术 | PAM4 | 设备要求 | FEC |
| 接口类型 | 双 MPO-12 | 电压 | 3.3V |
| 线缆类型 | 单模(SMF) | 是否支持DDM | Yes |
| 发射激光器类型 | EML | 光接收器件类型 | PIN |
| 发射光功率 | -2.9~+4.0dBm | 接收灵敏度 | < -5.9dBm |
| 工作温度 | 0 to 70°C (32 to 158°F) | 最大功耗 | < 16W |
| 协议 | IEEE 802.3cu, IEEE P802.3ck, QSFP-DD MSA HW Rev 6.01, CMIS5.0 | 应用 | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
| F-tone型号 | QSFP-DD-800G-DR8D | 制造商名称 | F-tone |
| 封装 | QSFP-DD | 传输速率 | 850Gbps (8x 106.25Gbps) |
| 波长 | 1310nm | 最远传输距离 | 500m |
| 调制技术 | PAM4 | 设备要求 | FEC |
| 接口类型 | 双 MPO-12 | 电压 | 3.3V |
| 线缆类型 | 单模(SMF) | 是否支持DDM | Yes |
| 发射激光器类型 | EML | 光接收器件类型 | PIN |
| 发射光功率 | -2.9~+4.0dBm | 接收灵敏度 | < -5.9dBm |
| 工作温度 | 0 to 70°C (32 to 158°F) | 最大功耗 | < 16W |
| 协议 | IEEE 802.3cu, IEEE P802.3ck, QSFP-DD MSA HW Rev 6.01, CMIS5.0 | 应用 | 800G Ethernet, Data Center Interconnect, Infiniband Interconnects |
QSFP-DD-800G-DR8D QSFP-DD 8x100G DR Optical Transceiver Module (SMF, 1310nm, 500m, Dual MPO-12, DDM)
QSFP-DD 8x100G DR transceiver module can be used for 800 Gigabit Ethernet connections over 500m of single-mode fiber. The module includes eight parallel channels with a central wavelength of 1310nm and the operating rate of each channel is 106.25Gbps.
Quality Assurance
Quality Certification
our advantages
-
Keep In Stock
- Fast Delivery
-
Professional Service
- Technical Support
-
Worry-Free Guarantee
- Shopping Satisfactorily
-
Premium Quality
- High stability
Rigorous Industrial ProductTesting
Optical communication products belong to industrial products,which require high stability and reliability.F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably
-
Temperature Impact
- High and low temperature cycle,aging test to ensure good temperature characteristics
-
Mechanical Impact
- Mechanicalvibration testing to ensure the stability of products
-
EMI Testing
- Excellent designand rigorous testing ensuregood EMI performance
-
MTBF Testing
- MTBF(Mean Time between Failures)testing ensure high stablility
100% 3rd Party Compatible
F-tone Compatibility Testing Center has most of the mainstream brand switches and devices.Before
shipment,We will code the optical modules or DAC/AOC cables,then test them on the corresponding switches to ensure that our products are 100% compatible with your system.
- Coding(EEPROM Programming)
- Testing system
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
