FTAF-1303-10xx 155Mbps 1310nm 10km Duplex 2×5 SFF光收发器
155Mbps 1310nm 10km Duplex 2×5 SFF Transceiver
155Mbps 1310nm 10km Duplex 2×5 SFF Transceiver
FTAF-1303-10xx
Features
Duplex LC Single-Mode Transceiver
Operating Data Rate up to 155Mbps
1310nm FP Laser Transmitter and PIN receiver
Single 3.3V power supply
LVPECLSignal Input/Output
LVTTLTransmitter Disable Input
LVTTLSignal Detect Output
Small Form Factor 2×5 pin Package
Low EMI and excellent ESD protection
Class I laser safety standard IEC-60825 compliant
RoHS6 Compliance
Operating Case Temperature
Standard: 0~70°C
Industrial: -40~85°C
Applications
Fast Ethernet
Switch to Switch Interface
Fiber Channel Links
Other Optical Links
Specification
Absolute Maximum Ratings
Paramete r Symbol Min Max Unit
Storage Ambient Te mperature T STG -40 85 °C
Storage Humidity H S 5 90 %
Operating Hu midity H O 5 85 %
Power Supply Voltage V CC 0 3.6 V
Soldering Tempe rature 260/10 °C/S
Recommended Operating Conditions
Parameter Symbol Min Typical Max Unit Notes
0 70 FTAF-1303-10
Operating Case Temperature Tc °C
-40 85 FTAF-1303-10I
Power Supply Voltage V CC 3.135 3.3 3.465 V
Power Consumption P W 1 W
Data Rate 2 155 Mbps
Electric al Charac teristics
Paramete r S ymbol Min Typical Max Unit Notes
Total Supply Current I 300 mA
CC
Transmitter
Transmitter Differential Input
300 2400 mV
Voltage
TX_DIS Input Voltage -High V 2 V V LVTTL
IH CC
TX_DIS Input Voltage -Low V 0 0.8 V LVTTL
IL
Input Differential Impedance 85 100 115 Ω
Receiver
Receive r Differential O utput
500 1200 mV AC Coupled
Voltage
| Absolute Maximum Ratings | ||||
|---|---|---|---|---|
| Parameter | Symbol | Min | Max | Unit |
| Storage Ambient Temperature | T STG |
-40 | 85 | °C |
| Storage Humidity | H S |
5 | 90 | % |
| Operating Hu midity | H O |
5 | 85 | % |
| Power Supply Voltage | V CC |
0 | 3.6 | V |
| Soldering Tempe rature | 260/10 | °C/S |
| Recommended Operating Conditions | ||||||
|---|---|---|---|---|---|---|
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Operating Case Temperature | Tc | 0 | 70 | °C | FTAF-1303-10 | |
| -40 | 85 | FTAF-1303-10I | ||||
| Power Supply Voltage | V CC |
3.135 | 3.3 | 3.465 | V | |
| Power Consumption | P W |
1 | W | |||
| Data Rate | 2 | 155 | Mbps |
| Electric al Charac teristics | ||||||
|---|---|---|---|---|---|---|
| Parameter | Symbol | Min | Typical | Max | Unit | Notes |
| Total Supply Current | I CC |
300 | mA | |||
| Transmitter | ||||||
| Transmitter Differential Input Voltage |
300 | 2400 | mV | |||
| TX_DIS Input Voltage -High | V IH |
2 | V CC |
V | LVTTL | |
| TX_DIS Input Voltage -Low | V IL |
0 | 0.8 | V | LVTTL | |
| Input Differential Impedance | 85 | 100 | 115 | Ω | ||
| Receiver | ||||||
| Receive r Differential O utput Voltage |
500 | 1200 | mV | AC Coupled |
Elec trical Cha racterist ics
Paramete r Symbo l Min Typ ical Max Un it Notes
SD V oltage -High V
SDH
2. 4 V
CC
V LVTTL
SD Voltage -Low V
SDL
0 0.4 V LVTTL
SDAssert Time T
S DA
100 us
SDDe-assert Time T 100 us
SDD
Output Differential Impedance 90 100 110 Ω
Optical Tr ansmitte r Chara cteristics
Parameter Symb ol Min Typ ical Ma x Uni t Not es
Average Output Powe r P
OU T
-15 -6 dBm
Extinction Ratio ER 9 dB
Center Wavelength λ
C
12 60 13 10 1360 nm
Spectrum Width ∆λ 3.5 nm
Transmitter OFF Power P
O FF
-45 dBm
Output Eye Diagram Com pliant with IEEE 8 02.3z
Relative Intensity Noise -115 dB/H z
Optical Return Loss Tolerance 15 dB
Transmitter Reflectance -10 dB
Jitter P-P T
J
0.1 UI
Optical Receiver C harac teristics
Parameter Symbo l Mi n Typ ical Max Unit Notes
Center W avelength λ 126 0 13 60 nm
C
Receiver Sensitivit y SEN -28 dBm Not e 1
Input Saturation Power (Ov erload) SAT -3 dBm
SD Assert Leve l SDA -29 dBm
SD De-assert Level SDD -45 dBm
SD Hysteresis HYS 0.5 6 dB
Note 1: Measured with PRBS 223-1@155Mbps, ER=9dB, BER ≤1×10-12
| Elec trical Cha racterist ics | ||||||
|---|---|---|---|---|---|---|
| Paramete r | Symbo l | Min | Typ ical | Max | Un it | Notes |
| SD V oltage -High | V SDH |
2. 4 | V CC |
V | LVTTL | |
| SD Voltage -Low | V SDL |
0 | 0.4 | V | LVTTL | |
| SDAssert Time | T S DA |
100 | us | |||
| SDDe-assert Time | T SDD |
100 | us | |||
| Output Differential Impedance | 90 | 100 | 110 | Ω |
| Optical Tr ansmitte r Chara cteristics | ||||||
|---|---|---|---|---|---|---|
| Parameter | Symb ol | Min | Typ ical | Ma x | Uni t | Not es |
| Average Output Powe r | P OU T |
-15 | -6 | dBm | ||
| Extinction Ratio | ER | 9 | dB | |||
| Center Wavelength | λ C |
12 60 | 13 10 | 1360 | nm | |
| Spectrum Width | ∆λ | 3.5 | nm | |||
| Transmitter OFF Power | P O FF |
-45 | dBm | |||
| Output Eye Diagram | Com pliant with IEEE 8 02.3z | |||||
| Relative Intensity Noise | -115 | dB/H z | ||||
| Optical Return Loss Tolerance | 15 | dB | ||||
| Transmitter Reflectance | -10 | dB | ||||
| Jitter P-P | T J |
0.1 | UI | |||
| Optical Receiver C harac teristics | ||||||
| Parameter | Symbo l | Mi n | Typ ical | Max | Unit | Notes |
| Center W avelength | λ C |
126 0 | 13 60 | nm | ||
| Receiver Sensitivit y | SEN | -28 | dBm | Not e 1 | ||
| Input Saturation Power (Ov erload) | SAT | -3 | dBm | |||
| SD Assert Leve l | SDA | -29 | dBm | |||
| SD De-assert Level | SDD | -45 | dBm | |||
| SD Hysteresis | HYS | 0.5 | 6 | dB |
Pin Definition
PinNo Symbol Name/Description No te
1 V R Receiver Ground
EE
2 V R Receiver Power
CC
Note1,
Receiver Signal Detected Indication,
3 RX_SD Low: loss of signal;
LVTTL Output
High:signal detected;
4 RD- Inv. Receiver Data Out CML output, AC coupled
5 RD+ Receiver Data Out CML output, AC coupled
6 V T Transmitter Power
CC
7 V T Transmitter Ground
EE
Transmitter Disable,Transmitter Note 2,
8 Tx_DI S
disables on high or open. LVTTLinput
9 TD+ Transmit Data In LVPECLlogic input, AC coupled
10 TD- Inv. Transmit Data In LVPECLlogic input, AC coupled
F MS Mounting Studs Note 3
Note 1: RX_SD, LVTTL logic output, with internal 10KΩ pull-up resistor.
Note 2: Tx_DIS, LVTTL logic input, with internal 10KΩ pull-up resistor.
Note 3: The mounting studs are provided for transceiver mechanical attachment to circuit board. They
may also provide an optional connect ion of the transceiver to the equipment chassis ground. The
holes in the circuit board must be tied to chassis ground. It is not recommended that the mounting
studs be connected to signal ground.
| PinNo | Symbol | Name/Description | No te |
|---|---|---|---|
| 1 | V R EE |
Receiver Ground | |
| 2 | V R CC |
Receiver Power | |
| 3 | RX_SD | Receiver Signal Detected Indication, LVTTL Output |
Note1, Low: loss of signal; High:signal detected; |
| 4 | RD- | Inv. Receiver Data Out | CML output, AC coupled |
| 5 | RD+ | Receiver Data Out | CML output, AC coupled |
| 6 | V T CC |
Transmitter Power | |
| 7 | V T EE |
Transmitter Ground | |
| 8 | Tx_DI S | Transmitter Disable,Transmitter disables on high or open. |
Note 2, LVTTLinput |
| 9 | TD+ | Transmit Data In | LVPECLlogic input, AC coupled |
| 10 | TD- | Inv. Transmit Data In | LVPECLlogic input, AC coupled |
| F | MS | Mounting Studs | Note 3 |

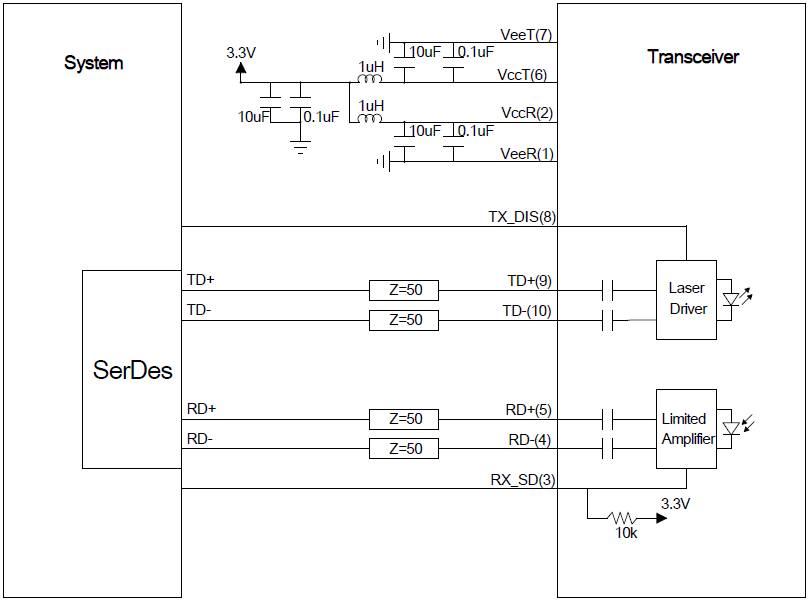

Typical Application Circuit

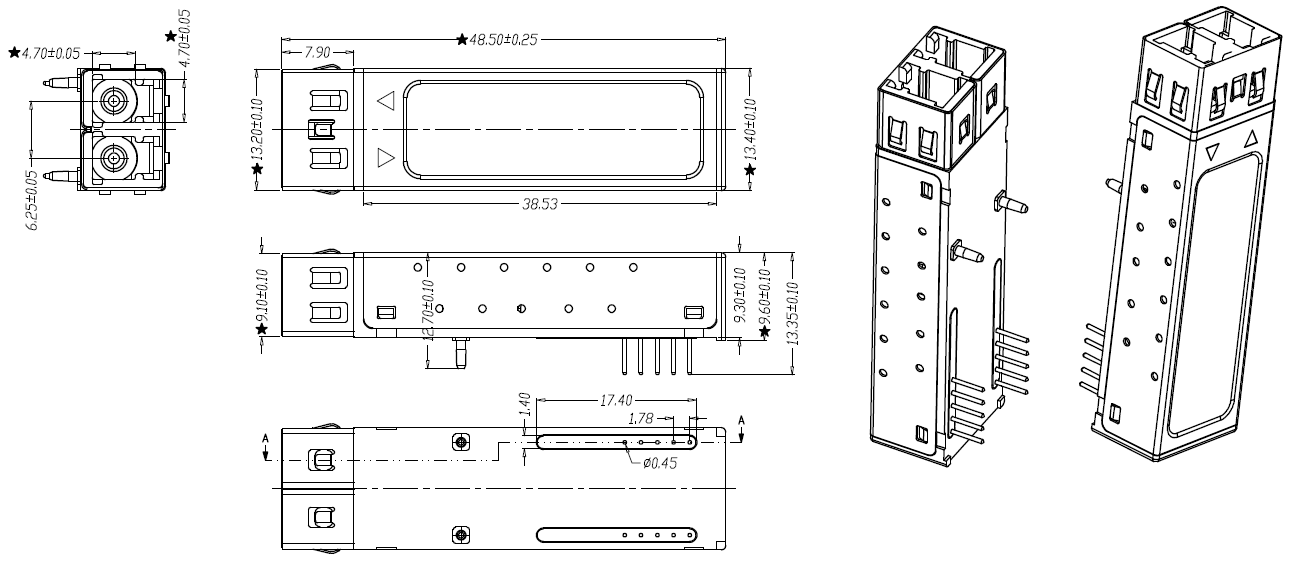

Package Outline
Dimensions are in millimeters. All dimensions are ±0.1mm unless otherwise specified. (Unit: mm)
Ordering Information
Specifications
Part Number Wavelength Temperature Reach
Package Fiber DDM
(nm) (°C) (km)
FTAF-1303-10 SFF 2×5 1310 0~70 SMF 10 No
FTAF-1303-10I SFF 2×5 1310 -40~85 SMF 10 No
企业信息
| 企业信息 | |
|---|---|
| 公司名 | 北亿纤通 | F-toneNetworks |
| 地区 | 中国四川天府新区 |
| 服务区域 | 全球 |
| 企业电话 | 028-85255257 |
| 企业传真 | 028-85977702 |
| 企业手机 | 19081343401 |
| Site | https://www.f-tone.com |
| 人事部 | hr@f-tone.com |
| 市场部 | sales@f-tone.com |
| 技术支持 | support@f-tone.com |
本产品为SFF光收发器产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
