F-tone broadband phase modulators combine high linearity with low driving voltage and small footprint, covering the modulation bandwidth up to 10 GHz, and wavelength range of 1025-1090 nm.
Key Features
- Operating at wavelength range of 1025 -1090 nm
- Low drive voltage compatible with commercially available driver
- Low optical insertion loss
- Extended operating temperature from -55 to +85 °C
Applications
- Ultra-fast high-power laser
- Frequency shifting
- Phase shifting
- Laser linewidth broadening
- Laser beam combining

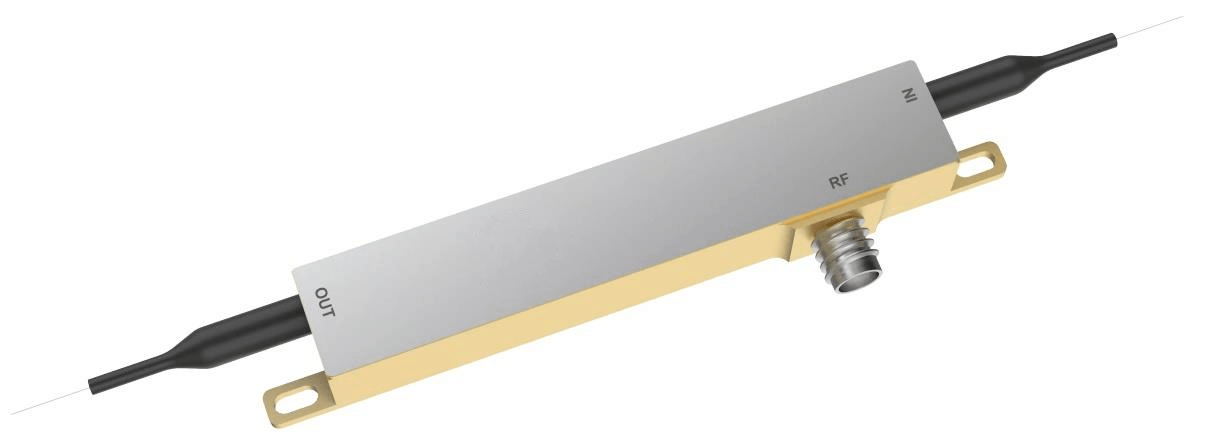

Product Image
Absolute Maximum Ratings
| Parameters | Symbol | Min. | Max. | Unit |
|---|---|---|---|---|
| RF Input Power | EPin | – | 33 | dBm |
| OpticalInput Power | OPin | – | 25 | dBm |
| Operating Temperature | Top | -55 | +85 | °C |
| Storage Temperature | Tst | -55 | +85 | °C |
| Operating Humidity | RH | 5 | 85 | % |
Specifications
| Parameters | Symbol | Conditions | Min. | Typical | Max. | Unit |
|---|---|---|---|---|---|---|
| Optical | ||||||
| Operating Wavelength | λ | – | 1025 | – | 1090 | nm |
| Insertion Loss1 (W/OConnecto | r) IL | Standard | – | 2.5 | 3.0 | dB |
| Premium | – | 1.5 | 2.0 | |||
| Optical Return Loss | RL | – | 40 | – | – | dB |
| Polarization Depedent Loss2 | PDL | – | 20 | – | – | dB |
| Polarization Extinction Ratio3 | PER | – | 20 | dB | ||
| Electrical | ||||||
| Electro-Optic Ba ndwidth4 | S21 | FT- 46-PM0.2-1060-XT | 0.2 | – | – | GHz |
| FT -46-PM2.5-1060-XT | 2.5 | – | – | |||
| FT -46-PM10-1060-XT | 10 | – | – | |||
| S21Ripple 4 | ΔS21 | – | – | 0.5 | 1.0 | dB |
| Electrical Return Loss | S11 | – | – | – | -10 | dB |
| Vπ Voltage4 | Vπ | @ 1 kHz | – | – | 2 | V |
| RF Input Impedance | Zin-RF | – | 50 | – | Ω |
Pinout and Fiber Specifications
| RF Connector | 2.92mm Female K-connector |
|---|---|
| Fiber Type | Corning PM98-U25D (PM980) with 900 µm loose tube |
| Fiber Length | 900 µm loose tub e> 1.5m&bare fibe r ≥ 5cm(W/O Connector) |
| 900 µm loose tub e> 1.4m(With Con nector) | |
| Fiber Minimum Bending Radius | 15mm |
| Fiber Polarization Alignme nt | Slow axisfor both input a nd output |

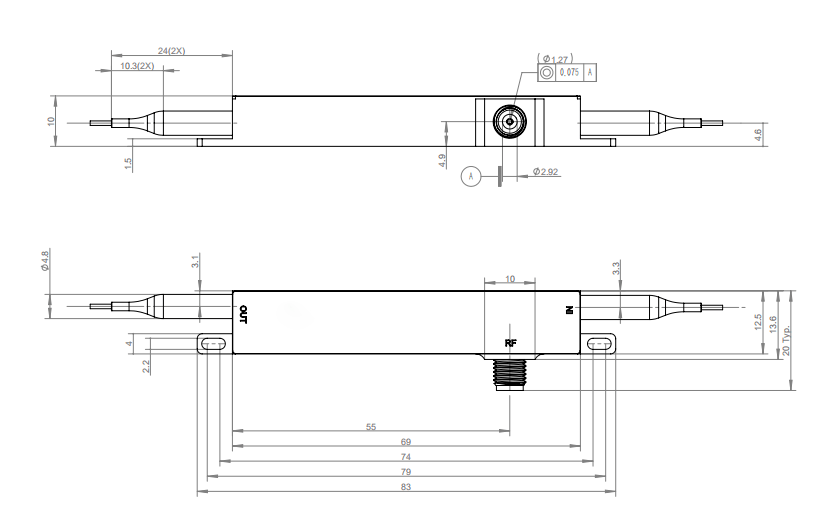

Mechanical Outline
RoHS Compliance
This series of modulators are RoHS compliant.
Reliability Requirements
This series of modulators are designed to meet Telcordia GR-468-Core and GR-326 requirements.
Ordering Information
| Product Description | Part Number |
|---|---|
| FT-46-PM0.2-1060-XT, 1060 nm0.2GHz LiNbO3 Phase Modulator (Corning PM98-U25D, flame retardant (compliant V0),900 µmloose tube fiber > 1.5 m & bare fiber ≥ 5cm) |
FT-103076100010 |
| FT-46-PM0.2-1060-XT, 1060 nm0.2 GHz LiNbO Phase Modulator 3 (Corning PM98-U25D, flame retardant (compliant V0), >1.4 m900 µmloose tube fiber with FC/APC connectors) |
FT-103076100015 |
| FT-46-PM2.5-1060-XT, 1060 nm2.5 GHz LiNbO Phase Modulator 3 (Corning PM98-U25D, flame retardant (compliant V0), 900 µmloose tube fiber > 1.5 m & bare fiber ≥ 5cm) |
FT-103076100011 |
| FT-46-PM2.5-1060-XT, 1060 nm2.5 GHz LiNbO Phase Modulator 3 (Corning PM98-U25D, flame retardant (compliant V0), >1.4 m900 µmloose tube fiber with FC/APC connectors) |
FT-103076100013 |
| FT-46-PM10-1060-XT, 1060 nm10 GHz LiNbO3 Phase Modulator (Corning PM98-U25D, flame retardant (compliant V0), 900 µmloose tube fiber > 1.5 m & bare fiber ≥ 5cm) |
FT-103076100012 |
| FT-46-PM10-1060-XT, 1060 nm10 GHz LiNbO3 Phase Modulator (Corning PM98-U25D, flame retardant (compliant V0), >1.4 m900 µmloose tube fiber with FC/APC connectors) |
FT-103076100014 |
| FT-46-PM0.2-1060-XT, Premium 1060 nm0.2 GHz LiNbO3 Ph ase Modulator (Corning PM98-U25D, flame retardant (compliant V0), 900 µmloose tube fiber > 1.5 m & bare fiber ≥ 5cm) |
FT-103076100016 |
| FT-46-PM0.2-1060-XT, Premium1060 nm0.2 GHz LiNbO3 Phase Modulator (Corning PM98-U25D, flame retardant (compliant V0), >1.4 m900 µmloose tube fiber with FC/APC connectors) |
FT-103076100017 |
| FT-46-PM2.5-1060-XT, Premium1060 nm2.5 GHz LiNbO3 Phase Modulator (Corning PM98-U25D, fla me retardant (compliant V0), 900 µmloose tube fiber > 1.5 m & bare fiber ≥ 5cm) |
FT-103076100018 |
| FT-46-PM2.5-1060-XT, Premium1060 nm2.5 GHz LiNbO3 Phase Modulator (Corning PM98-U25D, flame retardant (compliant V0), >1.4 m900 µm loose tube fiber with FC/APC connectors) |
FT-103076100019 |
| FT-46-PM10-1060-XT, Premium 1060 nm10 GHz LiNbO3 Phase Modulator (Corning PM98-U25D, flame retardant (compliant V0), 900 µmloose tube fiber > 1.5 m & bare fiber ≥ 5cm) |
FT-103076100020 |
| FT-46-PM10-1060-XT, Premium 1060 nm10 GHz LiNbO3 Phase Modulator (Corning PM98-U25D, flame retardant (compliant V0), >1.4 m900 µmloose tube fiber with FC/APC connectors) |
FT-103076100021 |
