JYSK22N05Z 光纤插头技术规格书
JYSK22N05Z是一款高性能光纤插头连接器，具有低插入损耗（JYS≤0.5dB）、优异的机械耐久性（≥500次插拔）和宽工作温度范围（-40°C~+80°C）。该产品适用于军用及工业级光纤通信系统，满足严苛环境下的可靠连接需求。
型号信息
型号：JYSK22N05Z
外形尺寸

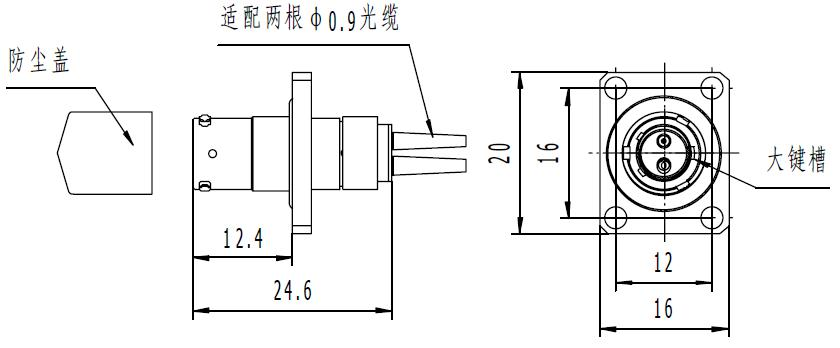

插座外形尺寸

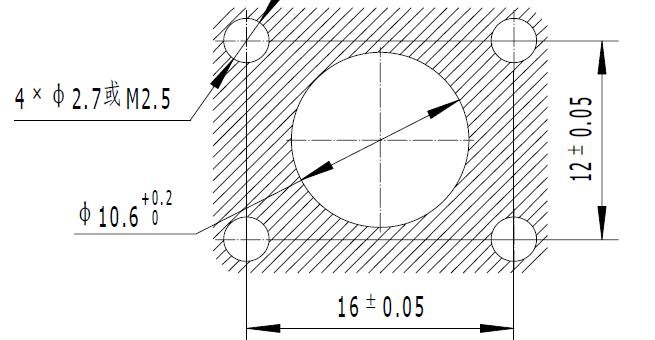

插座安装尺寸
产品性能
| 项目 | 参数 |
|---|---|
| 插入损耗 | JYS≤0.5dB |
| 机械耐久性 | ≥500次 |
| 工作温度 | -40℃～+80℃ |
本产品为光纤连接器产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
