RP7F11T10-12LC-C3x12-2MIV0.5&0.2 Fiber Optic Cable Assembly OM3 12-Core LC

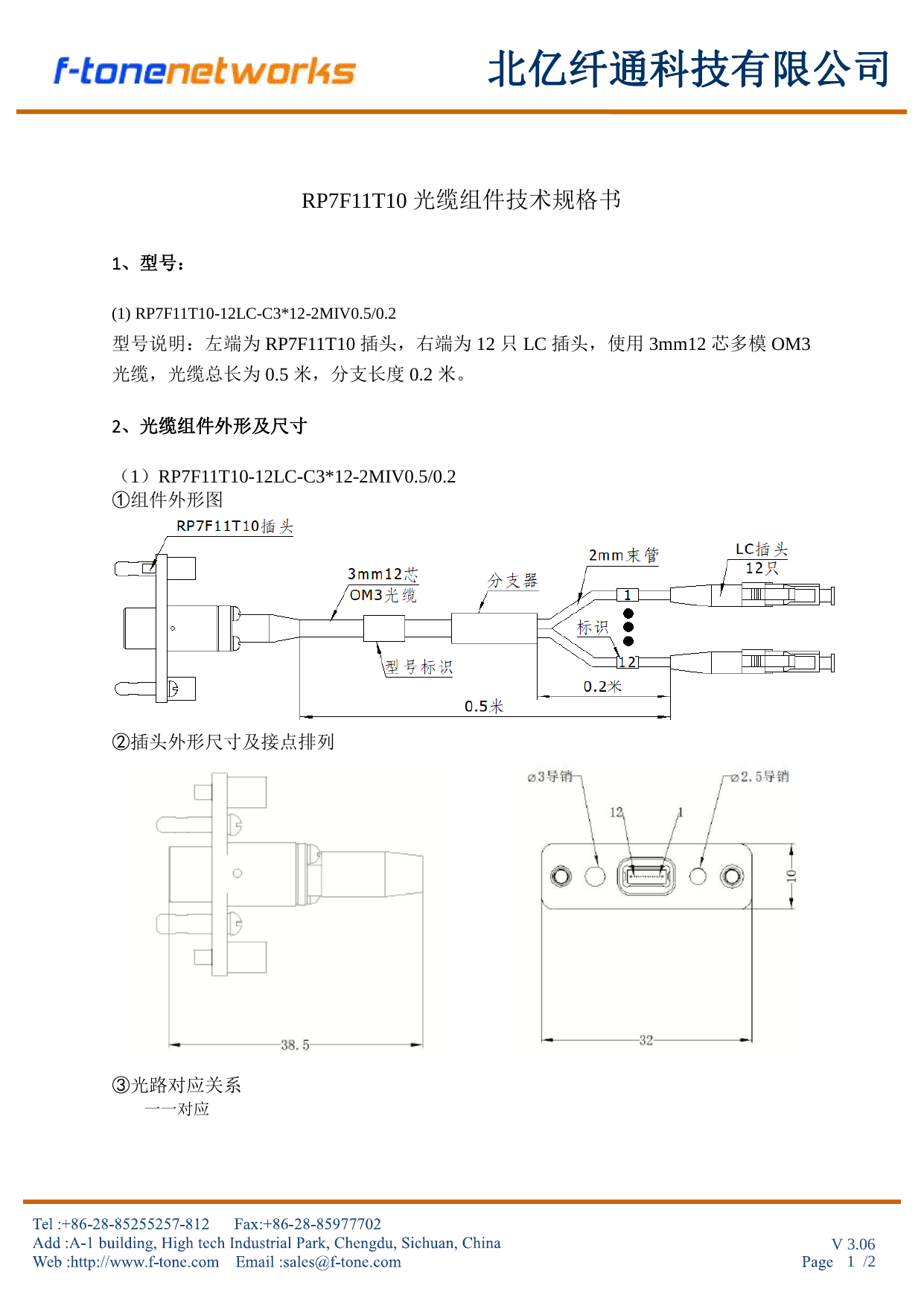

RP7F11T10 光缆组件技术规格书

1、 型号：

(1)RP7F11T10-12LC-C3*12-2MIV0.5/0.2

型号说明：左端为RP7F11T10 插头，右端为 12只 LC 插头，使用 3mm12芯多模OM3

光缆，光缆总长为0.5米，分支长度 0.2米。

2、光缆组件外形及尺寸

（1）RP7F11T10-12LC-C3*12-2MIV0.5/0.2

①组件外形图

②插头外形尺寸及接点排列

③光路对应关 系

一一对应

V 3.06

1 /2

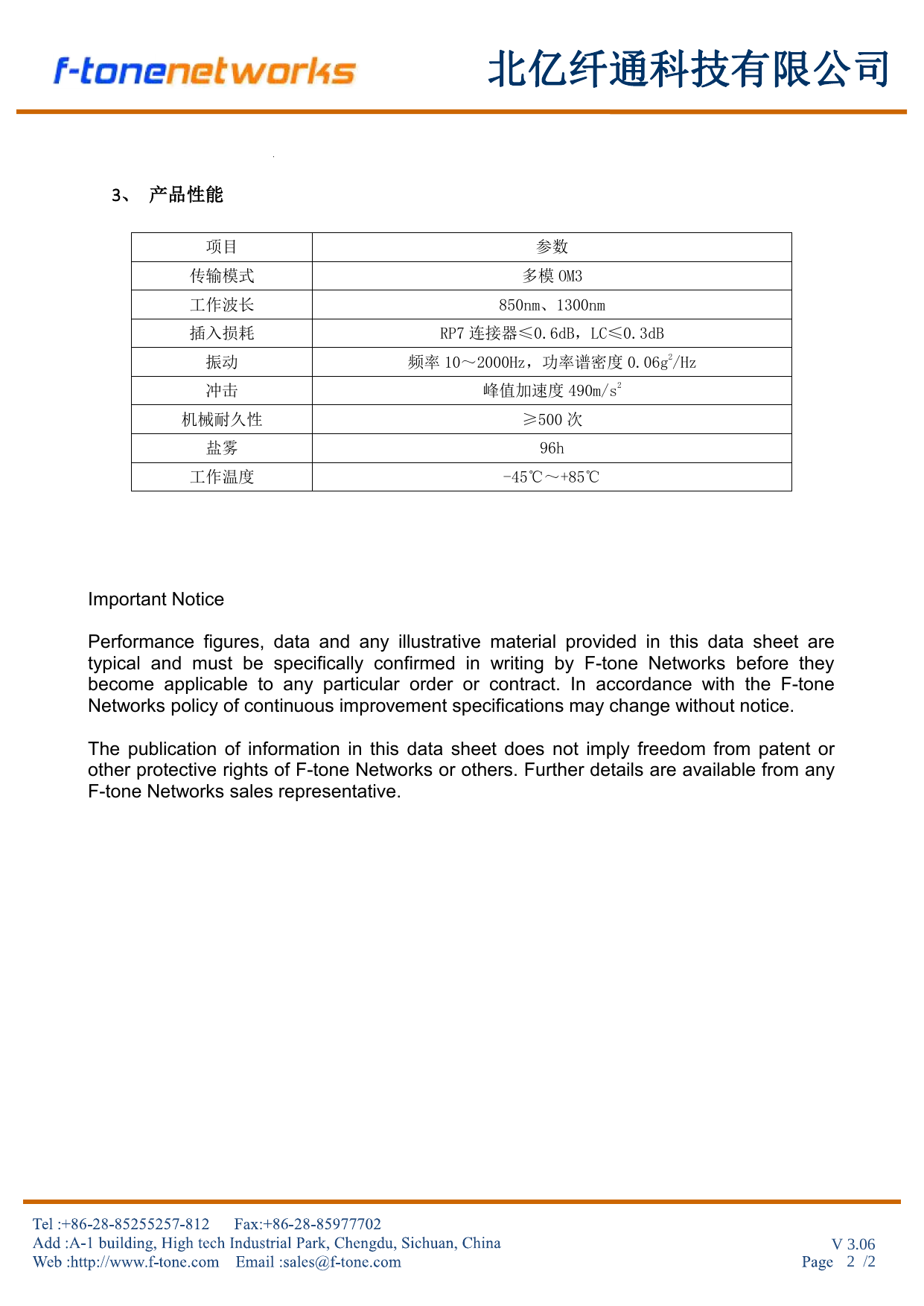

3、 产品性能

项目 参数

传输模式 多模OM3

工作波长 850nm、1300nm

插入损耗 RP7连接器≤0.6dB，LC≤0.3dB

振动 频率10～2000Hz，功率谱密度0.06g2/Hz

冲击 峰值加速度490m/s2

机械耐久性 ≥500次

盐雾 96h

工作温度 -45℃～+85℃

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are

typical and must be specifically confirmed in writing by F-tone Networks before they

become applicable to any particular order or contract. In accordance with the F-tone

Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or

other protective rights of F-tone Networks or others. Further details are available from any

F-tone Networks sales representative.

V 3.06

2 /2

本产品为【光缆组件】产品线，详细信息，请联系我们的销售人员，谢谢！
