RP7F11Q10-8LC-QMF-3MIV4/2.5 光缆组件 V3.06
RP7F11Q10-8LC-QMF-3MIV4/2.5 光缆组件采用左端 RP7F11Q10 插头、右端 8 只 LC 插头的结构，使用八芯多模 OM3 光缆，光缆总长 4 米，分支长度 2.5 米。该组件适用于多模光纤通信系统中的信号传输与分配，具有优异的光学性能和可靠的密封性能。
型号说明
- 左端接口：RP7F11Q10 插头
- 右端接口：8 只 LC 插头
- 光缆类型：八芯多模 OM3 光缆
- 光缆总长：4 米
- 分支长度：2.5 米

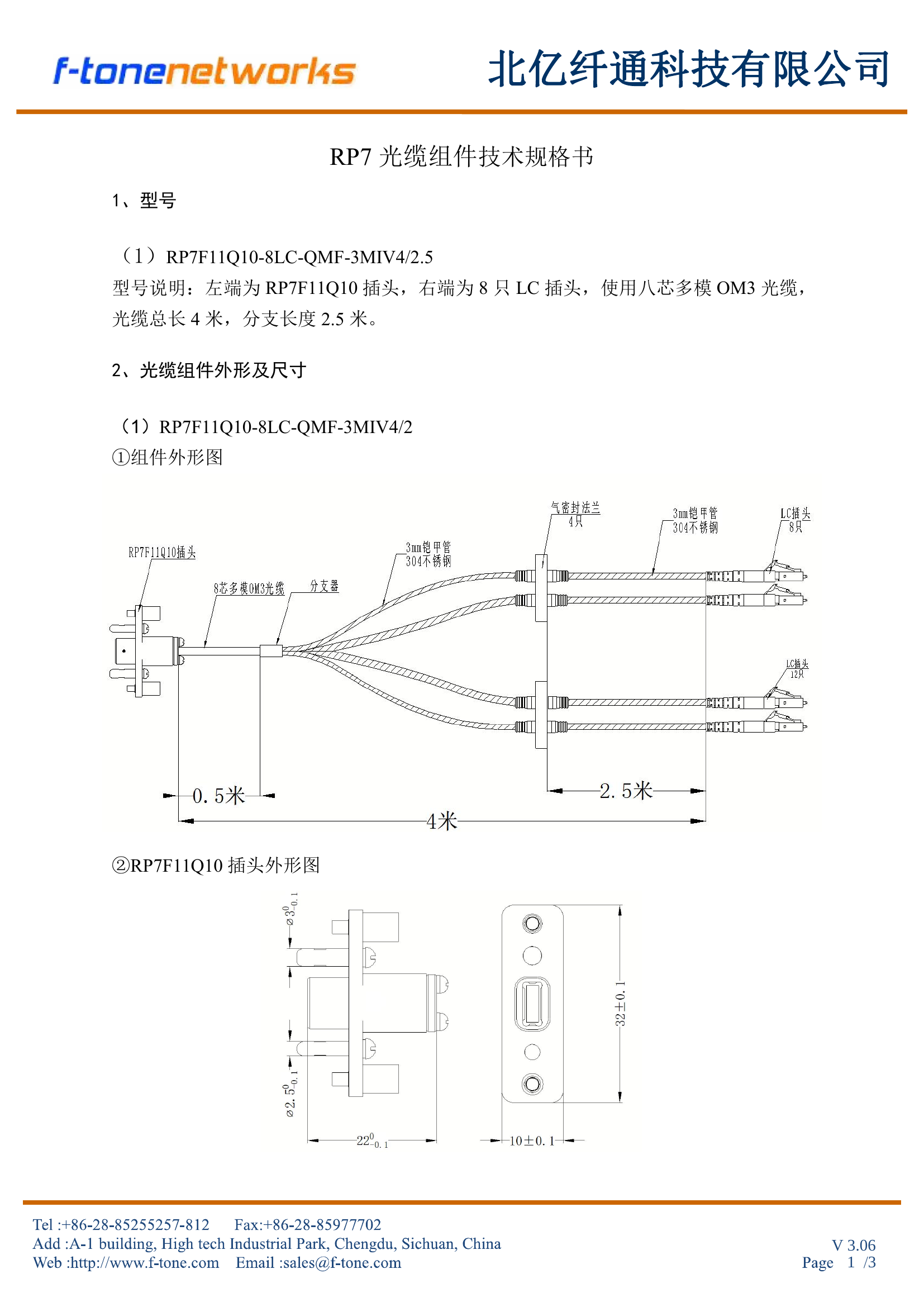

组件外形及尺寸

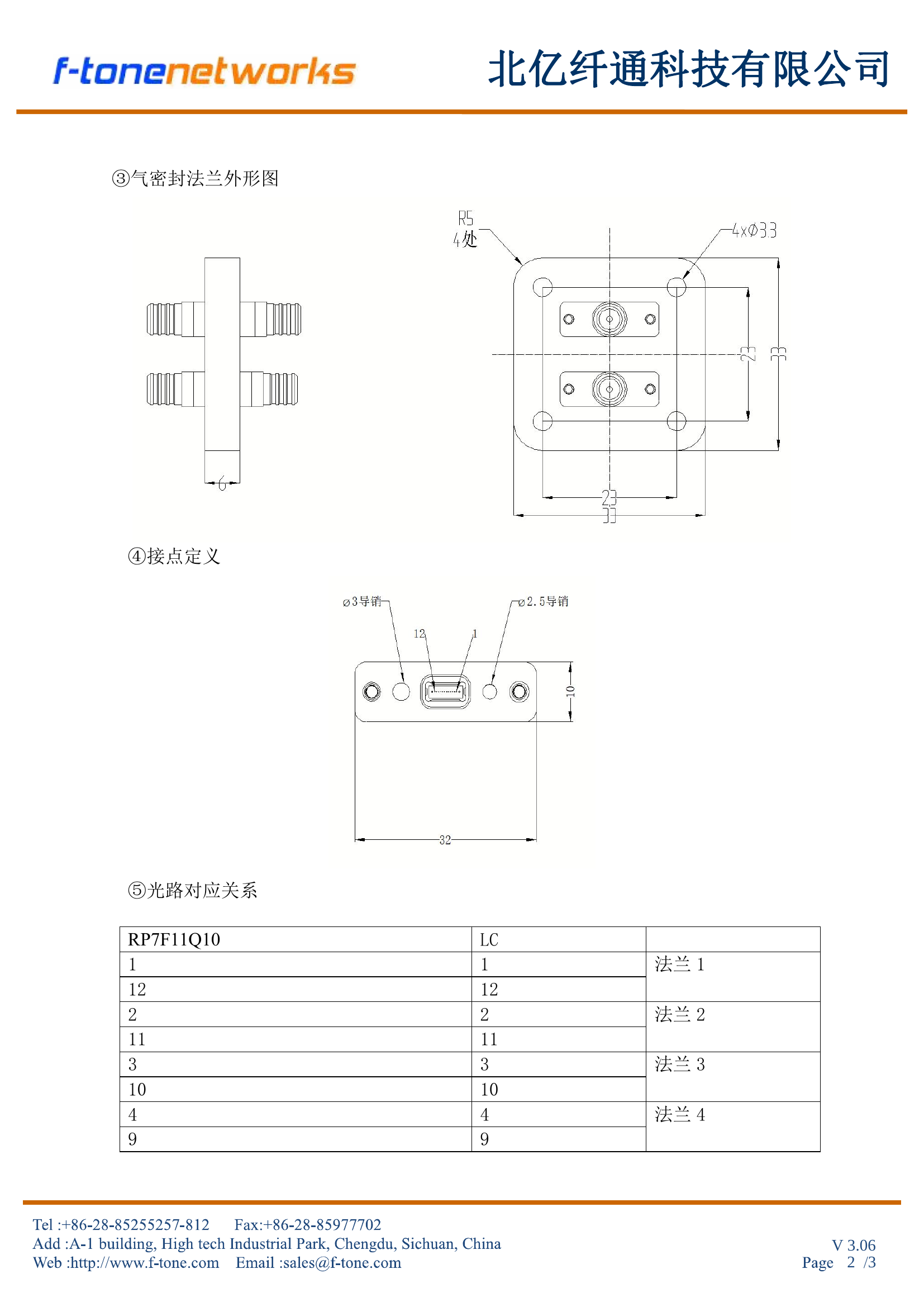

以下文档包含组件外形图、RP7F11Q10 插头外形图、气密封法兰外形图、接点定义及光路对应关系等信息。
光路对应关系
| RP7F11Q10 | LC |
|---|---|
| 1 | 1 (法兰1) |
| 12 | 12 |
| 2 | 2 (法兰2) |
| 11 | 11 |
| 3 | 3 (法兰3) |
| 10 | 10 |
| 4 | 4 (法兰4) |
| 9 | 9 |

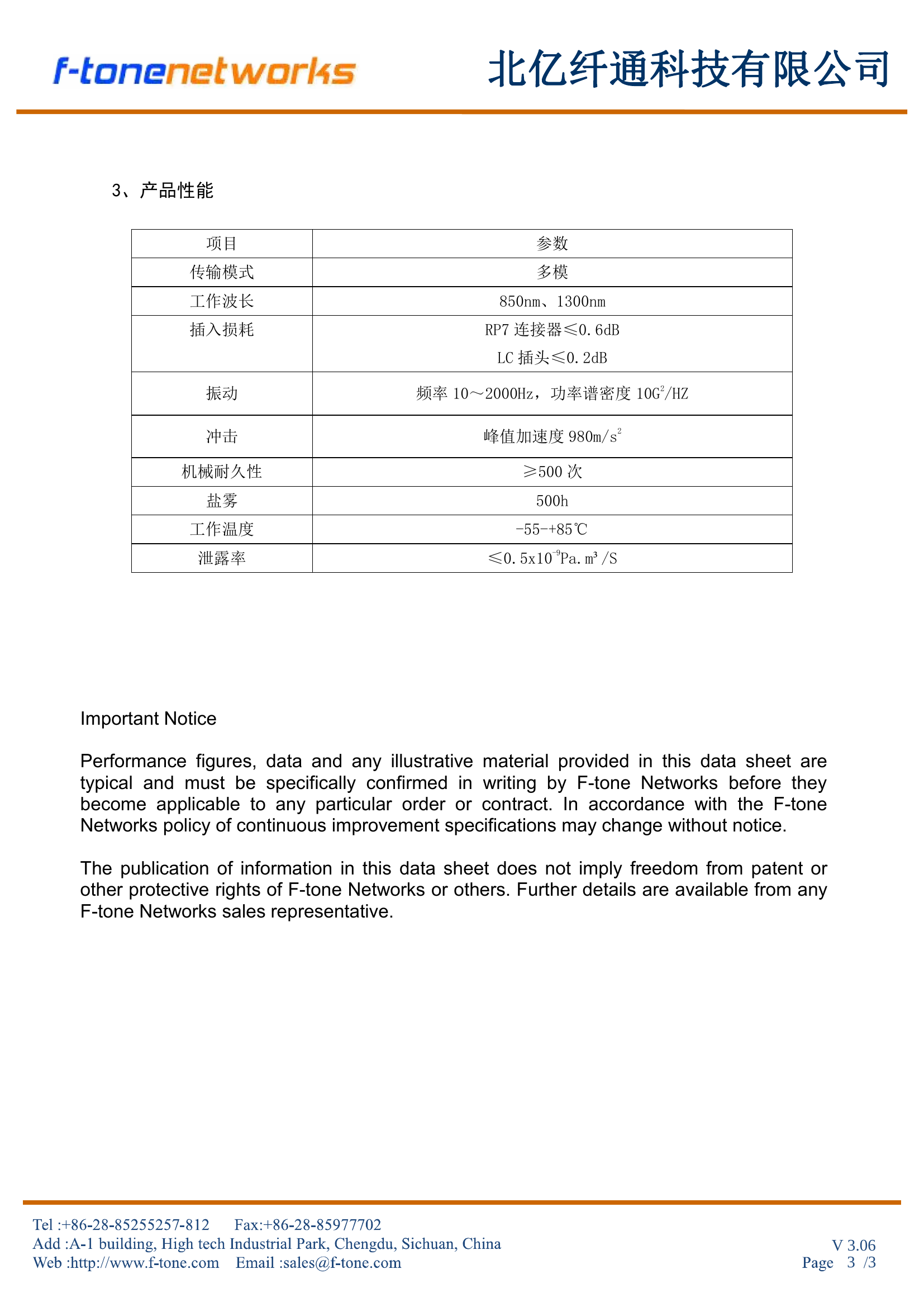

产品性能
| 项目 | 参数 |
|---|---|
| 传输模式 | 多模 |
| 工作波长 | 850nm、1300nm |
| 插入损耗 | RP7 连接器 ≤0.6dB；LC 插头 ≤0.2dB |
| 振动 | 频率 10～2000Hz，功率谱密度 10G²/Hz |
| 冲击 | 峰值加速度 980m/s² |
| 机械耐久性 | ≥500 次 |
| 盐雾 | 500h |
| 工作温度 | -55～+85℃ |
| 泄露率 | ≤0.5×10⁻⁹ Pa·m³/s |
Important Notice: Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others.
