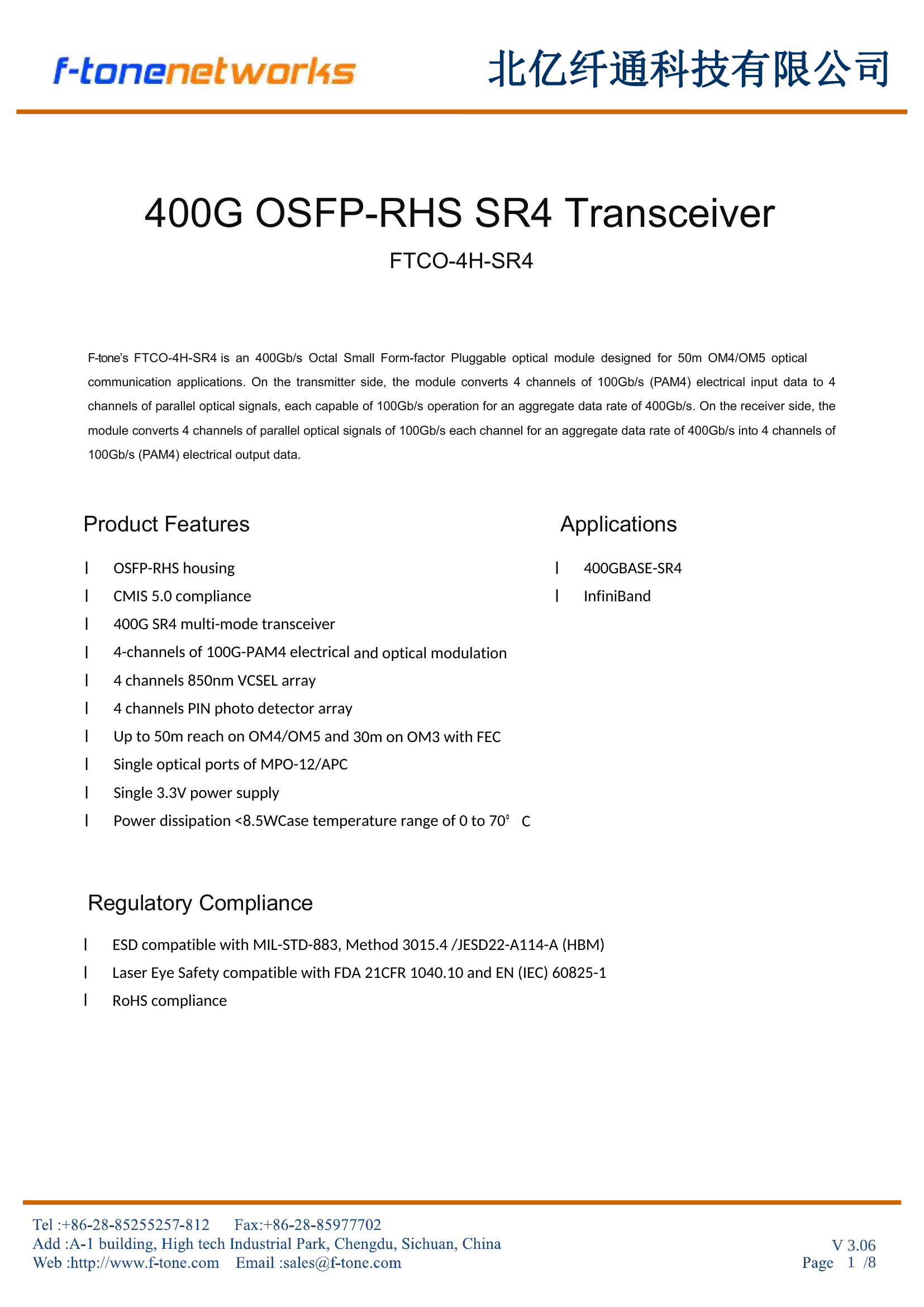

F-tone’s FTCO-4H-SR4 is a 400Gb/s Octal Small Form-factor Pluggable optical module designed for 50m OM4/OM5 optical communication applications. On the transmitter side, the module converts 4 channels of 100Gb/s (PAM4) electrical input data to 4 channels of parallel optical signals, each capable of 100Gb/s operation for an aggregate data rate of 400Gb/s. On the receiver side, the module converts 4 channels of parallel optical signals of 100Gb/s each channel for an aggregate data rate of 400Gb/s into 4 channels of 100Gb/s (PAM4) electrical output data.
Product Features
OSFP-RHS housing
CMIS 5.0 compliance
400G SR4 multi-mode transceiver
4-channels of 100G-PAM4 electrical and optical modulation
4 channels 850nm VCSEL array
4 channels PIN photo detector array
Up to 50m reach on OM4/OM5 and 30m on OM3 with FEC
Single optical ports of MPO-12/APC
Single 3.3V power supply
Power dissipation <8.5W
Case temperature range of 0 to 70°C
Applications
400GBASE-SR4
InfiniBand
Regulatory Compliance
ESD compatible with MIL-STD-883, Method 3015.4 / JESD22-A114-A (HBM)
Laser Eye Safety compatible with FDA 21CFR 1040.10 and EN (IEC) 60825-1
RoHS compliance
Transceiver Block Diagram
Pin Descriptions
Pin
Symbol
Description
Logic
Plug Sequence
1
GND
Ground
1
2
TX2p
Transmitter Data Non-Inverted
CML-I
3
3
TX2n
Transmitter Data Inverted
CML-I
3
4
GND
Ground
1
5
TX4p
Transmitter Data Non-Inverted
CML-I
3
6
TX4n
Transmitter Data Inverted
CML-I
3
7
GND
Ground
1
8
TX6p
Transmitter Data Non-Inverted
CML-I
3
9
TX6n
Transmitter Data Inverted
CML-I
3
10
GND
Ground
1
11
TX8p
Transmitter Data Non-Inverted
CML-I
3
12
TX8n
Transmitter Data Inverted
CML-I
3
13
GND
Ground
1
14
SCL
2-wire Serial interface clock
LVCMOS-I/O
3
15
VCC
+3.3V Power
2
16
VCC
+3.3V Power
2
17
LPWn/PRSn
Low-Power Mode / Module Present
Multi-Level
3
18
GND
Ground
1
19
RX7n
Receiver Data Inverted
CML-O
3
20
RX7p
Receiver Data Non-Inverted
CML-O
3
21
GND
Ground
1
22
RX5n
Receiver Data Inverted
CML-O
3
23
RX5p
Receiver Data Non-Inverted
CML-O
3
24
GND
Ground
1
25
RX3n
Receiver Data Inverted
CML-O
3
26
RX3p
Receiver Data Non-Inverted
CML-O
3
27
GND
Ground
1
28
RX1n
Receiver Data Inverted
CML-O
3
29
RX1p
Receiver Data Non-Inverted
CML-O
3
30
GND
Ground
1
31
GND
Ground
1
32
RX2p
Receiver Data Non-Inverted
CML-O
3
33
RX2n
Receiver Data Inverted
CML-O
3
34
GND
Ground
1
35
RX4p
Receiver Data Non-Inverted
CML-O
3
36
RX4n
Receiver Data Inverted
CML-O
3
37
GND
Ground
1
38
RX6p
Receiver Data Non-Inverted
CML-O
3
39
RX6n
Receiver Data Inverted
CML-O
3
40
GND
Ground
1
41
RX8p
Receiver Data Non-Inverted
CML-O
3
42
RX8n
Receiver Data Inverted
CML-O
3
43
GND
Ground
1
44
INT/RSTn
Module Interrupt / Module Reset
Multi-Level
3
45
VCC
+3.3V Power
2
46
VCC
+3.3V Power
2
47
SDA
2-wire Serial interface data
LVCMOS-I/O
3
48
GND
Ground
1
49
TX7n
Transmitter Data Inverted
CML-I
3
50
TX7p
Transmitter Data Non-Inverted
CML-I
3
51
GND
Ground
1
52
TX5n
Transmitter Data Inverted
CML-I
3
53
TX5p
Transmitter Data Non-Inverted
CML-I
3
54
GND
Ground
1
55
TX3n
Transmitter Data Inverted
CML-I
3
56
TX3p
Transmitter Data Non-Inverted
CML-I
3
57
GND
Ground
1
58
TX1n
Transmitter Data Inverted
CML-I
3
59
TX1p
Transmitter Data Non-Inverted
CML-I
3
60
GND
Ground
1
OSFP Control Pins
Parameter
Function
Description
SCL
BiDir
2-wire serial clock signal. Requires pull-up resistor to 3.3V on host.
SDA
BiDir
2-wire serial data signal. Requires pull-up resistor to 3.3V on host.
LPWn/PRSn
Input/output
Dual Function Signal: Low Power mode is an active-low input signal; Module Present is controlled by a pull-down resistor on the module which gets converted to an active-low output logic signal.
INT/RSTn
Input/output
Dual Function Signal: Reset is an active-low input signal; Interrupt is an active-high output signal.
Absolute Maximum Ratings
Parameter
Symbol
Min
Typ
Max
Unit
Notes
Storage Temperature
Tstg
-40
+85
°C
Maximum Supply Voltage
VCC
-0.5
3.5
V
Operating Relative Humidity
RH
0
85
%
Non-condensing
Recommended Operating Conditions
Parameter
Symbol
Min
Typ
Max
Unit
Notes
Case Operating Temperature
Tc
0
+70
°C
Power Supply Voltage
Vcc
3.135
3.3
+3.465
V
Power Consumption
8.5
W
Maximum Power Dissipation, Low Power Mode
2
W
Data Rate, each Lane
53.125
GBd PAM4
Rx Differential Data Output Load
100
ohm
Link Distance (OM4/OM5)
50
m
Link Distance (OM3)
30
m
Electrical Characteristics
Module Input (each Lane)
Parameter
Test Point
Min
Typ
Max
Unit
Notes
Signaling Rate, each lane
TP1
53.125±100ppm
GBd
DC common-mode voltage tolerance
TP1
-350
2850
mV
Single-ended voltage tolerance range
TP1a
-0.4
3.3
V
AC Common-Mode Voltage Tolerance – Low-Frequency, VCMLF
TP1a
32
mV
AC Common-Mode Voltage Tolerance – Full-Band, VCMLF
TP1a
80
mV
Module stressed input tolerance
TP1a
IEEE 802.3ck D3.3 120G 3.4.3
Differential Voltage pk-pk Tolerance
TP1a
750
mV
Differential-mode to common-mode return loss, RLcd
TP1
IEEE 802.3ck D3.3 Equation 120G -2
dB
Effective return loss, ERL
TP1
8.5
dB
Differential termination mismatch
TP1
10
%
Module Output (each Lane)
Parameter
Test Point
Min
Typ
Max
Unit
Notes
Signaling Rate, each lane
TP4
53.125±100ppm
GBd
Peak-to-peak AC common-mode voltage – Low-frequency, VCMLF
TP4
32
mV
Peak-to-peak AC common-mode voltage – Full-band, VCMFB
TP4
80
mV
Differential peak-to-peak output voltage – Short mode
TP4
600
mV
Differential peak-to-peak output voltage – Long mode
TP4
845
mV
Eye Height
TP4
15
mV
Vertical Eye Closure, VEC
TP4
12
dB
Common-Mode to Differential Return Loss, Rldc
TP4
IEEE 802.3ck Equation 120G-1
dB
Effective return loss, ERL
TP4
8.5
dB
Differential termination mismatch
TP4
10
%
Transition time (20% to 80%)
TP4
8.5
ps
DC common-mode output voltage
TP4
-350
2850
mV
Optical Characteristics
Transmitter
Parameter
Symbol
Min
Typ
Max
Unit
Notes
Data Rate, each Lane
53.125±100ppm
GBd
Modulation Format
PAM4
Center Wavelength
λc
844
863
nm
RMS spectral width
0.6
nm
Average Launch Power, each Lane
PAVG
-4.6
4
dBm
1
Outer Optical Modulation Amplitude (OMAouter), each Lane
POMA
-2.6
3.5
dBm
2
TDECQ, each Lane
TDECQ
4.4
dB
Average Launch Power of OFF Transmitter, each lane
