JYSK2M12N05HZ 光纤连接器 工业级圆形连接器

JYSK2M12N05HZ 光纤连接器

JYSK2M12N05HZ 光纤连接器是 F-tone Networks 推出的光纤连接器产品，适用于光纤通信系统中的信号连接与传输。该产品具有精密的结构设计和优异的光学性能，可满足多种应用场景的连接需求。

外形及尺寸

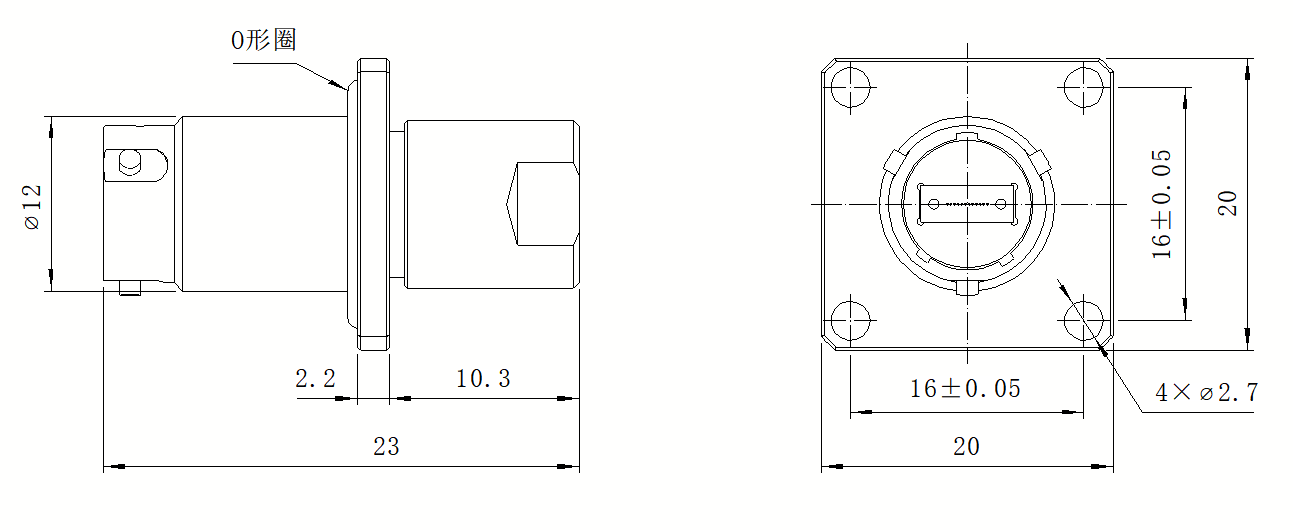

以下为 JYSK2M12N05HZ 连接器的外形尺寸图，包含连接器整体外形及安装尺寸信息。

性能指标

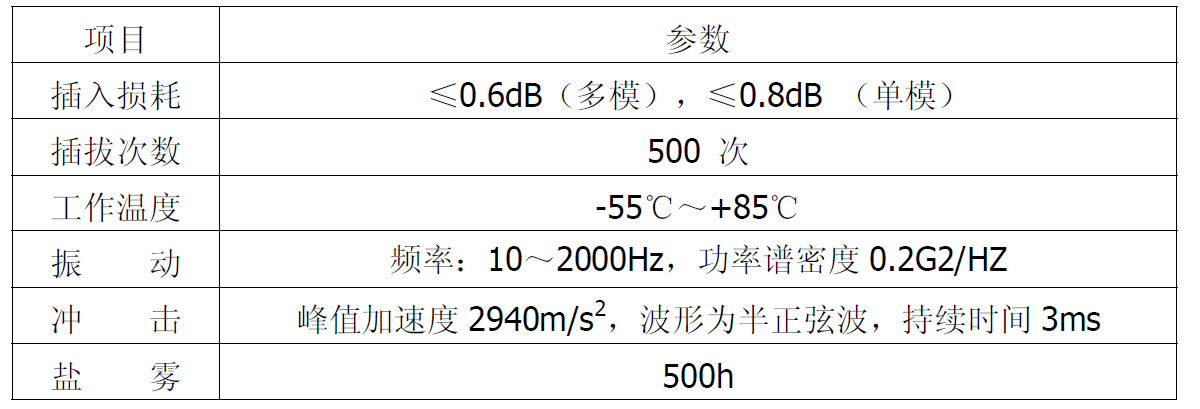

以下性能指标图详细展示了 JYSK2M12N05HZ 连接器的各项技术参数。

如有关于 JYSK2M12N05HZ 连接器外形尺寸、安装尺寸及性能指标的详细参数需求，请联系 F-tone Networks 获取完整技术资料。

Important Notice: Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others.

本产品为【光纤连接器】产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
