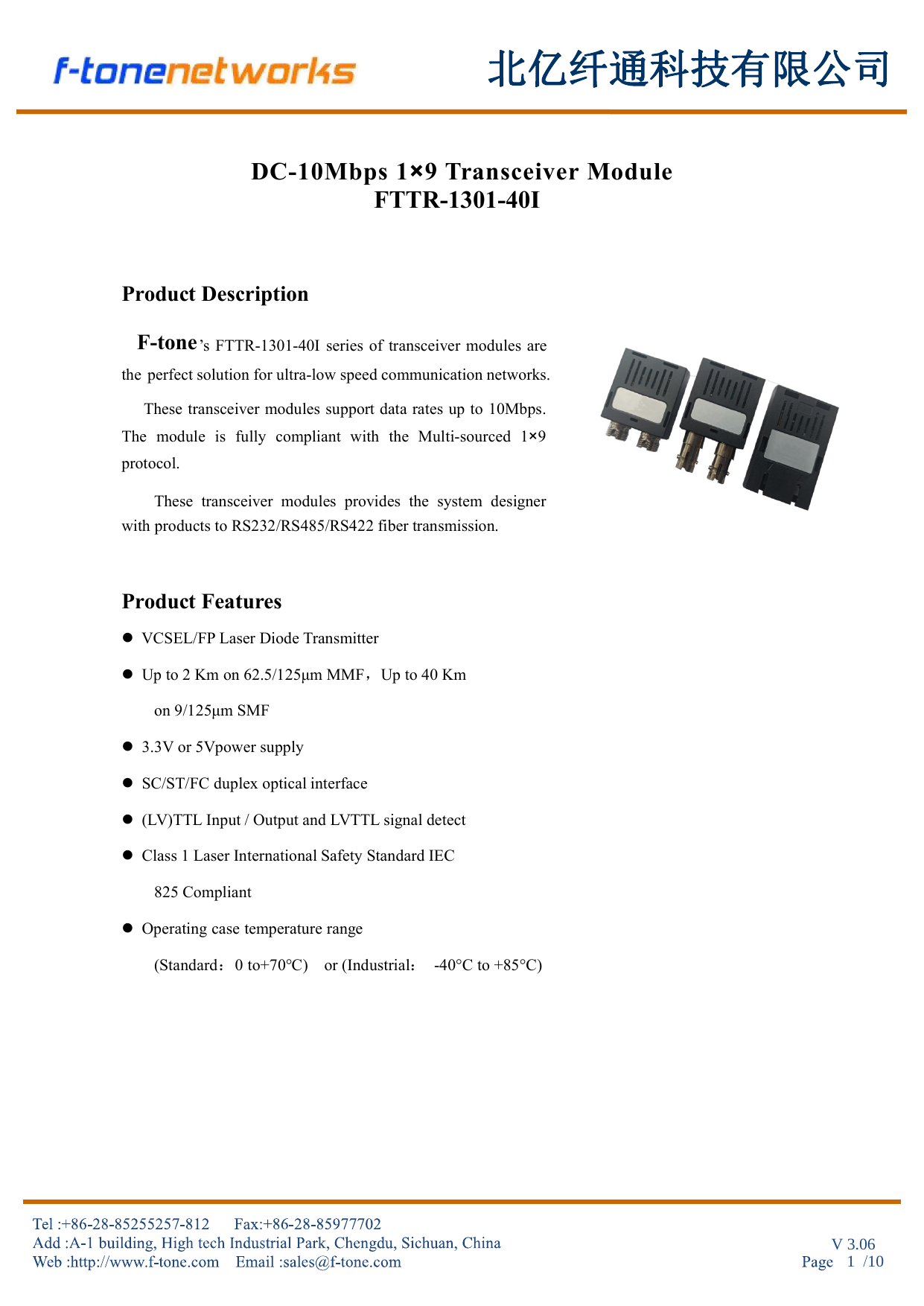

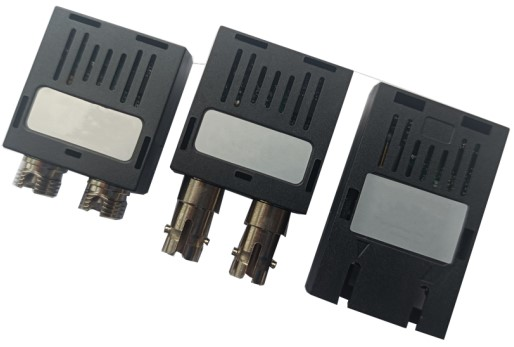

FTTR-1301-40I DC-10Mbps 1×9 Transceiver Module RS232/RS485/RS422 Fiber Optic

DC-10Mbps 1×9 Transceiver Module

FTTR-1301-40I

Product Description

F-tone

’s FTTR-1301-40I se ries of transceiver modules are

the perfectsolutionforultra-lowspeedcommunicationnetworks.

These transceiver modules support data rates up to 10Mbps.

The module is fully compliant with the Multi-sourced 1×9

protocol.

These transceiver modules provides the system designer

withproductstoRS232/RS485/RS422fibertransmission.

Product Features

 VCSEL/FPLaserDiodeTransmitter

 Upto2Kmon62.5/125μmMMF，Upto40Km

on9/125μmSMF

 3.3Vor5Vpowersupply

 SC/ST/FCduplexopticalinterface

 (LV)TTLInput/OutputandLVTTLsignaldetect

 Class1LaserInternationalSafetyStandardIEC

825Compliant

 Operatingcasetemperaturerange

(Standard：0 to+70℃) or(Industrial： -40°Cto+85°C)

V 3.06

1 /10

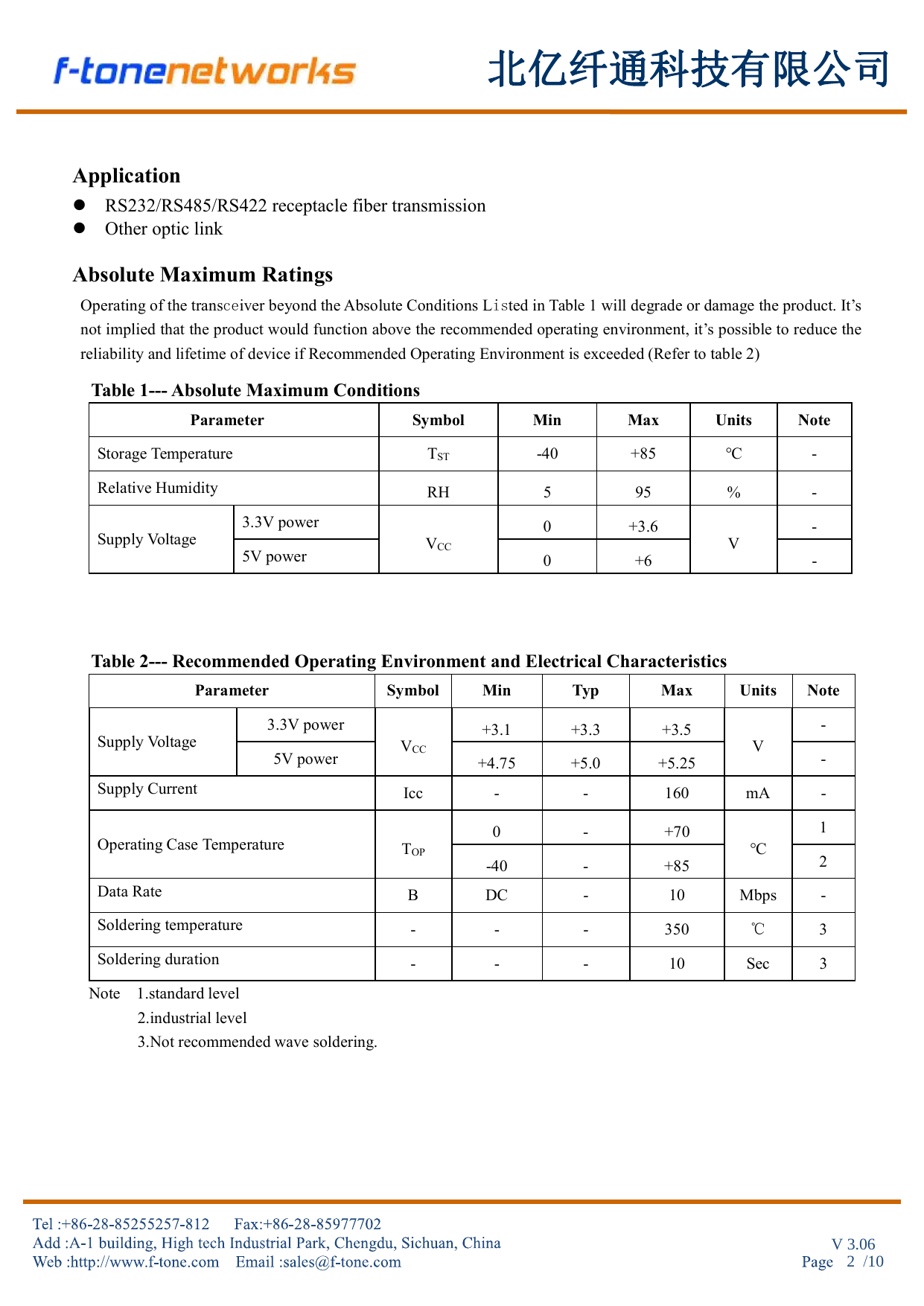

Application

 RS232/RS485/RS422 receptaclefibertransmission

 Other opticlink

Absolute Maximum Ratings

OperatingofthetransceiverbeyondtheAbsoluteConditionsListedinTable1willdegradeordamagetheproduct.It’s

notimplied that theproductwouldfunctionabovethe recommendedoperatingenvironment,it’spossibleto reducethe

reliabilityandlifetimeofdeviceifRecommendedOperatingEnvironmentisexceeded(Refertotable2)

Table1—Absolute MaximumConditions

Parameter Symbol Min Max Units Note

StorageTemperature T -40 +85 ℃ –

ST

RelativeHumidity RH 5 95 % –

3.3Vpower

0 +3.6 –

SupplyVoltage V V

CC

5Vpower

0 +6 –

Table2—Recommended OperatingEnvironment andElectrical Characteristics

Parameter Symbol Min Typ Max Units Note

3.3Vpower –

+3.1 +3.3 +3.5

SupplyVoltage V V

CC

5Vpower +4.75 +5.0 +5.25 –

SupplyCurrent Icc – – 160 mA –

1

0 – +70

OperatingCaseTemperature T ℃

OP

-40 – +85 2

DataRate B DC – 10 Mbps –

Solderingtemperature – – – 350 ℃ 3

Solderingduration – – – 10 Sec 3

Note 1.standardlevel

2.industriallevel

3.Notrecommendedwavesoldering.

V 3.06

2 /10

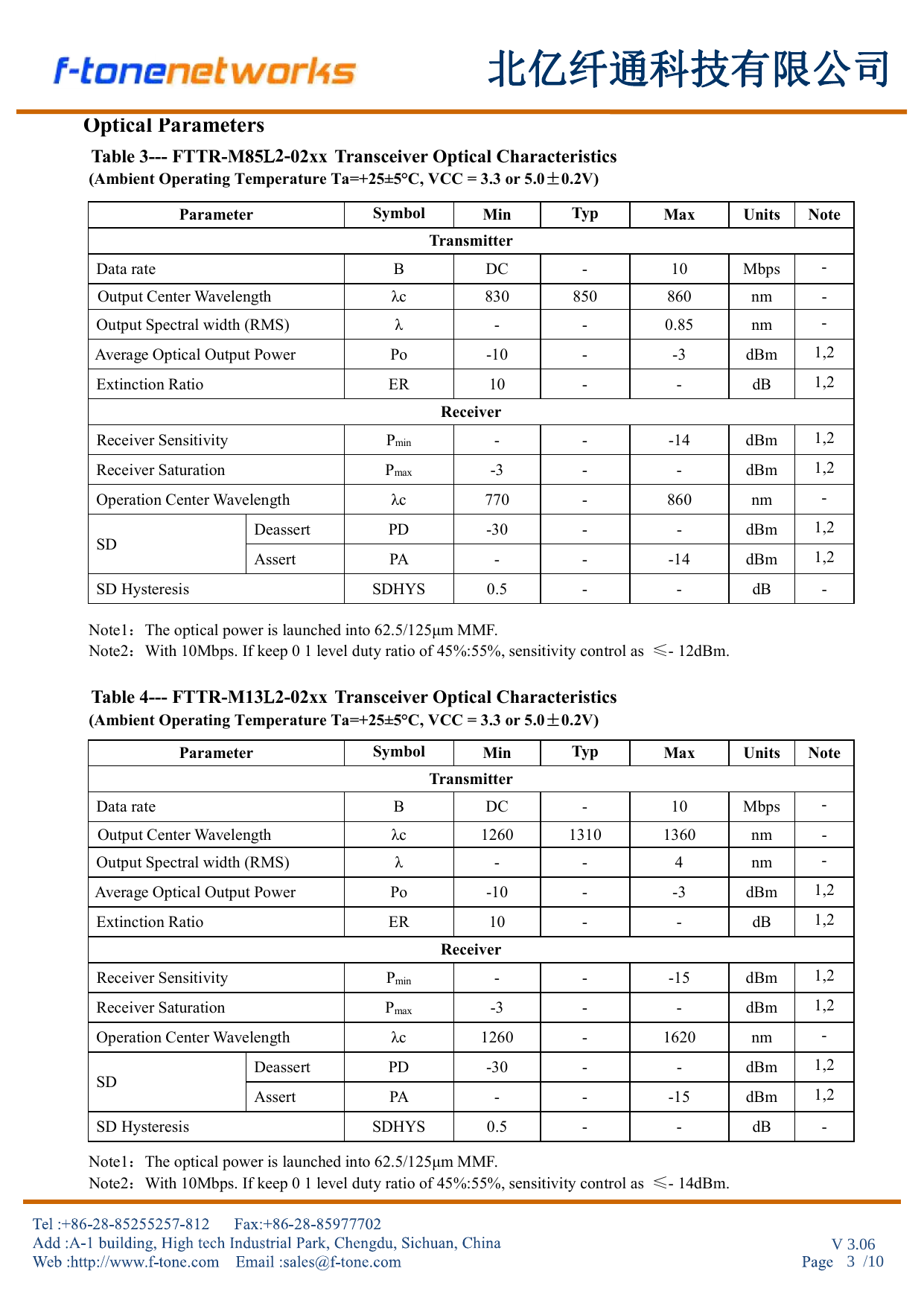

Optical Parameters

Table3—FTTR-M85L2-02xx TransceiverOptical Characteristics

(AmbientOperatingTemperatureTa=+25±5°C,VCC=3.3or5.0±0.2V)

Parameter Symbol Min Typ Max Units Note

Transmitter

Datarate B DC – 10 Mbps –

OutputCenterWavelength λc 830 850 860 nm –

OutputSpectralwidth(RMS) λ – – 0.85 nm –

AverageOpticalOutputPower Po -10 – -3 dBm 1,2

ExtinctionRatio ER 10 – – dB 1,2

Receiver

ReceiverSensitivity P – – -14 dBm 1,2

min

ReceiverSaturation P -3 – – dBm 1,2

max

OperationCenterWavelength λc 770 – 860 nm –

Deassert PD -30 – – dBm 1,2

SD

Assert PA – – -14 dBm 1,2

SDHysteresis SDHYS 0.5 – – dB –

Note1：Theopticalpowerislaunchedinto62.5/125μmMMF.

Note2：With10Mbps.Ifkeep01leveldutyratioof45%:55%,sensitivitycontrolas ≤-12dBm.

Table4—FTTR-M13L2-02 xx TransceiverOptical Characteristics

(AmbientOperatingTemperatureTa=+25±5°C,VCC=3.3or5.0±0.2V)

Parameter Symbol Min Typ Max Units Note

Transmitter

Datarate B DC – 10 Mbps –

OutputCenterWavelength λc 1260 1310 1360 nm –

OutputSpectralwidth(RMS) λ – – 4 nm –

AverageOpticalOutputPower Po -10 – -3 dBm 1,2

ExtinctionRatio ER 10 – – dB 1,2

Receiver

ReceiverSensitivity P – – -15 dBm 1,2

min

ReceiverSaturation P -3 – – dBm 1,2

max

OperationCenterWavelength λc 1260 – 1620 nm –

Deassert PD -30 – – dBm 1,2

SD

Assert PA – – -15 dBm 1,2

SDHysteresis SDHYS 0.5 – – dB –

Note1：Theopticalpowerislaunchedinto62.5/125μmMMF.

Note2：With10Mbps.Ifkeep01leveldutyratioof45%:55%,sensitivitycontrolas ≤-14dBm.

V 3.06

3 /10

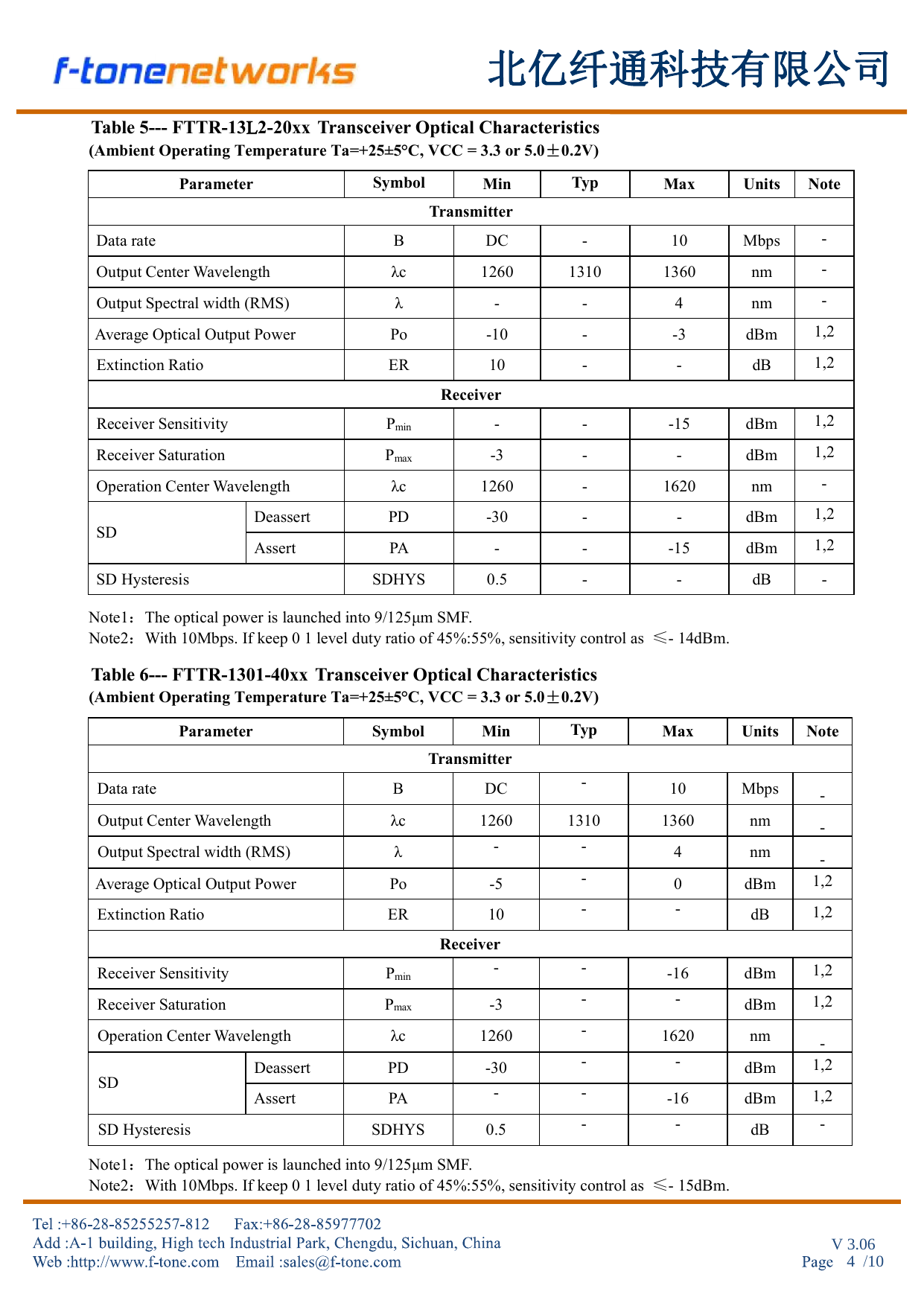

Table5—FTTR-13L2-20x x TransceiverOptical Characteristics

(AmbientOperatingTemperatureTa=+25±5°C,VCC=3.3or5.0±0.2V)

Parameter Symbol Min Typ Max Units Note

Transmitter

Datarate B DC – 10 Mbps –

OutputCenterWavelength λc 1260 1310 1360 nm –

OutputSpectralwidth(RMS) λ – – 4 nm –

AverageOpticalOutputPower Po -10 – -3 dBm 1,2

ExtinctionRatio ER 10 – – dB 1,2

Receiver

ReceiverSensitivity P – – -15 dBm 1,2

min

ReceiverSaturation P -3 – – dBm 1,2

max

OperationCenterWavelength λc 1260 – 1620 nm –

Deassert PD -30 – – dBm 1,2

SD

Assert PA – – -15 dBm 1,2

SDHysteresis SDHYS 0.5 – – dB –

Note1：Theopticalpowerislaunchedinto9/125μmSMF.

Note2：With10Mbps.Ifkeep01leveldutyratioof45%:55%,sensitivitycontrolas ≤-14dBm.

Table6—FTTR-1301-40x x TransceiverOptical Characteristics

(AmbientOperatingTemperatureTa=+25±5°C,VCC=3.3or5.0±0.2V)

Parameter Symbol Min Typ Max Units Note

Transmitter

–

Datarate B DC 10 Mbps

–

OutputCenterWavelength λc 1260 1310 1360 nm

–

– –

OutputSpectralwidth(RMS) λ 4 nm

–

AverageOpticalOutputPower Po -5 – 0 dBm 1,2

ExtinctionRatio ER 10 – – dB 1,2

Receiver

ReceiverSensitivity P – – -16 dBm 1,2

min

ReceiverSaturation P -3 – – dBm 1,2

max

–

OperationCenterWavelength λc 1260 1620 nm

–

Deassert PD -30 – – dBm 1,2

SD

Assert PA – – -16 dBm 1,2

– – –

SDHysteresis SDHYS 0.5 dB

Note1：Theopticalpowerislaunchedinto9/125μmSMF.

Note2：With10Mbps.Ifkeep01leveldutyratioof45%:55%,sensitivitycontrolas ≤-15dBm.

V 3.06

4 /10

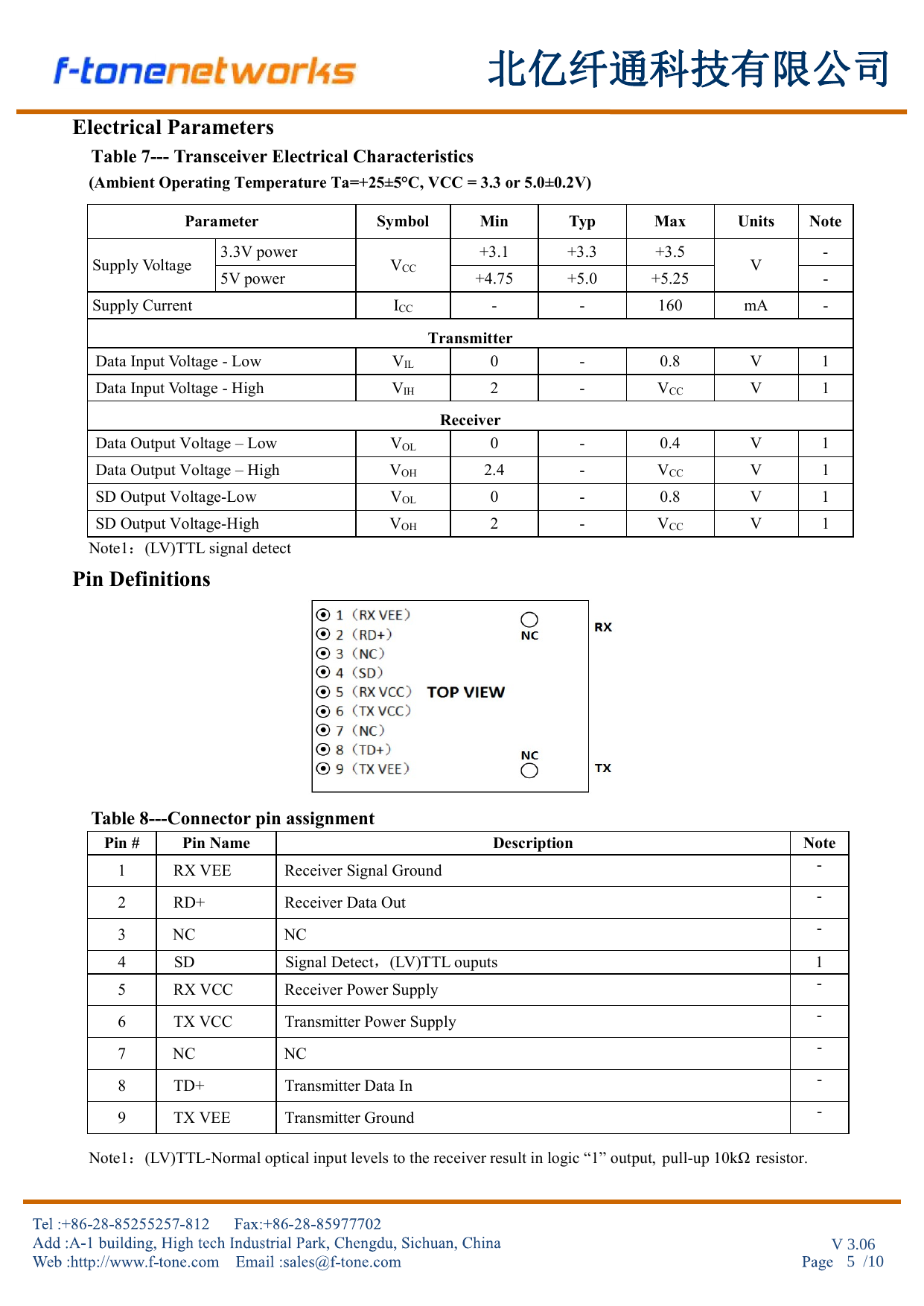

Electrical Parameters

Table7—TransceiverElectrical Characteristics

(AmbientOperatingTemperatureTa=+25±5°C,VCC=3.3or5.0±0.2V)

Parameter Symbol Min Typ Max Units Note

3.3Vpower +3.1 +3.3 +3.5 –

SupplyVoltage V V

CC

5Vpower +4.75 +5.0 +5.25 –

SupplyCurrent I – – 160 mA –

CC

Transmitter

DataInputVoltage-Low V 0 – 0.8 V 1

IL

DataInputVoltage-High V 2 – V V 1

IH CC

Receiver

DataOutputVoltage–Low V 0 – 0.4 V 1

OL

DataOutputVoltage–High V 2.4 – V V 1

OH CC

SDOutputVoltage-Low V 0 – 0.8 V 1

OL

SDOutputVoltage-High V 2 – V V 1

OH CC

Note1：(LV)TTLsignaldetect

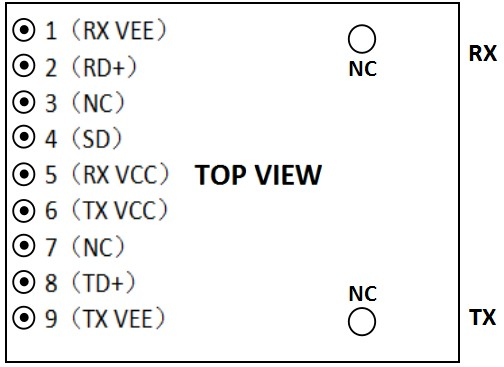

Pin Definitions

Table8—Connectorpinassignment

Pin# PinName Description Note

–

1 RXVEE ReceiverSignalGround

–

2 RD+ ReceiverDataOut

–

3 NC NC

4 SD SignalDetect，(LV)TTLouputs 1

–

5 RXVCC ReceiverPowerSupply

–

6 TXVCC TransmitterPowerSupply

–

7 NC NC

–

8 TD+ TransmitterDataIn

–

9 TXVEE TransmitterGround

Note1：(LV)TTL-Normalopticalinputlevelstothereceiverresultinlogic“1”output, pull-up10kΩ resistor.

V 3.06

5 /10

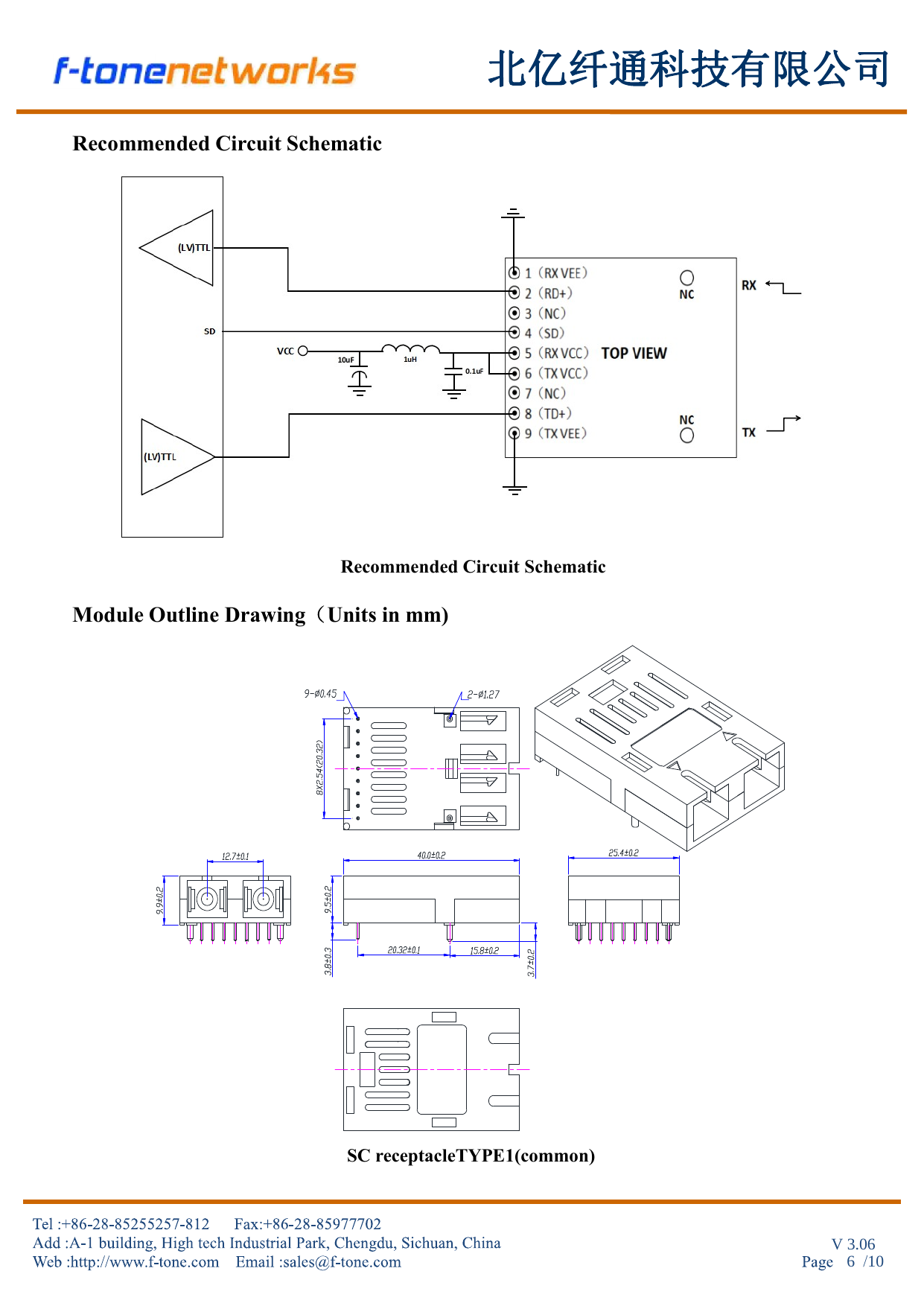

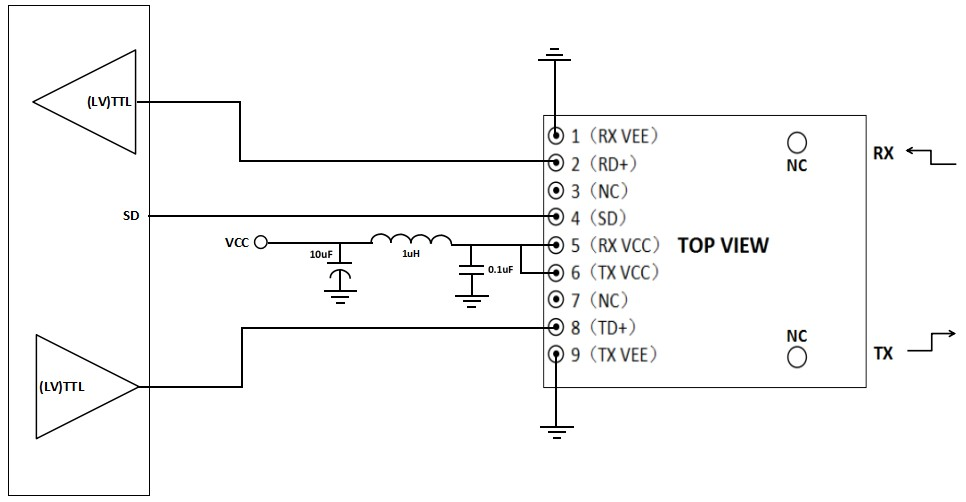

Recommended Circuit Schematic

RecommendedCircuit Schematic

Module Outline Drawing（Units in mm)

SCreceptacleTYPE1(common)

V 3.06

6 /10

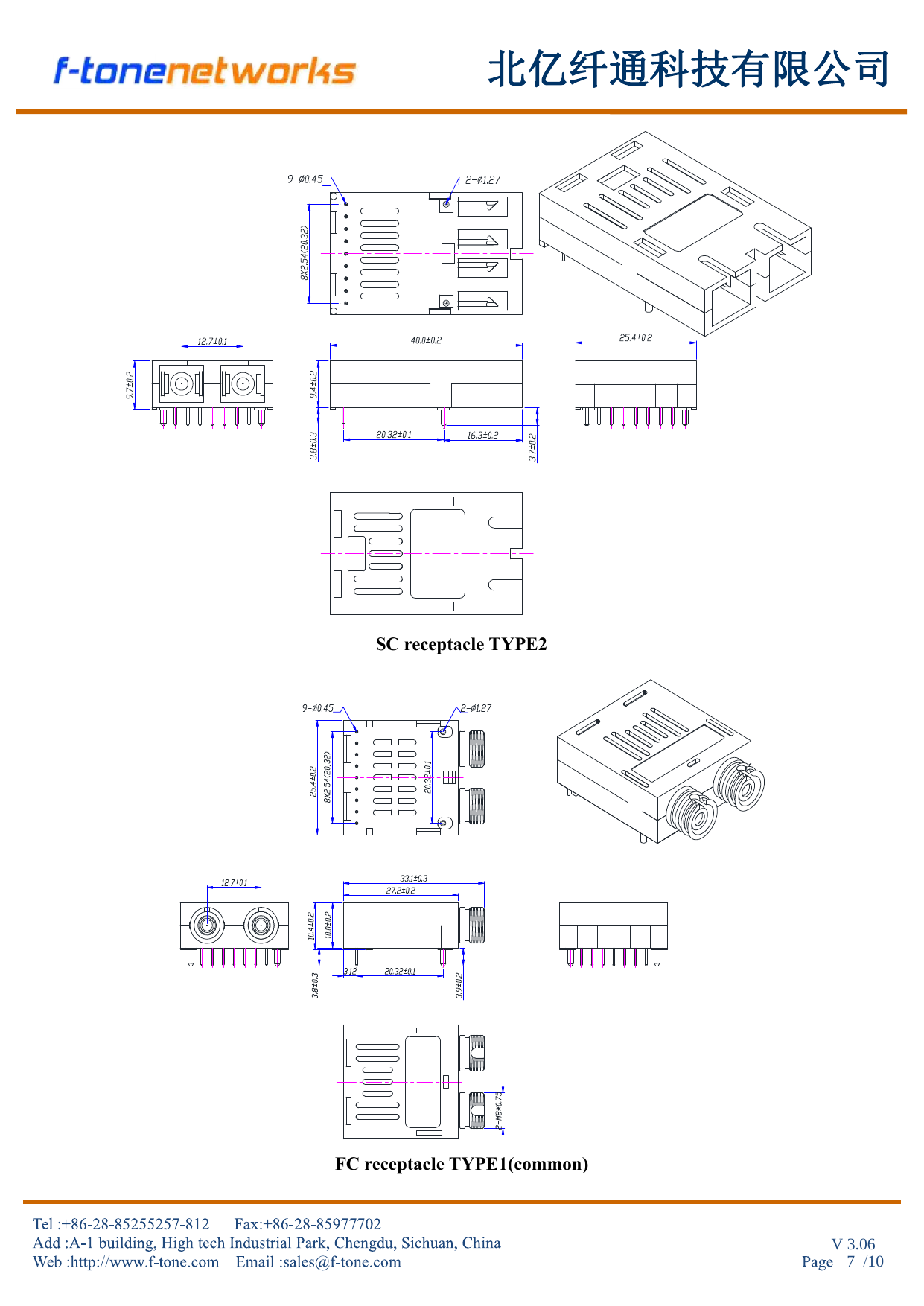

SCreceptacleTYPE2

FCreceptacleTYPE1(common)

V 3.06

7 /10

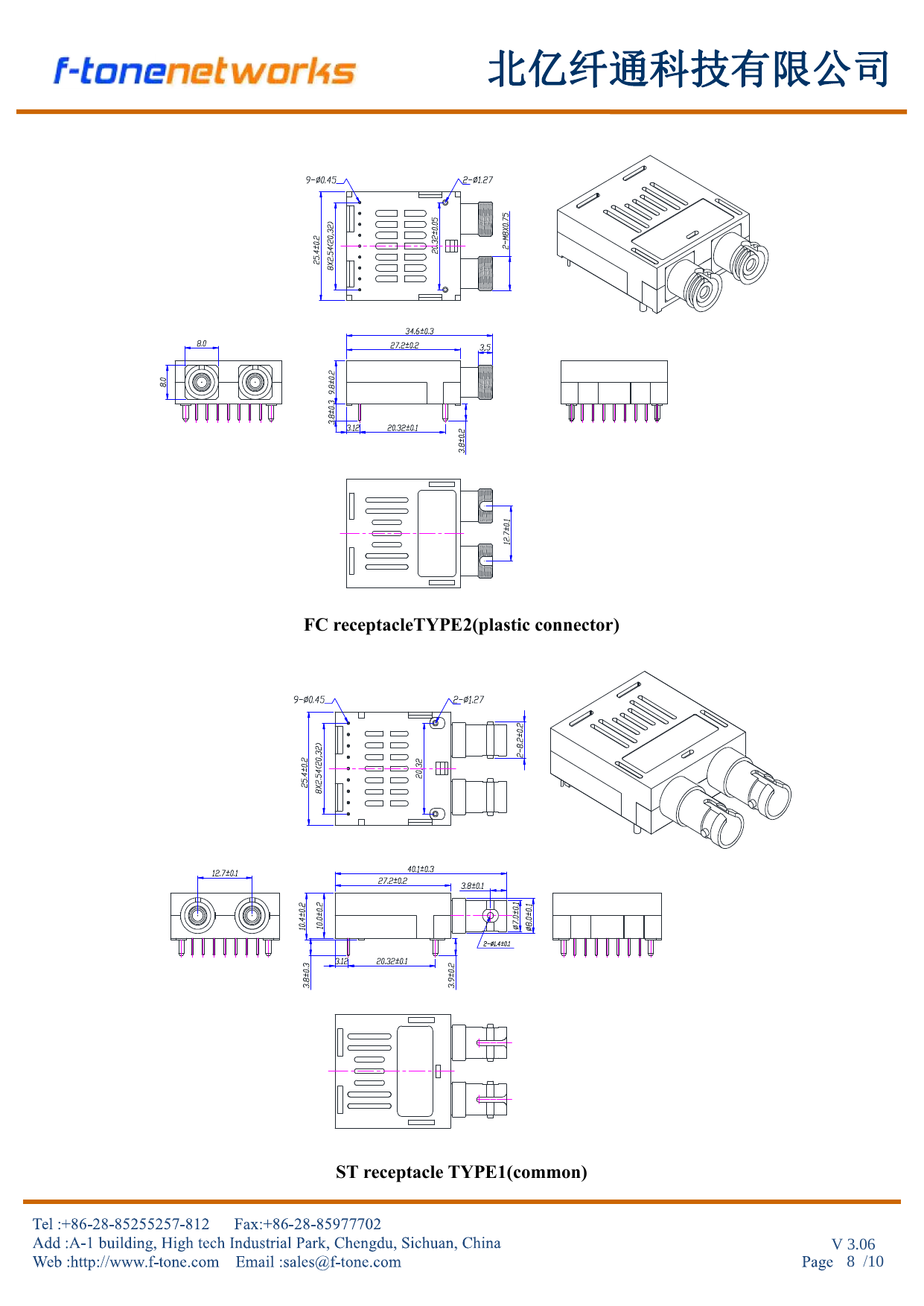

FCreceptacleTYPE2(plasticconnector)

STreceptacleTYPE1(common)

V 3.06

8 /10

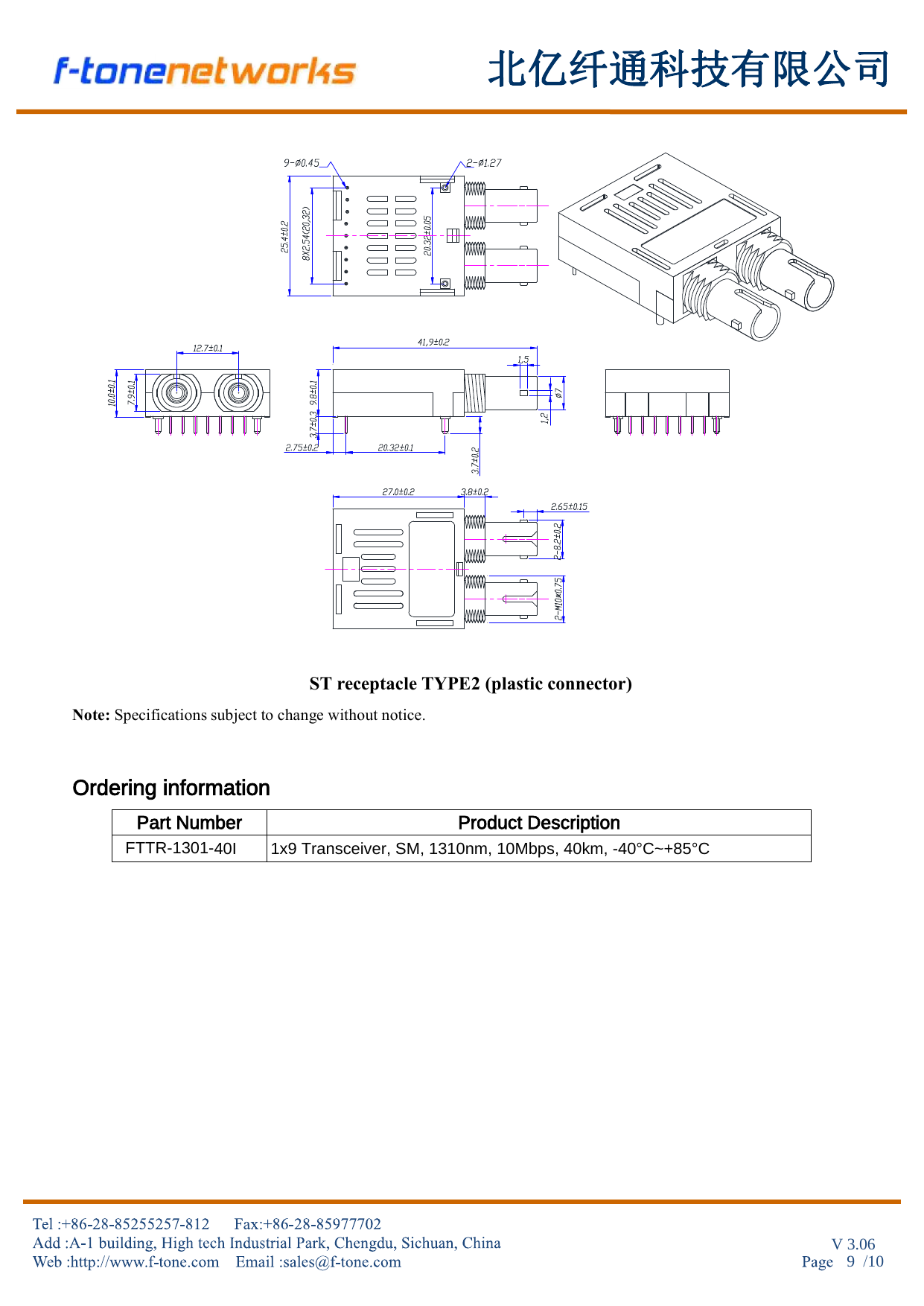

STreceptacleTYPE2(plasticconnector)

Note:Specificationssubjecttochangewithoutnotice.

Ordering information

Part Number Product Description

FTTR-1301-40I 1×9 Transceiver, SM, 1310nm, 10Mbps, 40km, -40°C~+85°C

V 3.06

9 /10

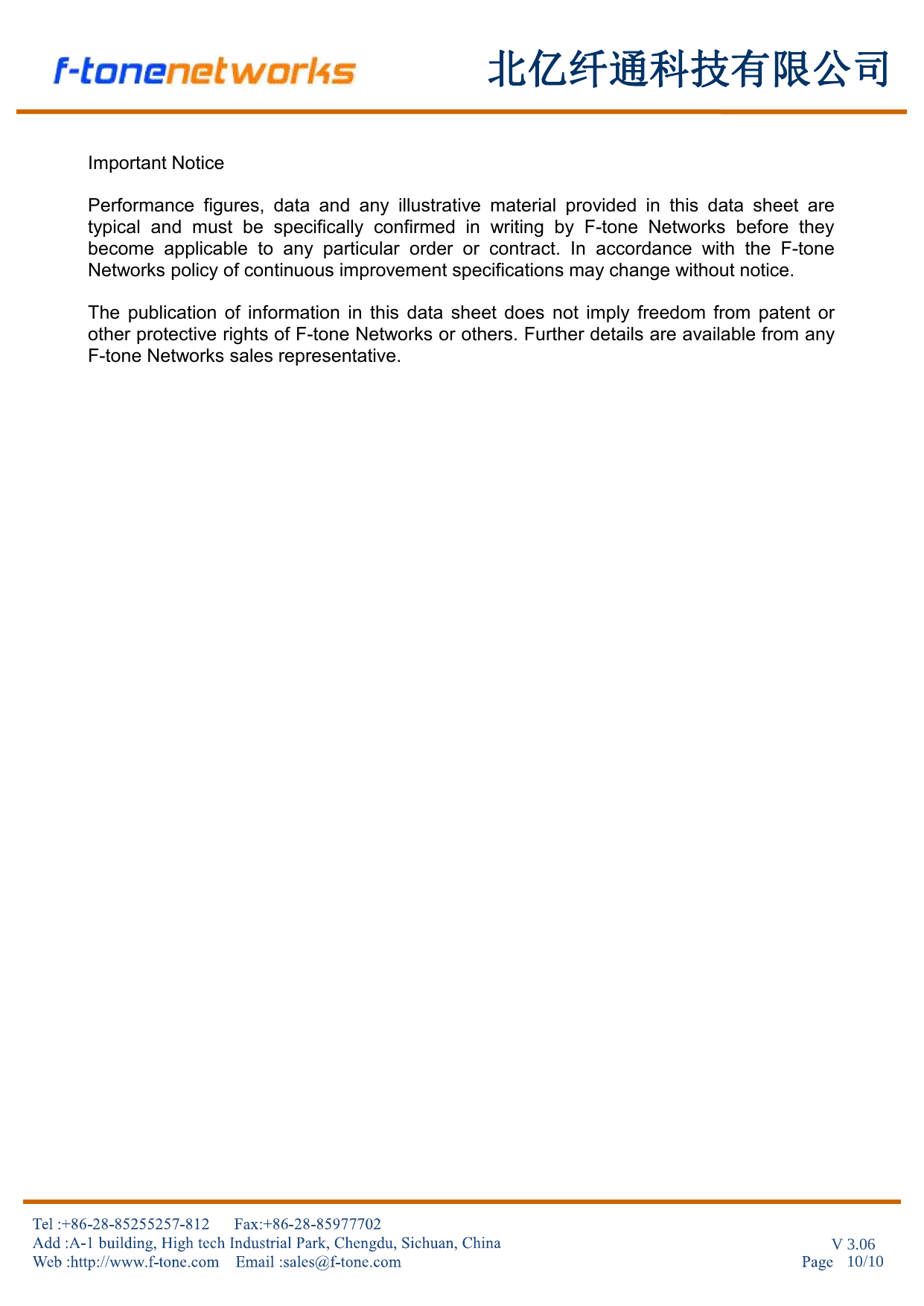

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are

typical and must be specifically confirmed in writing by F-tone Networks before they

become applicable to any particular order or contract. In accordance with the F-tone

Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or

other protective rights of F-tone Networks or others. Further details are available from any

F-tone Networks sales representative.
