产品概述

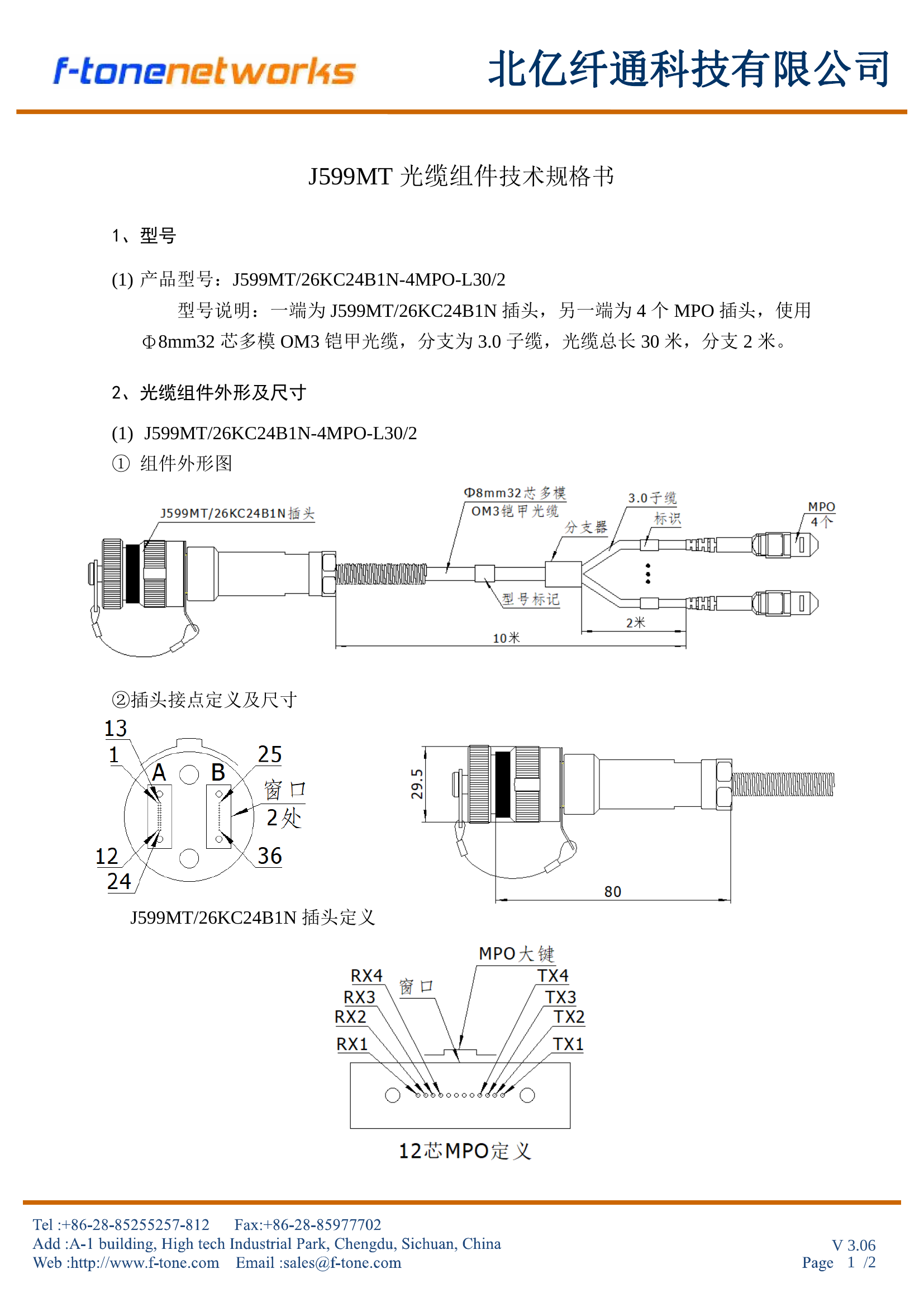

J599MT/26KC24B1N-4MPO-L30/2 光缆组件一端为J599MT/26KC24B1N插头，另一端为4个MPO插头，使用Φ8mm 32芯多模OM3铠甲光缆，分支为3.0子缆，光缆总长30米，分支2米。

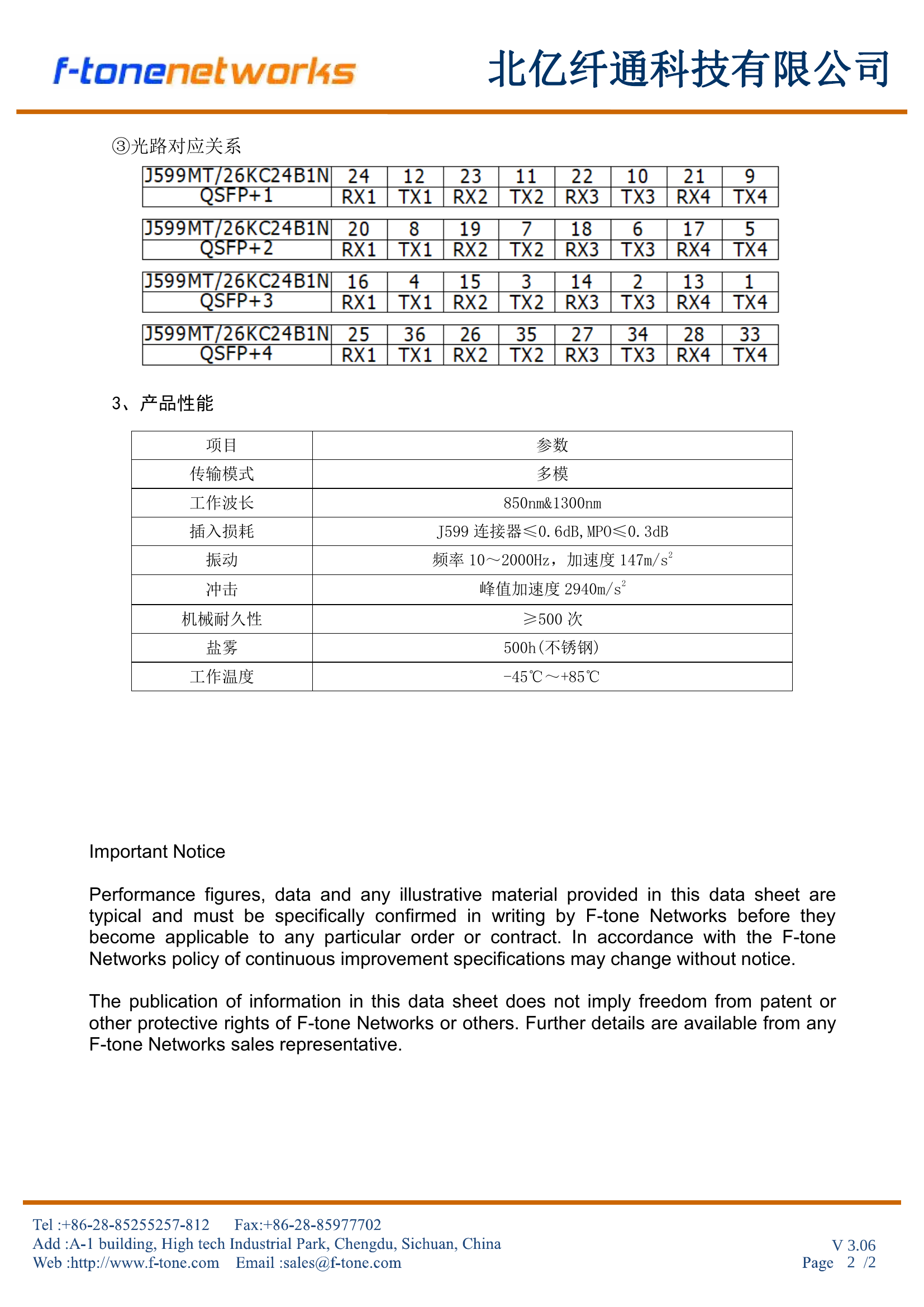

产品性能
| 项目 | 参数 |
|---|---|
| 传输模式 | 多模 |
| 工作波长 | 850nm & 1300nm |
| 插入损耗 | J599连接器≤0.6dB，MPO≤0.3dB |
| 振动 | 频率10～2000Hz，加速度147m/s² |
| 冲击 | 峰值加速度2940m/s² |
| 机械耐久性 | ≥500次 |
| 盐雾 | 500h（不锈钢） |
| 工作温度 | -45℃～+85℃ |
产品图片
Company: F-tone Networks | 北亿纤通
Region: Tianfu New Area, Sichuan, China
Service Area: Global
Tel: 028-85255257 | Fax: 028-85977702 | Mobile: 19081343401
Site: https://www.f-tone.com
HR: hr@f-tone.com | Sales: sales@f-tone.com | Support: support@f-tone.com
Region: Tianfu New Area, Sichuan, China
Service Area: Global
Tel: 028-85255257 | Fax: 028-85977702 | Mobile: 19081343401
Site: https://www.f-tone.com
HR: hr@f-tone.com | Sales: sales@f-tone.com | Support: support@f-tone.com
本产品为【光缆组件】产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
