24-port 10//100/1000BASE-TX+2G SFP Managed Industrial Switch
FT-YRD224GS-MU-SFP
FT-YRD224GS-MU-SFP an hardened 26-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 24-port 10/100/1000BASE-TX RJ45 +2G SFP delivered in an IP40 rugged, strong case with redundant power system. It’s suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The FT-YRD224GS-MU-SFP provides the flexibility to all kinds of 10/100/1000Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.
The FT-YRD224GS-MU-SFP is packaged in a compact IP40 case that allows bracket mounting to cabinet . It supplies power supply: AC110-240V
- 24-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/ MDI-X function
- 2G SFP uplink (automatically 100Mbps/1000Mbps SFP module)
Industrial conformance
- AC110-240V redundant power input
- – 40℃ to 80℃ operating temperature
- IP40 aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- 19“ Rak-mountable hardware design
Specifications:
|
Model No. |
FT-YRD224GS-MU-SFP |
|
1000Base-TX Port |
24G port RJ-45 auto-MDI / MDI-X |
|
Uplink Port |
4G SFP |
|
Performance Specification |
Bandwidth: 56Gbps MAC Address Table: 8K |
|
Installation |
Rak mounted |
|
Maximum Frame Size |
10240bytes packet size |
|
Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
|
Enclosure |
|
|
LED Indicator |
Power: Red Fiber: Link 2(Green) Ethernet: Yellow |
|
Power Input |
AC110-240V Supports built-in over-current 4.0A protection Supports reverse connection protection |
|
Power Consumption |
< 20W |
|
Surge protection |
± 4KV |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100 meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55032 Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
MTBF |
300,000hours |
|
Dimensions (W x D x H) |
442×325×44mm |
|
Weight |
Product Weight: 3.2KG Packing Weight: 4KG |
|
Working Environment |
Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
Software:
|
Port Features |
IEEE 802.3x Flow control |
||||
|
Interface counters |
|||||
|
Storm Control |
|||||
|
Link Aggregation |
Static Aggregation |
||||
|
Dynamic Aggregation, LACP |
|||||
|
Supports up to 8 aggregation groups, each group up to 8 ports |
|||||
|
MAC Table Management |
Support |
||||
|
Forwarding mode |
Support IVL forwarding mode |
||||
|
Static MAC Address |
Support |
||||
|
MAC Address Binding |
Support |
||||
|
MAC Address Filtering |
Support |
||||
|
Mirror |
Port-based Mirror |
||||
|
Spanning Tree |
IEEE802.1d STP |
||||
|
IEEE802.1w RSTP |
|||||
|
IEEE802.1s MSTP |
|||||
|
ERPS (G.8032) |
Single Ring, Sub-Ring, Multi-Ring |
||||
|
Load balance |
|||||
|
Recovery Time < 50ms |
|||||
|
GVRP |
Supported |
||||
|
QINQ |
VLAN-based QinQ |
||||
|
LLDP |
LLDP |
||||
|
LLDP-MED |
|||||
|
Loop Protection |
Supported |
||||
|
VLAN |
4094 VLAN |
||||
|
Port-based VLAN |
|||||
|
GVRP |
|||||
|
Protocol VLAN |
MAC-based VLAN |
||||
|
IP Subnet-based VLAN |
|||||
|
Voice VLAN |
Static entry |
||||
|
LLDP-MED |
|||||
|
Port Isolate |
Support |
||||
|
IGMP |
Snooping IGMP V1 Snooping |
||||
|
IGMP V2 Snooping |
|||||
|
IGMP V3 Snooping |
|||||
|
Source Port Check |
|||||
|
IGMP Fast Leave |
|||||
|
IGMP Filter |
|||||
|
MLD Snooping |
MLD V1 Snooping |
||||
|
MLD V2 Snooping |
|||||
|
Source Port Check |
|||||
|
MLD Fast Leave |
|||||
|
MLD Filter |
|||||
|
Security |
|||||
|
ACL |
ACL (IP Standard ACL), IPv4/IPv6 |
||||
|
MAC extend ACL |
|||||
|
IP extend ACL |
|||||
|
L2, L3, L4 fields match |
|||||
|
log, redirection, mirroring, speed limit |
|||||
|
QoS |
QoS Class, Remarking |
||||
|
SP, WRR queue scheduling |
|||||
|
Ingress port-based rate-limit |
|||||
|
Ingress priority-based rate-limit |
|||||
|
Egress port-based rate-limit |
|||||
|
Egress queue-based rate-limit |
|||||
|
Policy-based QoS |
|||||
|
Storm Control |
|||||
|
8 queues per port |
|||||
|
Dot1x |
Port Access Control |
||||
|
User Access Control |
|||||
|
MAC-address Access Control |
|||||
|
AAA |
Support 802.1x |
||||
|
Support RADIUS |
|||||
|
Supports authentication, authorization, and accounting through RADIUS server |
|||||
|
Management |
|||||
|
User management |
Password protection |
||||
|
SNMP |
SNMP V1/V2c/V3 |
||||
|
RMON |
Statistics Group |
||||
|
History Group |
|||||
|
Alarm Group |
|||||
|
Events Group |
|||||
|
Web management |
HTTP V1.1, HTTPS |
||||
|
Firmware Upgrade |
Reversion Upgrade |
||||
|
IPv4/IPv6 |
Support |
||||
|
CLI |
Support |
||||
|
Syslog/Debug |
Support |
||||
|
Diagnosis |
Ping (IPv4), ping (IPv6) |
||||
|
Trace route(IPv4) |
|||||
|
Trace route(IPv6) |
|||||
|
Management |
|||||
|
NTP |
NTP Client |
||||
|
DHCP |
DHCPv4 Client, DHCPv6 Client |
||||
|
DHCP Snooping |
DHCP snooping table |
||||
|
Trust Port |
|||||
|
IPv6 DHCP-Guard |
Support |
||||
|
Telnet |
Telnet Server |
||||
|
TFTP |
TFTP Client |
||||
|
SSH |
SSH Server |
||||

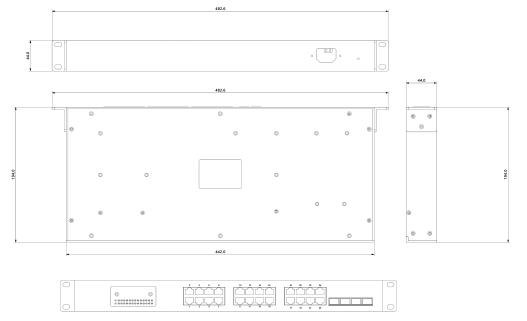

Dimensions
Ordering Information
|
FT-YRD224GS-MU-SFP |
24-port 10/100/100BASE-TX+2G SFP Managed Industrial Switch |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
This product belongs to the Industrial Ethernet Switch product line. For more details, please contact our sales team. Thank you!
