Product Overview
The FT-YZX48XGST6-M6-SFP is a high-performance modular DIN-rail L3 managed industrial switch supporting up to 48-port Gigabit + 6-port 10G SFP+. Features VCore-III MIPS CPU with 4.8Tbps switching capacity, 1624Mpps forwarding rate, modular slot design for flexible expansion, IPv4/IPv6 dual-stack, and -40°C~75°C operating temperature.
Product Features
- 802.3x flow control & storm suppression
- STP/RSTP/MSTP/ERPS redundant network
- VRRP virtual route redundancy
- IGMP/MLD Snooping V1/V2/V3
- IEEE 802.1Q VLAN (4K), QinQ
- Link aggregation (14 groups, 16 ports/group)
- QoS: COS/DSCP, WRR/SP
- ACL L2-L4 & 802.1x security
- WEB/CLI/SNMP management
- Modular slot design for flexible expansion
Specifications
| Parameter | Value |
|---|---|
| Model | FT-YZX48XGST6-M6-SFP |
| 10GbE SFP+ Slots | 6 (compatible with 10G/1G) |
| Slot Combination | 6 slots for 8-port interface modules |
| Console | 232-Serial console |
| Serial Port | RS232/RS422/RS485 optional |
| Switching Capacity | 4.8Tbps |
| Forwarding Rate | 1624Mpps |
| Packet Buffer | 128Mbit |
| MAC Table | 64K |
| Max Frame | 10240 bytes |
| Installation | DIN-rail |
| Enclosure | IP40 Aluminum |
| Power Input | Dual DC 12-52V |
| Power Consumption | <72W |
| Surge Protection | ±4KV |
| MTBF | 300,000 hours |
| Dimensions (W×D×H) | 250.6 × 137 × 152mm |
| Weight | 4kg |
| Operating Temp | -40°C ~ 75°C |
Management Features
| Feature | Description |
|---|---|
| L3 Routing | Static/Default route, ARP, IPv4/IPv6, VRRP |
| VLAN | 4K 802.1Q, Protocol/MAC/IP VLAN, QinQ |
| Spanning Tree | STP/RSTP/MSTP |
| Industrial Ring | G.8032 ERPS, recovery <20ms, 250 rings |
| Multicast | IGMP/MLD Snooping, MVR, 1024 groups |
| QoS | SP/WFQ/WRR/RED/WRED, 802.1p, DSCP |
| Security | ACL, 802.1x, IP Source Guard, ARP Detection |
| DHCP | Client/Snooping/Server/Relay |
| Management | WEB/CLI/Telnet/SSH/SNMP/RMON/NTP |

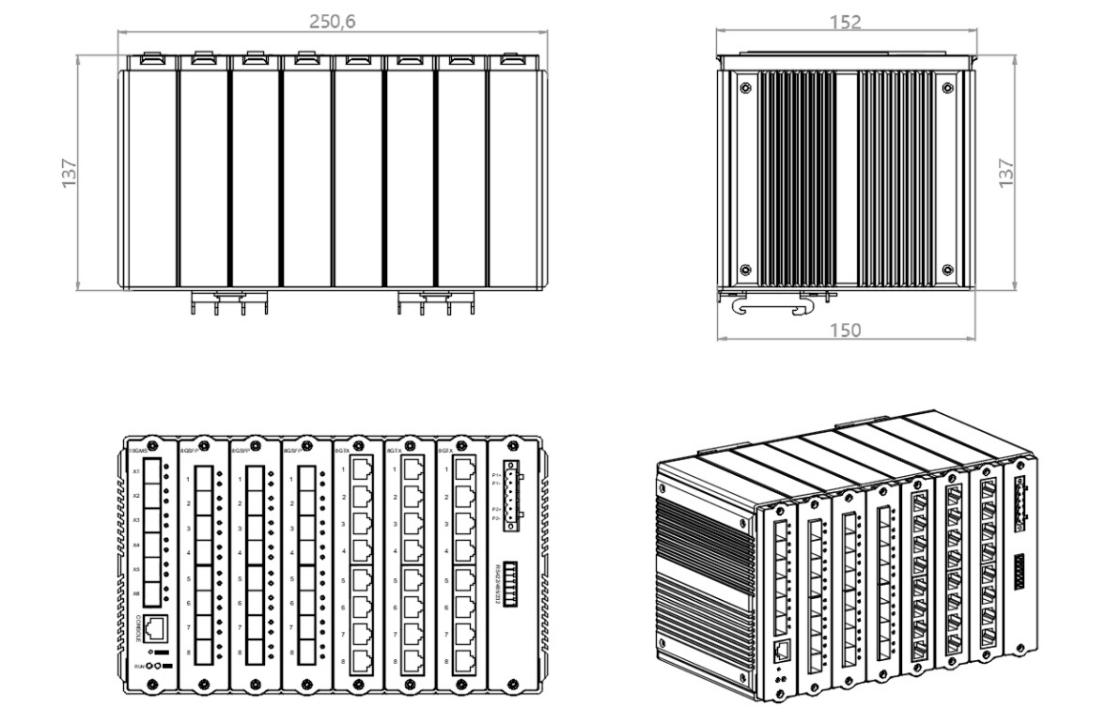

Mechanical Dimensions
Ordering Information
| Model | 10GbE SFP+ | Gigabit SFP | RJ45 |
|---|---|---|---|
| FT-YZX48XGST6-M6-SFP | 6 | Up to 48 | Up to 48 |
Accessories
| Model | Description |
|---|---|
| FT-YZX08G-ZK | 8-port Gigabit Ethernet interface module (RJ45) |
| FT-YZX80G-SFP-ZK | 8-port Gigabit Ethernet interface module (SFP) |
| FT-YZX800 | 8-port cover |
F-tone Networks industrial switch product line. Typical specifications, confirm in writing for orders. Specifications subject to change without notice.
