Product Overview
The FT-YZX88GSPT4-M-SFP is a high-performance DIN-rail L3 managed industrial PoE switch featuring 8-port Gigabit RJ45 (PoE) + 8-port Gigabit SFP + 4-port 10G SFP+. Supports IEEE 802.3af/at PoE with 240W budget. Based on VCore-III MIPS CPU with 1.2Tbps switching capacity, 406Mpps forwarding, and -40°C~80°C operating temperature.
Product Features
- 802.3x flow control & storm suppression
- STP/RSTP/MSTP/ERPS redundant network
- VRRP virtual route redundancy
- IGMP/MLD Snooping V1/V2/V3
- IEEE 802.1Q VLAN (4K), QinQ
- Link aggregation (14 groups)
- QoS: COS/DSCP, WRR/SP
- ACL & 802.1x security
- WEB/CLI/SNMP management
- PoE scheduling ON/OFF (timing supply)
Specifications
| Parameter | Value |
|---|---|
| Model | FT-YZX88GSPT4-M-SFP |
| Interface | 8× 10/100/1000Mbps RJ45 (PoE), 8× 1000Mbps SFP, 4× 10G SFP+, 1× Console |
| PoE Standard | IEEE 802.3af/at |
| PoE Ports | Port 1-8, Budget 240W max |
| PoE Output | Max 15.4W (af), Max 30W (at) |
| PoE Voltage | DC 48V |
| Switching Capacity | 1.2Tbps |
| Forwarding Rate | 406Mpps |
| Packet Buffer | 32Mbit |
| MAC Table | 32K |
| Max Frame | 10240 bytes |
| Installation | DIN-rail |
| Enclosure | IP40 Aluminum |
| Power Input | DC 48V~57V redundant |
| Power Consumption | <24W (excl. PoE) |
| Surge Protection | ±4KV |
| MTBF | 300,000 hours |
| Dimensions (W×D×H) | 166 × 137 × 68.5mm |
| Weight | 1.1kg |
| Operating Temp | -40°C ~ 80°C |
Management Features
| Feature | Description |
|---|---|
| PoE Management | PoE scheduling ON/OFF (timing supply) |
| L3 Routing | Static/Default route, ARP, IPv4/IPv6, VRRP |
| VLAN | 4K 802.1Q, Protocol/MAC/IP VLAN, QinQ |
| Spanning Tree | STP/RSTP/MSTP |
| Industrial Ring | G.8032 ERPS, recovery <20ms |
| Multicast | IGMP/MLD Snooping, MVR, 1024 groups |
| QoS | SP/WFQ/WRR/RED/WRED, 802.1p, DSCP |
| Security | ACL, 802.1x, IP Source Guard |
| DHCP | Client/Snooping/Server/Relay |
| Management | WEB/CLI/Telnet/SSH/SNMP/RMON/NTP/PTP |

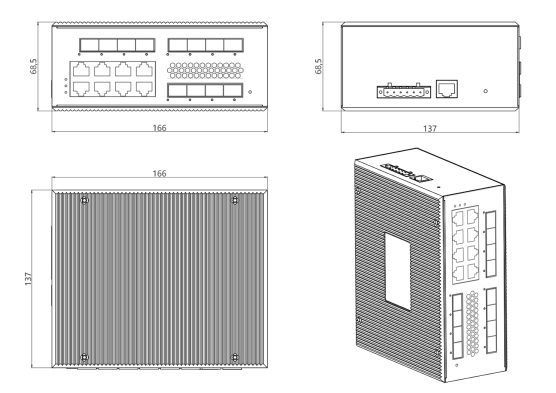

Mechanical Dimensions
Ordering Information
| Model | Description |
|---|---|
| FT-YZX88GSPT4-M-SFP | 8× Gigabit(PoE) + 8× Gigabit SFP + 4× 10G SFP+ L3 Managed Industrial PoE Switch |
F-tone Networks industrial switch product line. Typical specifications, confirm in writing for orders. Specifications subject to change without notice.
