Product Overview
The FT-YZX48XGST6-M-SFP is a high-performance rack-mounted modular L3 managed industrial switch supporting up to 48-port Gigabit + 6-port 10G SFP+. Features VCore-III MIPS CPU with 4.8Tbps switching capacity, 1624Mpps forwarding, 3-slot modular design, AC100~240V power input, IPv4/IPv6 dual-stack, and -40°C~75°C operating temperature.
Product Features
- 802.3x flow control & storm suppression
- STP/RSTP/MSTP/ERPS redundant network
- VRRP virtual route redundancy
- IGMP/MLD Snooping V1/V2/V3
- IEEE 802.1Q VLAN (4K), QinQ
- Link aggregation (14 groups)
- QoS: COS/DSCP, WRR/SP
- ACL & 802.1x security
- WEB/CLI/SNMP management
- Rack-mounted installation
Specifications
| Parameter | Value |
|---|---|
| Model | FT-YZX48XGST6-M-SFP |
| 10GbE SFP+ Slots | 6 (compatible with 10G/1G) |
| Slot Combination | 3 slots for 16-port interface modules |
| Console | 232-Serial console |
| Switching Capacity | 4.8Tbps |
| Forwarding Rate | 1624Mpps |
| Packet Buffer | 128Mbit |
| MAC Table | 64K |
| Max Frame | 10240 bytes |
| Installation | Bracket mounted (rack) |
| Enclosure | IP40 Aluminum |
| Power Input | AC100~240V / 50~60Hz |
| Power Consumption | <72W |
| Surge Protection | ±4KV |
| MTBF | 300,000 hours |
| Dimensions (W×D×H) | 442 × 325 × 44mm |
| Weight | 5.5kg |
| Operating Temp | -40°C ~ 75°C |
Management Features
| Feature | Description |
|---|---|
| L3 Routing | Static/Default route, ARP, IPv4/IPv6, VRRP |
| VLAN | 4K 802.1Q, Protocol/MAC/IP VLAN, QinQ |
| Spanning Tree | STP/RSTP/MSTP |
| Industrial Ring | G.8032 ERPS, recovery <20ms |
| Multicast | IGMP/MLD Snooping, MVR, 1024 groups |
| QoS | SP/WFQ/WRR/RED/WRED, 802.1p, DSCP |
| Security | ACL, 802.1x, IP Source Guard |
| DHCP | Client/Snooping/Server/Relay |
| Management | WEB/CLI/Telnet/SSH/SNMP/RMON/NTP |

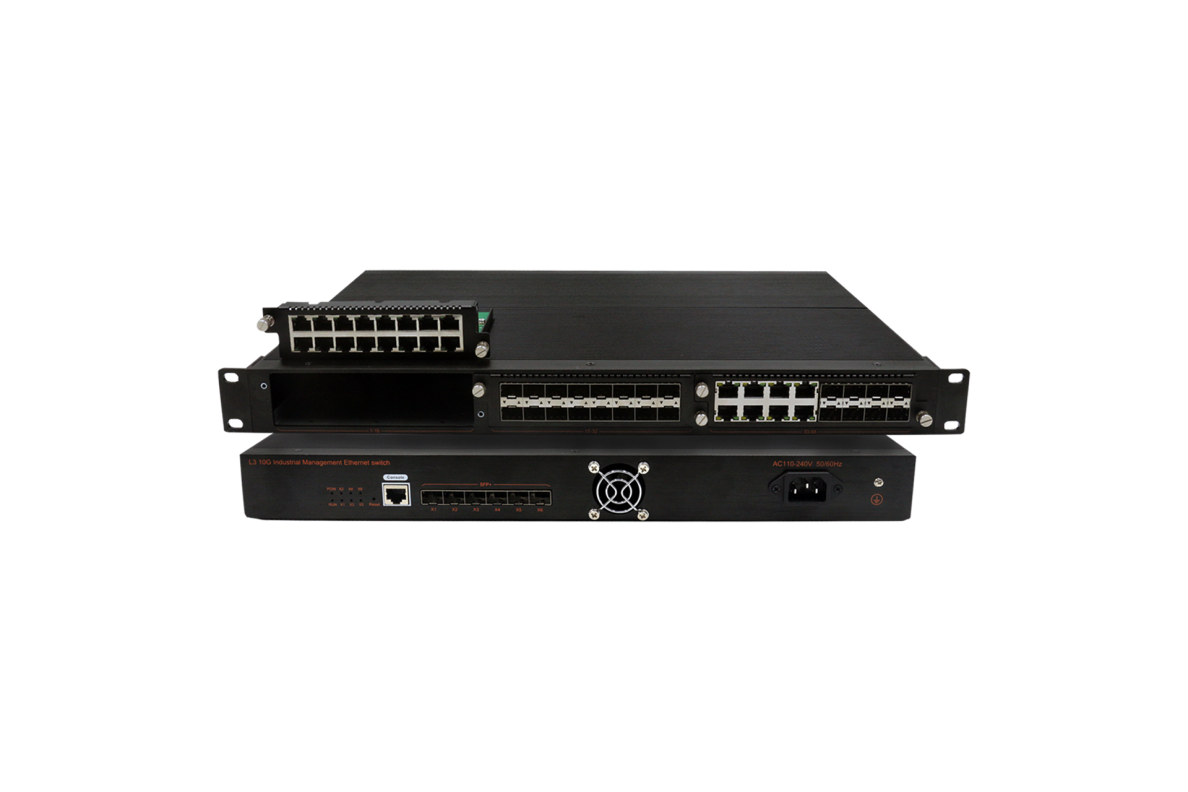

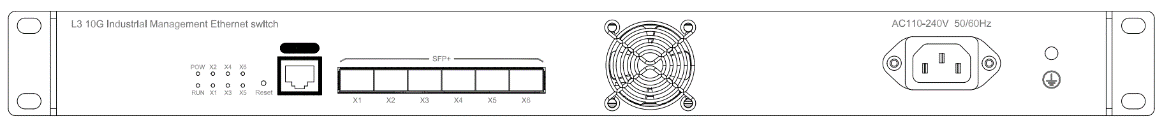

Mechanical Dimensions

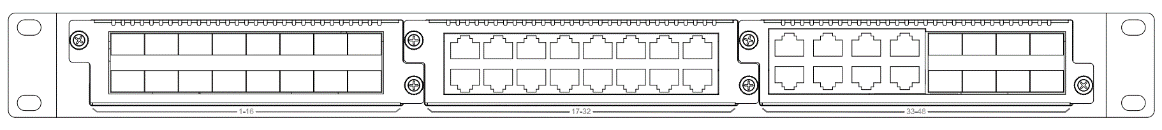

Slot Configuration Options

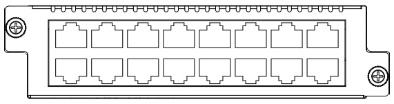

16× Ethernet Port:

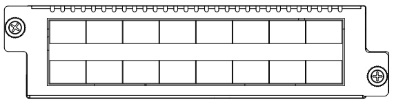

16× Optical Port:

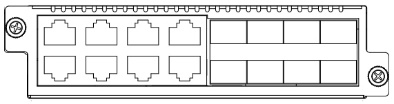

8× Ethernet + 8× Optical Port:
Ordering Information
| Model | 10GbE SFP+ | Gigabit SFP | RJ45 |
|---|---|---|---|
| FT-YZX48XGST6-M-SFP | 6 | Up to 48 | Up to 48 |
Accessories
| Model | Description |
|---|---|
| FT-YZX016G-ZK | 16-port Gigabit Ethernet interface module (RJ45) |
| FT-YZX160G-SFP-ZK | 16-port Gigabit Ethernet interface module (SFP) |
| FT-YZX88GS-SFP-ZK | 8× RJ45 + 8× SFP interface module |
| FT-YZX1600 | 16-port cover |
F-tone Networks industrial switch product line. Typical specifications, confirm in writing for orders. Specifications subject to change without notice.
