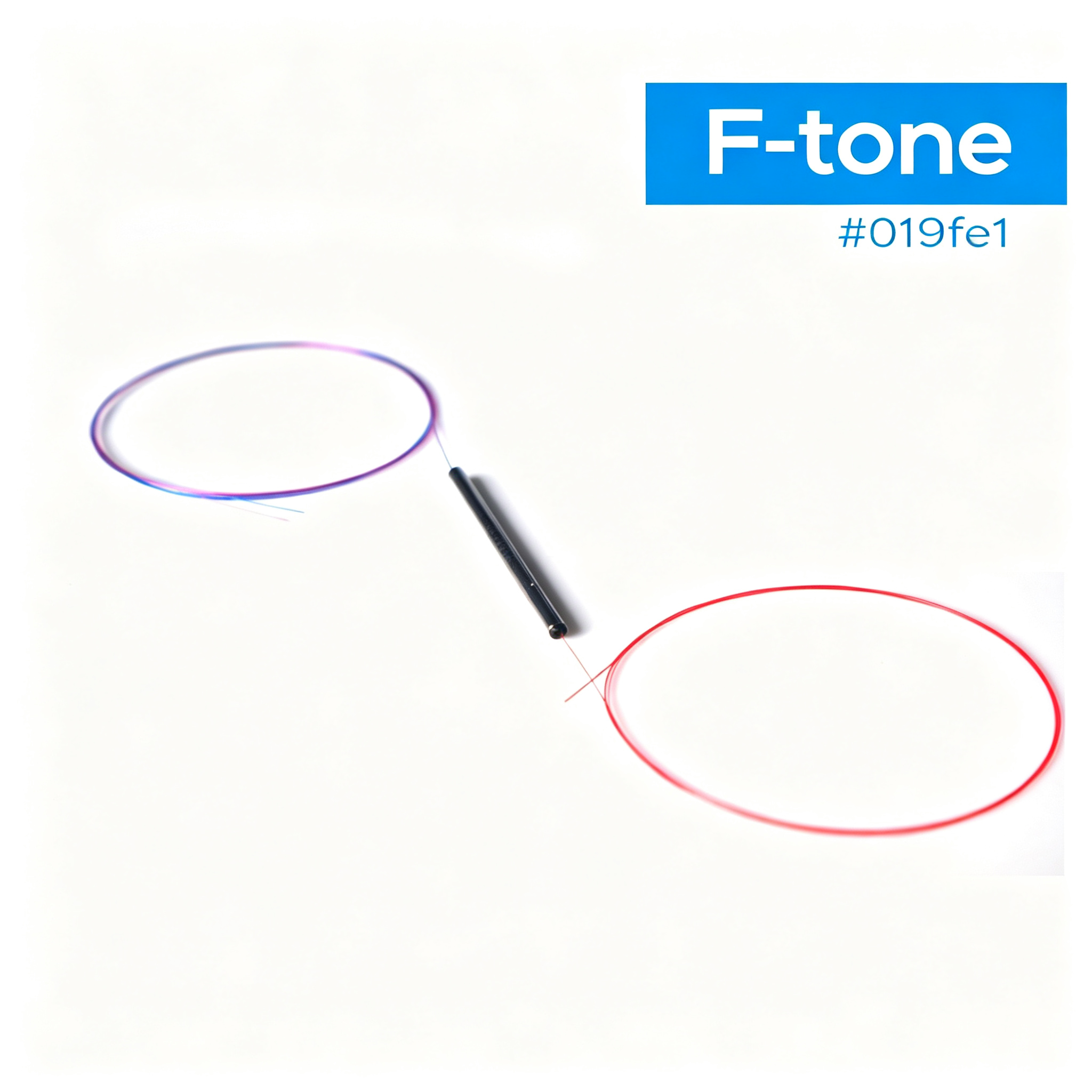

850nm PM Fused fiber Coupler (1×2, 2×2) F-tone's Fused couplers are used to split optical signals between two fibers, or to combine optical signals from two fibers into one fiber. They are constructed by fusing and tapering two fibers together. F-tone's fused couplers are available in a range of wavelengths, fiber sizes, and splitting ratios. The fiber ends can be terminated with a variety of fiber connectors. Standard configurations are 1×2 and 2×2 couplers. N by M fused couplers, such as 1×3, or 1×4,etc., are also available on request.
工作温度：商业级/工业级/军品级可选
|
|
|
||||
|
Features |
Applications |
||||
|
High Power Handling |
Coherent Communication |
||||
|
Low Insertion Loss |
Power Monitor |
||||
|
High Stability & Reliability |
Fiber Sensor |
||||
|
|
|
||||
|
Specifications |
|||||
|
Parameter |
Unit |
Value |
|||
|
Center Wavelength |
nm |
780, 808, 850 |
|||
|
Operating Bandwidth |
nm |
±15 |
|||
|
Max. Excess Loss |
dB |
0.6 |
|||
|
Min. Extinction Ratio |
dB |
20 |
|||
|
Min. Directivity |
dB |
50 |
|||
|
Max. Return Loss |
dB |
50 |
|||
|
Max. Optical Power (CW) |
mW |
300 |
|||
|
Fiber Type |
– |
PM Panda Fiber |
|||
|
Package Dimension |
mm |
φ3*54 (bare/900um loose tube) or 90x20x10 (2mm/3mm loose tube) |
|||
|
Operating Temperature |
℃ |
–5~+75 |
|||
|
Storage Temperature |
℃ |
-40~+85 |
|||
|
Splitting Ratio Tolerance |
|||||
|
Splitting Ratio |
50/50 |
% |
±7.0 |
||
|
40/60 |
% |
±5.5 |
|||
|
30/70 |
% |
±4.0 |
|||
|
20/80 |
% |
±3.1 |
|||
|
10/90 |
% |
±2.6 |
|||
|
5/95 |
% |
±1.5 |
|||
|
1/99 |
% |
±0.6 |
|||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis.
Ordering Information |
|||||
|
PMFUC-1111-233-444-56-7-888 |
|||||
|
1111 – Wavelength: |
0780=780nm, 0808=808nm, 0850=850nm |
||||
|
2 – Port Type: |
3=1×2, 4=2×2 |
||||
|
33 – Tap Ratio： |
10=10/90, SS=Specify |
||||
|
444 – Fiber type： |
005=PM850, 067=PM780-HP, SSS=Specify |
||||
|
5 – Package Dimension: |
0=φ3.0x54mm, 2=90x20x10mm S=Specify |
||||
|
6 – Pigtail type: |
0=bare fiber, 1=900μm loose tube, 2=2mm jacket, 3=3mm jacket |
||||
|
7 – Fiber length: |
1.0=1m, 10=10m, S=Specify |
||||
|
888 – Connector type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
||||
Part No. Example: PMFUC-0850-310-005-005-00-1.0-NNN
Description: 850nm Polarization Maintaining Fused Coupler, 1×2, 10:90 tap ratio, Only both axis working, PM850 fiber for all port, φ3.0x54mm, bare fiber, 1.0m, no connector, 300mW average power.
For Custom Parts, please provide detailed description for your requirement.
