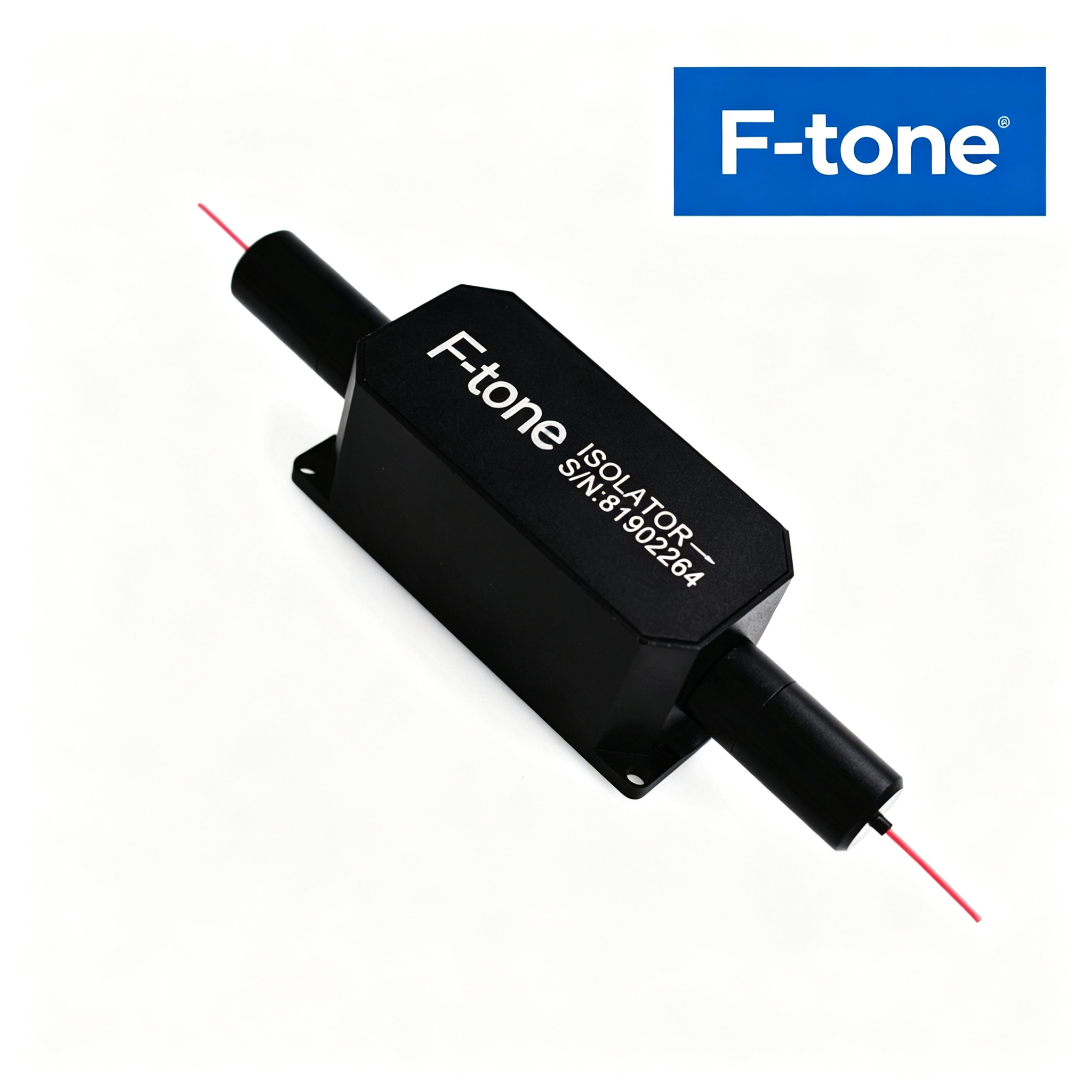

1064nm 2W Non-PM isolator (Faraday based) The isolator is designed to transmit forward light while blocking reflected light from the terminals. F-tone's 2W 1064nm isolator is a micro optics device with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for amplifiers, fiber lasers and test instrumnet applications.
工作温度：商业级/工业级/军品级可选
|
1064nm 2W Non-PM Isolator (Faraday based) |
|||||
|
|
|
||||
|
Features |
Applications |
||||
|
Low Insertion Loss |
Testing Instrument |
||||
|
High Return Loss |
MOPA Fiber Laser |
||||
|
High Isolation |
Fiber Laser |
||||
|
High Stability & Reliability |
|
||||
|
|
|
||||
|
Specifications |
|||||
|
Parameters |
Unit |
Value |
|||
|
Stage |
– |
Single |
Dual |
||
|
Center Wavelength |
nm |
1064 |
|||
|
Operating Wavelength Range |
nm |
±5 |
|||
|
Typ. Peak Isolation at 23℃ |
dB |
35 |
50 |
||
|
Min. Isolation at 23℃ |
dB |
27 |
45 |
||
|
Max. Insertion Loss at 23℃ |
dB |
1.7 |
3.8 |
||
|
Max. Insertion Loss at 23℃ and Input Power 300mW |
dB |
2.0 |
4.0 |
||
|
Max. Insertion Loss at 23℃ and Input Power 1W |
dB |
2.5 |
4.5 |
||
|
Max. Insertion Loss at 23℃ and Input Power 2W |
dB |
3.0 |
5.5 |
||
|
Max. Polarization Dependent Loss at 23℃ |
dB |
0.15 |
|||
|
Min. Return Loss at 23℃ (Input /Output) |
dB |
45 |
|||
|
Max. Optical Power (CW) |
W |
0.5, 1, 2 |
|||
|
Max. Peak Power for ns Pulse |
kW |
10 |
|||
|
Package Dimensions |
mm |
33x17x11.5 |
60x17x11.5 |
||
|
Max. Tensile Load |
N |
5 |
|||
|
Operating Temperature |
℃ |
+10 to +50 |
|||
|
Storage Temperature |
℃ |
0 to +60 |
|||
|
*Above specifications are for device without connector. |
|||||
|
*With connector, the handing power is 1W only, IL is 0.3dB higher and RL is 5dB lower. |
|||||
|
*The default connector key is aligned to slow axis. |
|||||
|
|
|||||
|
Ordering Information |
|||||
|
PIIS-①①①①–②③-④④④-⑤⑥-⑦-⑧⑧-⑨⑨⑩⑩ |
|||||
|
①①①① |
– Wavelength: |
1064=1064nm, SSSS=Specified |
|||
|
② |
– Core Type: |
S=Single-core stage, D=Dual-core stage |
|||
|
③ |
– Working Axis: |
N=Non-PM |
|||
|
④④④ |
– Fiber Type: |
004=Hi1060, 019=LMA-GDF-10/125-M, SSS=Specified |
|||
|
⑤ |
– Package Dimensions: |
0=33x17x11.5mm, 1=60x17x11.5mm |
|||
|
⑥ |
– Pigtail Type: |
0=250μm bare fiber, 1=900μm loose tube |
|||
|
⑦ |
– Fiber Length: |
0.8=0.8m, 1.0=1m, S=Specified |
|||
|
⑧⑧ |
– Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
|||
|
⑨⑨ |
– Average Power: |
00=500mW, 01=1W, 02=2W |
|||
|
⑩⑩ |
– Peak Power: |
00=Continuous Wave, 01=1kW, 02=2kW, 10=10kW, SS=Specified |
|||
Part No. Example: PIIS-1064–SN–004-00-0.8-00-0001
Description: Polarization Insensitive Isolator, 1064nm, Single-core stage, No axis, Hi1060 fiber, 33x17x11.5mm, bare fiber, 0.8m, FC/UPC connector, 500mW average power, 1kW peak power.
For Custom Parts, please provide detailed description for your requirement.
