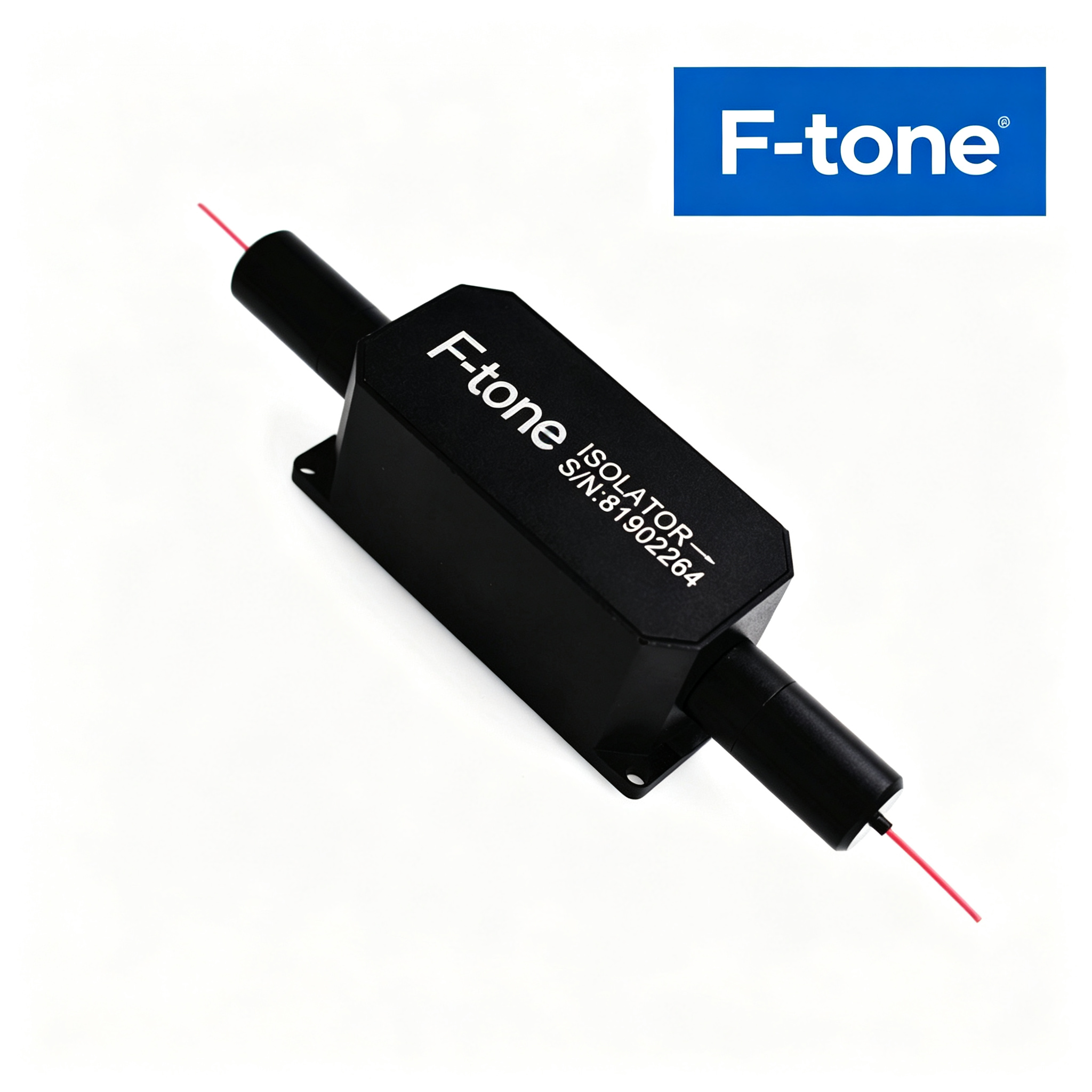

1064nm 300mW Non-PM Isolator (Faraday Based) The isolator is designed to transmit forward light while blocking reflected light from the terminals. The isoaltor is characterized with low insertion loss, high isolation, high return loss and excellent environmental stability and reliability. It's the critical device of fiber amplifiers, fiber lasers, high speed communication systems and instrumentation applications.
工作温度：商业级/工业级/军品级可选
|
1064nm 300mW Non-PM Isolator (Faraday Based) |
||||
|
|
|
|||
|
Features |
Applications |
|||
|
Low Insertion Loss |
MOPA Fiber Laser |
|||
|
High Return Loss |
Test Instruments |
|||
|
High Isolation |
Fiber Laser |
|||
|
High Stability & Reliability |
Research |
|||
|
|
|
|||
|
|
||||
|
Specifications |
||||
|
Parameter |
Unit |
Value |
||
|
Type |
– |
Polarization Insensitive |
||
|
Stage |
– |
Single |
Dual |
|
|
Center Wavelength |
nm |
1064 |
||
|
Operating Wavelength Range |
nm |
±5 |
||
|
Typ. Peak Isolation at 23℃ |
dB |
35 |
52 |
|
|
Min. Isolation at 23℃ |
dB |
28 |
45 |
|
|
Typ. Insertion Loss at 23℃ |
dB |
1.5 |
2.4 |
|
|
Max. Insertion Loss at 23℃ |
dB |
1.8 |
3.2 |
|
|
Min. Return Loss at 23℃ (input/output) |
dB |
50/50 |
||
|
Max. Polarization Dependent Loss at 23℃ |
dB |
0.15 |
||
|
Max. Optical Power (CW) |
mW |
300 |
||
|
Max. Tensile Load |
N |
5 |
||
|
Fiber Type |
– |
Single-mode fiber |
||
|
Operating Temperature |
℃ |
-5~+50 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
|
*Above specifications are for device without connector. |
||||
|
*With connector, IL is 0.3dB higher and RL is 5dB lower. |
||||
|
*The default connector key is aligned to slow axis. |
||||
|
|
||||
|
Ordering Information |
||||
|
PIIS-①①①①–②③-④④④-⑤⑥-⑦-⑧⑧ |
||||
|
①①①① |
– Wavelength: |
1064=1064nm, SSSS=Specified |
||
|
② |
– Core Type: |
S=Single-core stage, D=Dual-core stage |
||
|
③ |
– Working Axis: |
N=Non-PM |
||
|
④④④ |
– Fiber Type: |
004=Hi1060, SSS=Specified |
||
|
⑤ |
– Package: |
0=φ5.5x35mm |
||
|
⑥ |
– Dimensions: |
0=bare fiber, 1=900μm loose tube, S=Specified |
||
|
⑦ |
– Pigtail Type: |
0.8=0.8m, 1.0=1m, S=Specified |
||
|
⑧⑧ |
– Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specified |
||
Part No. Example: PIIS-1064–SN–004-00-0.8-00
Description: Polarization Insensitive Isolator, 1064nm, Single-core stage, No axis, Hi1060 fiber, φ5.5x35mm, bare fiber, 0.8m, FC/UPC connector.
For Custom Parts, please provide detailed description for your requirement.
