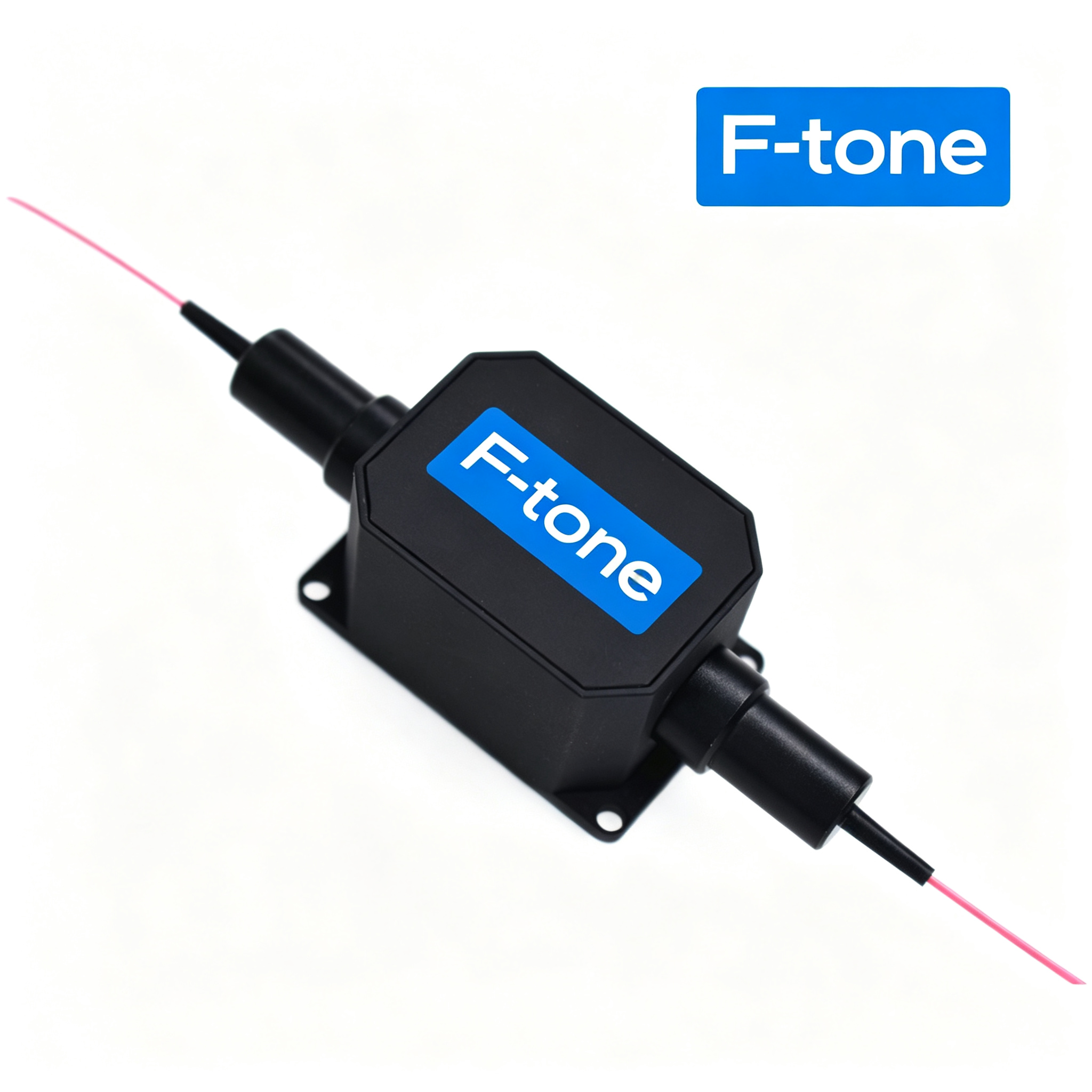

633nm Polarization Maintaining Isolator The isolator is designed to transmit forward light while blocking reflected light from the terminals. The isoaltor is characterized with low insertion loss, high isolation, high return loss and excellent environmental stability and reliability. It's the critical device of fiber amplifiers, fiber lasers, high speed communication systems and instrumentation applications.
工作温度：商业级/工业级/军品级可选
|
633nm Polarization Maintaining Isolator |
|||
|
|
|
||
|
Features |
Applications |
||
|
Low Insertion Loss |
Testing Instrument |
||
|
High Return Loss |
Raman Fiber Laser |
||
|
High Isolation |
Ultra-fast Fiber Laser |
||
|
High stability & Reliability |
|
||
|
|
|
||
|
Specifications |
|||
|
Parameters |
Unit |
Value |
|
|
Center Wavelength |
nm |
633 |
|
|
Operating Wavelength Range |
nm |
±10 |
|
|
Min. Isolation at 23℃ |
dB |
25 |
|
|
Typ. Insertion Loss at 23℃ |
dB |
1.3 |
|
|
Max. Insertion Loss at 23℃ |
dB |
1.5 |
|
|
Min. Extinction Ratio at 23℃ |
dB |
18 |
|
|
Min. Return Loss at 23℃ (Input /Output) |
dB |
45 |
|
|
Max. Optical Power (CW) |
mW |
300 |
|
|
Max. Tensile Load |
N |
5 |
|
|
Package Dimension |
mm |
44x28x26 |
|
|
Operating Temperature |
℃ |
+10~+50 |
|
|
Storage Temperature |
℃ |
0~+60 |
|
|
*Above specifications are for device without connector. *With connector, the handling power is 100mW, IL is 1.5dB higher, RL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis. |
|||
|
Ordering Information |
|||
|
HPMIS-①①①–②–③③③-④⑤-⑥-⑦⑦-⑧⑧⑨⑨ |
|||
|
①①① |
– Center Wavelength: |
633=633nm, SSS=Specified |
|
|
② |
– Working Axis: |
F=Fast axis blocked, B=Both axis working |
|
|
③③③ |
– Fiber Type: |
096=PM630-HP, SSS=Specified |
|
|
④ |
– Pigtail Type: |
0=250μm bare fiber, 1=900μm loose tube |
|
|
⑤ |
– Package Dimensions: |
0=44x28x26mm |
|
|
⑥ |
– Fiber Length: |
0.8=0.8m, 1.0=1m, S=Specified |
|
|
⑦⑦ |
– Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, 4=LC/UPC, 5=LC/APC, N=None |
|
|
⑧⑧ |
– Average Power: |
00=300mW |
|
|
⑨⑨ |
– Peak Power: |
00=Continuous Wave, 01=1kW, 02=2kW, SS=Specified |
|
Part No. Example: HPMIS-633-F-096-00-0.8-00-0001
Description: High Power Polarization Maintaining Isolator, 633nm, Fast axis blocked, PM630-HP fiber, bare fiber, 44x28x26mm, 0.8m, FC/UPC connector, 300mW average power, 1kW peak power.
For Custom Parts, please provide detailed description for your requirement.
