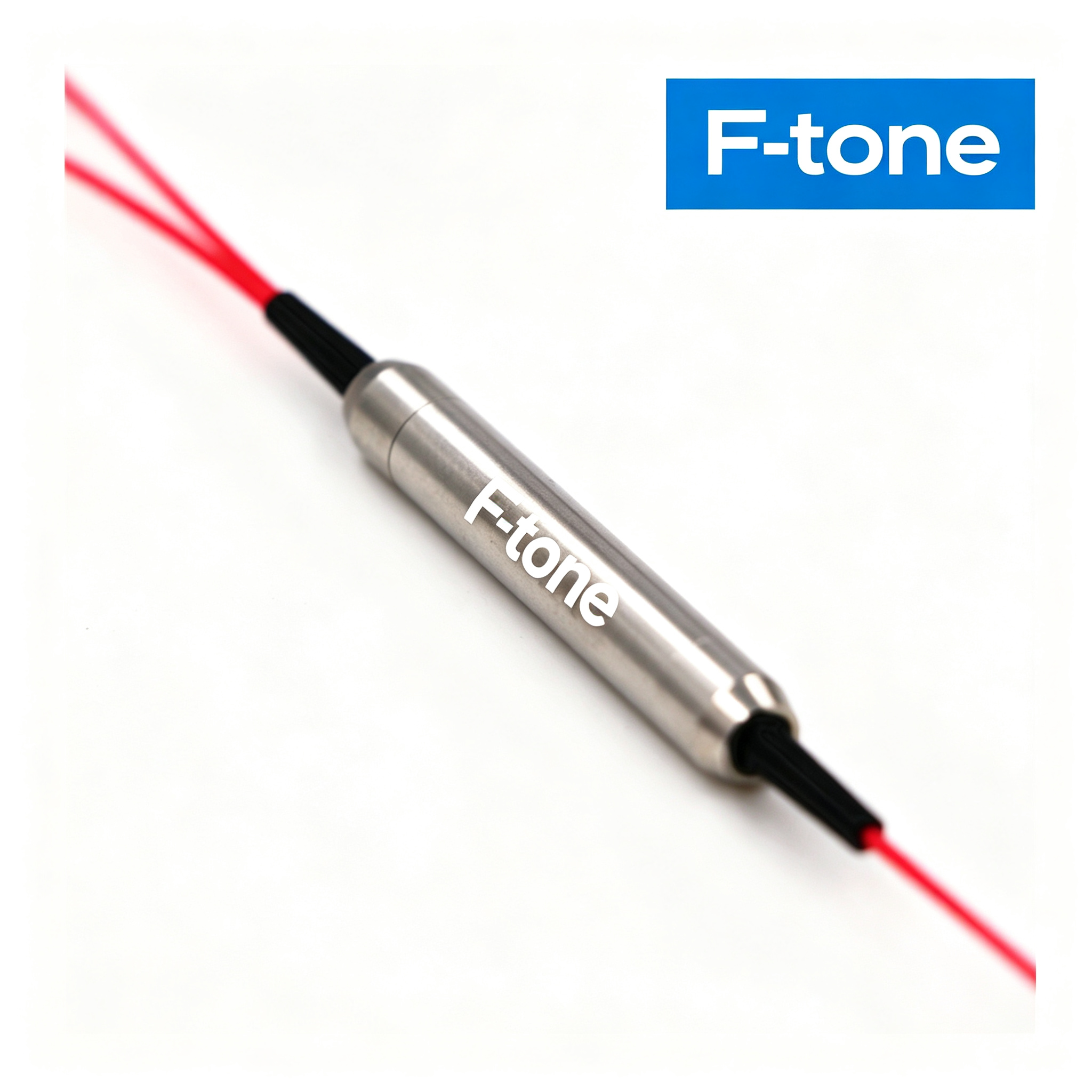

3-port 1550nm Polarization Insensitive Circulator The PM Fiber Circulator (Fast axis blocked) is a compact light-wave assembly that comes in two types. One type is 1×2 that routes input signals from Port 1 to Port 2 and input Port 2 signals to Port 3 while blocking reflected light; The other type si 2×2 that routes input signals from Port 1 to Port 2, input port 2 to port 3, and input port 3 to port 4, while blocking reflected light. The device has high isolation, low insertion loss, high extinction ratio and excellent environmental stability.
工作温度：商业级/工业级/军品级可选
|
3-port 1550nm Polarization Insensitive Circulator |
||||
|
|
||||
|
|
|
|||
|
Features |
Applications |
|||
|
Low Insertion Loss |
EDFA & Raman Amplifier |
|||
|
High Return Loss |
Fiber Sensor |
|||
|
High Isolation |
Fiber Instrument |
|||
|
High Reliability& Stability |
|
|||
|
|
|
|||
|
Specifications |
||||
|
Parameter |
Unit |
Value |
||
|
Type |
– |
Polarization Independent |
||
|
Port Type |
– |
3 Port |
||
|
Center Wavelength |
nm |
1550 |
||
|
Operating Wavelength Range |
nm |
±20 |
||
|
Typ. Insertion Loss at 23℃ |
dB |
0.8 |
||
|
Max. Insertion Loss at 23℃ |
dB |
1.0 |
||
|
Min. Isolation at 23℃ |
dB |
40 |
||
|
Polarization Dependent Loss at 23℃ |
dB |
0.2 |
||
|
Polarization Mode Dispersion at 23℃ |
ps |
0.1 |
||
|
Directivity |
dB |
50 |
||
|
Min. Return Loss |
dB |
45 |
||
|
Max. Optical Power(CW) |
mW |
500 |
||
|
Max. Tensile Load |
N |
5 |
||
|
Fiber Type |
– |
Single mode fiber |
||
|
Operating Temperature |
℃ |
0~+70 |
||
|
Storage Temperature |
℃ |
-40~+85 |
||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis. |
||||
|
Ordering Information |
||||
|
PICIR-1111-234–555-67-8-9999 |
||||
|
1111 – Wavelength: |
1550=1550nm |
|||
|
2 – Port Type: |
3=3-Port |
|||
|
333 – Fiber Type: |
008=SMF-28E, SSS=Specify |
|||
|
4 – Package Dimension: |
0=φ5.5x50mm, S=Specified |
|||
|
5 – Pigtail Type: |
1=900μm loose tube |
|||
|
6 – Fiber Length: |
1.0=1m, S=Specify |
|||
|
777 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
|||
Part No. Example: PICIR-1550-3-008-00-1.0-000
Description: Polarization Insensitive Circulator, 1550nm, 3-Port, SMF-28E, φ5.5x50mm, bare fiber, 1.0m, no connector.
For Custom Parts, please provide detailed description for your requirement.
