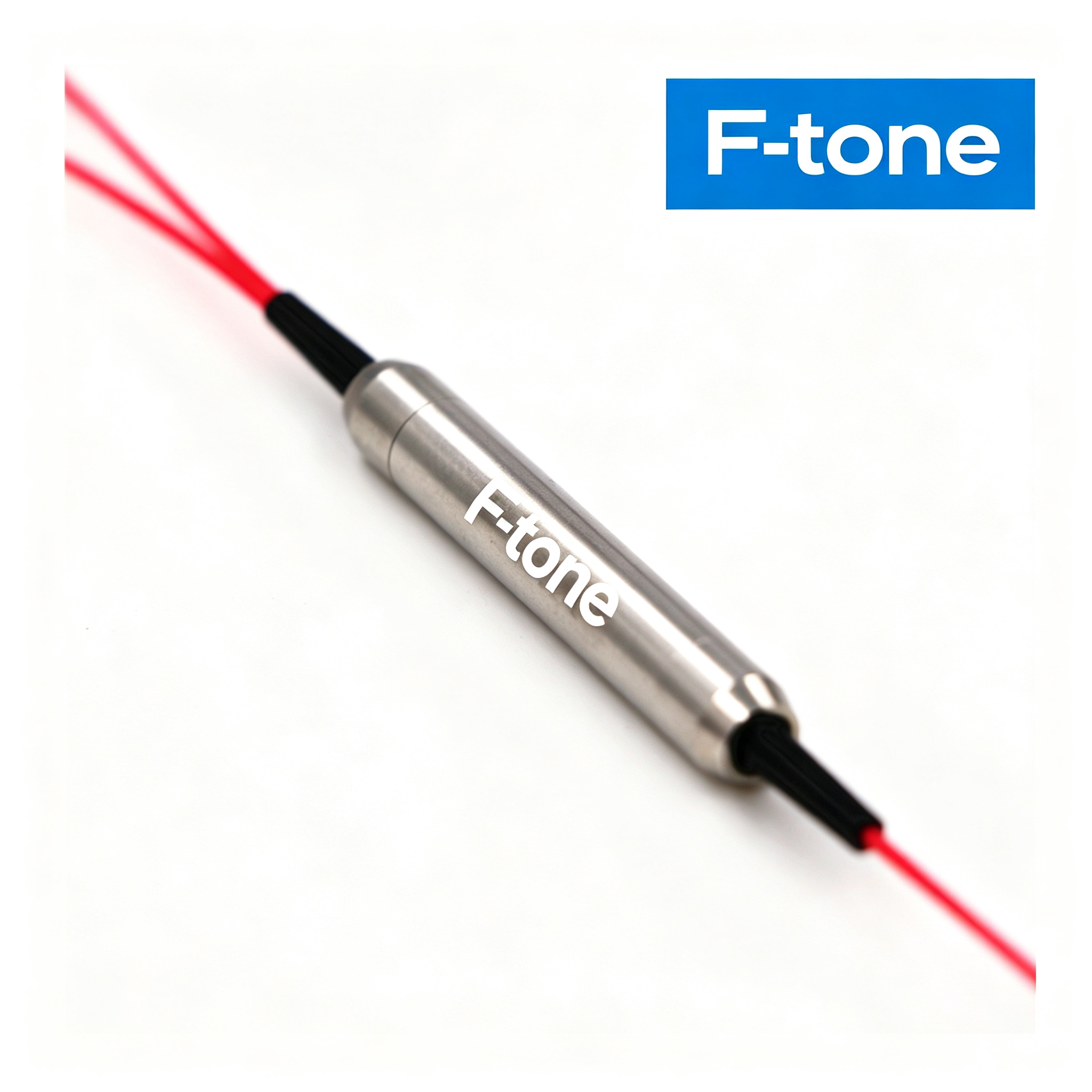

1064nm 300mW PM Circulator The PM Fiber Circulator (Fast axis blocked) is a compact light-wave assembly that comes in two types. One type is 1×2 that routes input signals from Port 1 to Port 2 and input Port 2 signals to Port 3 while blocking reflected light; The other type si 2×2 that routes input signals from Port 1 to Port 2, input port 2 to port 3, and input port 3 to port 4, while blocking reflected light. The device has high isolation, low insertion loss, high extinction ratio and excellent environmental stability.
工作温度：商业级/工业级/军品级可选
|
1064nm PM Fiber Circulator (Fast axis blocked) |
|||||
|
|
|||||
|
|
|
||||
|
Features |
Applications |
||||
|
Low Insertion Loss |
EDFA & Raman Amplifier |
||||
|
High Return Loss |
Fiber Sensor |
||||
|
High Isolation |
Fiber Instrument |
||||
|
High Extinction Ratio |
|
||||
|
High Reliability& Stability |
|
||||
|
|
|
||||
|
Specifications |
|||||
|
Parameter |
Unit |
Value |
|||
|
Type |
– |
Type B |
|||
|
Port Type |
– |
3 Port |
4 Port |
||
|
Center Wavelength |
nm |
1064 |
|||
|
Operating Wavelength Range |
nm |
±5 |
|||
|
Typ. Insertion Loss at 23℃ |
dB |
1.8 |
2.2 |
||
|
Max. Insertion Loss at 23℃ |
dB |
2.1 |
2.5 |
||
|
Typ. Peak Isolation 23℃ |
dB |
30 |
|||
|
Min. Isolation at 23℃ |
dB |
25 |
|||
|
Min. Extinction Ratio at 23℃ |
dB |
20 |
|||
|
Min. Cross Talk |
dB |
50 |
|||
|
Min. Return Loss |
dB |
50 |
|||
|
Max. Optical Power(CW) |
mW |
300 |
|||
|
Max. Tensile Load |
N |
5 |
|||
|
Fiber Type |
– |
PM Panda Fiber |
|||
|
Operating Temperature |
℃ |
-5~+70 |
|||
|
Storage Temperature |
℃ |
-40~+85 |
|||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis. |
|||||
|
Ordering Information |
|||||
|
PMCIR-1111-234–555-67-8-9999 |
|||||
|
1111 – Wavelength: |
1064=1064nm |
||||
|
2 – Port Type: |
3=3-Port, 4=4-Port |
||||
|
3 – Stage: |
B= Type B |
||||
|
4 – Working Axis: |
F=Slow axis working, Fast axis blocked |
||||
|
555 – Fiber Type: |
003=PM980, 014=PM1060L, 018=PLMA-GDF-10/125-M, SSS=Specify |
||||
|
6 – Package Dimension: |
0=φ5.5x35mm, 1=φ5.5x50mm, S=Specified |
||||
|
7 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
||||
|
8 – Fiber Length: |
0.75=0.75m, 1.0=1m, S=Specify |
||||
|
999 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
||||
Part No. Example: PMCIR-1064-3BF-003-00-0.75-000
Description: Polarization Maintaining Circulator, 1064nm, 3-Port, Type B, Slow axis working, PM980, φ5.5x35mm, bare fiber, 0.75m, no connector.
For Custom Parts, please provide detailed description for your requirement.
