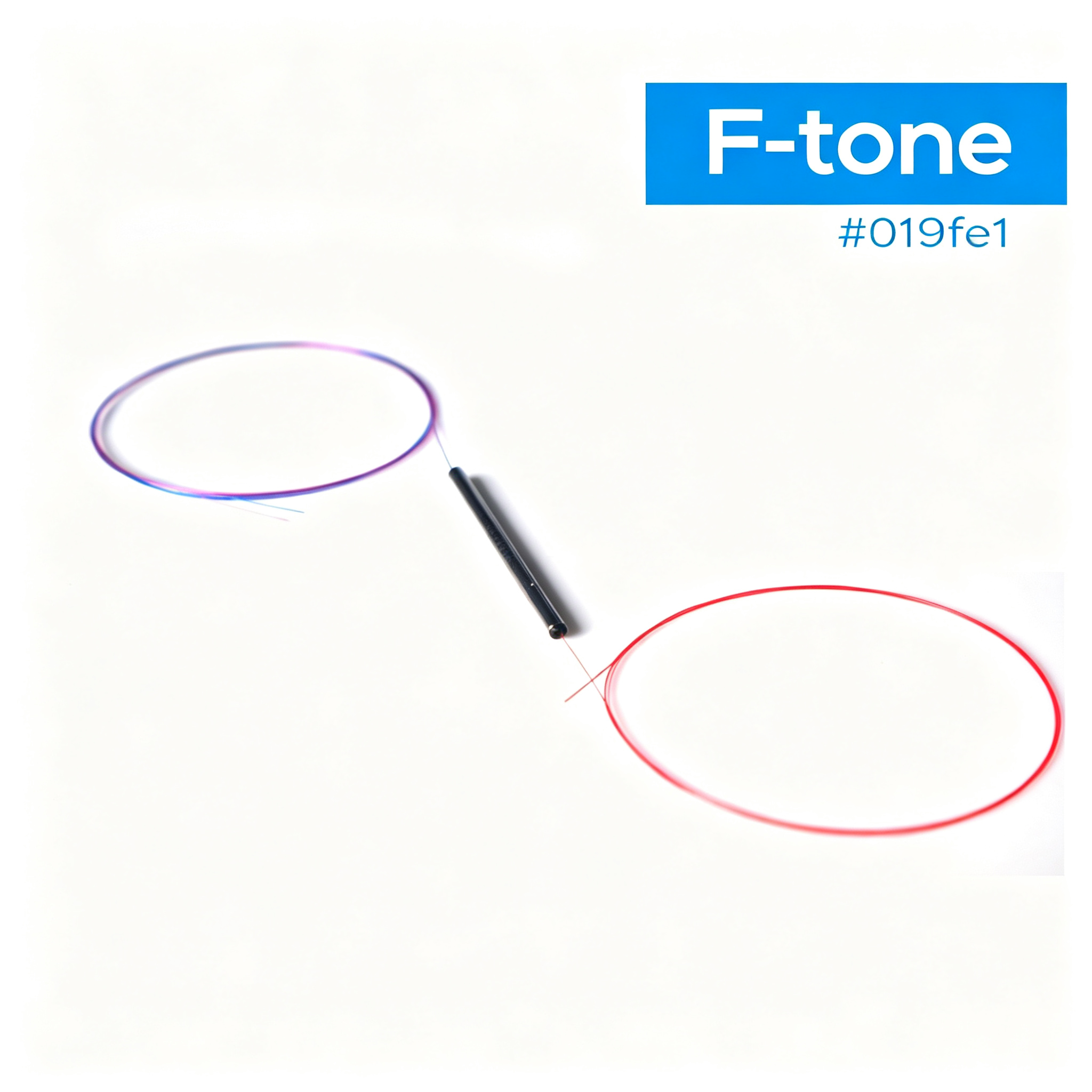

1064nm Fused Type PM Fiber WDM (1×2,2×2) This product can also be used to multiplex other wavelengths. including 980/1030 nm (pulsed laser applications) and 1064/1550 nm (Erbium-Ytterbium pumping). Low power (300 mW, 500 mW) and high power (20W) handling are available.They are ideal for polarization maintaining fiber amplifiers, fiber lasers, and high speed communication system and instrumentation applications.
工作温度：商业级/工业级/军品级可选
|
|
|
|||||
|
Features |
Applications |
|||||
|
High Extinction Ratio |
Testing Instruments |
|||||
|
High Isolation |
Coherent Communication |
|||||
|
Low Insertion Loss |
EDFA |
|||||
|
High stability & Reliability |
Fiber Sensor |
|||||
|
|
|
|||||
|
Specifications |
||||||
|
Parameter |
Unit |
Value |
||||
|
Type |
/ |
980/1064 |
||||
|
Operating Bandwidth |
nm |
±15 |
||||
|
Max. Insertion Loss |
Signal Port |
dB |
0.8 |
|||
|
Pump Port |
dB |
0.8 |
||||
|
Min. Extinction Ratio |
dB |
18 |
||||
|
Min, Isolation |
dB |
13 |
||||
|
Min. Directivity |
dB |
55 |
||||
|
Max. Return Loss |
dB |
50 |
||||
|
Max. Optical Power (CW) |
W |
3 |
||||
|
Fiber Type |
– |
PM Panda Fiber |
||||
|
Package Dimension |
mm |
φ3*70 |
||||
|
Operating Temperature |
℃ |
–5~+75 |
||||
|
Storage Temperature |
℃ |
-40~+85 |
||||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis.
Ordering Information |
||||||
|
PMFUWDM-1111-2–333-45-6-777 ( 1×2 Type) / PMFUWDM-1111-2–333-45-6-7777 ( 2×2 Type) |
||||||
|
1111 – Wavelength: |
9806=980/1064 |
|||||
|
2 – Type: |
3=1×2, 4=2×2 |
|||||
|
333 – Fiber type |
001=PM1550, 002=PM1310, 003=PM980, SSS=Specified |
|||||
|
4 – Package Dimensions: |
0=φ3.0x70mm, 1=φ3x70mm, S=Specify |
|||||
|
5 – Pigtail type: |
0=bare fiber, 1=900μm loose tube |
|||||
|
6 – Fiber length: |
0.75=0.75m, 1.0=1m, S=Specify |
|||||
|
7777 – Connector type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
|
||||
Part No. Example: PMFUWDM-9806-3-003-10-0.75-NNN
Description: 980nm/1064nm Polarization Maintaining Fused WDM, 1×2 type, Only both axis working, PM980 fiber, φ3x70mm, bare fiber, 0.75m, no connector, 3W average power.
For Custom Parts, please provide detailed description for your requirement.
