MT24-2MT&DS-MIV0.6/0.45 光缆组件 V3.09
本系列光缆组件提供两种型号配置，适用于高密度光纤互连场景，采用多模OM3光纤，支持850nm和1300nm工作波长。
型号说明
型号一：HNAMT24-3MT/DS-MIV0.6/0.15
左端为HNAMT24插头（斜8°镀膜），右端为3只MT/DS插头（适配GYM18KT2AN插座），使用多模OM3光纤，长度0.6米，分支0.15米。
型号二：AMT24-2MT12+4JY599/20GP+HNAMT24-MIV0.55/0.22/0.12
左端为AMT24插头（斜8°不镀膜），右端为2只MT12插头、4只JY599/20GP插针（适配J599/20KA94A1N插座）和1只HNAMT24插头（斜8°镀膜），使用多模OM3光纤，长度分别为0.55米、0.22米和0.12米。

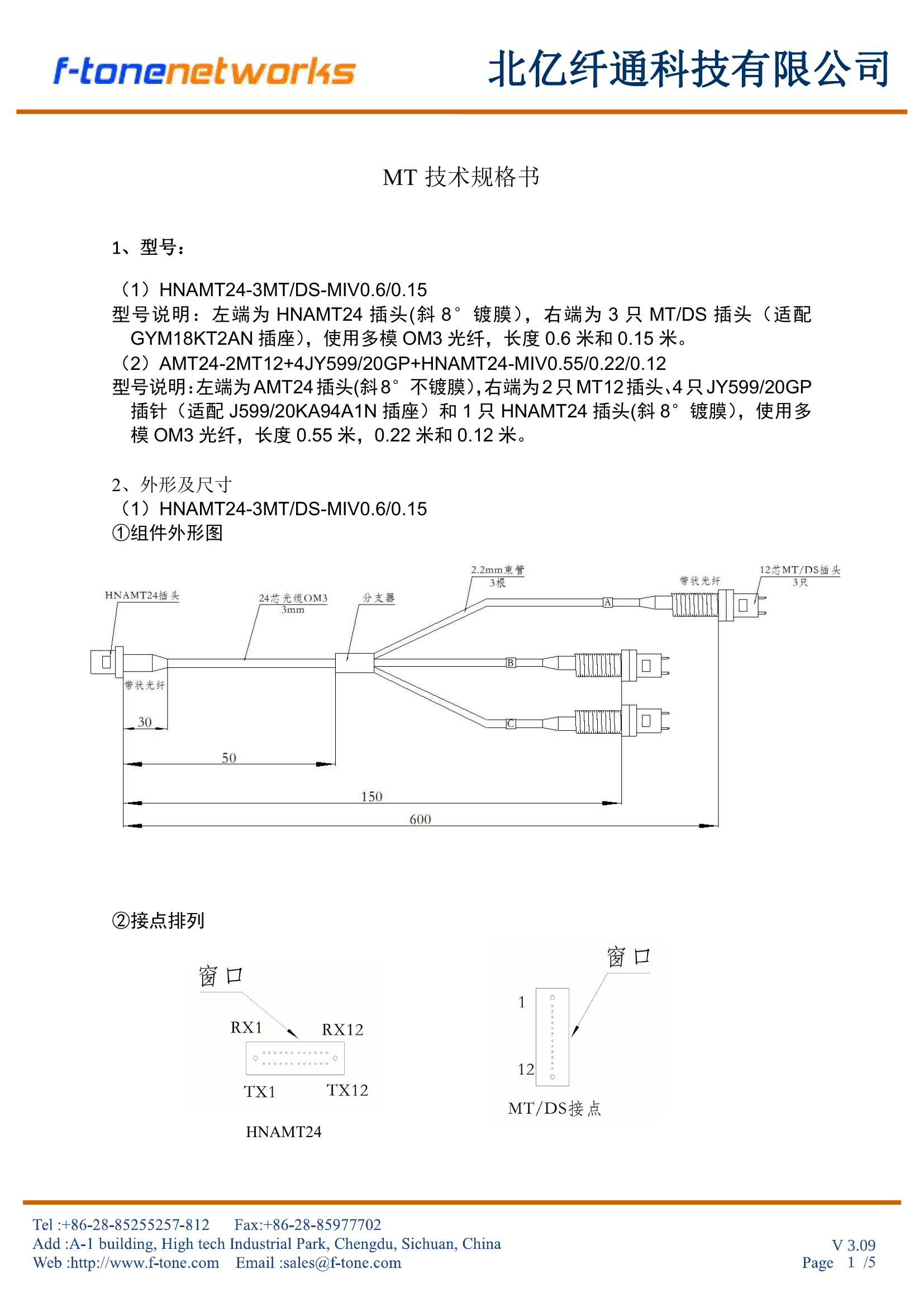

外形及尺寸

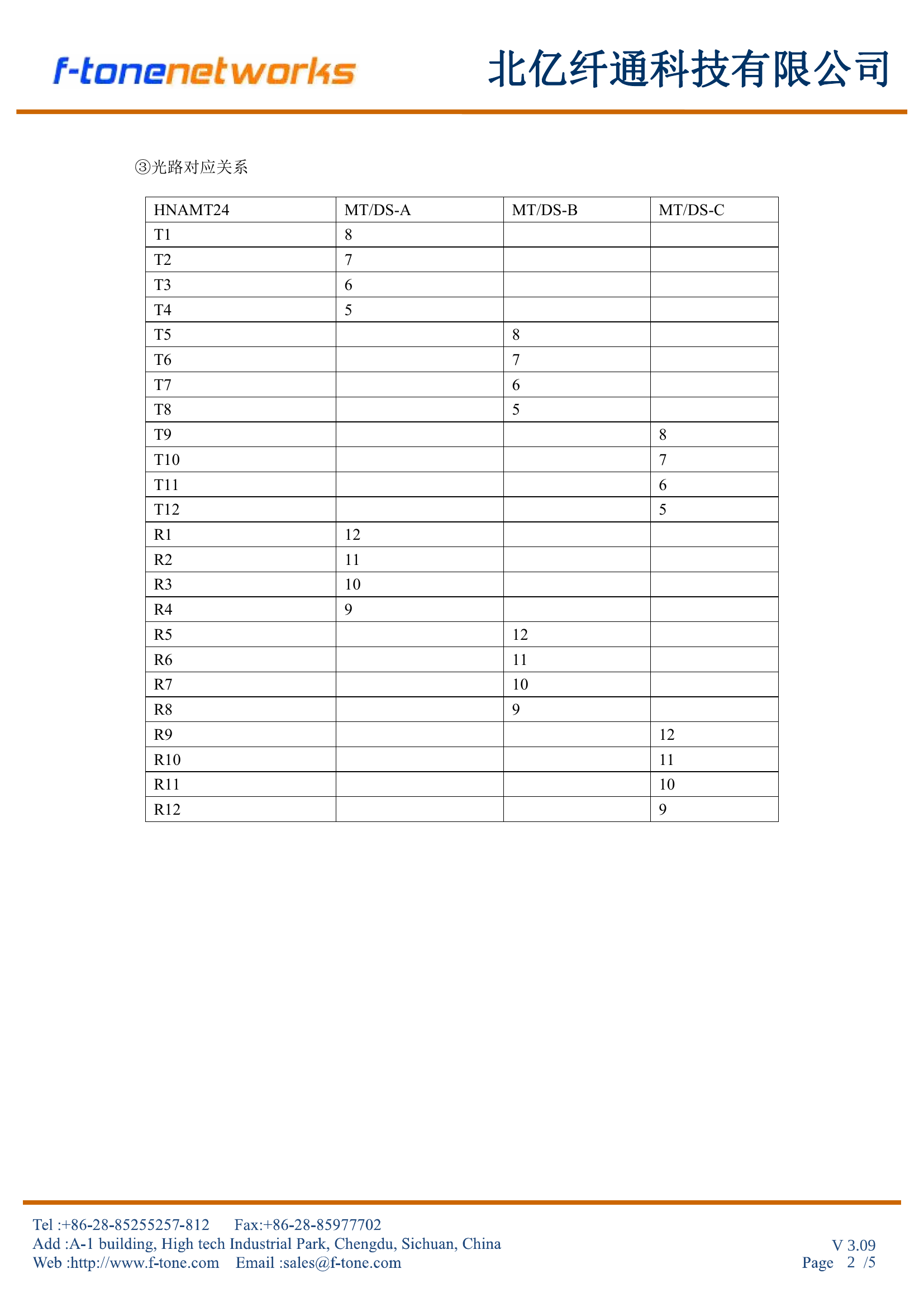

光路对应关系 — HNAMT24-3MT/DS-MIV0.6/0.15
| HNAMT24 | MT/DS-A | MT/DS-B | MT/DS-C |
|---|---|---|---|
| T1 | 8 | – | – |
| T2 | 7 | – | – |
| T3 | 6 | – | – |
| T4 | 5 | – | – |
| T5 | – | 8 | – |
| T6 | – | 7 | – |
| T7 | – | 6 | – |
| T8 | – | 5 | – |
| T9 | – | – | 8 |
| T10 | – | – | 7 |
| T11 | – | – | 6 |
| T12 | – | – | 5 |
| R1 | 12 | – | – |
| R2 | 11 | – | – |
| R3 | 10 | – | – |
| R4 | 9 | – | – |
| R5 | – | 12 | – |
| R6 | – | 11 | – |
| R7 | – | 10 | – |
| R8 | – | 9 | – |
| R9 | – | – | 12 |
| R10 | – | – | 11 |
| R11 | – | – | 10 |
| R12 | – | – | 9 |

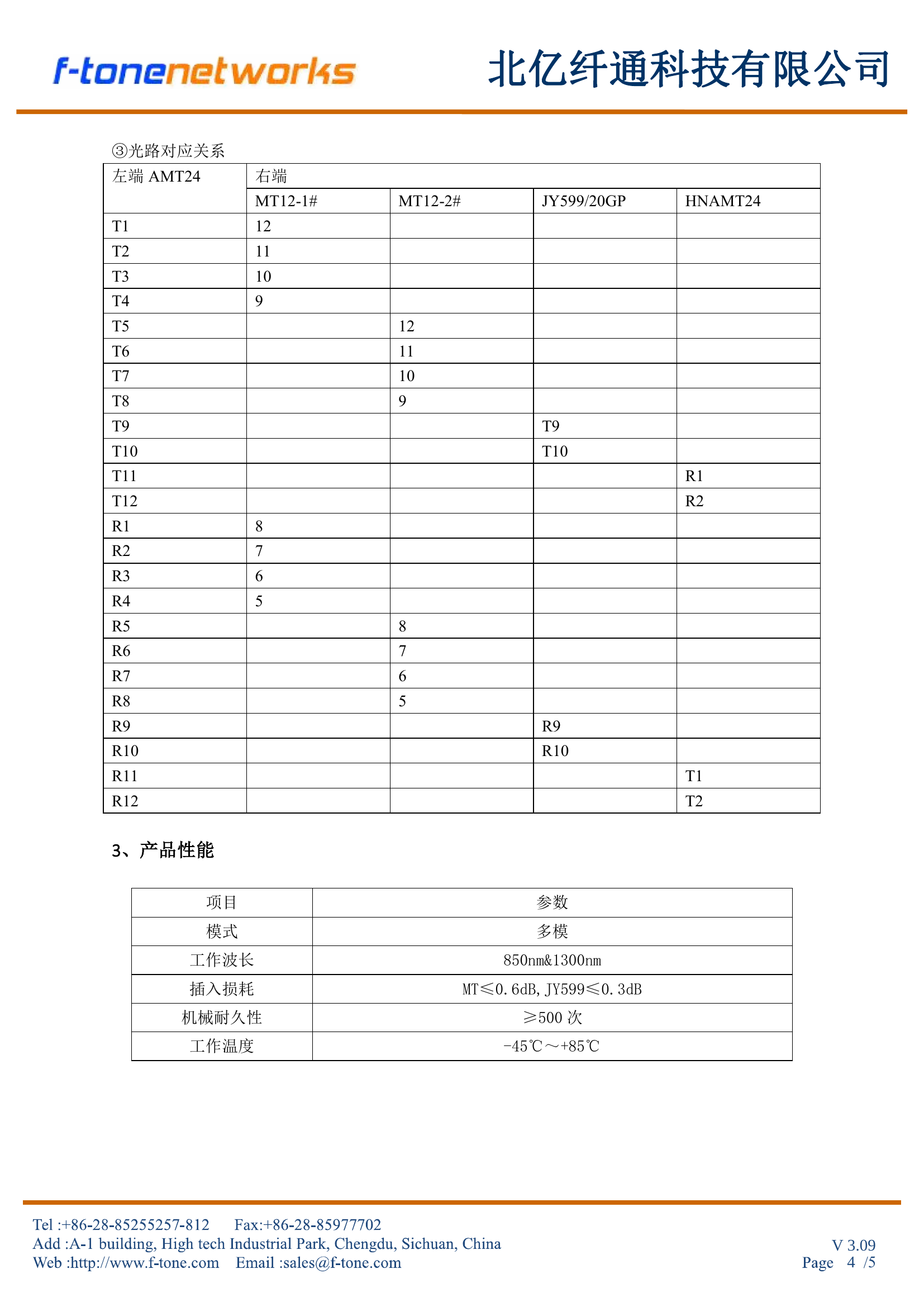

光路对应关系 — AMT24-2MT12+4JY599/20GP+HNAMT24
| 左端 AMT24 | MT12-1# | MT12-2# | JY599/20GP | HNAMT24 |
|---|---|---|---|---|
| T1 | 12 | – | – | – |
| T2 | 11 | – | – | – |
| T3 | 10 | – | – | – |
| T4 | 9 | – | – | – |
| T5 | – | 12 | – | – |
| T6 | – | 11 | – | – |
| T7 | – | 10 | – | – |
| T8 | – | 9 | – | – |
| T9 | – | – | T9 | – |
| T10 | – | – | T10 | – |
| T11 | – | – | – | R1 |
| T12 | – | – | – | R2 |
| R1 | 8 | – | – | – |
| R2 | 7 | – | – | – |
| R3 | 6 | – | – | – |
| R4 | 5 | – | – | – |
| R5 | – | 8 | – | – |
| R6 | – | 7 | – | – |
| R7 | – | 6 | – | – |
| R8 | – | 5 | – | – |
| R9 | – | – | R9 | – |
| R10 | – | – | R10 | – |
| R11 | – | – | – | T1 |
| R12 | – | – | – | T2 |
产品性能
| 项目 | 参数 |
|---|---|
| 模式 | 多模 |
| 工作波长 | 850nm & 1300nm |
| 插入损耗 | MT ≤ 0.6dB, JY599 ≤ 0.3dB |
| 机械耐久性 | ≥ 500次 |
| 工作温度 | -45℃ ~ +85℃ |
Region: Tianfu New Area, Sichuan, China
Service Area: Global
Tel: 028-85255257 | Fax: 028-85977702 | Mobile: 19081343401
Site: https://www.f-tone.com
HR: hr@f-tone.com | Sales: sales@f-tone.com | Support: support@f-tone.com
本产品为【光缆组件】产品线，详细信息，请联系我们的销售人员，谢谢！

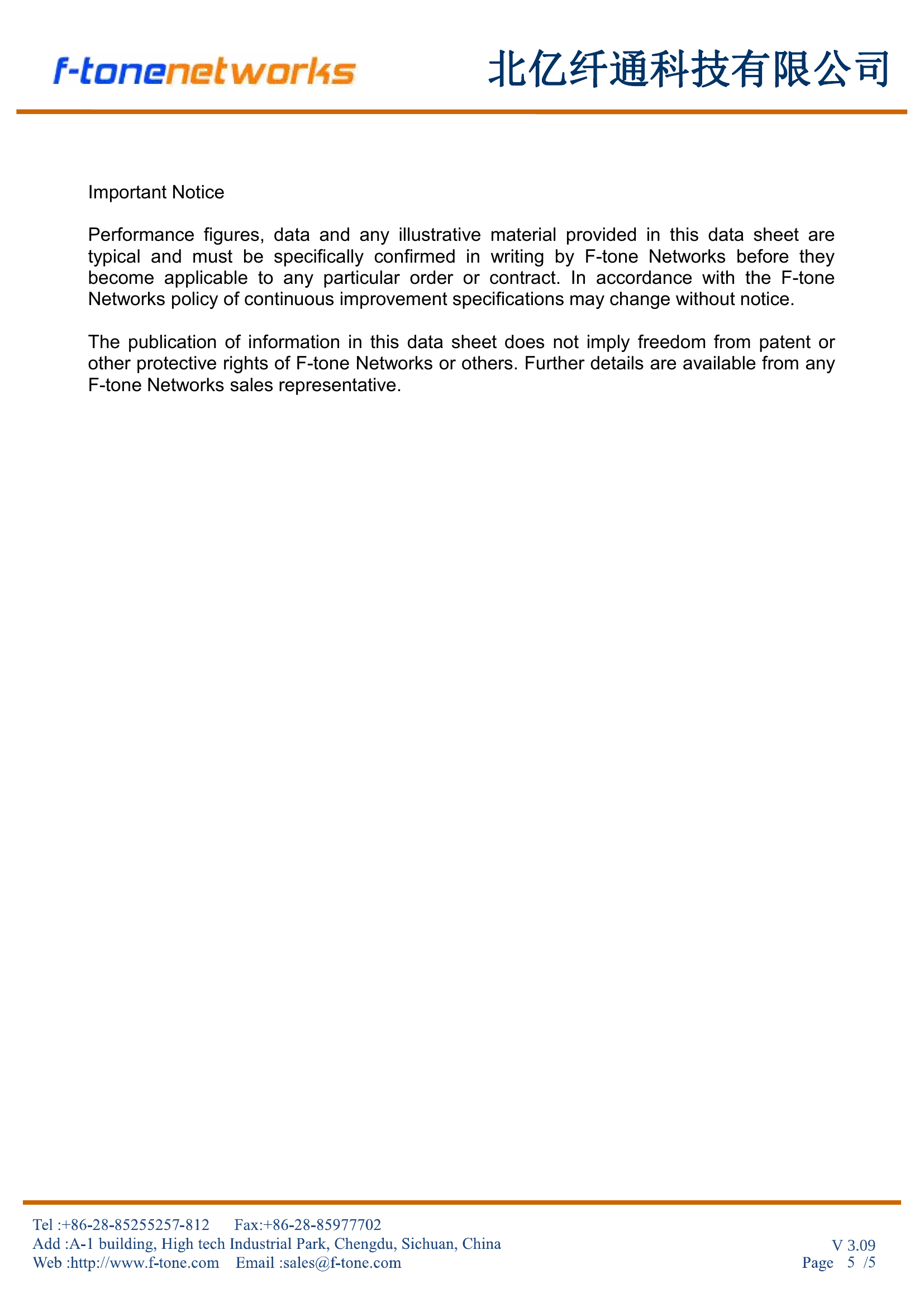

Important Notice
