JYSK22N04-2LC-S2-L0.2 光缆组件技术规格书
左端为 JYSK22N04 插头，右端 2 只 LC 插头，使用 φ2 单芯单模光缆，光缆总长为 0.2 米。
产品概述
JYSK22N04 光缆组件是一款专用光纤连接组件，采用 JYSK22N04 连接器与 LC 连接器组合设计，适用于高密度光纤布线系统中的短距离互连场景。

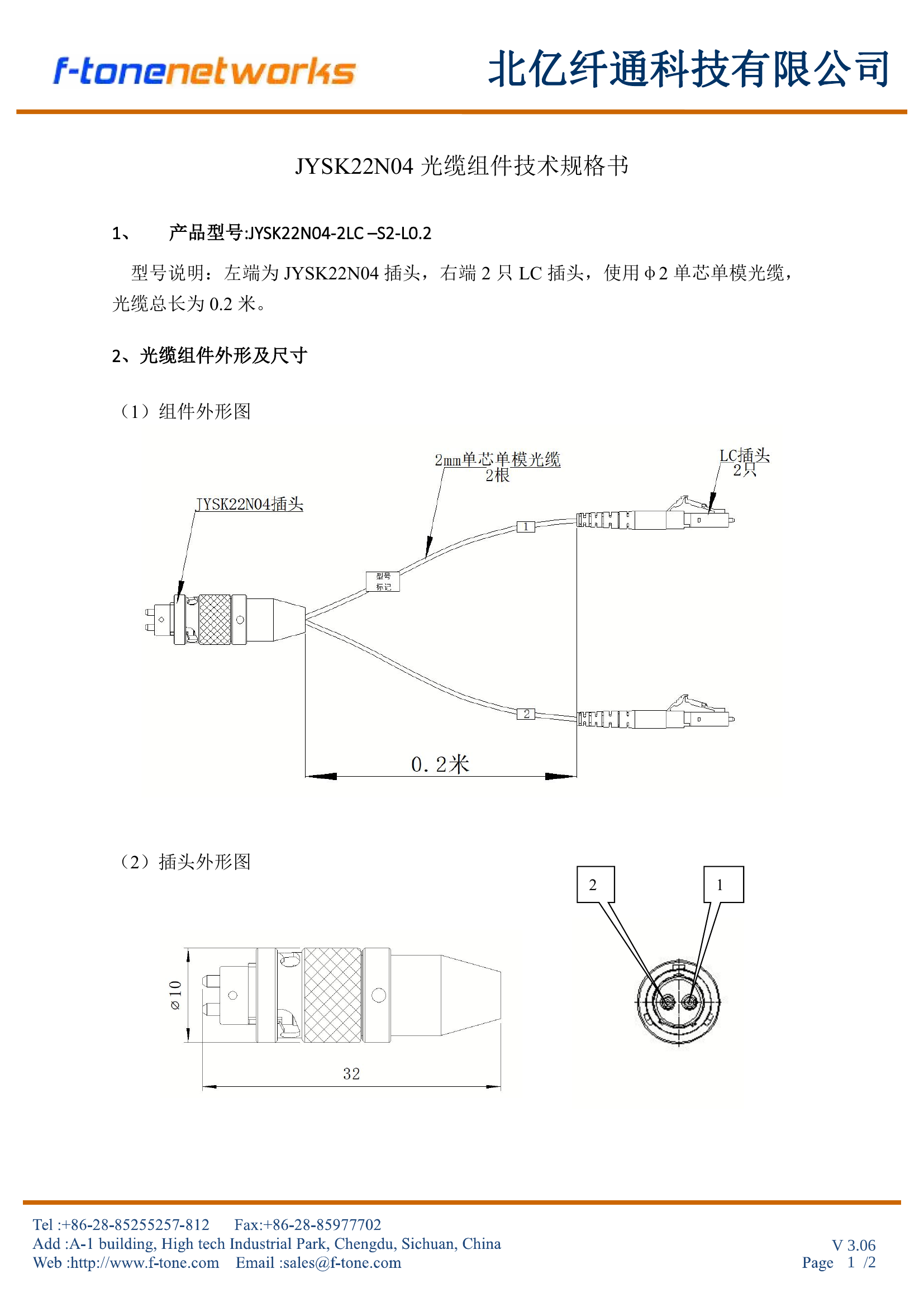

插头外形

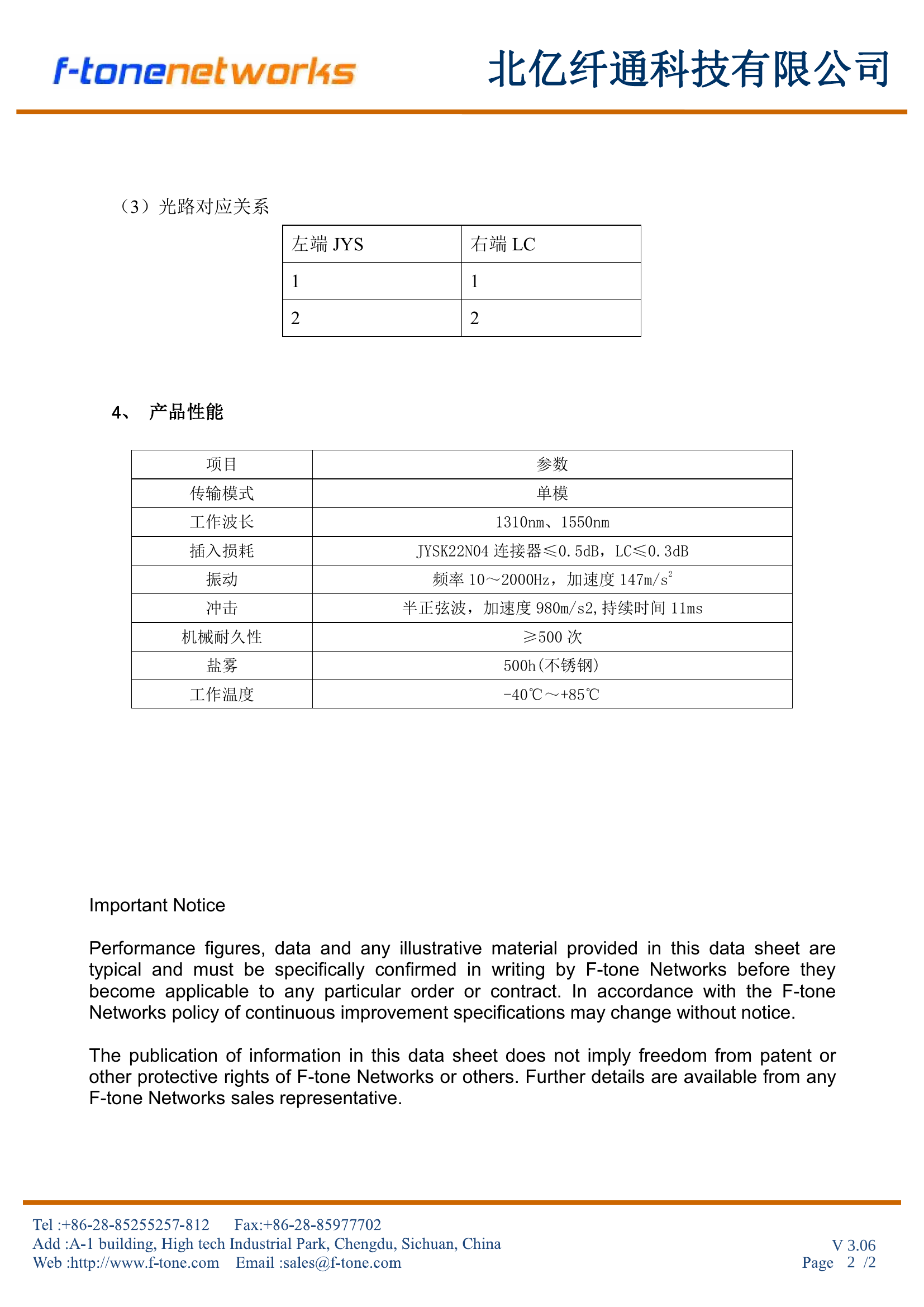

光路对应关系
| 左端 JYSK22N04 | 右端 LC |
|---|---|
| 1 | 1 |
| 2 | 2 |
产品性能
| 项目 | 参数 |
|---|---|
| 传输模式 | 单模 |
| 工作波长 | 1310nm / 1550nm |
| 插入损耗 | JYSK22N04 连接器 ≤ 0.5dB，LC ≤ 0.3dB |
| 振动 | 频率 10～2000Hz，加速度 147m/s² |
| 冲击 | 半正弦波，加速度 980m/s²，持续时间 11ms |
| 机械耐久性 | ≥ 500 次 |
| 盐雾 | 500h（不锈钢） |
| 工作温度 | -40°C ~ +85°C |
