MT 技术规格书
型号说明
型号一：MT24-2MT/DS-MIV0.6/0.45
左端为 MT24 插头，右端为 2 只 MT/DS 插头（适配 GYM18KT2AN 插座），使用多模 OM3 光纤，长度 0.6 米，分支长度 0.45 米。
型号二：MT24-2MT12+4JY599/20GP+MT24-MIV0.55/0.43
左端为 MT24 插头，右端为 2 只 MT12 插头、4 只 JY599/20GP 插针（适配 J599/20KA94A1N 插座）和 1 只 MT24 插头，使用多模 OM3 光纤，长度 0.55 米，分支长度 0.43 米。
外形及尺寸

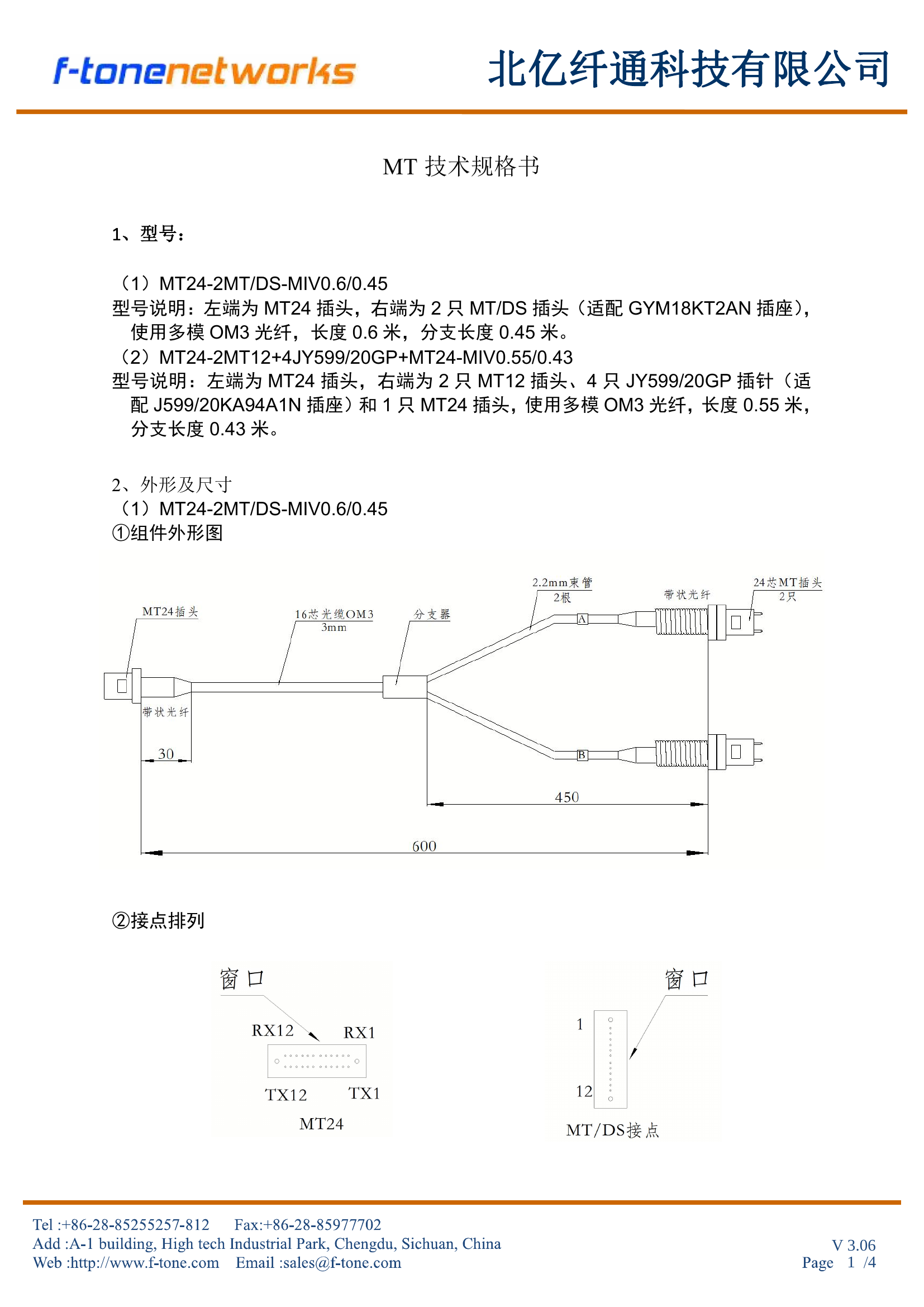

MT24-2MT/DS-MIV0.6/0.45
光路对应关系
| MT24 | MT/DS-A | MT/DS-B |
|---|---|---|
| T1 | 8 | – |
| T2 | 7 | – |
| T3 | 6 | – |
| T4 | 5 | – |
| T5 | 8 | – |
| T6 | 7 | – |
| T7 | 6 | – |
| T8 | 5 | – |
| R1 | – | 12 |
| R2 | – | 11 |
| R3 | – | 10 |
| R4 | – | 9 |
| R5 | – | 12 |
| R6 | – | 11 |
| R7 | – | 10 |
| R8 | – | 9 |

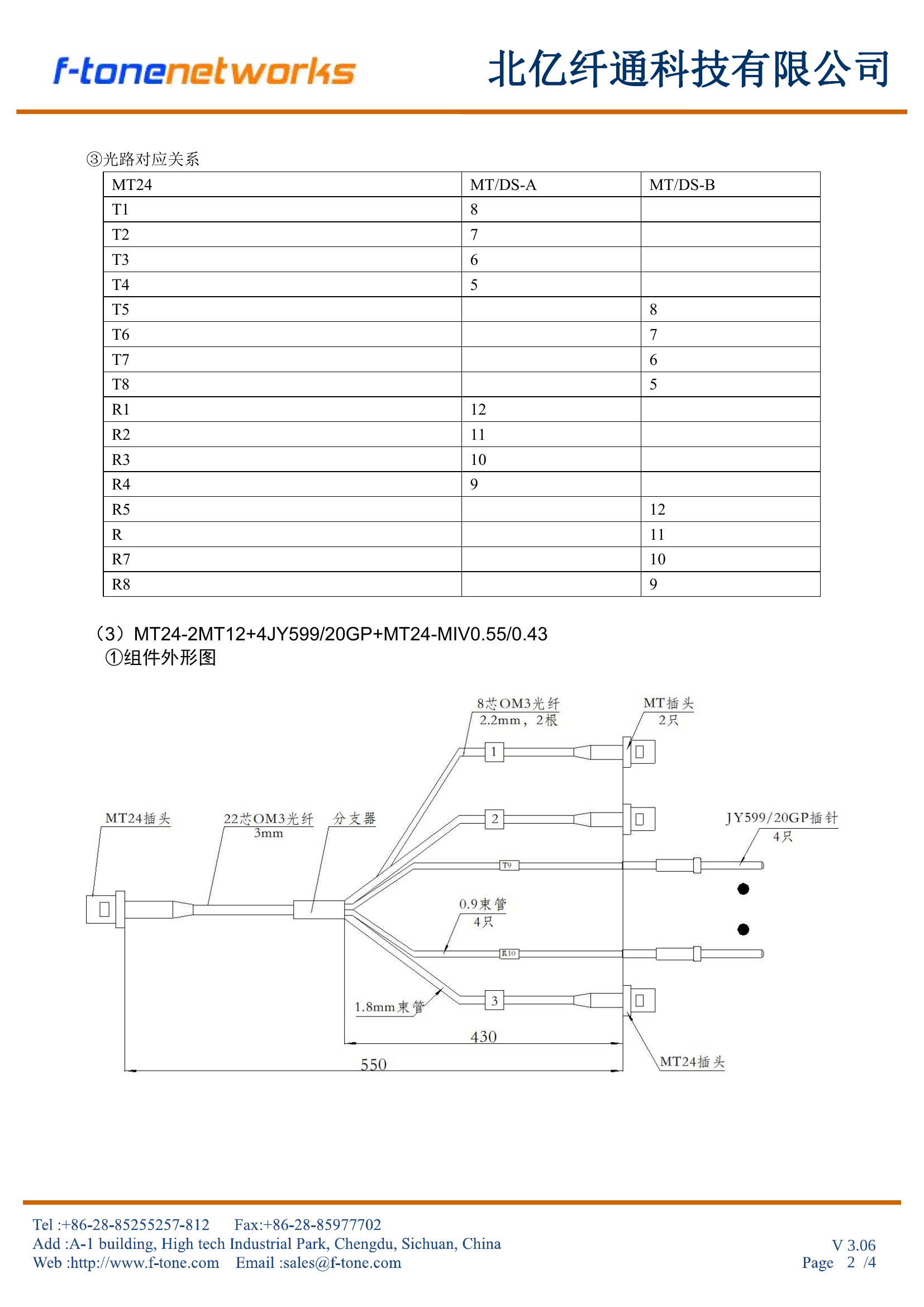

MT24-2MT12+4JY599/20GP+MT24-MIV0.55/0.43

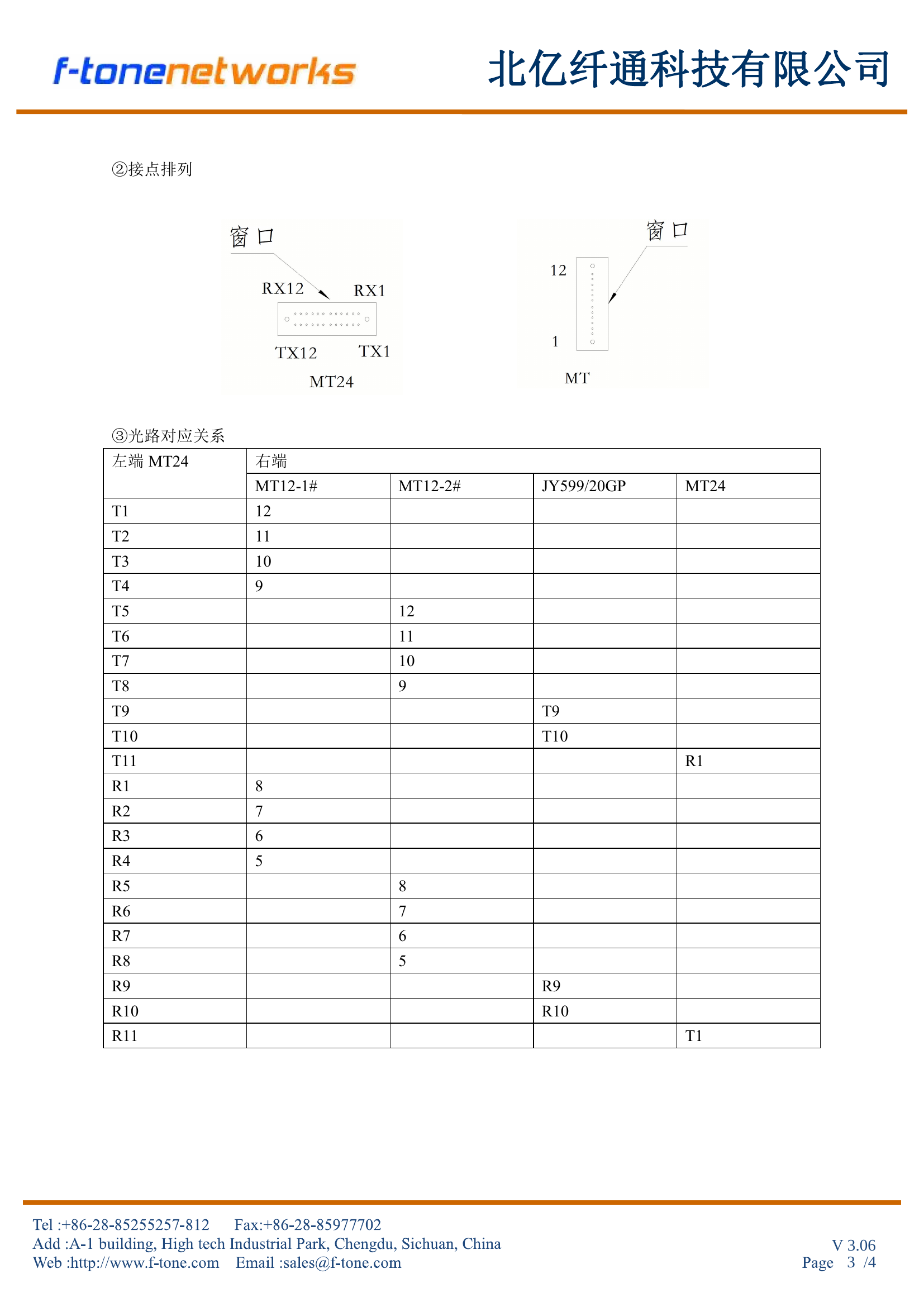

光路对应关系
| 左端 MT24 | 右端 MT12-1# | 右端 MT12-2# | 右端 JY599/20GP | 右端 MT24 |
|---|---|---|---|---|
| T1 | – | – | – | 12 |
| T2 | – | – | – | 11 |
| T3 | – | – | – | 10 |
| T4 | – | – | – | 9 |
| T5 | – | – | – | 12 |
| T6 | – | – | – | 11 |
| T7 | – | – | – | 10 |
| T8 | – | – | – | 9 |
| T9 | T9 | – | – | – |
| T10 | T10 | – | – | – |
| T11 | – | – | – | R1 |
| R1 | – | – | – | 8 |
| R2 | – | – | – | 7 |
| R3 | – | – | – | 6 |
| R4 | – | – | – | 5 |
| R5 | – | – | – | 8 |
| R6 | – | – | – | 7 |
| R7 | – | – | – | 6 |
| R8 | – | – | – | 5 |
| R9 | – | – | – | R9 |
| R10 | – | – | – | R10 |
| R11 | – | – | – | T1 |
产品性能
| 项目 | 参数 |
|---|---|
| 模式 | 多模 |
| 工作波长 | 850nm & 1300nm |
| 插入损耗 | MT ≤ 0.6dB, JY599 ≤ 0.3dB |
| 机械耐久性 | ≥ 500 次 |
| 工作温度 | -45°C ~ +85°C |
