FT-13 MPO法兰同方向连接器
FT-13系列MPO法兰同方向连接器是用于高密度光纤布线系统的光纤对准适配器件，采用精密注塑成型工艺，实现两根MPO光纤连接器的低损耗对接。产品广泛应用于100G/400G以太网、数据中心高密度配线架、光纤传感系统等场景。
产品特点
- 1:1比例精密工程设计
- 高精度MPO对准定位孔（Φ3.15±0.15mm）
- 紧凑尺寸，适合高密度布线
- 低插入损耗设计
- 优异的机械耐久性和环境稳定性

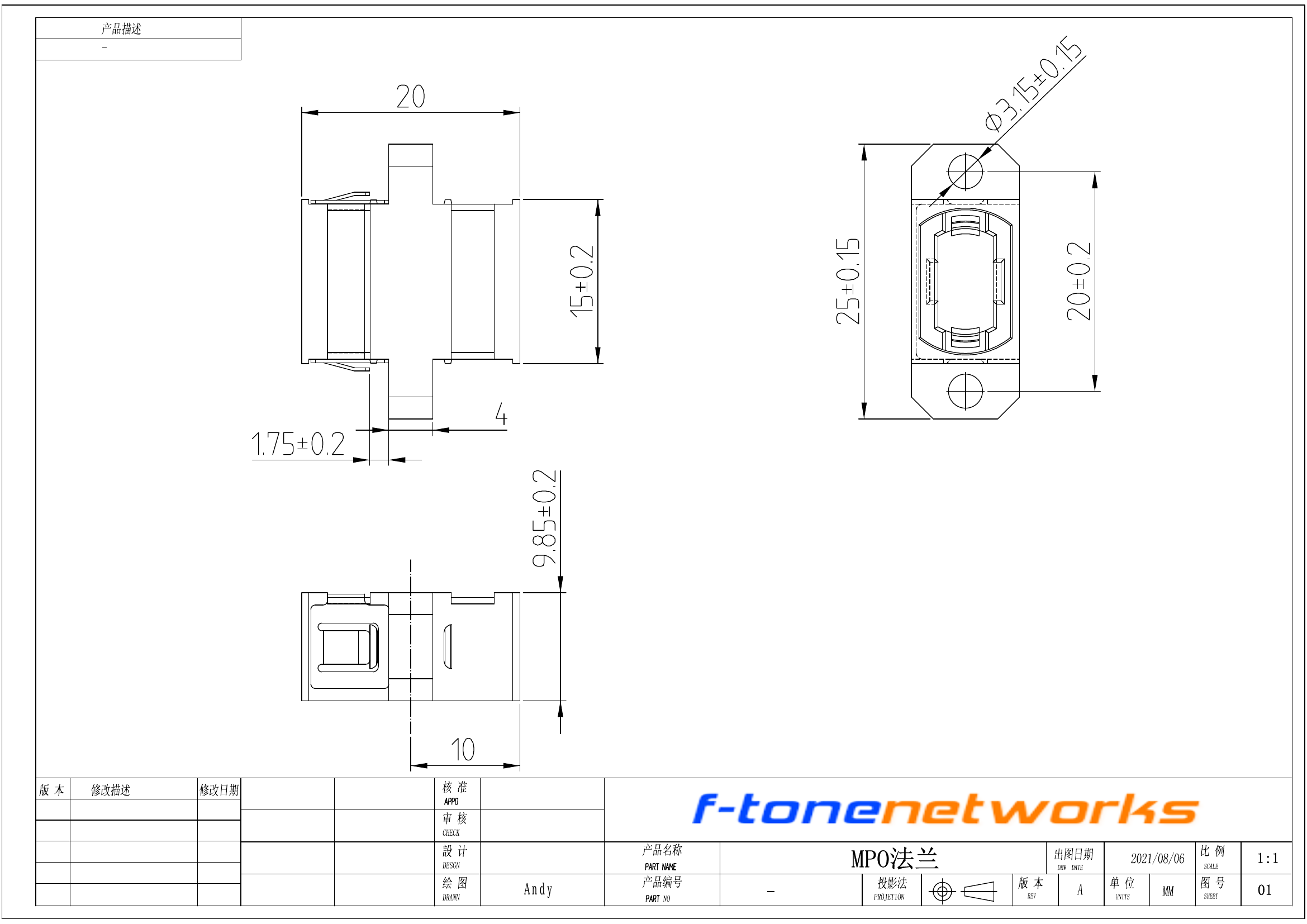

外形尺寸
关键尺寸参数
| 项目 | 尺寸 (mm) | 公差 |
|---|---|---|
| 侧视图总长度 | 20 | ±0.2 |
| 中央结构宽度 | 4 | – |
| 卡扣特征厚度 | 1.75 | ±0.2 |
| 侧视图总高度 | 15 | ±0.2 |
| 俯视图总高度 | 9.85 | ±0.2 |
| 俯视图总长度 | 10 | – |
| 端面视图外高 | 25 | ±0.15 |
| 端面视图外宽 | 20 | ±0.2 |
| 定位孔内径 | Φ3.15 | ±0.15 |
产品应用
- 100G/400G以太网高密度数据中心
- MPO/MTP光纤跳线对接
- 光纤配线架（ODF）内部连接
- 光纤传感系统
- 通信设备光接口适配
