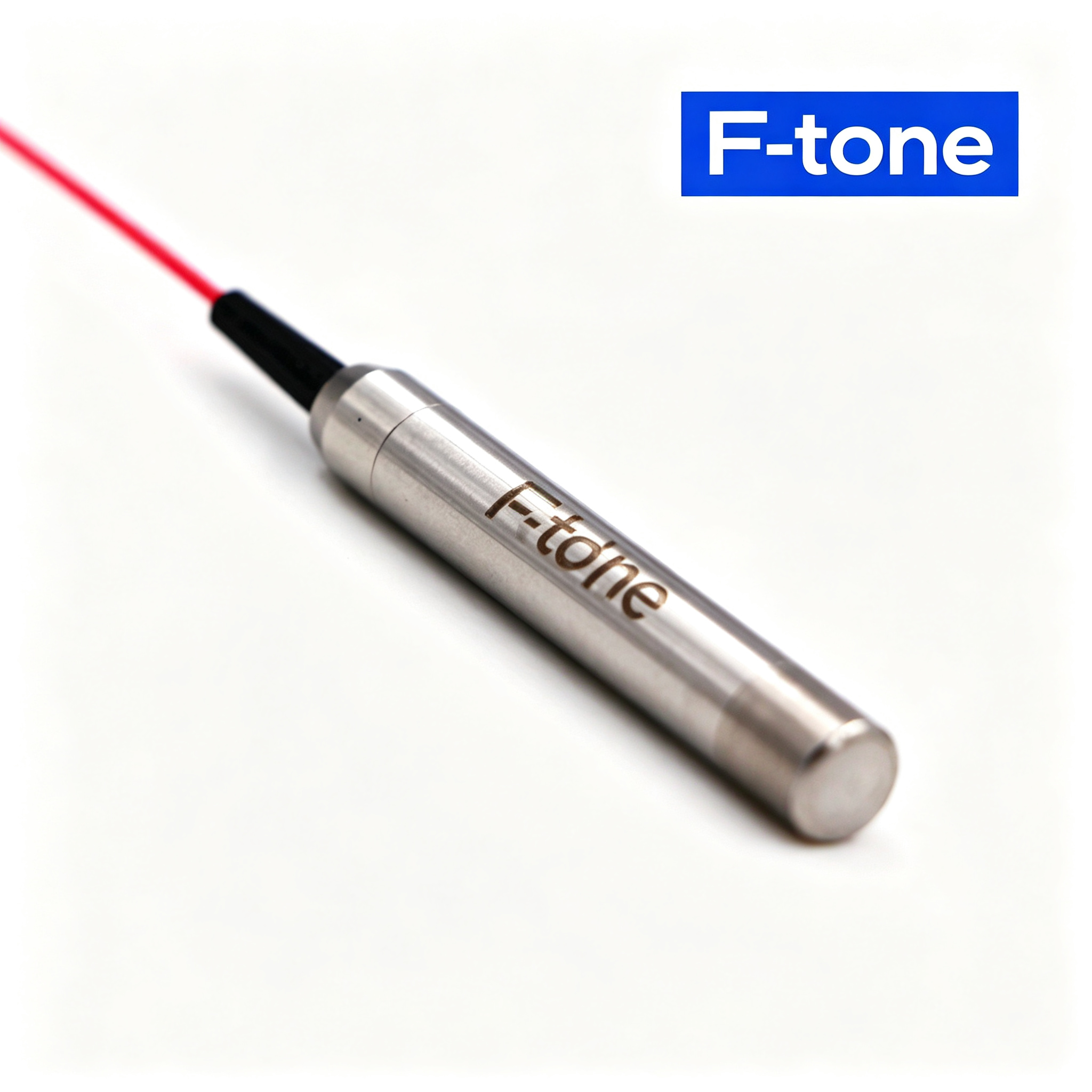

Mini size Faraday Rotator Mirror F-tone's fiber mirror is a passive device with compace size, which is disigned to reflect the light through original route.
工作温度：商业级/工业级/军品级可选
|
Mini size Faraday Rotator Mirror |
|||||
|
|
|||||
|
|
|
||||
|
Features |
Applications |
||||
|
Low Insertion Loss |
Fiber Optic Instruments |
||||
|
High Return Loss |
Fiber Sensors |
||||
|
High Reliability |
Fiber Lasers |
||||
|
High Stability |
Coherent Detecting |
||||
|
|
Research |
||||
|
|
|
||||
|
Specifications |
|||||
|
Parameters |
Unit |
Value |
|||
|
Center Wavelength |
nm |
1550, 1310 |
1064 |
||
|
Operating Wavelength Width |
nm |
±15 |
±5 |
||
|
Max. Insertion Loss |
dB |
0.6 |
3.0 |
||
|
Faraday Rotation Angle for CWL |
deg |
45 |
|||
|
Max. Rotation Angle Tolerance at 23 ℃ for CWL |
deg |
±3 |
|||
|
Min. Extinction Ratio at 23 ℃, only for PM |
dB |
20 |
|||
|
Max. Polarization Mode Dispersion |
ps |
0.05 |
|||
|
Max. Power Handling |
mW |
300 |
|||
|
Max. Tensile Load |
N |
5 |
|||
|
Fiber Type |
– |
PM Panda Fiber |
|||
|
Operating Temperature |
℃ |
-5~+70 |
|||
|
Storage Temperature |
℃ |
-40~+85 |
|||
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis.
|
|||||
|
Ordering Information |
|||||
|
MPMFRM-1111-2–333-45-6-7 |
|||||
|
1111 – Wavelength: |
1550=1550nm,1310=1310nm, 1064=1064nm,……. |
||||
|
2 – Rotating Angle: |
1=45°, 2=90° |
||||
|
333 – Fiber Type: |
001=PM1550, 002=PM1310, 003=PM980, SSS=Specify |
||||
|
4 – Package Dimension: |
0=φ3.2×30mm, S=Specify |
||||
|
5 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
||||
|
6 – Fiber Length: |
0.75=0.75m, 1.0=1m, S=Specify |
||||
|
7 – Connector Type: |
0=FC/UPC, 1=FC/APC, 2=SC/UPC, 3=SC/APC, N=None, S=Specify |
||||
Part No. Example: MPMFRM-1550-1-001-00-0.75-N
Description:1550nm Mini size PM Faraday Rotator Mirror, 45° Rotating Angle, PM1550 fiber, 3.2X30mm, bare fiber, 0.75m fiber length, no connector, 300mW.
For Custom Parts, please provide detailed description for your requirement.
