J599MT/26KC24B1N-4MPO-C8x32-3MIV10/2 Cable Assembly
The J599MT/26KC24B1N-4MPO-C8x32-3MIV10/2 is a military-grade circular fiber optic cable assembly featuring J599MT connectors with MPO termination. Designed for harsh environment applications with excellent vibration and shock resistance.
J599MT 光缆组件技术规格书
1、型号
(1) 产品型号：J599MT/26KC24B1N-4MPO-C8*32-3MIV10/2
型号说明：一端为J599MT/26KC24B1N 插头，另一端为4 个MPO插头，使用
8mm32 芯多模 OM3铠甲光缆，分支为 3.0子缆，光缆总长 10 米，分支2米。

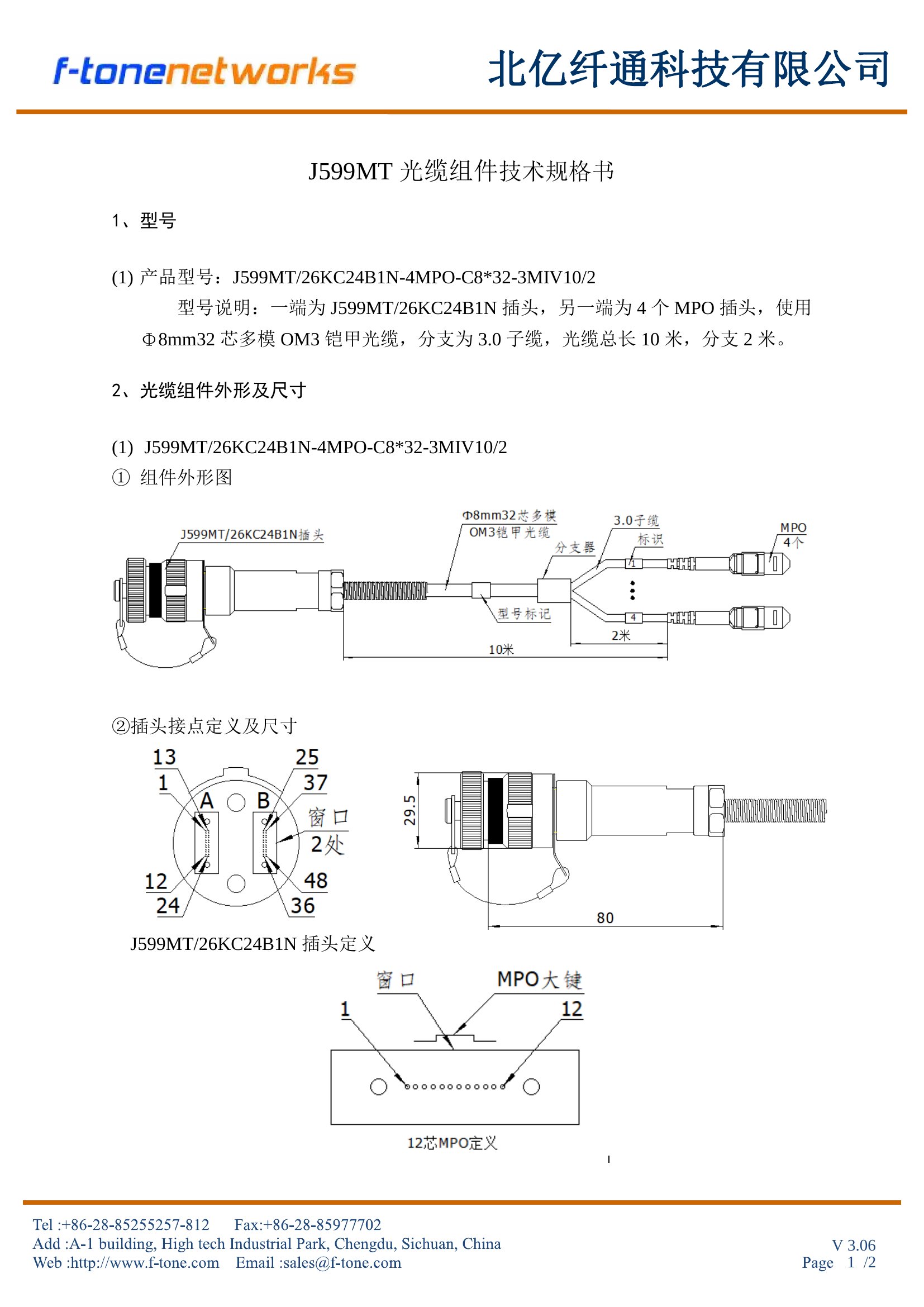

2、光缆组件外形及尺寸
(1) J599MT/26KC24B1N-4MPO-C8*32-3MIV10/2
① 组件外形图
②插头接点定义及尺寸
J599MT/26KC24B1N 插头定义
1 /2

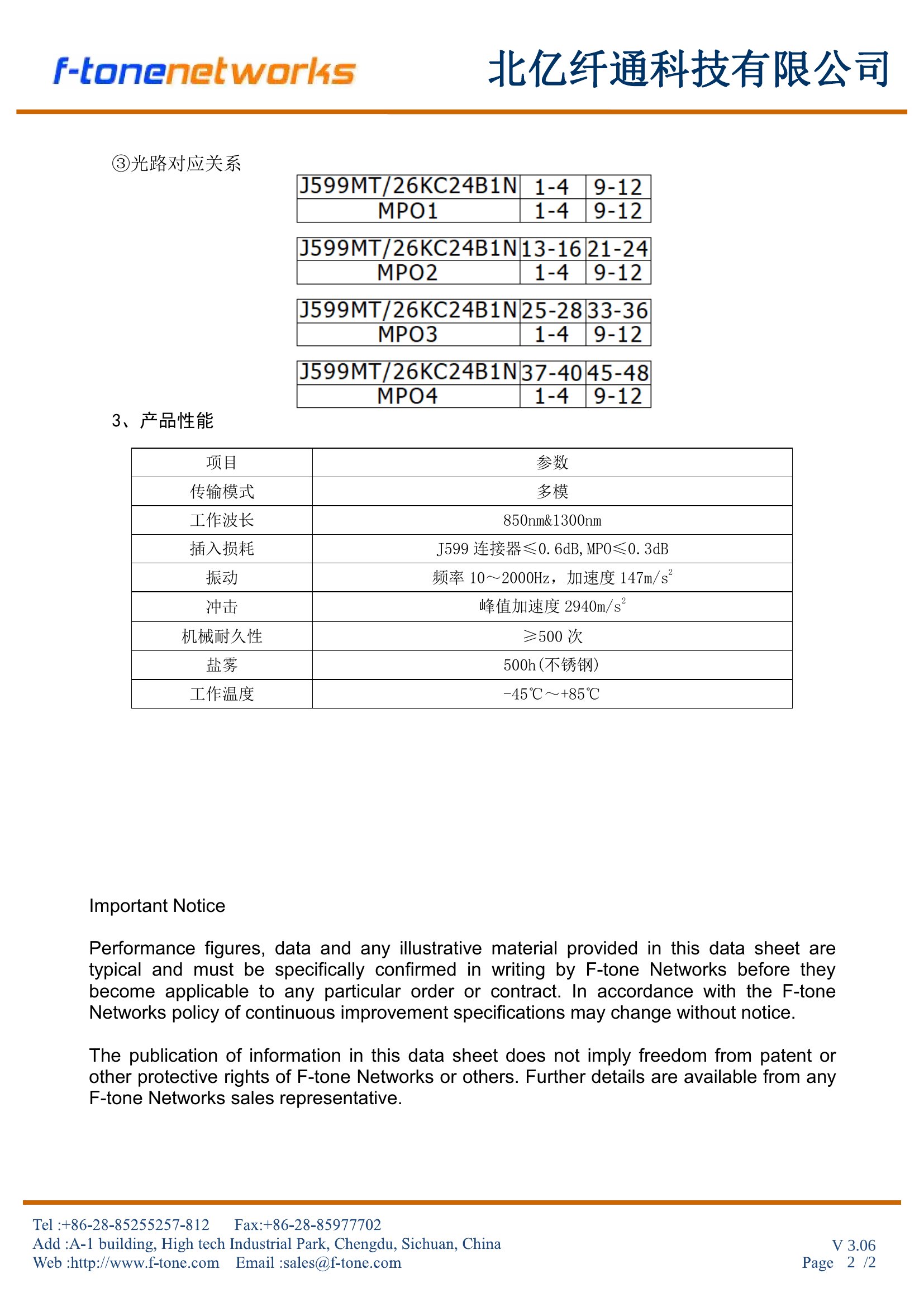

③光 路对应关系
3、产品性能
项目 参数
传输模式 多模
工作波长 850nm&1300nm
插入损耗 J599连接器≤0.6dB,MPO≤0.3dB
振动 频率10～2000Hz，加速度147m/s2
冲击 峰值加速度294 0m/s2
机械耐久性 ≥500次
盐雾 500h(不锈钢)
工作温度 -45℃～+85℃
2 /2
本产品为J599MT Cable Assembly产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
