The J599MT/26KC24B1N-4MPO-C8*32-3MIV10/2 is a J599MT fiber optic cable assembly featuring one J599MT/26KC24B1N connector on one end and 4 MPO connectors on the other end, using 8mm 32-core multimode OM3 armored fiber optic cable with 3.0mm sub-cable branches and 10-meter main cable with 2-meter branches.
Model Designation
- Model: J599MT/26KC24B1N-4MPO-C8*32-3MIV10/2
- One End: J599MT/26KC24B1N plug connector
- Other End: 4× MPO connectors
- Cable: 8mm 32-core multimode OM3 armored fiber optic cable
- Branches: 3.0mm sub-cables
- Main Cable Length: 10 meters
- Branch Length: 2 meters

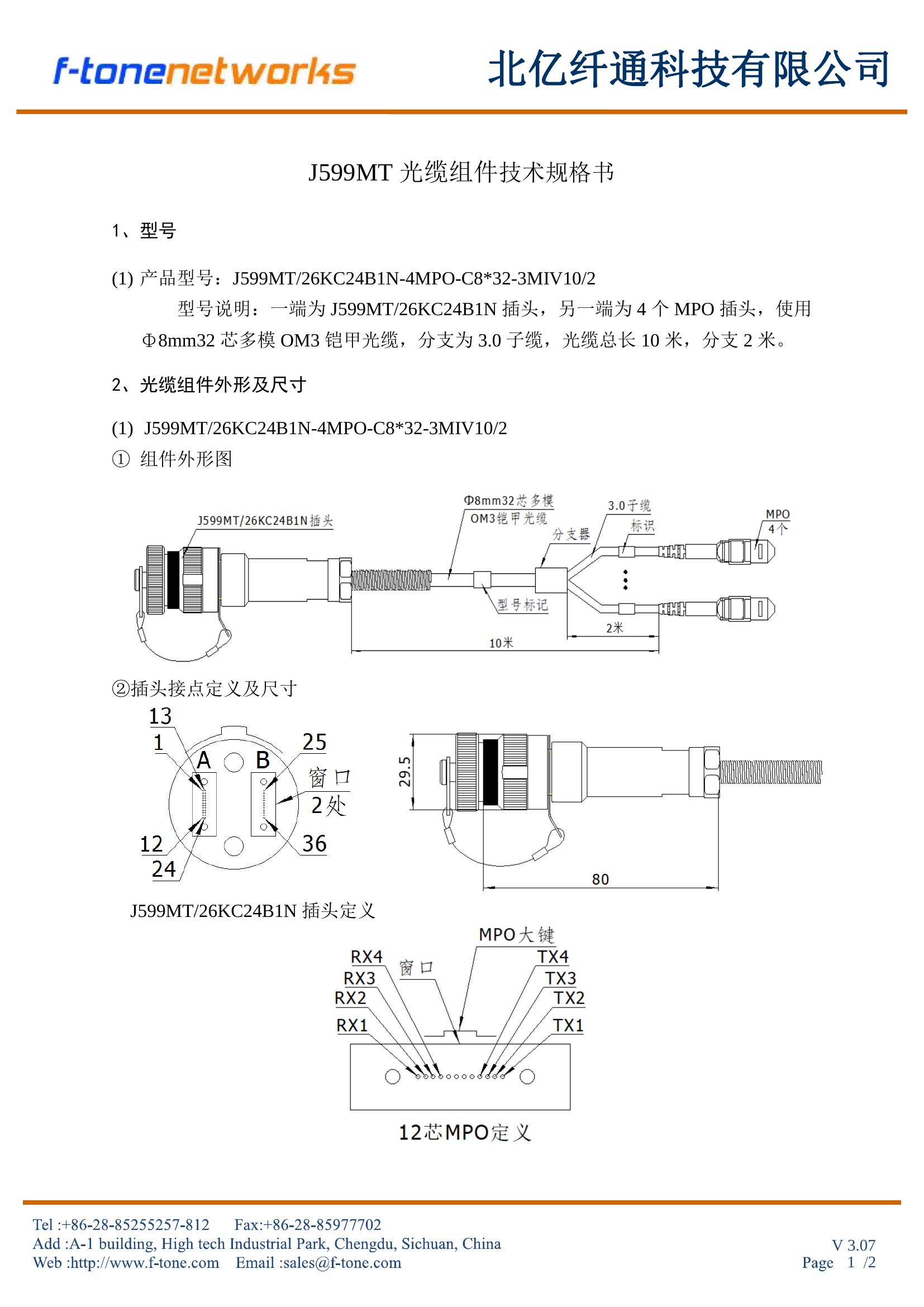

Product Dimensions & Outline Drawing

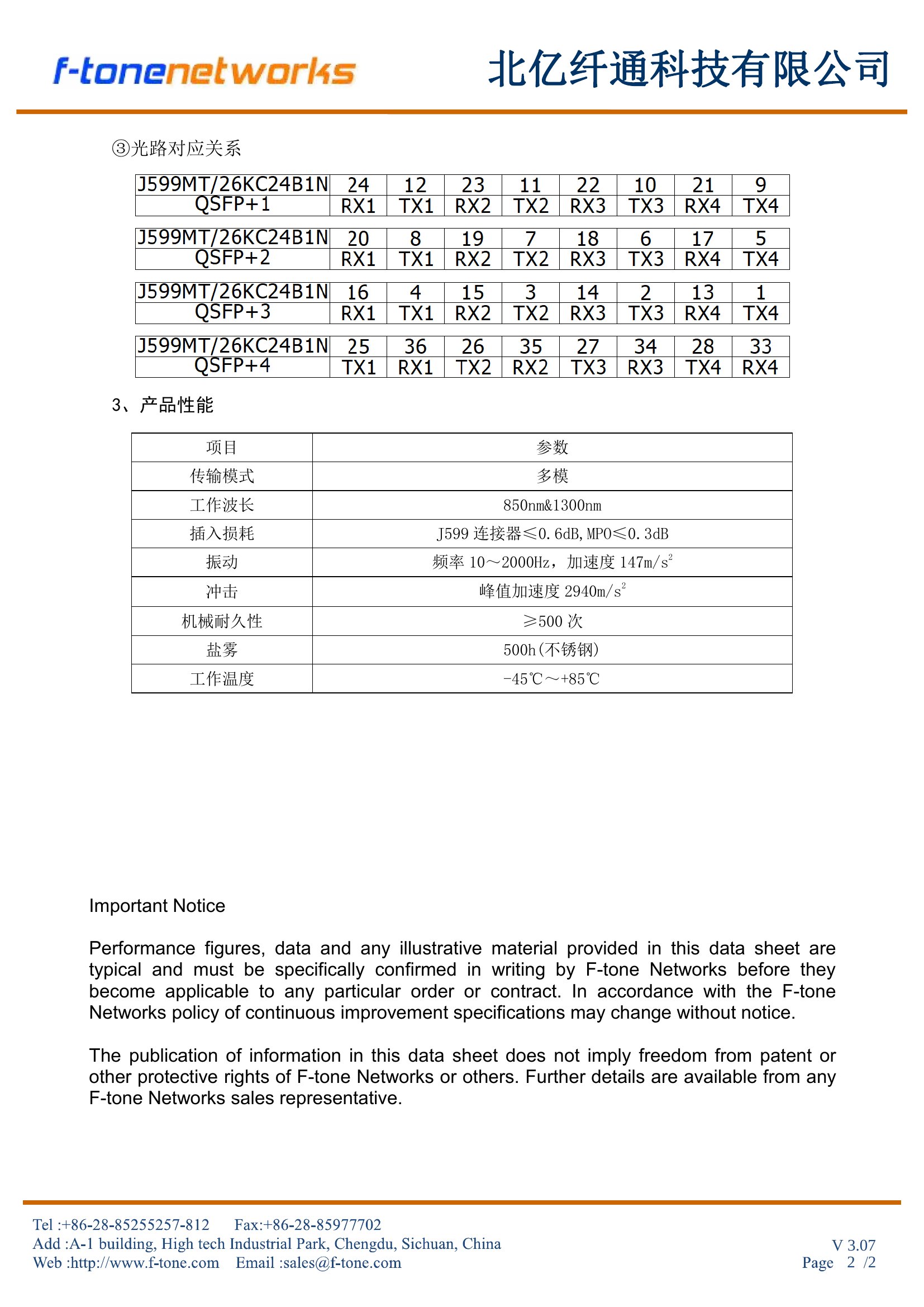

Product Performance / 产品性能
| Parameter / 项目 | Specification / 参数 |
|---|---|
| Transmission Mode / 传输模式 | Multimode / 多模 |
| Operating Wavelength / 工作波长 | 850nm & 1300nm |
| Insertion Loss / 插入损耗 | J599 ≤0.6dB, MPO ≤0.3dB |
| Vibration / 振动 | 10~2000Hz, acceleration 147m/s² |
| Shock / 冲击 | Peak acceleration 2940m/s² |
| Mechanical Durability / 机械耐久性 | ≥500 cycles |
| Salt Spray / 盐雾 | 500h (Stainless Steel) |
| Operating Temperature / 工作温度 | -45°C ~ +85°C |
Region: Tianfu New Area, Sichuan, China
Service Area: Global
Tel: 028-85255257 | Fax: 028-85977702 | Mobile: 19081343401
Site: https://www.f-tone.com
HR: hr@f-tone.com | Sales: sales@f-tone.com | Support: support@f-tone.com
本产品为J599MT Cable Assembly产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice: Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
