J599/20MKA94A1N Fiber Optic Connector
The J599/20MKA94A1N is a military-grade fiber optic connector with connector insertion loss ≤0.6dB and mechanical durability ≥500 mating cycles. Operating temperature range -45°C to +85°C, vibration resistance 10Hz-2000Hz, shock resistance 2940m/s².
光纤连接器技术规格书
1、型号：
（1）J599/20MKA94A1N
2、光缆组件外形及尺寸
（1）J599/20MKA94A1N

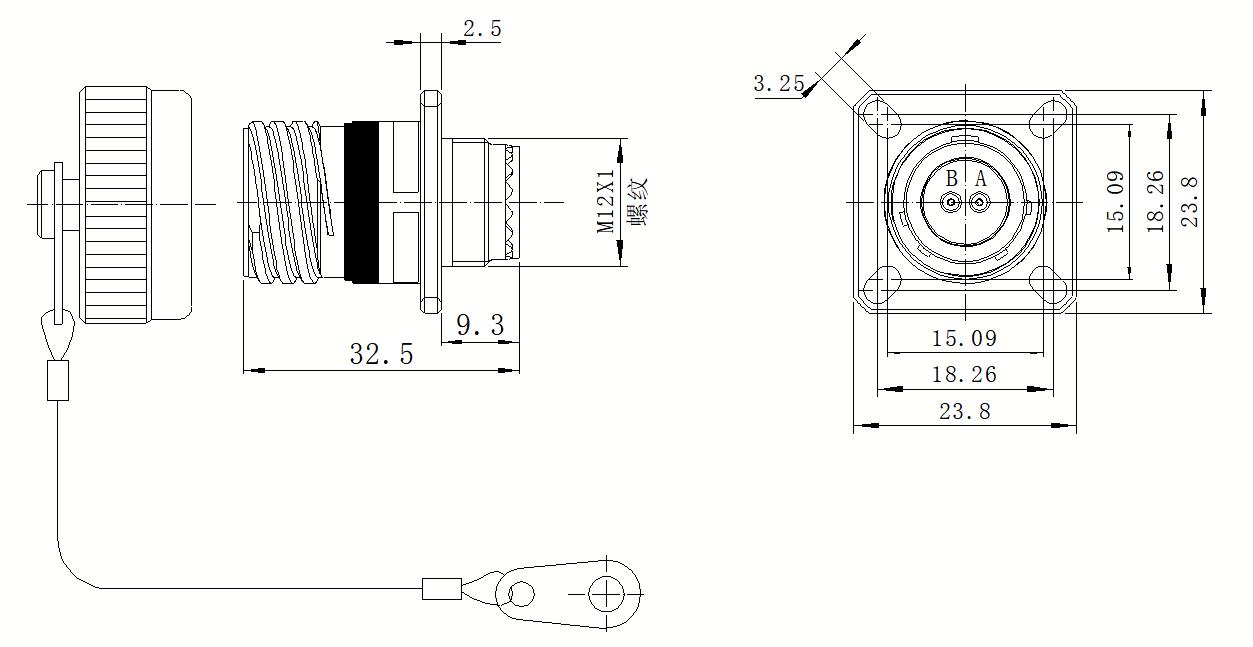

①插座外形图

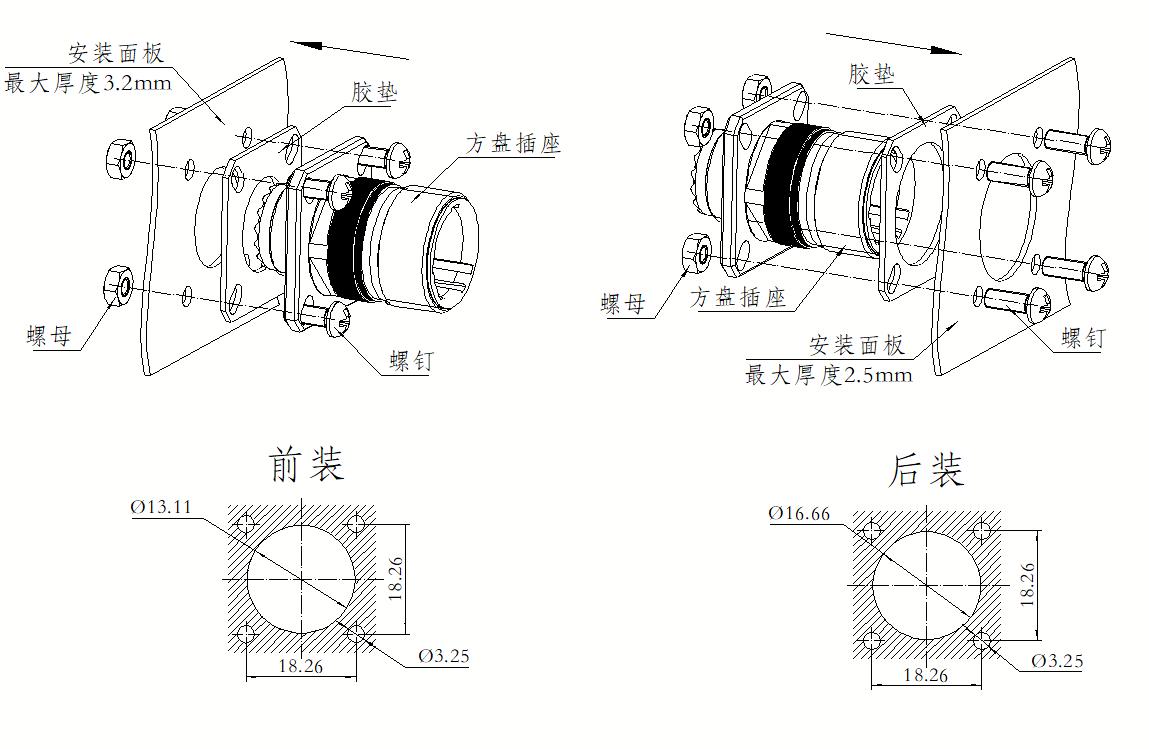

③插座安装尺寸
1 /2
3、 产品性能
项目 参数
连接器插入损耗 J599≤0.6dB
光缆组件插入损耗 ≤两端连接器插入损耗+光缆衰减损耗
机械耐久性 ≥500次
振动 频率 10Hz~2000Hz，功率谱密度：0.4G²/Hz
冲击 峰值加速度：2940m/s²，持续时间3ms 的半正弦波
工作温度 -45℃～+85℃
2 /2
本产品为Fiber Optic Connector产品线，详细信息，请联系我们的销售人员，谢谢！
