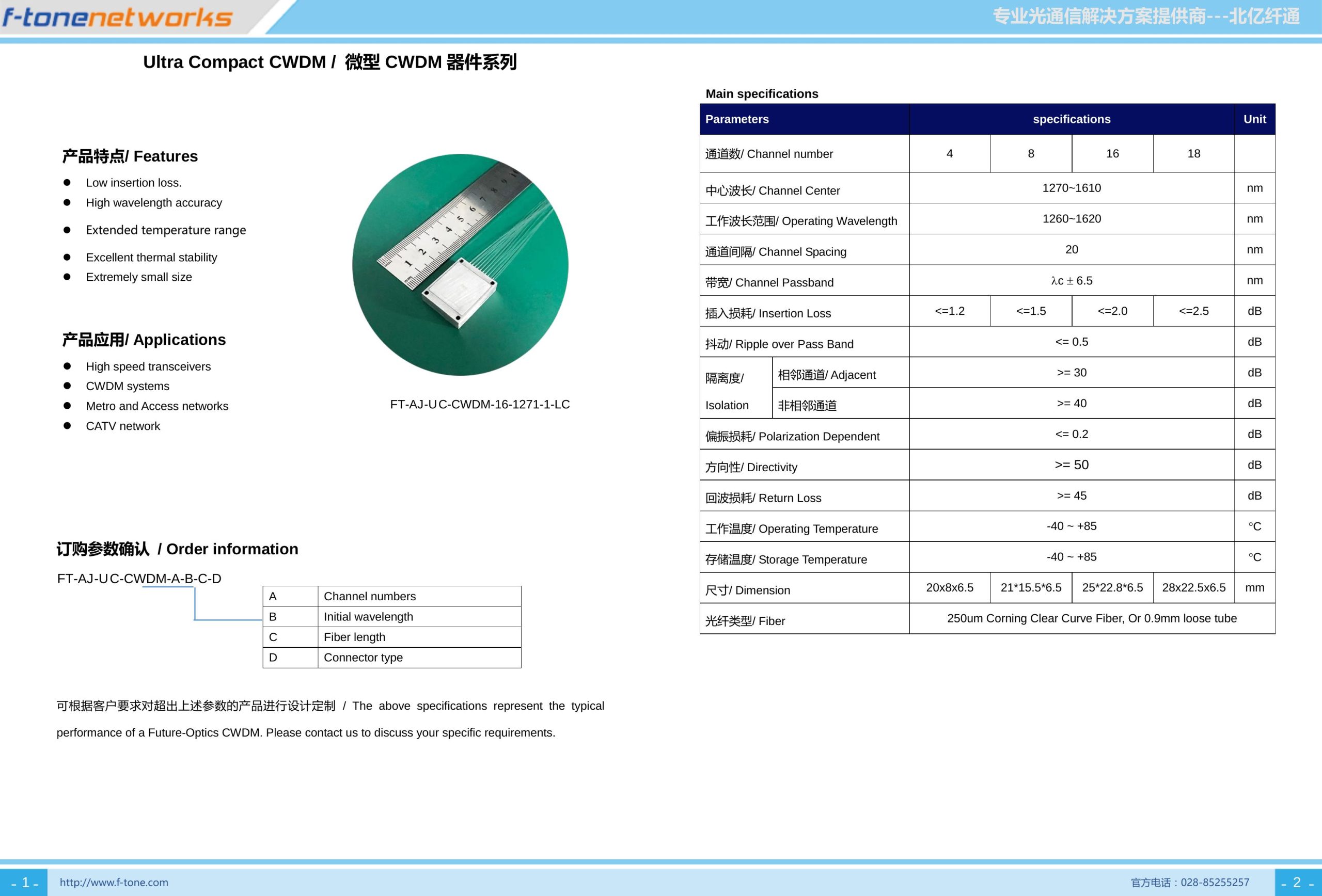

产品特点 / Features
- 超紧凑尺寸 4CH仅20×8×6.5mm
- 低IL 4CH ≤1.2dB,8CH ≤1.5dB
- 高波长精度和热稳定性
- 扩展温度范围 -40~+85℃
- 无环氧树脂光学路径
- 250μm Corning Clear Curve光纤
- SC/UPC标准连接器
典型应用 / Applications
- 高速光收发器集成(CFP/CFP2)
- CWDM 系统
- 城域网和接入网
- CATV 网络
规格参数 / Specifications
| 参数 | 4通道 | 8通道 | 16通道 | 18通道 | 单位 |
|---|---|---|---|---|---|
| 中心波长 | 1270-1610 | 1270-1610 | 1270-1610 | 1270-1610 | nm |
| 工作波长 | 1260-1620 | 1260-1620 | 1260-1620 | 1260-1620 | nm |
| 通道间隔 | 20 | 20 | 20 | 20 | nm |
| 插入损耗 | ≤1.2 | ≤1.5 | ≤2.0 | ≤2.5 | dB |
| 通道平坦度 | ≤0.5 | ≤0.5 | ≤0.5 | ≤0.5 | dB |
| 隔离度-相邻 | >30 | >30 | >30 | >30 | dB |
| 隔离度-非相邻 | >40 | >40 | >40 | >40 | dB |
| 偏振损耗 | ≤0.2 | ≤0.2 | ≤0.2 | ≤0.2 | dB |
| 工作温度 | -40~+85 | -40~+85 | -40~+85 | -40~+85 | ℃ |
| 尺寸 | 20×8×6.5 | 21×15.5×6.5 | 25×22.8×6.5 | 28×22.5×6.5 | mm |
本产品为【(C05)北亿纤通全品类波分复用器选型手册_V3.04.pdf】光模块产品线,详细信息请联系我们的销售人员,谢谢!
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
