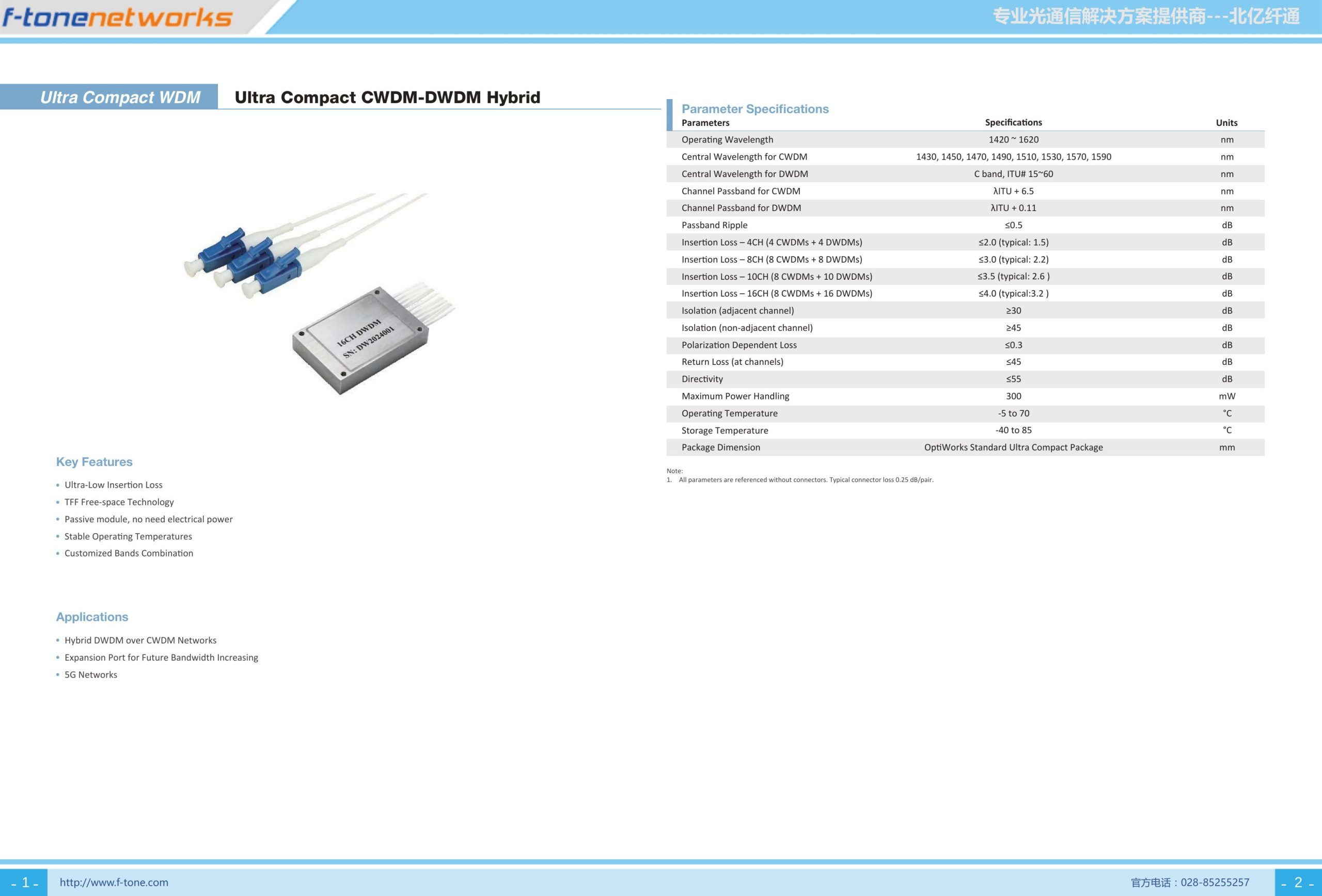

Ultra Compact CWDM-DWDM Hybrid 微型混合波分复用器（FT-AI系列）

产品特点 / Features

• TFF 自由空间技术，超低插入损耗
• 4CH IL ≤2.0dB（典型1.5dB）
• 8CH IL ≤3.0dB（典型2.2dB）
• CWDM波段 1271-1611nm（20nm间隔）
• DWDM波段 C-Band ITU #15~60
• 被动模块无需供电
• 工作温度 -5~+70℃

典型应用 / Applications

• Hybrid DWDM over CWDM 网络扩展
• 未来带宽扩容端口
• 5G 网络（xHaul）
• 多波长高速收发器
• CATV 网络

规格参数 / Specifications

参数	4CH	8CH	10CH	16CH	18CH	单位
插入损耗	≤2.0(typ.1.5)	≤3.0(typ.2.2)	≤3.5(typ.2.6)	≤4.0(typ.3.2)	≤4.0	dB
通道平坦度	≤0.5	≤0.5	≤0.5	≤0.5	≤0.5	dB
偏振损耗	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	dB
隔离度-相邻	>30	>30	>30	>30	>30	dB
隔离度-非相邻	>40	>40	>40	>40	>40	dB
最大光功率	500	500	500	500	500	mW
工作温度	-5~+70	-5~+70	-5~+70	-5~+70	-5~+70	℃

本产品为【（C05）北亿纤通全品类波分复用器选型手册_V3.04.pdf】光模块产品线，详细信息请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
