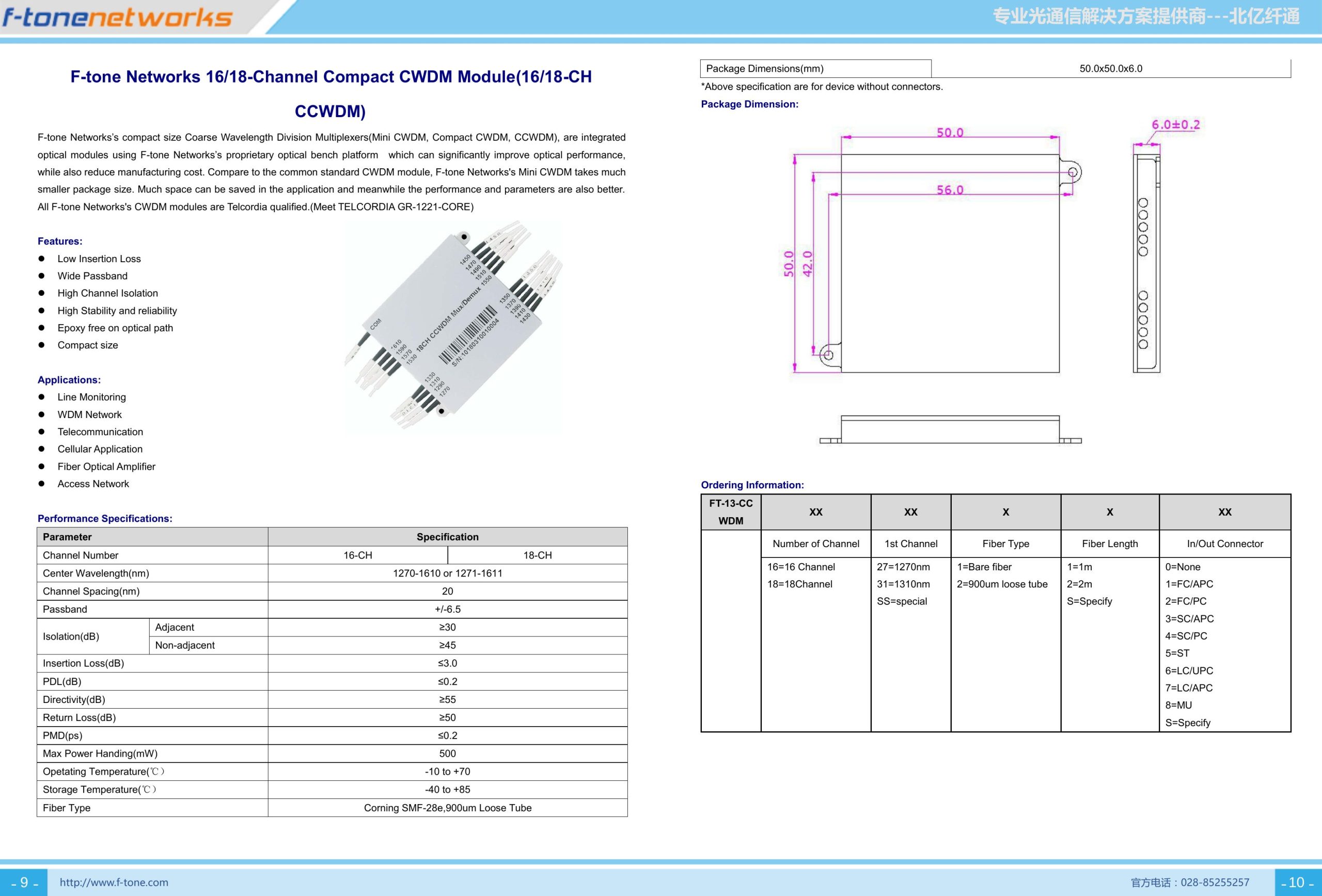

16/18-CH CCWDM 紧凑型粗波分复用器模块

产品特点 / Features

• 16/18通道高密度配置
• 中心波长 1270-1610nm（间隔20nm）
• 插入损耗 ≤3.0dB
• 相邻隔离度 ≥30dB，非相邻 ≥45dB
• 偏振相关损耗 ≤0.2dB
• 回波损耗 ≥50dB
• 封装尺寸仅 50.0×50.0×6.0mm
• 无环氧树脂光学路径

典型应用 / Applications

• 高密度 WDM 网络
• 城域网
• 接入网
• 蜂窝基站回传
• 光纤到户（FTTH）

规格参数 / Specifications

参数	16通道	18通道	单位
中心波长	1270-1610/1271-1611	1270-1610/1271-1611	nm
通道间隔	20	20	nm
通带	±6.5	±6.5	nm
隔离度-相邻	≥30	≥30	dB
隔离度-非相邻	≥45	≥45	dB
插入损耗	≤3.0	≤3.0	dB
偏振相关损耗	≤0.2	≤0.2	dB
方向性	≥55	≥55	dB
回波损耗	≥50	≥50	dB
偏振模色散	≤0.2	≤0.2	ps
最大光功率	500	500	mW
工作温度	-10~+70	-10~+70	℃
封装尺寸	50.0×50.0×6.0	50.0×50.0×6.0	mm

本产品为【（C05）北亿纤通全品类波分复用器选型手册_V3.04.pdf】光模块产品线，详细信息请联系我们的销售人员，谢谢！
