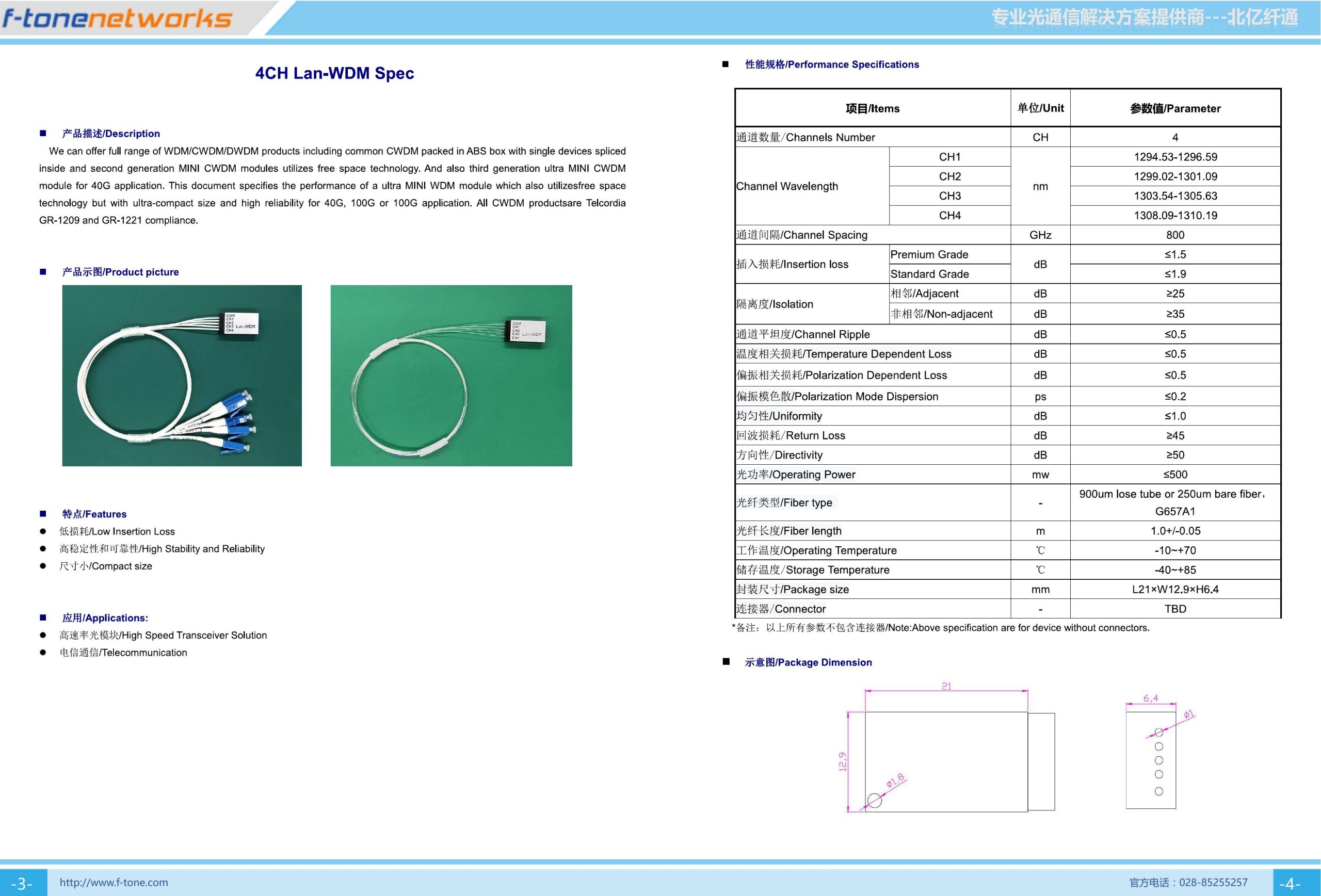

4CH LAN-WDM 细波分复用器

产品特点 / Features

• 4通道 LAN-WDM 标准配置
• 波长范围 1294.53~1310.19nm
• 800GHz 通道间隔
• Premium Grade 插入损耗 ≤1.5dB
• 相邻通道隔离度 ≥25dB
• 偏振相关损耗 ≤0.2dB
• 工作温度 -10~+70℃
• 超紧凑封装 L21×W12.9×H6.4mm
• G657A1光纤

典型应用 / Applications

• 数据中心互联
• LAN 网络升级
• 企业光纤骨干网
• 高速光收发器集成
• CFP/CFP2 光模块

规格参数 / Specifications

参数	Premium Grade	Standard Grade	单位
CH1波长	1294.53-1296.59	1294.53-1296.59	nm
CH2波长	1299.02-1301.09	1299.02-1301.09	nm
CH3波长	1303.54-1305.63	1303.54-1305.63	nm
CH4波长	1308.09-1310.19	1308.09-1310.19	nm
通道间隔	800	800	GHz
插入损耗	≤1.5	≤1.9	dB
隔离度-相邻	≥25	≥25	dB
隔离度-非相邻	≥35	≥35	dB
偏振相关损耗	≤0.2	≤0.2	dB
工作温度	-10~+70	-10~+70	℃
封装尺寸	L21×W12.9×H6.4	L21×W12.9×H6.4	mm

本产品为【（C05）北亿纤通全品类波分复用器选型手册_V3.04.pdf】光模块产品线，详细信息请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
