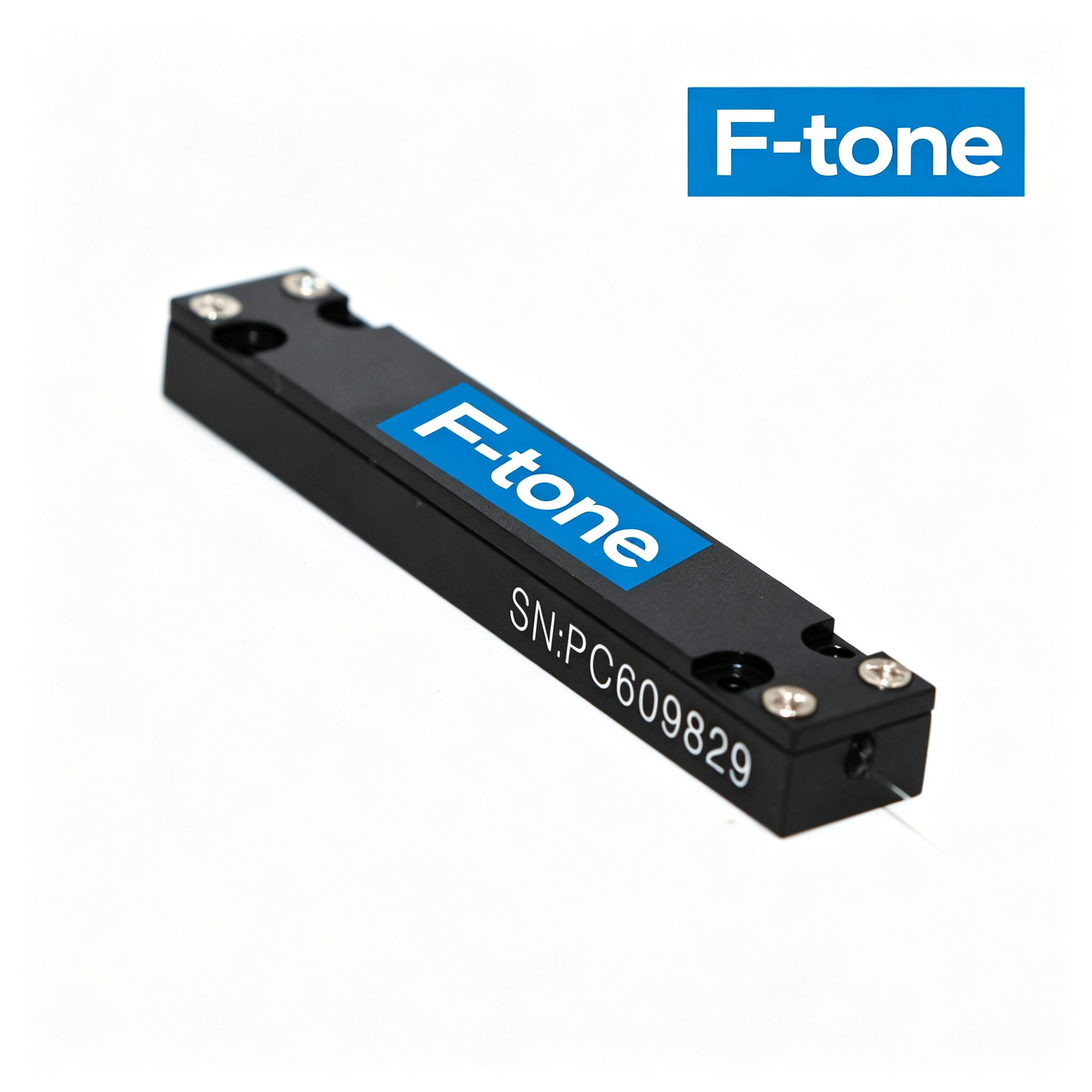

1×2 1064nm 10W 20W PM Filter Coupler F-tone's High Power Polarization Maintaining Filter Coupler is one type of passive components, which divides the light into any proportions
工作温度：商业级/工业级/军品级可选
|
1×2 1064nm High Power PM Filter Coupler |
|||
|
|
|
||
|
Features |
Applications |
||
|
Low Insertion Loss |
EDFA & Raman Amplifier |
||
|
High Return Loss |
Fiber Sensor |
||
|
High Extinction Ratio |
Fiber Optical Instrument |
||
|
|
|
||
|
Specifications |
|||
|
Parameter |
Unit |
Value |
|
|
Type |
– |
1×2 |
|
|
Center Wavelength |
nm |
1064 |
|
|
Operating Wavelength Range |
nm |
±20 |
|
|
Max. Excess Loss |
dB |
0.8 |
|
|
Uniformity (only for 50/50) |
dB |
0.5 |
|
|
Coupling Ratio |
dB |
01/99~50/50 |
|
|
Min. Extinction Ratio at 23℃ |
Both axis working |
dB |
20 |
|
Fast axis blocked |
dB |
18 |
|
|
Min. Return Loss |
dB |
50 |
|
|
Max. Optical Power(CW) |
mW |
10, 20 or Specify |
|
|
Max.Tensile Load |
N |
5 |
|
|
Fiber Type |
Tap Port |
– |
PM Panda Fiber or SM Fiber |
|
Input & Output Port |
– |
PM Panda Fiber |
|
|
Operating Temperature |
℃ |
-5~+70 |
|
|
Storage Temperature |
℃ |
-40~+85 |
|
|
*Above specifications are for device without connector. *For device with connector, IL is 0.3dB higher, RL is 5dB lower, and ER is 2dB lower. *The default connector key is aligned to slow axis. |
|||
|
|
|||
|
Ordering Information |
|||
|
PMFC-1111-2334-555-666–78-9-AABB |
|||
|
1111 – Wavelength: |
1064=1064nm, SSSS=Specify |
||
|
2 – Configuration: |
3=1×2 |
||
|
33 – Tap ratio: |
01=1%, 02=2%, 05=5%,……, 50=50% |
||
|
4 – Working Axis: |
B=Both axis working, F=Fast axis blocked |
||
|
555 – Fiber type for Port 1, 3: |
003=PM980, 015=PM1060L, 018=PLMA-GDF-10/125-M, SSS=Specify |
||
|
666 – Fiber type for Tap: |
003=PM980, 015=PM1060L, 018=PLMA-GDF-10/125-M. SSS=Specify |
||
|
7 – Package Dimension: |
1=70x12x8mm, S=Specify |
||
|
8 – Pigtail Type: |
0=bare fiber, 1=900μm loose tube |
||
|
9 – Fiber Length: |
0.75=0.75m, 1.0=1m, S=Specify |
||
|
AA – Average Power: |
10=10W, 20=20W, 30=30W, SS=Specify |
||
|
BB – Peak Power: |
00=Continuous Wave, 10=10kW, SS=Specify |
||
Part No. Example: PMFC-1064-350F-018-018-00-0.75-2010
Description: 1064nm High Power Polarization Maintaining Filter Coupler, 1×2 type, 50:50 tap ratio, Fast axis blocked, PLMA-GDF-10/125-M fiber for all port, 70x12x8mm, bare fiber, 0.75m, no connector, 20W average power, 10kW peak power.
For Custom Parts, please provide detailed description for your requirement.
