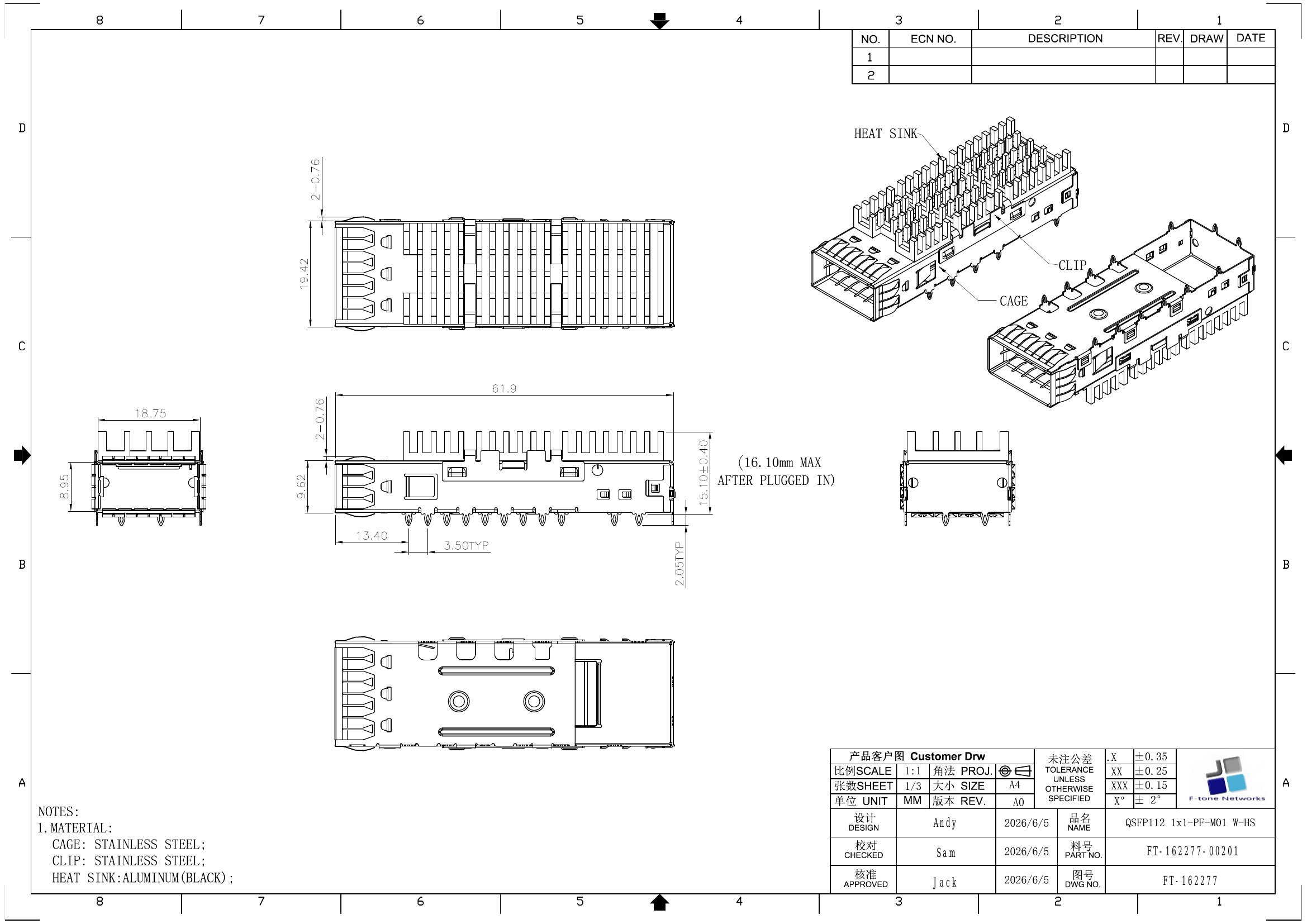

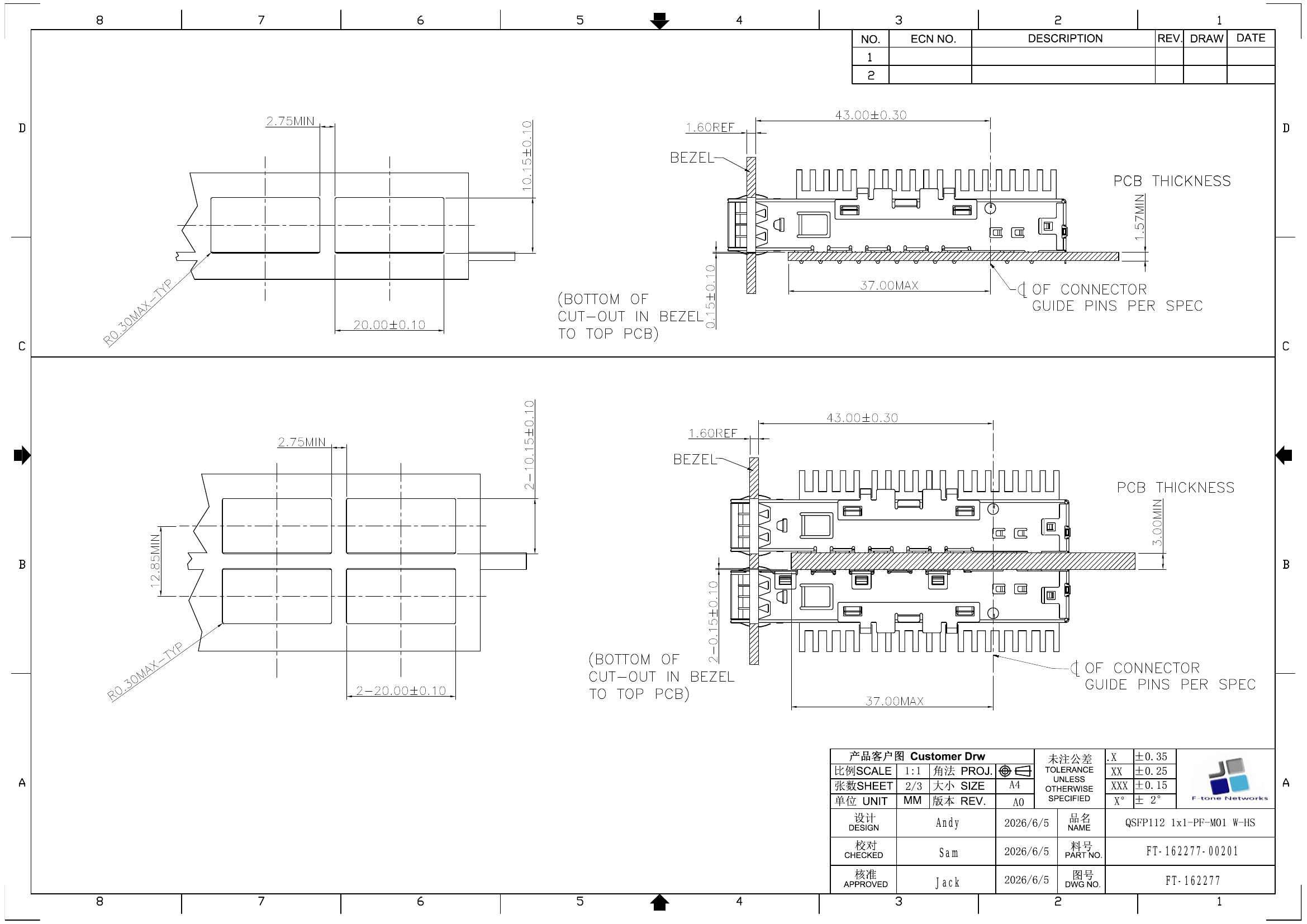

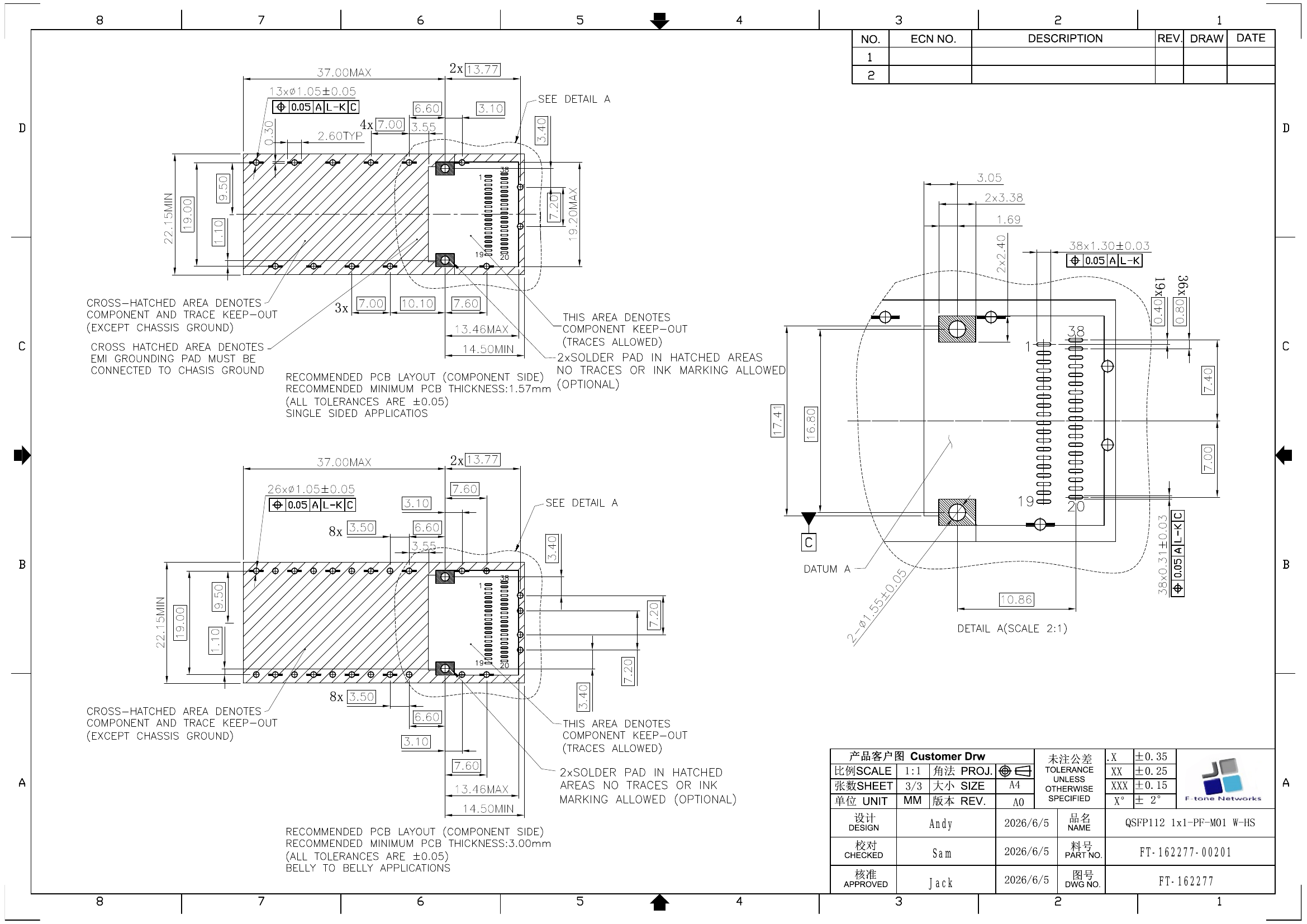

FT-162277-00201 QSFP112 1×1-PF-M01 W-HS Cage Assembly
The FT-162277-00201 is a QSFP112 1×1-PF-M01 W-HS cage assembly designed for high-speed optical transceiver modules. Featuring stainless steel construction with integrated heat sink and EMI springs for optimal thermal management and electromagnetic compatibility.
Specifications
| Parameter | Value |
|---|---|
| Material | Stainless Steel, Thickness |
| Clip | Stainless Steel |
| EMI Springs | Thickness 0.08mm |
| Heat Sink | Aluminum |
| Design | Andy |
| Part No | FT-162277-00201 |
| Rev | A0 |
本产品为SFP Cage & Connector产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
