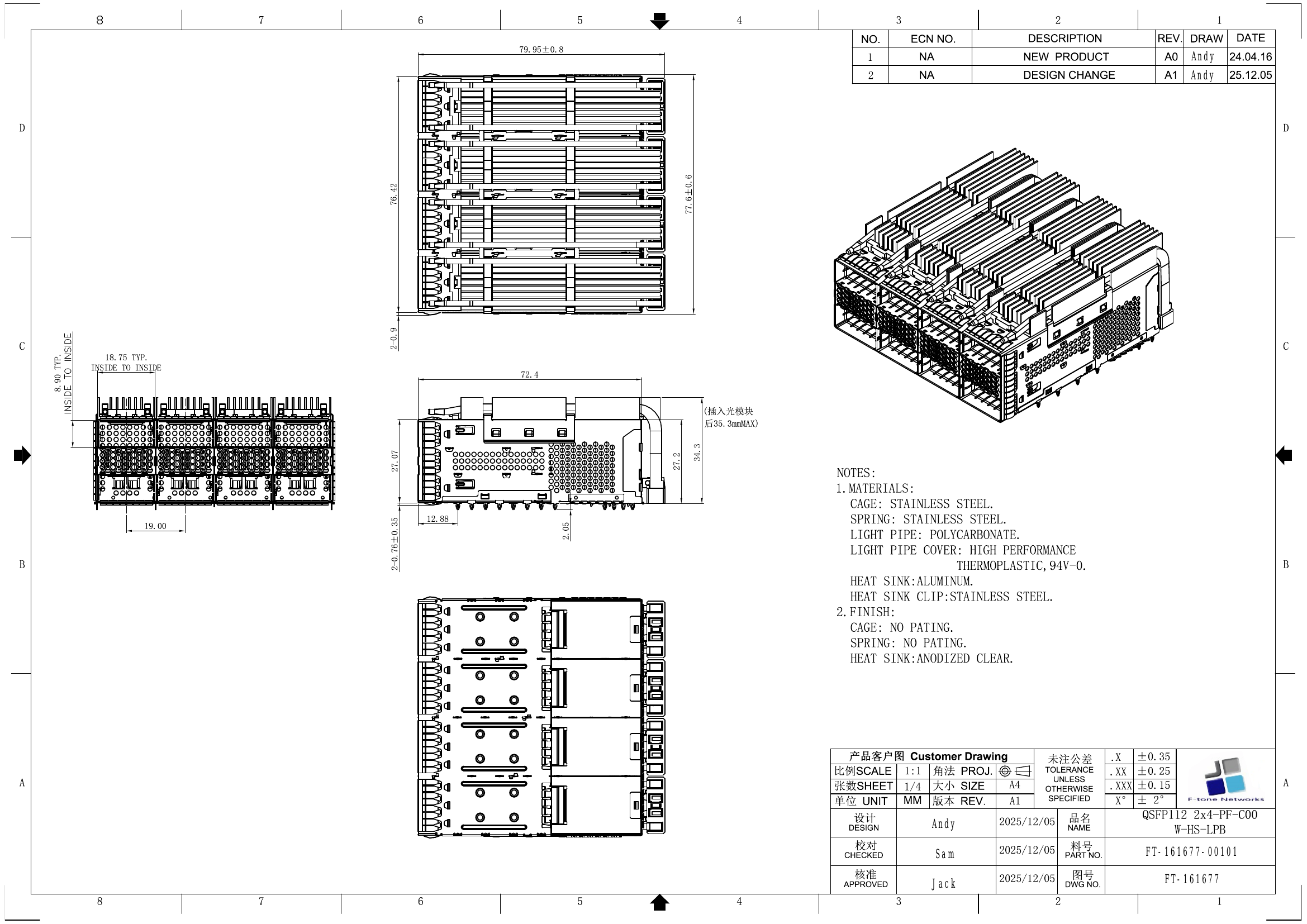

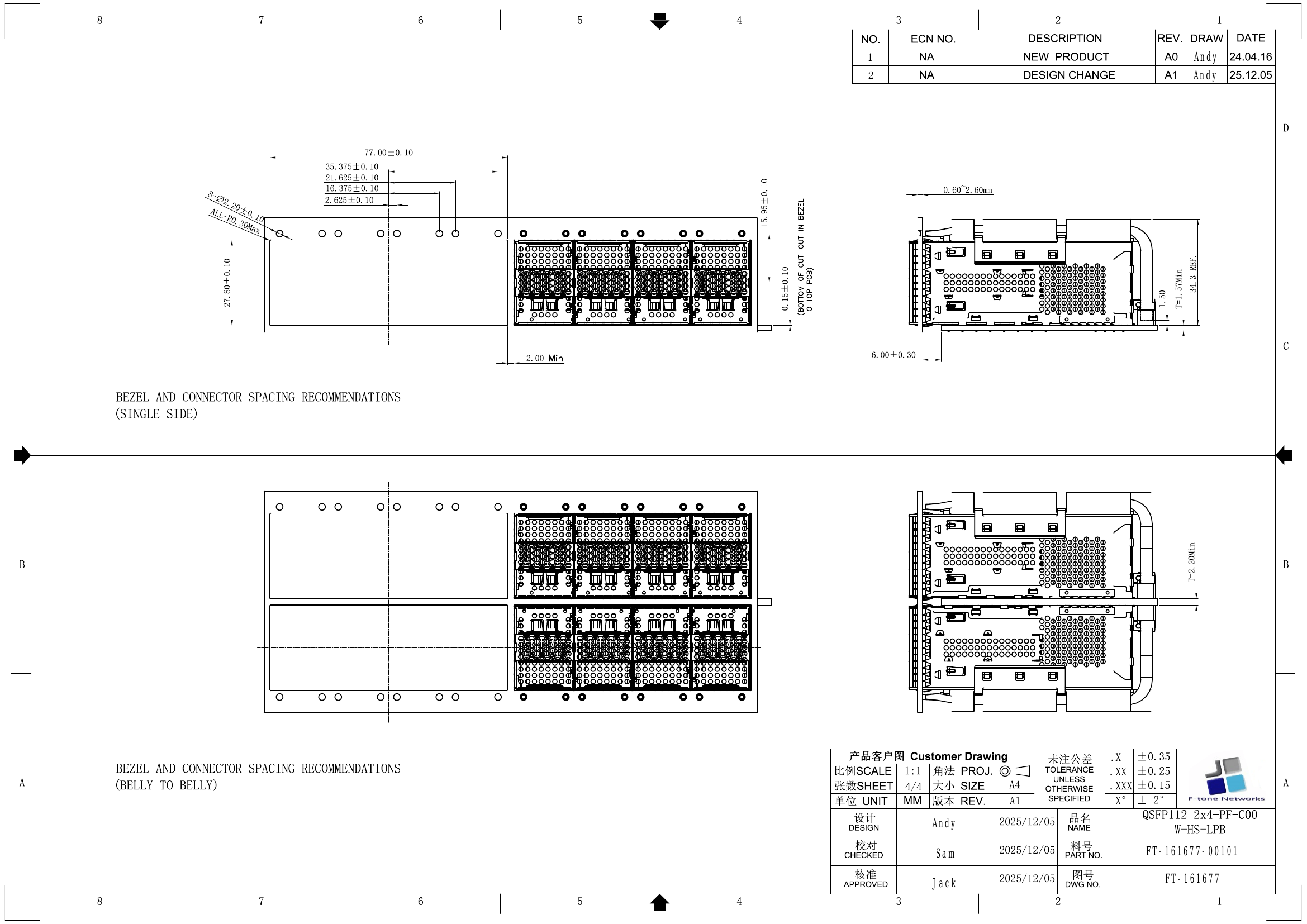

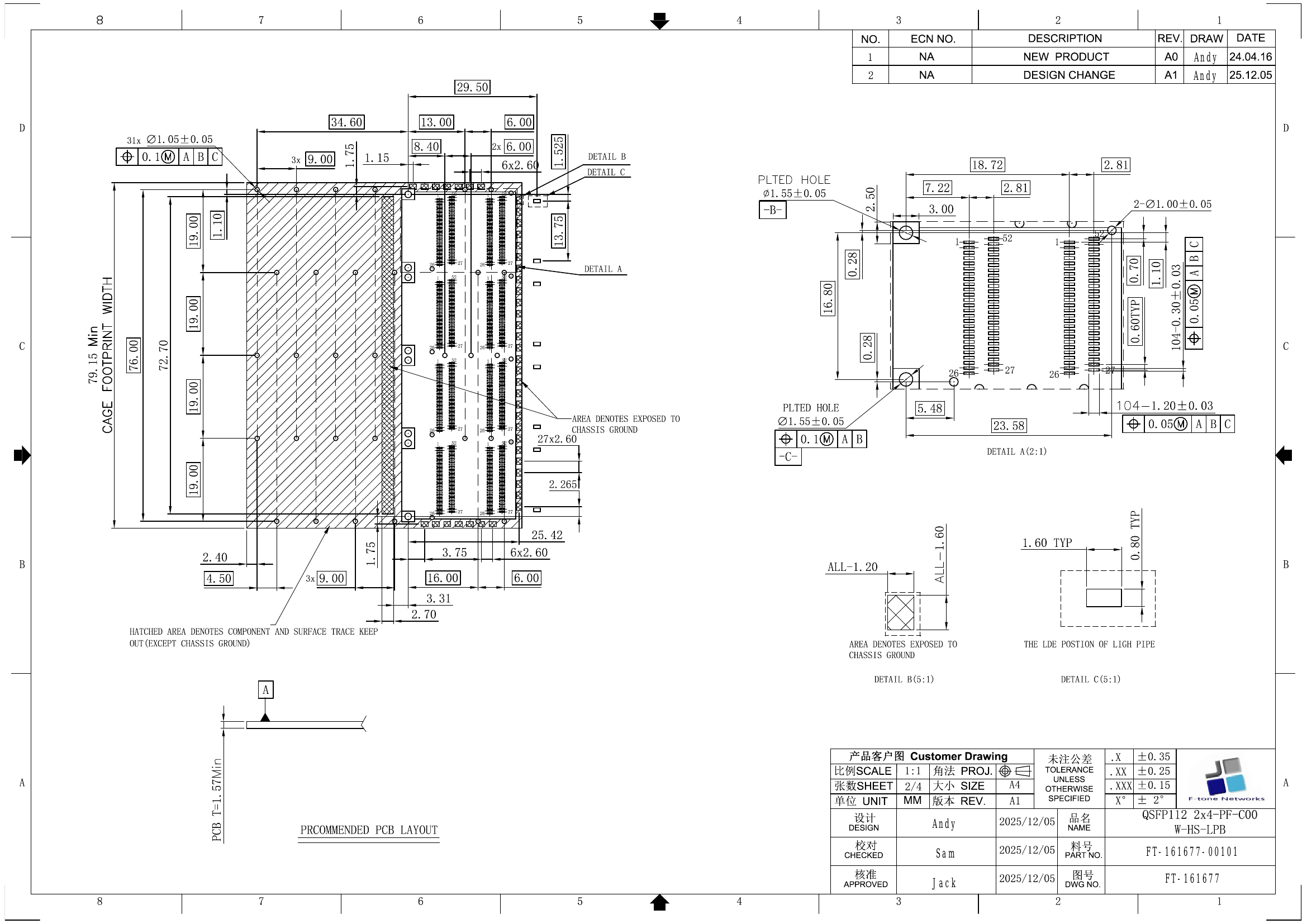

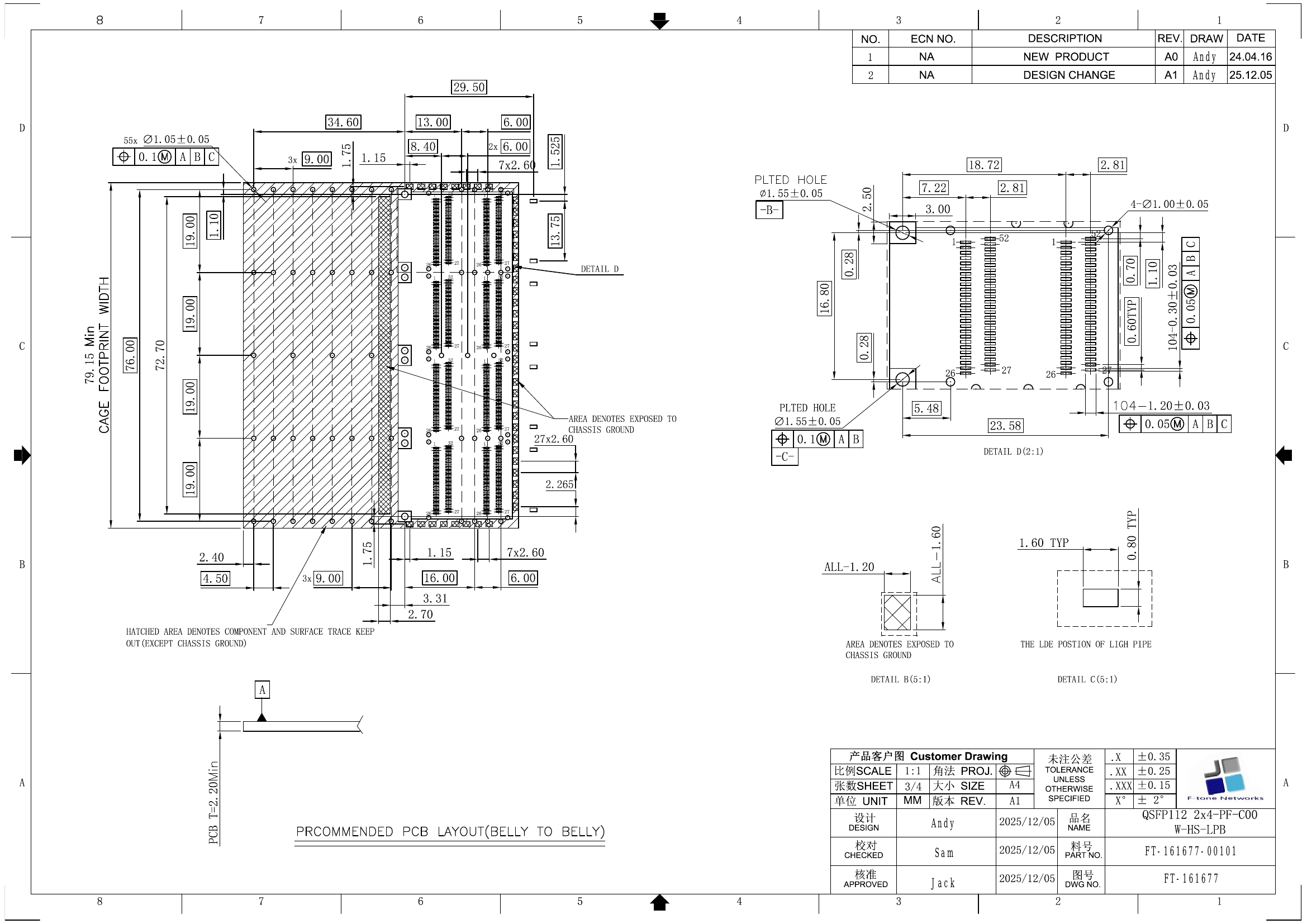

FT-161677-00101 QSFP112 2×4-PF-C00W-HS-LPB Cage Assembly
The FT-161677-00101 is a QSFP112 2×4-PF-C00W-HS-LPB cage assembly designed for high-density optical transceiver applications. Features stainless steel cage and clip construction with integrated heat sink, EMI springs, and light pipe board for signal indication.
Specifications
| Parameter | Value |
|---|---|
| Material | Stainless Steel, Thickness |
| Clip | Stainless Steel |
| EMI Springs | Thickness 0.08mm |
| Heat Sink | Aluminum |
| Design | Andy |
| Part No | FT-161677-00101 |
| Rev | A1 |
本产品为SFP Cage & Connector产品线，详细信息，请联系我们的销售人员，谢谢！
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice. The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
