SFP GE-100FX SGMII Optical Transceiver – 100BASE-FX SFP Module with SGMII PHY

SFP GE-100FX SGMII Optical Transceiver

Features:

  • 1310nm FP laser transmitter
  • Duplex LCconnector
  • RoHS compliant and Lead Free
  • Up to 2 Km on 50/125μm MMF
  • Single +3.3V Power Supply
  • Very low EMI and excellent ESD protection
  • Built-in PHY supporting SGMII Interface
  • Operating case temperature: 0 to +70°C

Applications:

  • Fast Ethernet
  • Hot-Pluggable
  • 100BASE-FX operation
  • Other Optical Links

Description:

The transceiver is a high performance, cost effective module which have a Duplex LC optics interface.

Standard AC coupled CML for high speed signal and LVTTL control and monitor signals.

The receiver section uses a PIN receiver and the transmitter uses 1310 nm FP laser, up to 12dB link budge ensure this module Fast Ethernet 2km application with PHY supporting SGMII interface make it support Fast Ethernet in Gigabit Ethernet port.

Absolute Maximum Ratings

Parameter

Symbol

Min.

Typical

Max.

Unit

Storage Temperature

TS

-40

+85

°C

Supply Voltage

VCCT, R

-0.5

4

V

Relative Humidity

RH

0

85

%

Case Operating Temperature

TC

0

70

C

Recommended Operating Environment:

Parameter

Symbol

Min.

Typical

Max.

Unit

Caseoperating Temperature

TC

0

+70

°C

Supply Voltage

VCCT, R

3.0

3.6

V

Power Supply Rejection

100

mVP-P

Data Rate

BR

155

Mb/s

Electrical Characteristics

Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Supply Voltage

Vcc

3.0

3.30

3.60

V

Supply Current

Icc

360

mA

Maximum Power

Pmax

1.0

W

Transmitter Section:

Input differential impedance

Rin

90

100

110

Ω

1

Single ended data input swing

Vin PP

200

1200

mVp-p

Transmit Disable Voltage

VD

Vcc – 1.3

Vcc

V

2

Transmit Enable Voltage

VEN

Vee

Vee+ 0.8

V

Transmit Disable Assert Time

Tdessert

10

us

Receiver Section:

Single ended data output swing

Vout,pp

300

1000

mv

3

Data output rise time

tr

150

ps

4

Data output fall time

tf

150

ps

4

LOS Fault

Vlosfault

Vcc – 0.5

VCC_host

V

5

LOS Normal

Vlos norm

Vee

Vee+0.5

V

5

Power Supply Rejection

PSR

100

mVpp

6

Note:

  1. AC coupled.
  2. Or open circuit.
  3. Into 100 ohm differential termination. 4. 20 – 80 %
  4. LOS is LVTTL. Logic 0 indicates normal operation; logic 1 indicates no signal detected.
  5. All transceiver specifications are compliant with a power supply sinusoidal modulation of 20 Hz to 1.5MHz up to specified value applied through the power supply filtering network shown on page 23 of the Small Form-factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA), September 14, 2000.

Optical Characteristics

Parameter

Symbol

Min.

Typical

Max.

Unit

Note

Transmitter Section:

Center Wavelength

λc

1270

1310

1360

nm

1

Spectral Width

σ

7

nm

Optical Output Power

Pout

-18

-10

dBm

2

Optical Rise/Fall Time

tr / tf

160

ps

3

Extinction Ratio

ER

9

dB

Eye Mask for Optical Output

Compliant with Eye Mask Defined in IEEE 802.3 standard

Receiver Section:

Optical Input Wavelength

λ

1100

1670

nm

RX Sensitivity

Sen

-31

dBm

4.5

Receiver Overload

Pol

-3

dBm

4.5

RX_LOS Assert

LOS A

-45

dBm

RX_LOS Deassert

LOS D

-34

dBm

RX_LOS Hysteresis

LOS H

0.5

dB

Total Jitter(SGMII Series Interface)

TJ

0.43

UI

Note

  1. Also specified to meet curves in FC-PI 13.0 Figures 18 and 19, which allow trade-off between wavelength spectralwidth.
  2. Class 1 Laser Safety per FDA/CDRH and EN (IEC) 60825 regulations.
  3. Unfiltered, 20-80%. Complies with IEEE 802.3 (Gig. E), FC 1x and 2x eye masks when filtered.
  4. Measured with conformance signals defined in FC-PI 13.0 specifications.
  5. Measured with PRBS 27-1 at 10-12 BER

Pin Assignment:

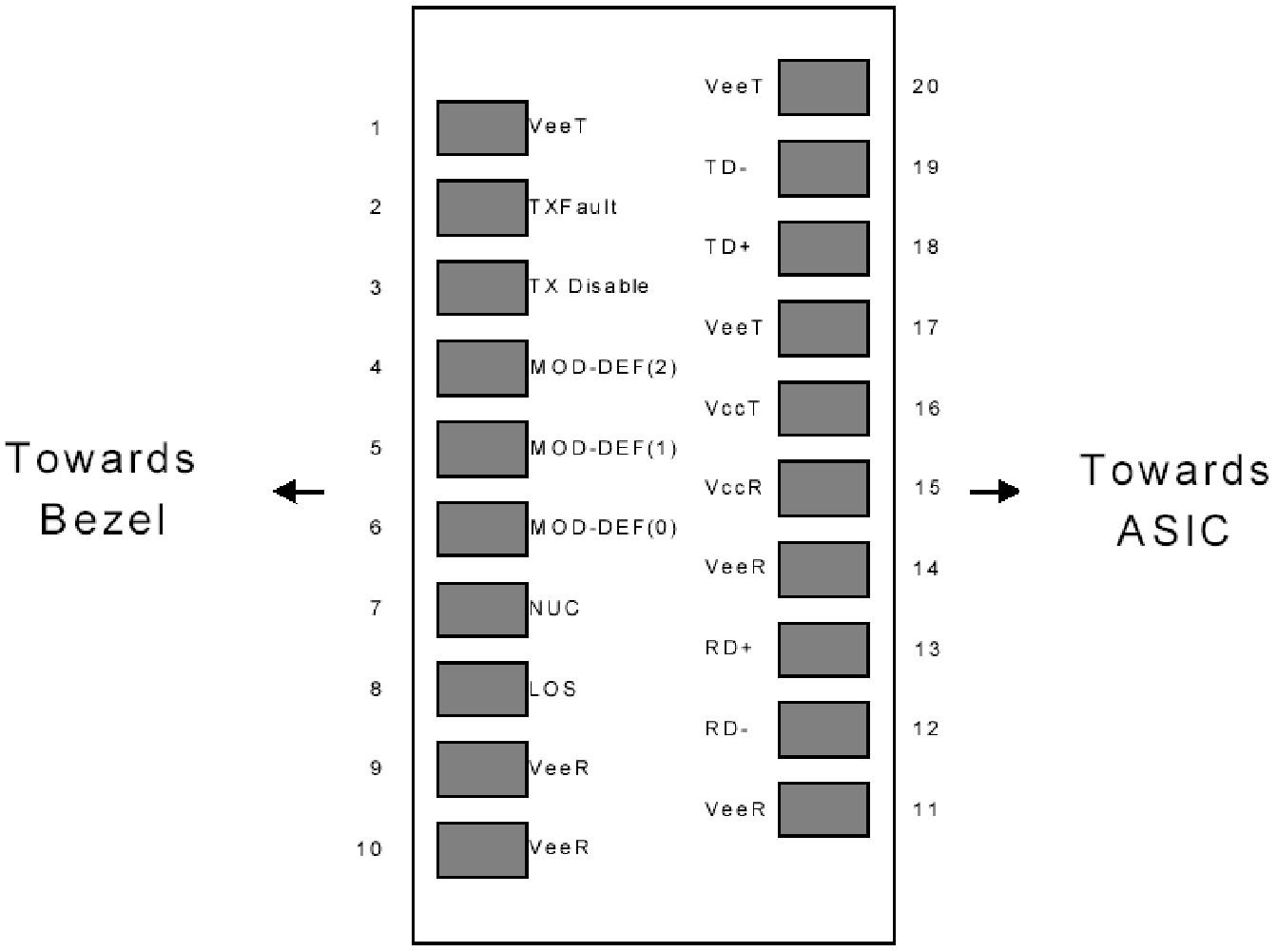

Diagram of Host Board Connector Block Pin Numbers and Names

Pin Description:

Pin No

Name

Function

Plug Seq

Notes

1

VeeT

Transmitter Ground

1

1

2

TX Fault

Transmitter Fault Indication

3

3

TX Disable

Transmitter Disable

3

2

4

MOD-DEF2

Module Definition

2

3

5

MOD-DEF1

Module Definition 1

3

3

6

MOD-DEF0

Module Definition 0

3

3

7

Rate Select

Not Connected

3

4

8

LOS

Loss of Signal

3

5

9

VeeR

Receiver Ground

1

1

10

VeeR

Receiver Ground

1

1

11

VeeR

Receiver Ground

1

1

12

RD-

Inv. Received Data Out

3

6

13

RD+

Received Data Out

3

6

14

VeeR

Receiver Ground

3

1

15

VccR

Receiver Power

2

1

16

VccT

Transmitter Power

2

17

VeeT

Transmitter Ground

1

18

TD+

Transmit Data In

3

6

19

TD-

Inv. Transmit In

3

6

20

VeeT

Transmitter Ground

1

Notes:

    1. Circuit ground is internally isolated from chassis ground.
    2. Laser output disabled on TDIS >2.0V or open, enabled on TDIS <0.8V.
    3. Should be pulled up with 4.7k – 10 kohms on host board to a voltage between 2.0V and

3.6V.MOD_DEF(0) pulls line low to indicate module is plugged in.

    1. Rate select is not used
    2. LOS is open collector output. Should be pulled up with 4.7k – 10 kohms on host board to a voltage between 2.0V and 3.6V. Logic 0 indicates normal operation; logic 1 indicates loss of signal.
    3. AC Coupled

Serial ID Memory Contents:

Data Address

Length (Byte)

Name of Length

Description and Contents

Base ID Fields

0

1

Identifier

Type of Serial transceiver (03h=SFP)

1

1

Reserved

Extended identifier of type serial transceiver (04h)

2

1

Connector
