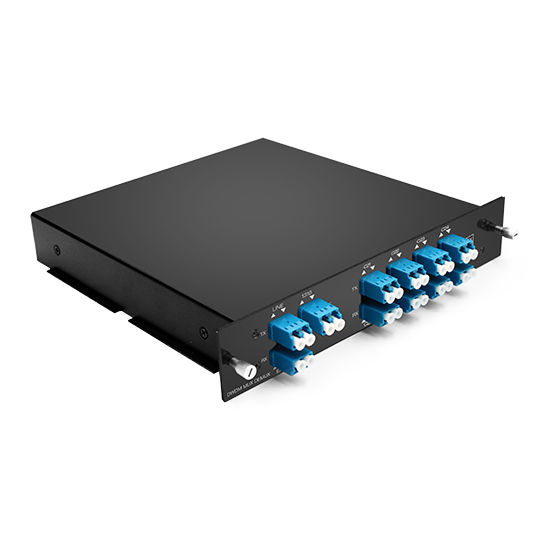

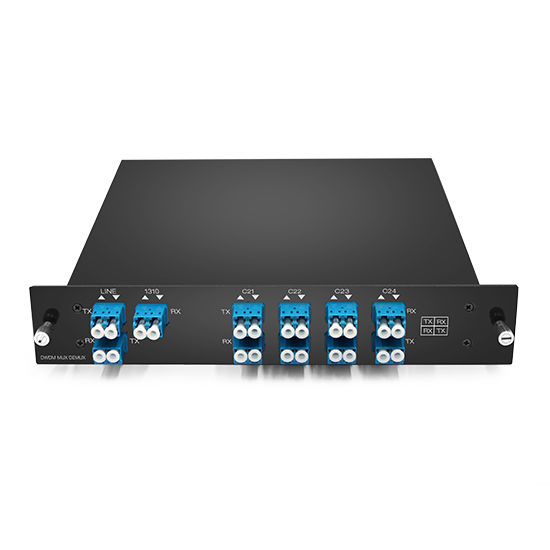

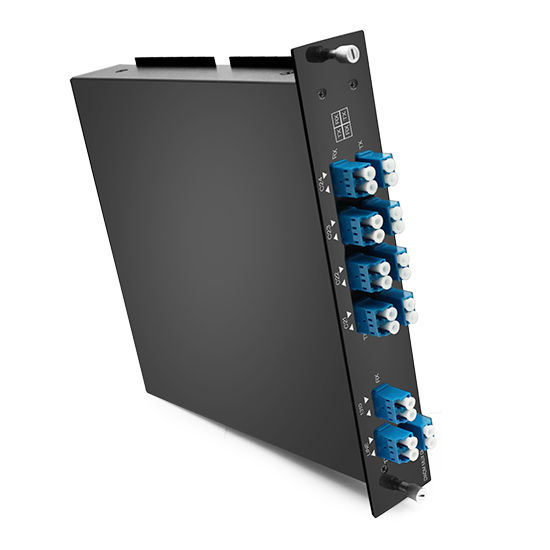

DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX

DWDM — DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX

DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX
DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX
DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX
DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX
DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX
DWDM MUX DEMUX 8CH (C21-C28) with Express Port LC/UPC Dual Fiber LGX BOX

产品详情

产品参数 — F-tone
工作波长 8 Channels C21-C28 通道间距 100GHz
通道带宽 ITU±0.11 插入损耗 ≤ 2.4dB
方向性 ≥50dB 回波损耗 ≥45dB
通道波纹 ≤ 0.5dB 光纤类型 SMF-28e+
相邻信道隔离度 ≥30dB 非邻通道隔离度 ≥40dB
偏振相关损耗 ≤0.2dB 偏振模色散 ≤0.2ps
最大光功率 500mW 尺寸(HxWxD) 39x208x200mm
工作温度 -20°C～+75°C 存储温度 -40°C～+85°C
工作波长 8 Channels C21-C28 通道间距 100GHz
通道带宽 ITU±0.11 插入损耗 ≤ 2.4dB
方向性 ≥50dB 回波损耗 ≥45dB
通道波纹 ≤ 0.5dB 光纤类型 SMF-28e+
相邻信道隔离度 ≥30dB 非邻通道隔离度 ≥40dB
偏振相关损耗 ≤0.2dB 偏振模色散 ≤0.2ps
最大光功率 500mW 尺寸(HxWxD) 39x208x200mm
工作温度 -20°C～+75°C 存储温度 -40°C～+85°C

8 Channels C21-C28 DWDM MUX DEMUX Dual Fiber with Expansion Port LC/UPC LGX BOX

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

Short Lead time

Fast Delivery

Professional Service

Technical Support

Worry-Free Guarantee

Shopping Satisfactorily

Premium Quality

High stability


Product Specification

Number of channels 4 8 16
Wavelength range

CWDM:1270nm to 1610nm

DWDM:C Band, 100 GHZ or 50 GHZ
Insertion loss < 1.5dB < 2.5dB < 3.5dB
Isolation ratio of adjacent channels >30dB >30dB >30dB
Isolation ratio of non-adjacent channels >40dB >40dB >40dB
Return loss >45dB >45dB >45dB
Direction >50dB >50dB >50dB
Interface type All interfaces are LC type
Work temperature -40〜85℃
Storage temperature -40〜85℃
本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
