84Mb/s 单模双接收光模块 FTTR-2RxxL3-xxxx (1100nm~1600nm)
FTTR-2RxxL3系列是一款84Mb/s单模双接收光模块，采用标准1×9封装，支持SC/FC/ST或尾纤型光接口。接收采用平面结构InGaAsP PIN探测器，支持宽波长范围1100nm~1600nm，支持20km至100km多种传输距离，适用于84Mb/s以下速率的光纤传输系统、电力控制及其他光纤传输应用。
产品特点
- SC/FC/ST或尾纤型光接口
- 单模双接收光模块
- +3.3V/+5V供电
- 接口电平兼容标准TTL电平和CMOS电平
- 标准1×9管脚封装
- 接收采用平面结构InGaAsP PIN探测器
极限值 (Absolute Maximum Ratings)
| 参数 Parameter | 符号 Symbol | 最小值 Min. | 最大值 Max. | 单位 Unit |
|---|---|---|---|---|
| 工作电压 Supply Voltage | Vcc | 0 | +3.5 / +6 | V |
| 储存温度 Storage Temperature | Ts | -40 | +85 | ℃ |
| 相对湿度 Relative Humidity | RH | 5 | 95 | % |
| 引线焊接温度 Lead Soldering Temperature | T | – | 260 | ℃ |
| 引线焊接时间 Lead Soldering Time | t | – | 10 | S |
推荐工作条件 (Recommended Operating Environment)
| 参数 Parameter | 符号 | 最小 Min. | 典型 Typical | 最大 Max. | 单位 | 备注 |
|---|---|---|---|---|---|---|
| 工作温度 (Commercial) | Tc | 0 | – | +70 | ℃ | 1 |
| 工作温度 (Industrial) | Tc | -40 | – | +85 | ℃ | 2 |
| 供电电压 (+3.3V) | Vcc | 3.15 | 3.3 | 3.45 | V | – |
| 供电电压 (+5V) | Vcc | 4.75 | 5 | 5.25 | V | – |
| 供电电流 | Icc | – | – | 12 | mA | – |
| 速率 Data Rate | B | 600Kb/s | – | 84 | Mbps | – |
技术指标 (Specifications, T=25℃)
| 参数 Parameter | 条件 Condition | 最小 Min. | 典型 Typ. | 最大 Max. | 单位 Unit | 备注 |
|---|---|---|---|---|---|---|
| 波长范围 Wavelength Range | – | 1100 | – | 1600 | nm | – |
| 接收灵敏度 Receiver Sensitivity | 20KM | – | – | -28 | dBm | 2 |
| 饱和输入功率 Input Power (Saturation) | – | -3 | – | – | dBm | – |
| 信号检测断言电平 (SD H-L) | – | – | -28 | – | dBm | – |
| 信号检测去断言电平 (SD L-H) | – | – | -35 | – | dBm | – |
| 信号检测迟滞 Hysteresis | – | – | 1 | – | dB | – |
| 信号电平 (TTL) | – | 0 | – | 4.0 | V | – |
| 信号电平 (LVTTL) | – | 0 | – | 3.0 | V | – |
| 接收部分电流 (Vcc1=3.3V) | – | – | – | 50 | mA | – |
| 接收部分电流 (Vcc1=5V) | – | – | – | 50 | mA | – |
| 接收部分电流 (Vcc2=3.3V) | – | – | – | 50 | mA | – |
| 接收部分电流 (Vcc2=5V) | – | – | – | 50 | mA | – |
| 数据输出低电压 Data Output Low | – | – | 0.7 | – | V | – |
| 数据输出高电压 (3.3V) | 3.3V | 4.5 | – | VCC | V | – |
| 数据输出高电压 (5V) | 5V | 3 | – | VCC | V | – |
速率、波长与传输距离
| 型号 P/N | 速率 Data Rate | 工作波长 (nm) | 灵敏度 Sen (dBm) |
|---|---|---|---|
| FTTR-2RxxL3-xxxx | 84Mb/s | 1100 ~ 1600 | ≤ -28 |
管脚定义 (Pin Connections)
| 管脚 Pin | 管脚名称 Name | 电平 Level | 说明 Description |
|---|---|---|---|
| 1 | GNDR1 | – | 接收1部分接地 Signal ground for Receiver section 1 |
| 2 | RD1 | TTL/LVTTL | 接收1部分数据输出 Data output of Receiver section 1 |
| 3 | NC | – | 不接 No connect |
| 4 | SD1 | TTL/LVTTL | 接收1部分无光告警 Signal Detect for Receiver section 1 |
| 5 | VccR1 | – | 接收1部分正电源 Power supply for Receiver section 1 |
| 6 | VccR2 | – | 接收2部分正电源 Power supply for Receiver section 2 |
| 7 | SD2 | TTL/LVTTL | 接收2部分无光告警 Signal Detect for Receiver section 2 |
| 8 | RD2 | TTL/LVTTL | 接收2部分数据输出 Data output of Receiver section 2 |
| 9 | GNDR2 | – | 接收2部分接地 Signal ground for Receiver section 2 |

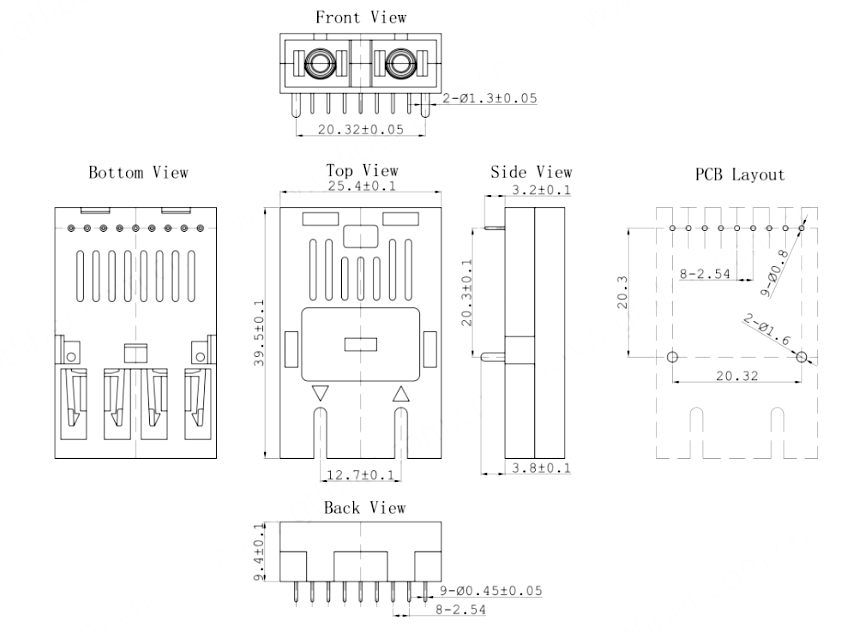

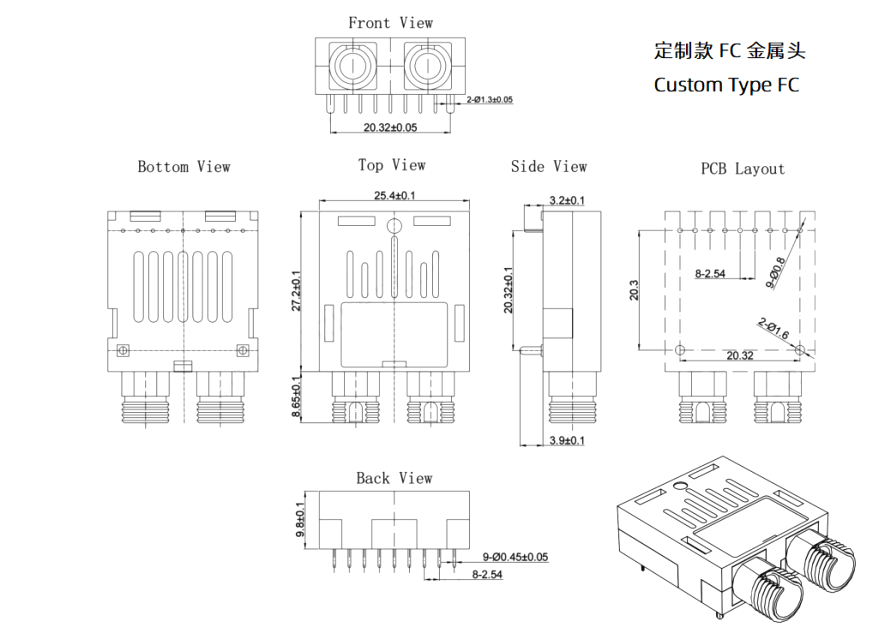

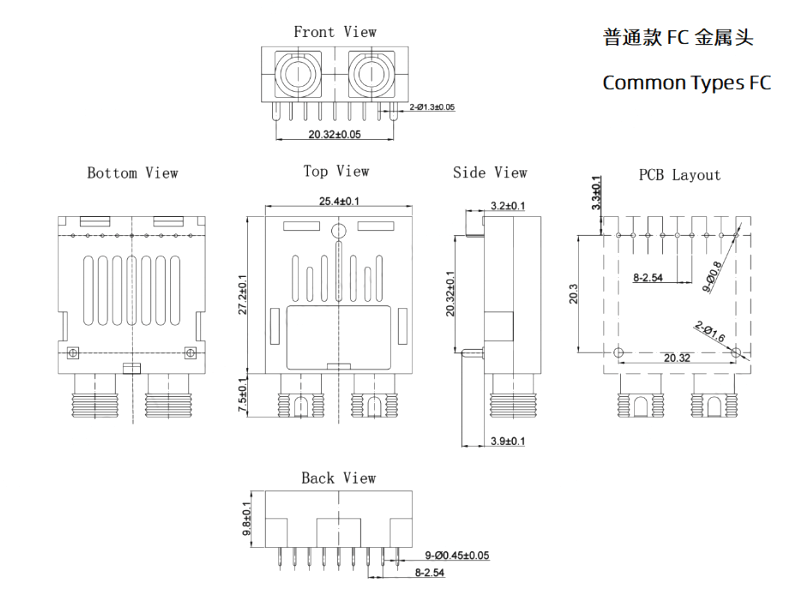

外形尺寸及接口定义
选型信息 (Ordering Information)
| 型号 Part Number | 产品描述 Product Description |
|---|---|
| FTTR-2RxxL3-20-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 20KM, 0℃~+70℃, SC(FC/ST) |
| FTTR-2RxxL3-20I-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 20KM, -40℃~+85℃, SC(FC/ST) |
| FTTR-2RxxL3-40-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 40KM, 0℃~+70℃, SC(FC/ST) |
| FTTR-2RxxL3-40I-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 40KM, -40℃~+85℃, SC(FC/ST) |
| FTTR-2RxxL3-60-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 60KM, 0℃~+70℃, SC(FC/ST) |
| FTTR-2RxxL3-60I-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 60KM, -40℃~+85℃, SC(FC/ST) |
| FTTR-2RxxL3-80-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 80KM, 0℃~+70℃, SC(FC/ST) |
| FTTR-2RxxL3-80I-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 80KM, -40℃~+85℃, SC(FC/ST) |
| FTTR-2RxxL3-H0-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 100KM, 0℃~+70℃, SC(FC/ST) |
| FTTR-2RxxL3-H0I-xx | 1×9, Double Receipt, 1100nm~1600nm, 84M, 100KM, -40℃~+85℃, SC(FC/ST) |
