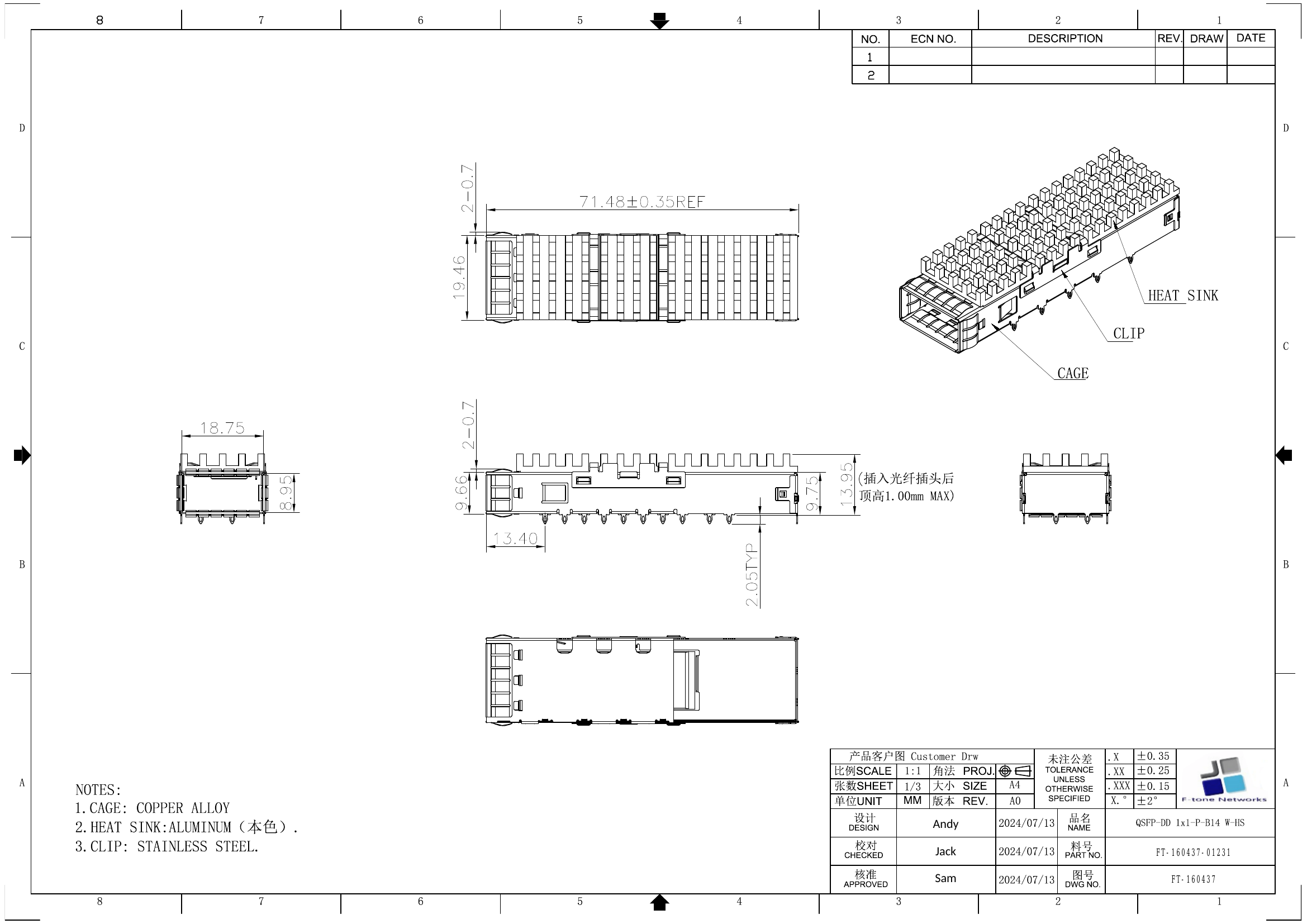

QSFP-DD 1×1-P-B14 W-HS 屏蔽笼 工程图纸
产品信息
| 项目 | 内容 |
|---|---|
| 品名 (Product) | QSFP-DD 1×1-P-B14 W-HS |
| 料号 (Item No.) | FT-160437-01231 |
| 图号 (DWG No.) | FT-160437 |
| 版本 (REV.) | A0 |
| 单位 (UNIT) | mm |
| 比例 (SCALE) | 1:1 |
| 图纸大小 (SHEET SIZE) | A4 |
公差说明
| 项目 | 公差 |
|---|---|
| .X | ±0.35 |
| .XX | ±0.25 |
| .XXX | ±0.15 |
| 角度 | ±2° |

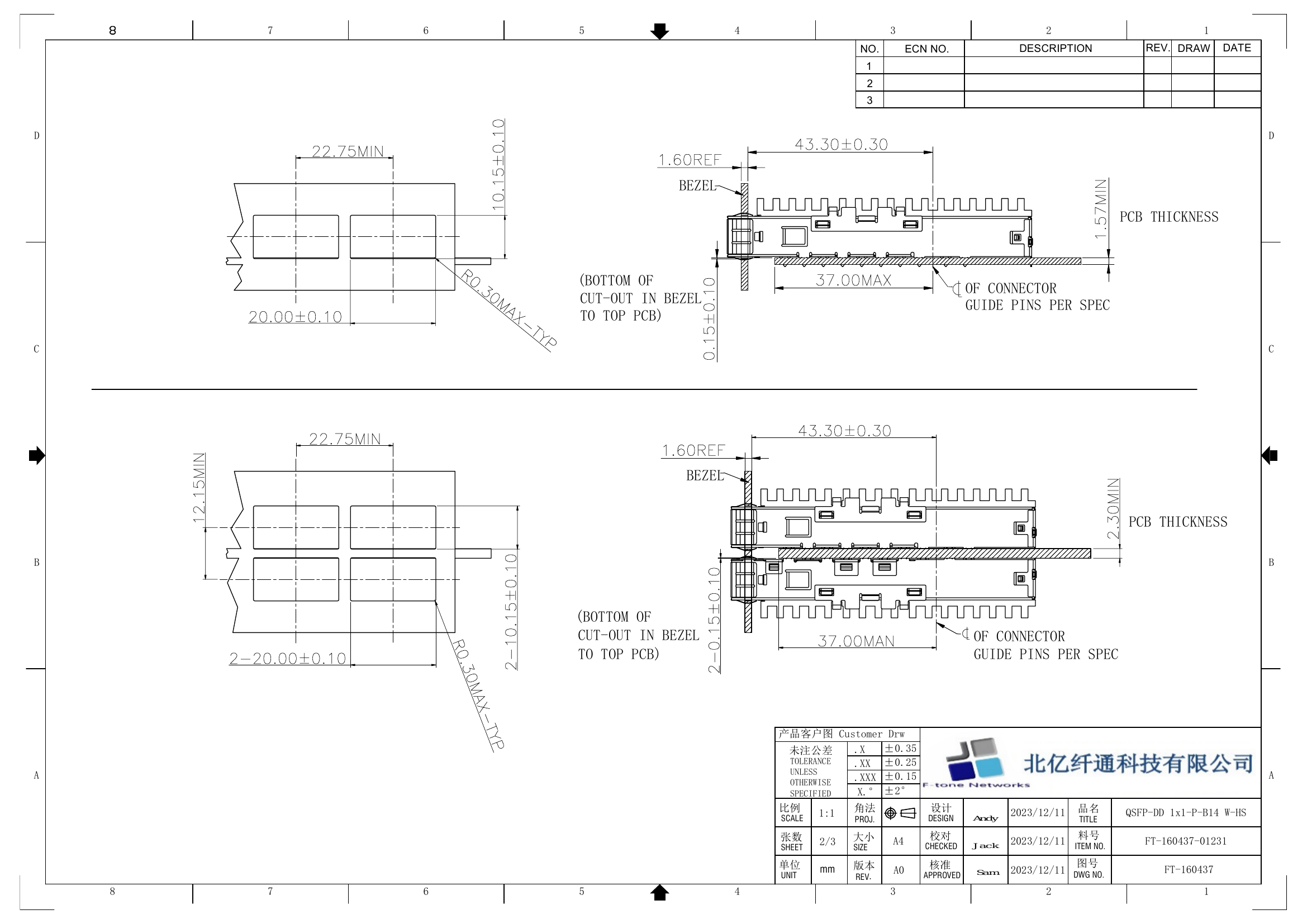

关键尺寸
本图纸包含 QSFP-DD 1×1 带散热片的屏蔽笼组件，包括：
- BEZEL（面板）相关尺寸及PCB厚度参数
- 连接器切口尺寸（底部到PCB顶部距离）
- 导 pin 规格（per spec）

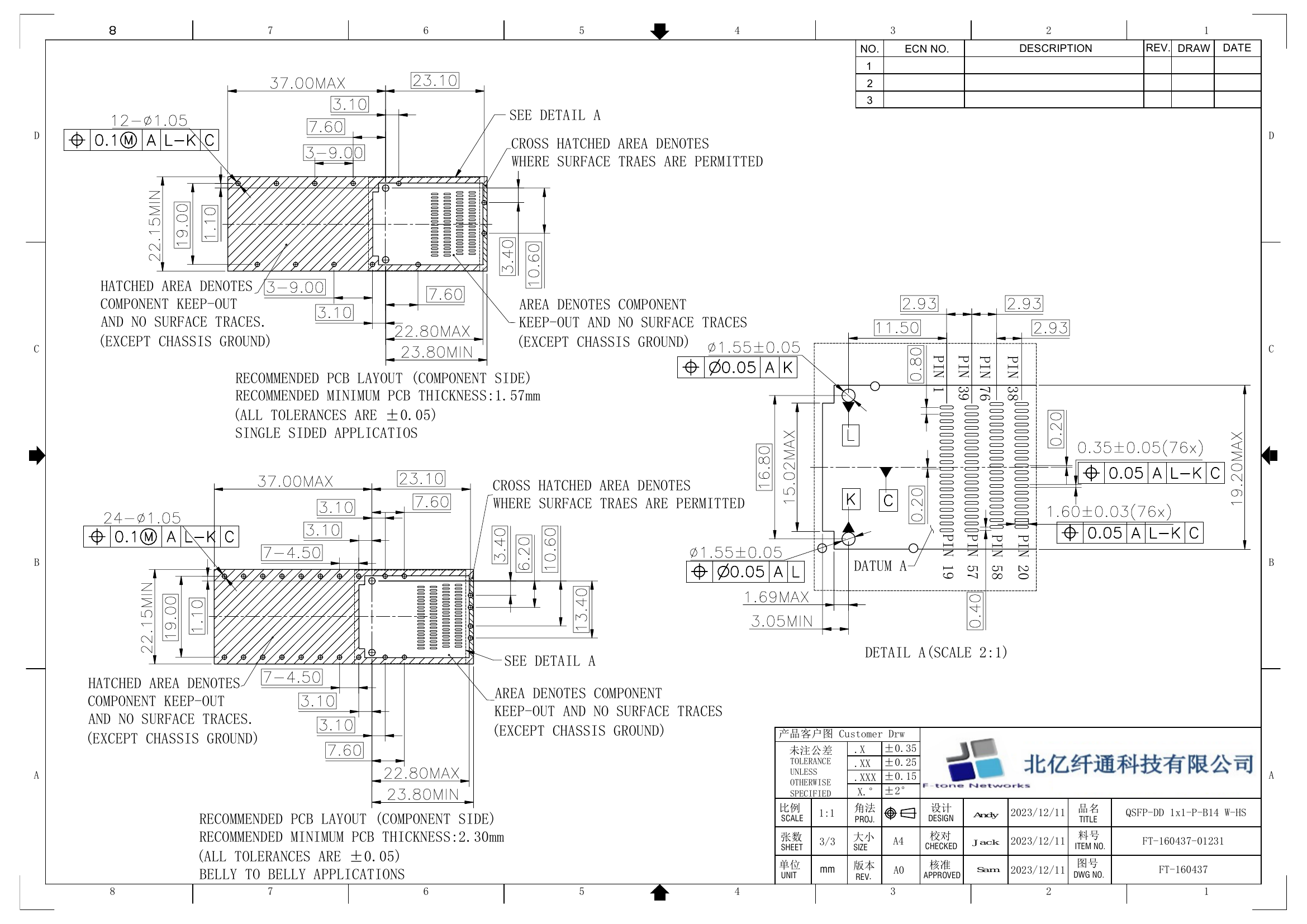

PCB Layout 推荐
| 配置 | 推荐最小PCB厚度 | 公差 |
|---|---|---|
| Single Sided（单面安装） | 1.57mm | ±0.05 |
| Belly to Belly（双面背靠背） | 2.30mm | ±0.05 |
Pin 布局说明
图纸标注了关键 Pin 位置：Pin 1、Pin 19、Pin 39、Pin 57、Pin 76、Pin 58、Pin 38、Pin 20
区域说明
- 交叉阴影区域：允许表面走线的区域
- 阴影区域：元件禁区和无表面走线区域（除机箱接地外）
- Component Keep-out：元件禁区（除机箱接地外）
审批信息
| 角色 | 人员 | 日期 |
|---|---|---|
| 设计 (Design) | Andy | 2023/12/11 |
| 校对 (Checked) | Jack | 2023/12/11 |
| 核准 (Approved) | Sam | 2023/12/11 |
