FT-13-DWDM116331116 8x2CH DWDM Module
The FT-13-DWDM116331116 is an 8×2 channel DWDM (Dense Wavelength Division Multiplexing) module operating in the 1520-1570nm wavelength range with 100GHz channel spacing. Features include low insertion loss (≤1.5dB), high isolation (>30dB adjacent, >40dB non-adjacent), and excellent polarization performance.
8* 2CH DWDM Module Spec
PN：FT-13-DWDM116331116
性能规格
|
参数/Parameters |
Specifications |
Unit |
|
|
工作波长/Operating Wavelength |
1520~1570 |
nm |
|
|
通道/Channel |
C32,C34 |
nm |
|
|
通道间隔/Channel Spacing |
100 |
GHz |
|
|
带宽（@-0.5dB）/Channel Passband(@-0.5dB bandwidth) |
DWDM |
ITU±0.11 |
nm |
|
插入损耗1/Insertion Loss1 |
IN→C33 |
≤1.5 |
dB |
|
IN→C34 |
≤1.5 |
dB |
|
|
隔离度/Isolation |
DWDM相邻/Adjacent |
>30 |
dB |
|
DWDM非相邻/Non-adjacent |
>40 |
dB |
|
|
平坦度/Ripple |
<0.5 |
dB |
|
|
偏振相关损耗/Polarization Dependent Loss |
<0.2 |
dB |
|
|
偏振模色散/Polarization Mode Dispersion |
<0.2 |
ps |
|
|
方向性/Directivity |
>50 |
dB |
|
|
回波损耗/Return Loss |
>45 |
dB |
|
|
最大光功率/Maximum Power Handing |
300 |
mW |
|
|
工作温度/Operating Temperature |
-40~+85 |
℃ |
|
|
储存温度/Storage Temperature |
-40~+85 |
℃ |
|
|
光纤类型/Fiber Type |
0.9mm loose tube,G657A1 |
||
|
光纤长度/Fiber Length |
1.0±0.05(含头) |
m |
|
|
连接头/Connector |
LC/UPC |
||
|
封装尺寸/Package size |
L98.4×W79.4×H9.5 |
mm |
|
*备注/Notes: 1. 所有插入损耗值都包括连接头的损耗值。

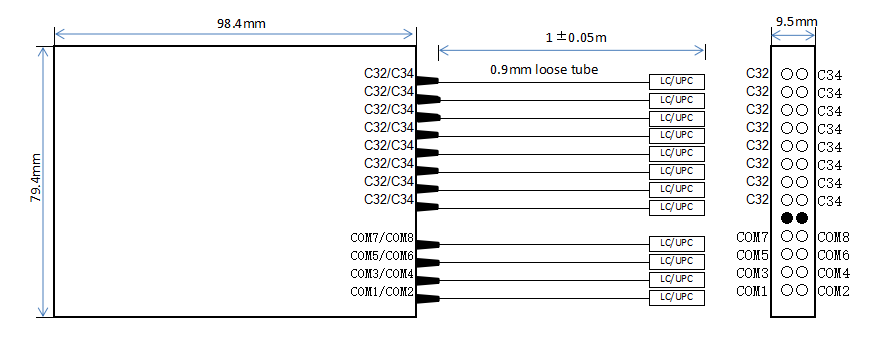

尺寸图/Internal Structure
出纤图：
本产品为DWDM Module产品线，详细信息，请联系我们的销售人员，谢谢！
