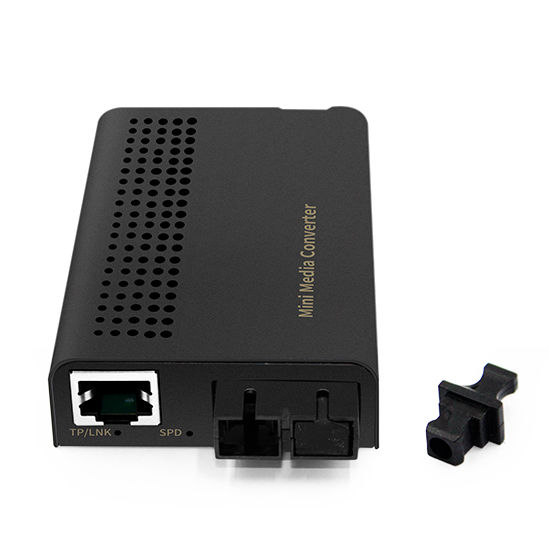

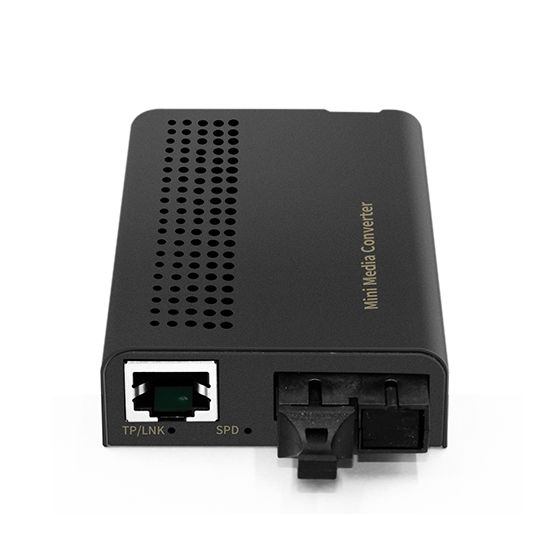

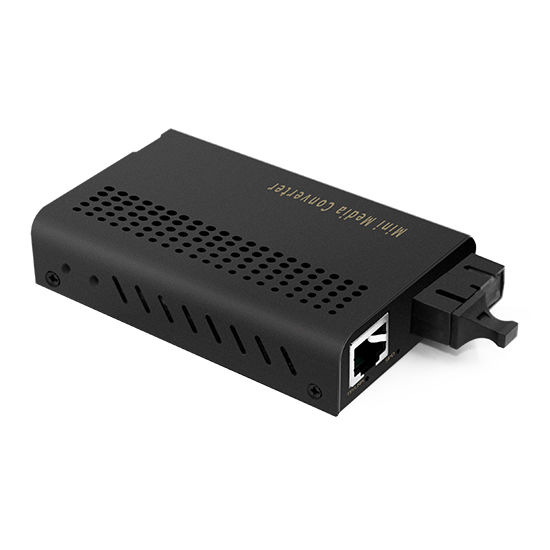

Mini 1x 10/100Base-T RJ45 to 1x 100Base-X SC TX1550nm/RX1310nm 40km SM Single Fiber Fast Ethernet Media Converter

Mini — F-tone Mini Fast Ethernet Media Converter 10/100Base-T RJ45 port and one 100Base-X SC port feature a TX1550nm/RX1310nm wave length, and up to 40km over MF.

产品详情

产品参数 — F-tone
产品类别	Mini Media Converter	Access Mode	10/100Mbps
接口类型	Single Fiber SC	尺寸（毫米）	60 (W) x 20 (H) x 90 (L)
波长	TX1550nm/RX1310nm	Transmission Distance	Single Mode 40km
功耗	<3W	输入电压	DC 5V~12V
湿度	5%~90%（non-condensing）	存储温度	-20°C~+85°C
工作温度	0°C~+40°C	协议	IEEE802.3, IEEE802.3u, IEEE802.3x, 100Base-FX

产品类别	Mini Media Converter	Access Mode	10/100Mbps
接口类型	Single Fiber SC	尺寸（毫米）	60 (W) x 20 (H) x 90 (L)
波长	TX1550nm/RX1310nm	Transmission Distance	Single Mode 40km
功耗	<3W	输入电压	DC 5V~12V
湿度	5%~90%（non-condensing）	存储温度	-20°C~+85°C
工作温度	0°C~+40°C	协议	IEEE802.3, IEEE802.3u, IEEE802.3x, 100Base-FX

10/100 Base-TX/FX Mini Media Converter 40km SC Connector (TX=1550nm) Single Fiber

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Keep In Stock; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Rigorous Industrial Product Testing

Communication and networks products require high stability and reliability. F-tone adopts leading product design, first-class raw materials and production technology to ensure the first-class quality of our products, so that your project can be used, installed stably and reliably

: Temperature Impact; High and low temperature cycle, aging test to ensure good temperature characteristics

: Mechanical Impact; Mechanical vibration testing to ensure the stability of products

: Packet Loss Rate / Delay Test; 48 hours uninterrupted testing in Data stream tester, check the products’ packet loss rate and delay

: MTBF Testing; MTBF (Mean Time between Failures) testing ensure high stablility

Practical Application Demonstration

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
