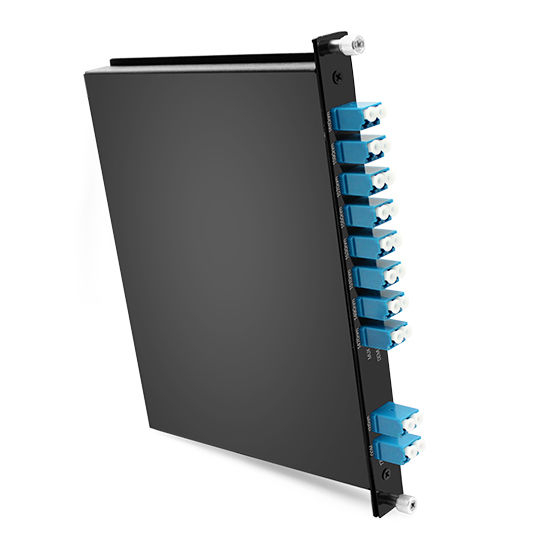

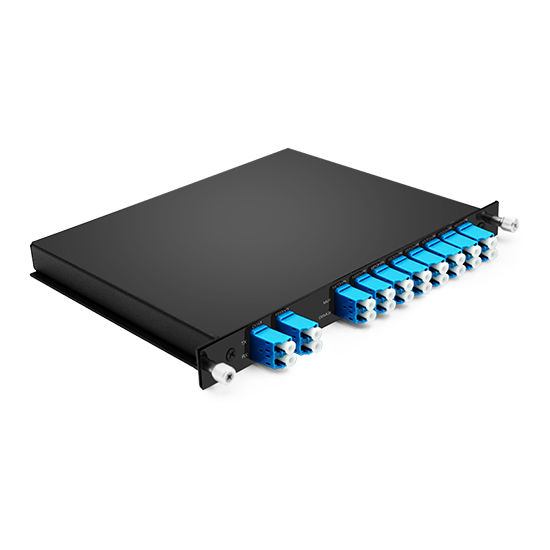

Passive CWDM Double Fiber Mux & Demux Module 8CH (XX-XXnm Customer Specified) & Additional 1310 Window LC/UPC LGX BOX

Passive — F-tone Passive CWDM Double Fiber Mux and Demux Module support 8 channels with wave lengths, and comes with an additional 1310nm window LC/UPC LGX BOX for added flexibility.

产品详情

产品参数 — F-tone
工作波长	8 Channels 1270-1610nm	通道间隔	20nm
通道带宽	ITU±6.5nm	插入损耗	≤2.4dB
Insertion Loss @ Mon	≤24.3dB	回波损耗	≥45dB
方向性	≥50dB	光纤类型	SMF-28e or Customer Specified
相邻信道隔离度	≥30dB	非邻通道隔离度	≥40dB
偏振相关损耗	≤0.2dB	偏振模色散	≤0.1ps
最大光功率	500mW	尺寸(HxWxD)	20.2x203x197mm
工作温度	-20°C～+70°C	存储温度	-40°C～+85°C

工作波长	8 Channels 1270-1610nm	通道间隔	20nm
通道带宽	ITU±6.5nm	插入损耗	≤2.4dB
Insertion Loss @ Mon	≤24.3dB	回波损耗	≥45dB
方向性	≥50dB	光纤类型	SMF-28e or Customer Specified
相邻信道隔离度	≥30dB	非邻通道隔离度	≥40dB
偏振相关损耗	≤0.2dB	偏振模色散	≤0.1ps
最大光功率	500mW	尺寸(HxWxD)	20.2x203x197mm
工作温度	-20°C～+70°C	存储温度	-40°C～+85°C

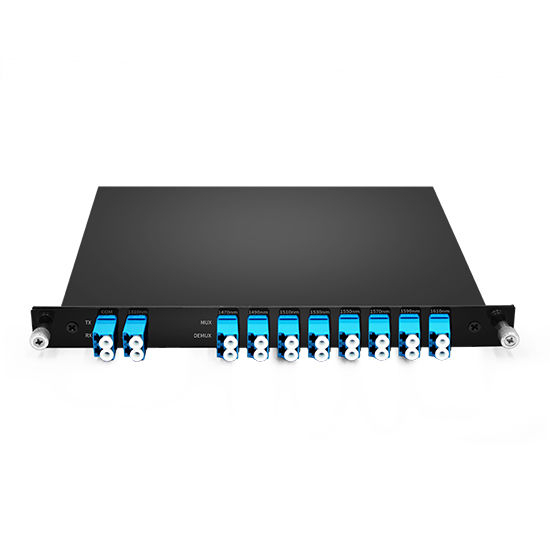

8 Channels 1xx0 to 1xx0nm Customized With 1310nm Port LC/UPC Dual Fiber CWDM MUX DEMUX LGX BOX

Quality Assurance

Excellent quality is the foundation of F-tone’ s survival and development. Our operation team are experts with many years’ experiences in optical communication industry. Our manufacturers are first-class manufacturers in the industry. Many of them have the qualification of OEM for first-class system equipment manufacturers.

Quality Certification

We control the quality of our products, including our strict qualification of manufacturers, quality control process and production technology, and compliance with certification and safety standards. At present, our products meet the industry standards and mainstream quality certification, such as ISO 9001, CE, RoHS, FCC, etc.

our advantages

: Short Lead time; Fast Delivery

: Professional Service; Technical Support

: Worry-Free Guarantee; Shopping Satisfactorily

: Premium Quality; High stability

Product Specification

Number of channels	4	8	16
Wavelength range	CWDM:1270nm to 1610nm DWDM:C Band, 100 GHZ or 50 GHZ
Insertion loss	< 1.5dB	< 2.5dB	< 3.5dB
Isolation ratio of adjacent channels	>30dB	>30dB	>30dB
Isolation ratio of non-adjacent channels	>40dB	>40dB	>40dB
Return loss	>45dB	>45dB	>45dB
Direction	>50dB	>50dB	>50dB
Interface type	All interfaces are LC type
Work temperature	-40〜85℃
Storage temperature	-40〜85℃

本产品为北亿纤通产品线，详细信息，请联系我们的销售人员，谢谢！

Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. rther details are available from any F-tone Networks sales representative.
