光纤连接器技术规格书
1、型号
（1）MT/S-4JYSK22N05Z-2S0.5/0.2
型号说明：左端为 MT/S 插头(带弹簧），右端为 4 只 JYSK22N05Z 插座(带接地线各 1
根），使用8芯单模光缆，光缆长度0.5米，分支长度0.2米。
2、光缆组件外形及尺寸
（1）MT/S-4JYSK2M12N05Z-2S0.5/0.2

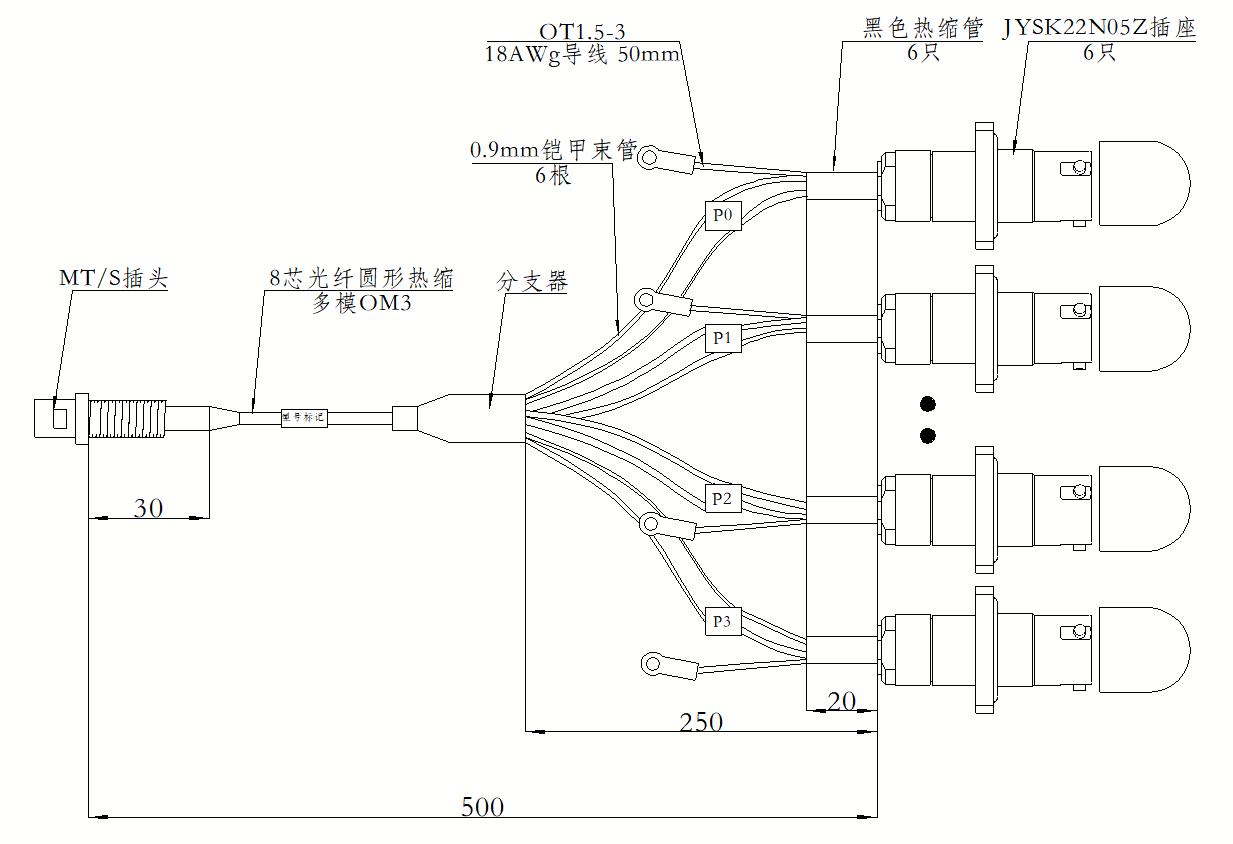

①组件外形图
V 3.06
1 /3
Page 2

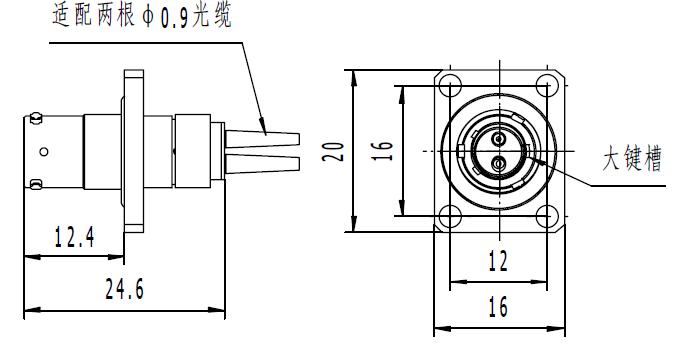

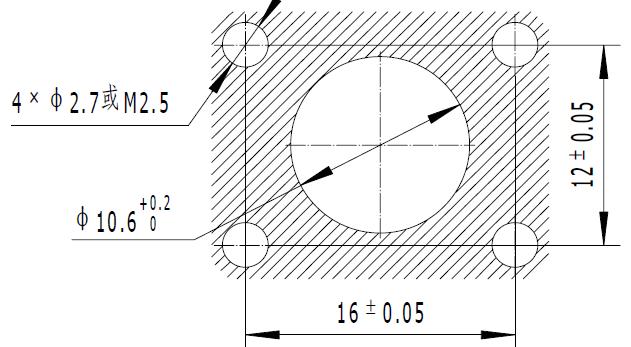

②插座外形图

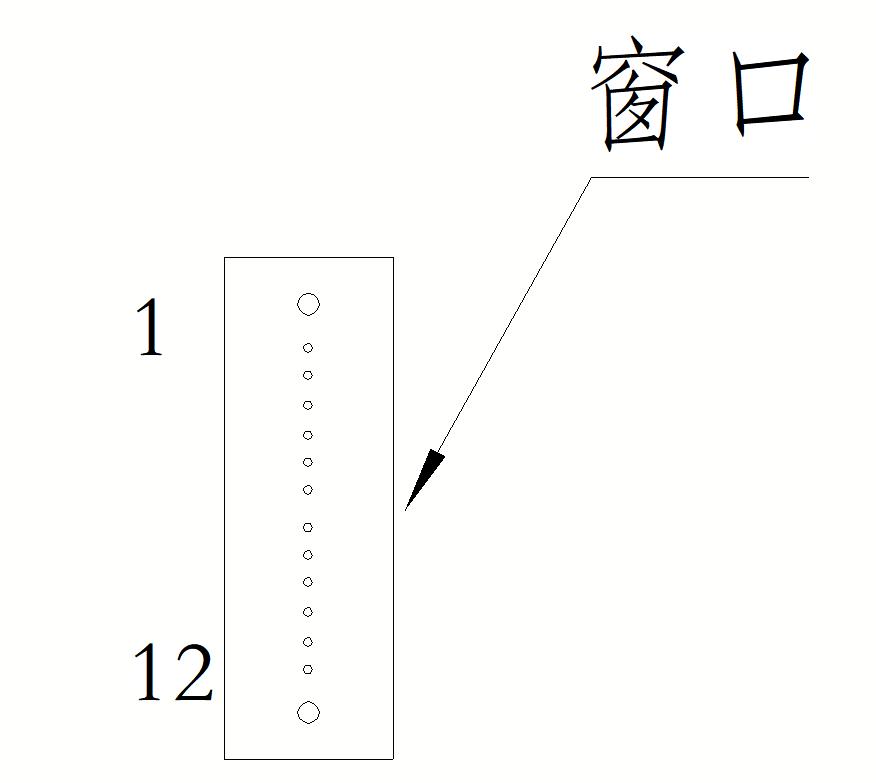

③接点排列
MT/S JYSK22N05Z
V 3.06
2 /3
Page 3
④光路对应关系
MT/S JYSK22N05Z
1 P0 1
12 2
2 P1 1
11 2
3 P2 1
10 2
4 P3 1
9 2
3、产品性能
项目 参数
传输模式 单模
工作波长 1310nm、1550nm
插入损耗 MT≤0.75dB，JYS≤0.6dB
振动 频率10～2000Hz，功率谱密度0.06g2/Hz
冲击 峰值加速度490m/s2
机械耐久性 ≥500次
工作温度 -40℃～+85℃
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are
typical and must be specifically confirmed in writing by F-tone Networks before they
become applicable to any particular order or contract. In accordance with the F-tone
Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or
other protective rights of F-tone Networks or others. Further details are available from any
F-tone Networks sales representative.
V 3.06
3 /3
| MT/S | JYSK22N05Z | |
|---|---|---|
| 1 | P0 | 1 |
| 12 | 2 | |
| 2 | P1 | 1 |
| 11 | 2 | |
| 3 | P2 | 1 |
| 10 | 2 | |
| 4 | P3 | 1 |
| 9 | 2 |
| 项目 | 参数 |
|---|---|
| 传输模式 | 单模 |
| 工作波长 | 1310nm、1550nm |
| 插入损耗 | MT≤0.75dB，JYS≤0.6dB |
| 振动 | 频率10～2000Hz，功率谱密度0.06g2/Hz |
| 冲击 | 峰值加速度490m/s2 |
| 机械耐久性 | ≥500次 |
| 工作温度 | -40℃～+85℃ |
