FTCS-HG-S28-Oxxx 100G SFP28 to QSFP28 Active Optical Cable

100Gb/s QSFP28 Active Optical Cable
FTCS-HG-S28-Oxxx

Product Features

Full duplex 4 channel 850nm parallel active optical cable
Up to 27.952Gbps Data rate per channel
Maximum link length of 150m links on OM3 multimode fiber
High Reliability 850nm VCSEL technology
Electrically hot-pluggable
Case operating temperature range:0°C to 70°C
Power dissipation < 2.5 W per cable end

Applications

100G Ethernet
Infiniband QDR
Fiber channel
HPC Interconnections

Standard

Compliant to QSFP28 MSA
RoHS Compliant.

Absolute Maximum Ratings

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Storage Temperature	Ts	-40	–	85	ºC
Relative Humidity	RH	5	–	95	%
Power Supply Voltage	VCC	-0.3	–	4	V
Signal Input Voltage		Vcc-0.3	–	Vcc+0.3	V

Recommended Operating Conditions

Parameter	Symbol	Min.	Typ.	Max.	Unit	Note
Case Operating Temperature	Tcase	0	–	70	ºC	Without air flow
Power Supply Voltage	VCC	3.14	3.3	3.46	V
Power Supply Current	ICC	–		750	mA	per cable end
Data Rate	BR		25.78125		Gbps	Each channel

General Product Characteristics

Parameter	Value	Unit	Notes
Module Form Factor	QSFP28
Number of Lanes	4 Tx /Rx
Maximum Aggregate Data Rate	111.8	Gb/s
Maximum Data Rate per Lane	27.952	Gb/s
Standard Cable Lengths	3, 5, 7, 10	meters	Other lengths, please contact sales
Protocols Supported	Typical applications include Infiniband, Fiber Channel, 100G Ethernet
Electrical Interface and Pin-out	38-pin edge connector		Pin-out as defined by the QSFP28 MSA
Standard Optical Cable Type	Multimode ribbon fiber cable assembly, riser-rated
Maximum Power Consumption per End	2.5	W
Management Interface	Serial, I2C-based, 400 kHz maximum frequency		As defined by the QSFP28 MSA

Note：100G Ethernet &100G BASE-SR4 and ITU-T OTU4 has different register setting, not auto- Negotiation

High-speed Electrical Characteristics per Lane

Parameter-Inputs	Symbol	Min	Typ		Max	Unit	NOTE
Input electrical specifications (per Lane)
Differential Voltage pk-pk					900	mV
Common Mode Noise RMS					17.5	mV
Differential Termination Resistance Mismatch					10	%
Differential Return Loss	SDD22	Per OIF CEI-28G-VSR and CAUI-4 requirements
Common Mode to Differential conversion and Differential to Common Mode Conversion	SDC22, SCD22					dB
	SDC22, SCD22					dB
Common Mode Return Loss	SCC22					dB
Transition Time, 20 to 80%	Tr, Tf	10				ps
Common Mode Voltage	Vcm	-0.3			2.8	V
Eye Width at 1E-15 probability	EW15	0.46				UI
Eye Height at 1E-15 probability	EH15	94				mV
Output electrical specifications (per Lane)
Differential Voltage pk-pk					900	mV
Common Mode Voltage	Vcm	-350			2850	mV
Common Mode Noise RMS					17.5	mV
Differential Termination Resistance Mismatch					10	%
Differential Return Loss	SDD22	Per OIF CEI-28G-VSR and CAUI-4 requirements				dB
Common Mode to Differential conversion and Differential to Common Mode Conversion	SDC22, SCD22					dB
	SDC22, SCD22					dB
Common Mode Return Loss	SCC22					dB
Output Rise and Fall time (20% to 80%)	tRH, tFH	9.5				ps
Vertical Eye Closure	VEC			5.5		dB
Eye Width at 1E-15 probability	EW15	0.57				UI

Pin Assignment

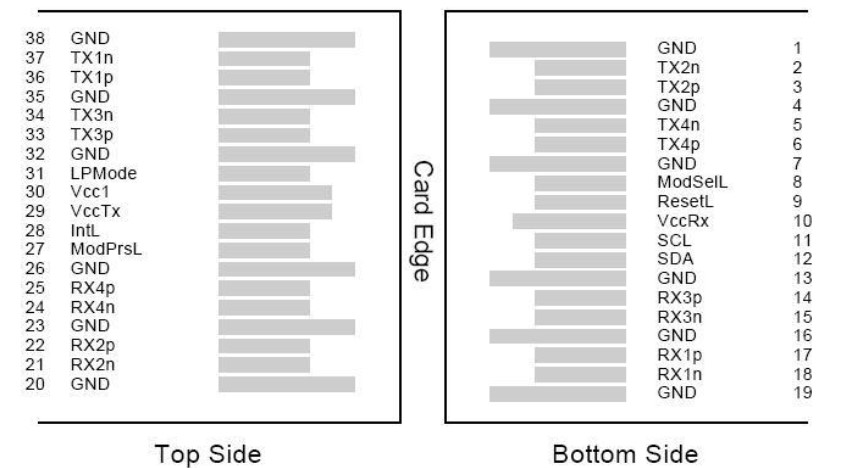

Figure 4—Pin out of Connector Block on Host Board

Pin Descriptions

Pin	Symbol	Name/Description	NOTE
1	GND	Transmitter Ground (Common with Receiver Ground)	1
2	Tx2n	Transmitter Inverted Data Input
3	Tx2p	Transmitter Non-Inverted Data output
4	GND	Transmitter Ground (Common with Receiver Ground)	1
5	Tx4n	Transmitter Inverted Data Input
6	Tx4p	Transmitter Non-Inverted Data output
7	GND	Transmitter Ground (Common with Receiver Ground)	1
8	ModSelL	Module Select
9	ResetL	Module Reset
10	VccRx	3.3V Power Supply Receiver	2
11	SCL	2-Wire serial Interface Clock
12	SDA	2-Wire serial Interface Data
13	GND	Transmitter Ground (Common with Receiver Ground)
14	Rx3p	Receiver Non-Inverted Data Output
15	Rx3n	Receiver Inverted Data Output
16	GND	Transmitter Ground (Common with Receiver Ground)	1
17	Rx1p	Receiver Non-Inverted Data Output
18	Rx1n	Receiver Inverted Data Output
19	GND	Transmitter Ground (Common with Receiver Ground)	1
20	GND	Transmitter Ground (Common with Receiver Ground)	1
21	Rx2n	Receiver Inverted Data Output
22	Rx2p	Receiver Non-Inverted Data Output
23	GND	Transmitter Ground (Common with Receiver Ground)	1
24	Rx4n	Receiver Inverted Data Output	1
25	Rx4p	Receiver Non-Inverted Data Output
26	GND	Transmitter Ground (Common with Receiver Ground)	1
27	ModPrsl	Module Present
28	IntL	Interrupt
29	VccTx	3.3V power supply transmitter	2
30	Vcc1	3.3V power supply	2
31	LPMode	Low Power Mode，not connect
32	GND	Transmitter Ground (Common with Receiver Ground)	1
33	Tx3p	Transmitter Non-Inverted Data Input
34	Tx3n	Transmitter Inverted Data Output
35	GND	Transmitter Ground (Common with Receiver Ground)	1
36	Tx1p	Transmitter Non-Inverted Data Input
37	Tx1n	Transmitter Inverted Data Output
38	GND	Transmitter Ground (Common with Receiver Ground)	1

Notes:

1. GND is the symbol for signal and supply (power) common for QSFP+ modules. All are common within the QSFP+ module and all module voltages are referenced to this potential unless otherwise noted.

Connect these directly to the host board signal common ground plane.

2. VccRx, Vcc1 and VccTx are the receiving and transmission power suppliers and shall be applied concurrently. Recommended host board power supply filtering is shown below. Vcc Rx, Vcc1 and Vcc Tx may be internally connected within the QSFP28 transceiver module in any combination. The connector pins are each rated for a maximum current of 500mA.

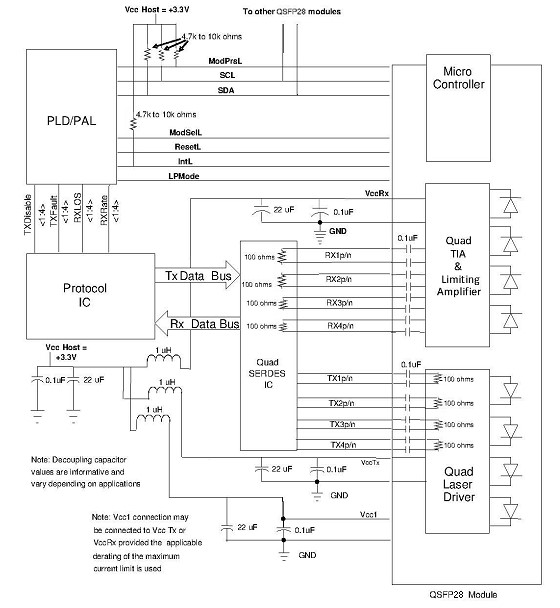

Host – Transceiver Interface Block Diagram

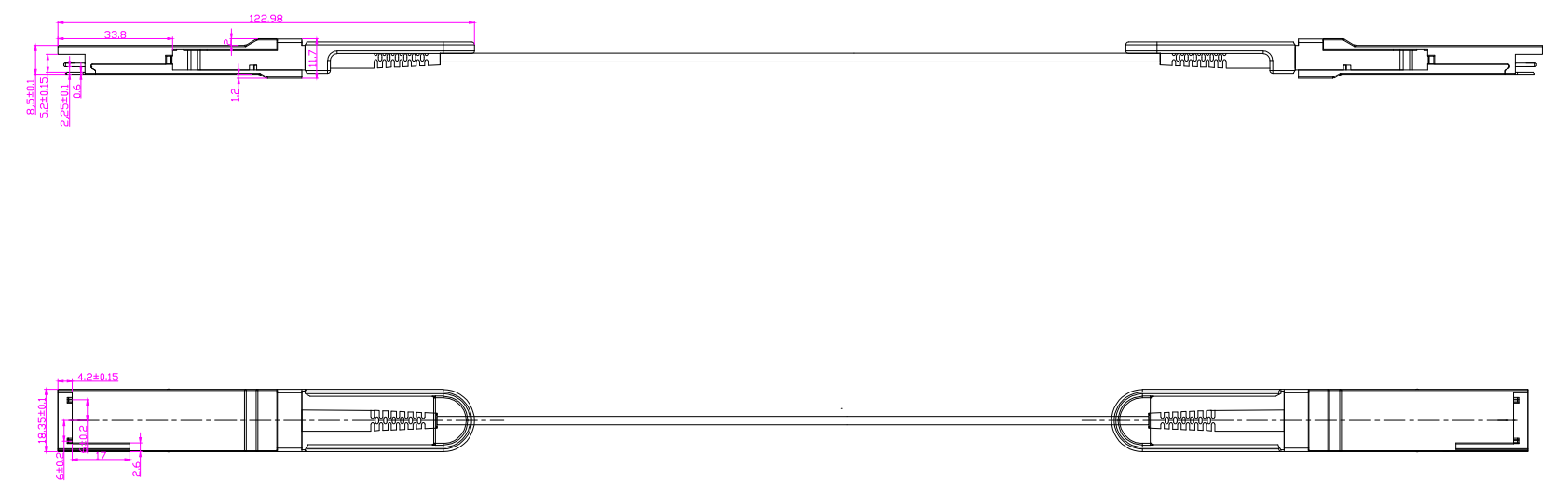

Outline Dimensions（Unit：mm）

Ordering information

Part Number	Product description
FTCS-HG-S28-Oxxx	SFP28 to SFP28 , 100G, 100m, Active Optical Cable, 0°C~+70°C

Important Notice

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
