8-port 10/100/1000Mbps SFP+2-port 10/100/1000Mbps
RJ45 Industrial Ethernet Switch
FT-YZXD82G-SFP
Slim Type with more Practicability and Convenience
FT-YZXD82G-SFP an hardened 10-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It also provides 8-port 10/100/1000Mbps SFP+2G RJ45 copper interfaces delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.
The FT-YZXD82G-SFP series is packaged in a compact IP40 case that allows either DIN rail or panel mounting to have efficient usage of cabinet space. It provides an integrated power supply with a wide range of voltages for worldwide operation. It also offers dual-redundant, reversible polarity 12V DC to 52V DC power supply inputs for high availability applications requiring dual or backup power inputs.
Interface
- 8-port 10/100/1000Mbps SFP
- 2-port 10/100/1000Mbps RJ45
Industrial conformance
- 12V to 52V DC, redundant power input
- -40℃ to 80℃ operating temperature
- IP40 aluminum housing
- Supports 4KV DC Ethernet ESD protection
- Supports 4KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Specifications:
|
Model No. |
FT-YZXD82G-SFP |
|
10/100/1000BASE-FX Port |
8 port SFP |
|
10/100/1000BASE-TX Port |
2 port RJ-45 auto-MDI / MDI-X |
|
Performance Specification |
Bandwidth: 20Gbps |
|
Installation |
DIN rail |
|
Maximum Frame Size |
9000bytes packet size |
|
Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
|
Enclosure |
IP40 aluminum housing |
|
LED Indicator |
Power: Red Ethernet: Yellow POE: Green |
|
Power Input |
12 to 52V DC redundant power |
|
Power Consumption |
< 3 watts |
|
Surge protection |
±4KV |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
Certification |
CE FCC Rohs compliance |
|
MTBF |
>300,000hours |
|
Dimensions (W x D x H) |
179 x 134 x 46 mm |
|
Weight |
Product Weight: 0.56KG Packing Weight: 0.66KG |
|
Working Environment |
Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation) |
|
Warranty |
1-year replacement with new item; 3-years for main parts. |

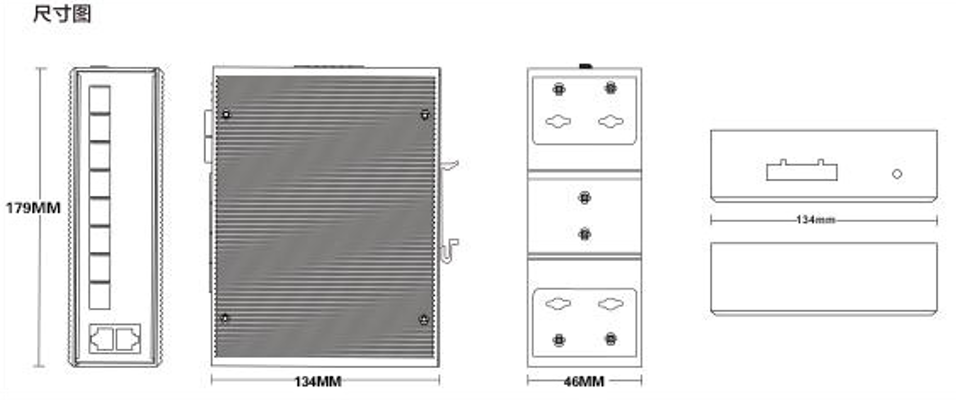

Dimensions
Ordering Information
|
FT-YZXD11G |
1-Port RJ45+1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial Switch |
|
|
FT-YZXD12G |
2-Port RJ45+1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial Switch |
|
|
FT-YZXD82G-SFP |
4-Port RJ45 +1Port RJ-45 uplink Gigabit Industrial Switch |
|
|
FT-YZXD14G |
4-Port RJ45+1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial Switch |
|
|
FT-YZXD24G |
4-Port RJ45+2Port SFP/SC (Interface optional ) Gigabit Industrial Switch |
|
|
FT-YZXD08G |
8-Port RJ45 Gigabit Industrial Switch |
|
|
FT-YZXD18G |
8-Port RJ45+1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial Switch |
|
|
FT-YZXD28G |
8-Port RJ45+2Port SFP Gigabit Industrial Switch |
|
|
FT-YZXD82G |
8-Port SFP +2Port RJ45 Gigabit Industrial Switch |
|
|
FT-YZXD016G |
16-Port RJ45 Gigabit Industrial Switch |
|
|
Power supply (optional) |
FT-YZX5121-DC |
DC 12V/1A，suitable for non-PoE Industrial switch |
|
FT-YZX5241-DC |
DC 24V/1A，suitable for non-PoE Industrial switch |
|
|
FT-YZX5521-DC |
DC 52V/1A，suitable for 1-Port PoE Industrial switch, or non-PoE Industrial switch |
|
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
