FT-YRD224G-SFP 24-Port 10/100/1000BASE-TX + 2-Port SFP Industrial Ethernet Switch

24-port 10/100/1000BASE-TX +2G SFP Industrial Ethernet Switch
FT-YRD224G-SFP

FT-YRD224G-SFP an hardened 24-port Industrial Ethernet Switch, provides non-blocking wire-speed performance in harsh industrial environment. It provides 24-port 10/100/1000BASE-TX RJ45 copper interfaces +2 Port 10/100/1000 SFP delivered in an IP40 rugged, strong case with redundant power system. Its slim case is suitable for such applications as surveillance system deployments, control management and wireless service in climatically demanding environments with wide temperature range from -40℃ to 80℃.

The FT-YRD224G-SFP series provides the flexibility to all kinds of 10/100Mbps Ethernet Media on RJ-45 port and performs highly stable fiber performance.

Interface

• 24-Port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/MDI-X function
• 2-Port SFP uplink

Industrial conformance

• AC110-240V power input
• -40℃ to 80℃ operating temperature
• IP40 aluminum housing
• Supports Air discharge: ±12kV
• Contact discharge: ±8kV
• Free Fall, Shock and Vibration Stability
• Rak-mountable design

Specifications:

Model No.	FT-YRD224G-SFP
10/100/1000BASE-TX Port	24 port RJ-45 auto-MDI / MDI-X 2 port SFP
Performance Specification	Bandwidth: 56Gbps Packet Buffer Memory:4.1Mbit Packet Forwarding Rate: 42Mpps MAC Address Table: 8K
Installation	Rack mountable
Maximum Frame Size	9000bytes packet size
Flow Control	Back pressure for half duplex, IEEE 802.3x pause frame for full duplex
Enclosure	IP40 aluminum housing
LED Indicator	Power: Red Ethernet: Yellow POE: Green
Power Input	AC110-240V
Power Consumption	< 10 watts
Surge protection	±4KV
Network Protocols	IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x;
Network cables	10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤100meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter)
Industry Standard	IEC 61000-4-4 (EFT), Level 3 IEC 61000-4-5 (Surge), Level 3 Shock: IEC 60068-2-27 Free fall: IEC 60068-2-32 Vibration: IEC 60068-2-6
MTBF	300,000hours
Dimensions (W x D x H)	442*195*44mm
Weight	Product Weight: 3KGS Packing Weight: 3.8KGS
Working Environment	Working temperature: -40～80℃ ; Storage temperature: -40～80℃ Relative Humidity: 5%~95 %( no condensation)

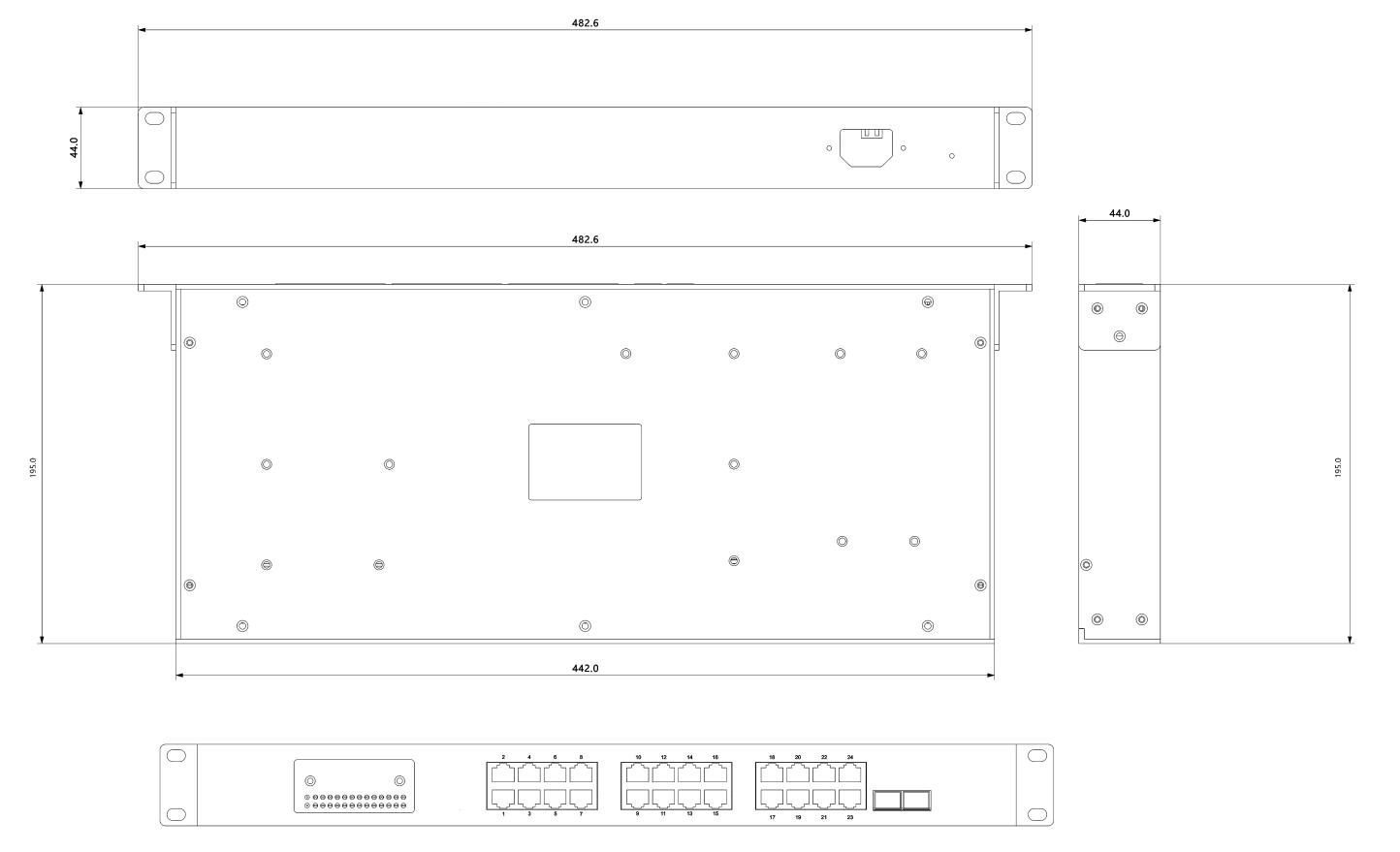

Dimensions

Ordering Information

FT-YRD224G-SFP

24-port 10/100/1000BASE-TX +2G SFP Industrial Ethernet Switch

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
