4-port 10/100/1000BASE-TX PoE + 1G uplink Industrial PoE Switch
FT-YRD05GP
Industrial PoE switch, 4 Port 10/100/1000Mbps PoE ports + 1 ports ethernet uplink , for connecting with devices like computer, switch, hub, server, etc, as well as powering network camera, industrial VoIP phone, wireless AP and other PoE supported devices. Specially designed for harsh outdoor applications. Its 6KV network port surge protection can adapt to harsh outdoor environment and ensure the reliability of the uninterrupted PoE system. Power input also chooses industry-standard types of power.
Interface
- 5-port 10/100/1000Base-Tx RJ-45 with auto negotiation and auto-MDI/MDI-X function
- 4-Port PoE, 802.3at/af support, 30W max. each port
Industrial conformance
- 48V to 57V DC, redundant power input
- -40℃ to 85℃ operating temperature
- IP40 aluminum housing
- Supports 6KV DC Ethernet ESD protection
- Supports 6KV DC EFT protection for power line
- Free Fall, Shock and Vibration Stability
- DIN-rail and wall-mountable hardware design
Specifications:
|
Model No. |
FT-YRD05GP |
|
10/100/1000BASE-TX Port |
5 port RJ-45 auto-MDI / MDI-X |
|
PoE Specification |
PoE Standard: IEEE802.3af/ IEEE802.3at |
|
PoE ports:1-4 port support PoE |
|
|
Power Output: Max. 15.4 watts (IEEE 802.3af) Max. 30 watts (IEEE 802.3at) |
|
|
PoE port Auto detect AF/AT devices |
|
|
Output Voltage: DC48V |
|
|
Power Pin Assignment:1/2+;3/6- |
|
|
Power Type: End-span( Mid-span optional) |
|
|
Performance Specification |
Bandwidth: 14Gbps |
|
Installation |
DIN rail |
|
Maximum Frame Size |
9000bytes packet size |
|
Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
|
Enclosure |
IP40 aluminum housing |
|
LED Indicator |
Power: Red Ethernet: Yellow POE: Green |
|
Power Input |
48 to 57V DC |
|
Power Consumption |
3 watts |
|
Surge protection |
±4KV |
|
Network Protocols |
IEEE802.3 10BASE-T; IEEE802.3i 10Base-T; IEEE802.3u;100Base-TX/FX; IEEE802.3ab 1000Base-T; IEEE802.3z 1000Base-X; IEEE802.3x; |
|
Network cables |
10BASE-T: Cat3,4,5 UTP(≤100 meter) 100BASE-TX: Cat5 or later UTP(≤10meter) 1000BASE-TX: Cat6 or later UTP(≤100 meter) |
|
Industry Standard |
FCC CFR47 Part 15,EN55022/CISPR22, Class A IEC61000-4-2 (ESD): ±8kV (contact), ±12kV (air) IEC61000-4-3 (RS): 10V/m (80~1000MHz) IEC61000-4-4 (EFT): Power Port: ±4kV; Data Port: ±2kV IEC61000-4-5 (Surge): Power Port: ±2kV/DM, ±4kV/CM; Data Port: ±2kV IEC61000-4-6 (CS): 3V (10kHz-150kHz); 10V (150kHz-80MHz) IEC61000-4-16 (Common mode conduction): 30V (cont.), 300V (1s) |
|
Certification |
CE FCC Rohs compliance |
|
MTBF |
>300,000hours |
|
Dimensions (W x D x H) |
118 x 86 x 33.5 mm |
|
Weight |
Product Weight: 0.36KG Packing Weight: 0.46KG |
|
Working Environment |
Working temperature: -40～85℃ ; Storage temperature: -40～85℃ Relative Humidity: 5%~95 %( no condensation) |
|
Warranty |
3-years for main parts. |

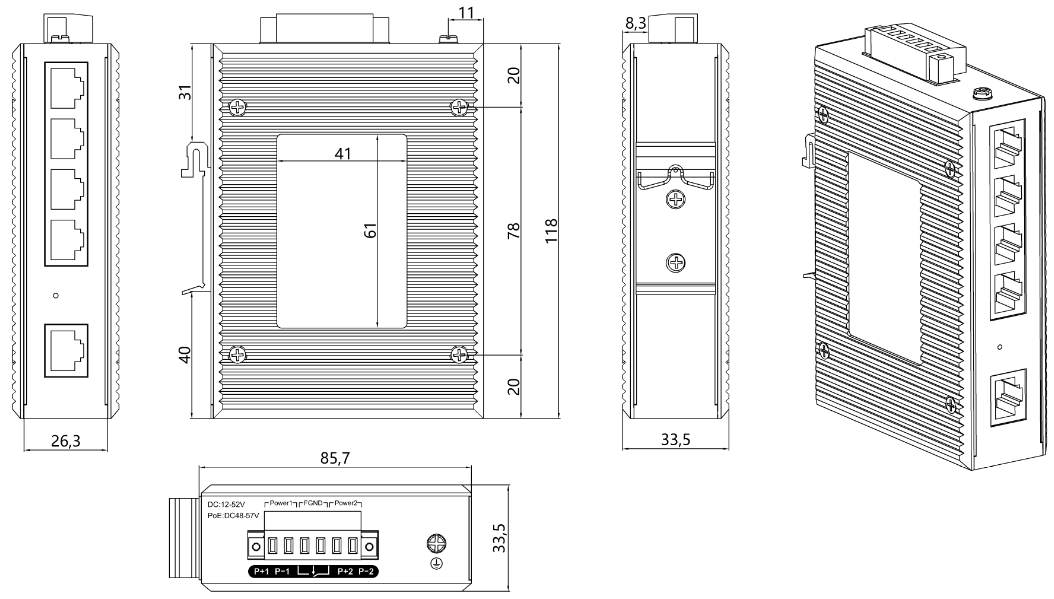

Dimensions
Ordering Information
|
FT-YRD11GP |
1-Port RJ45 PoE+1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial PoE Switch |
|
|
FT-YRD12GP |
2-Port RJ45 PoE+1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial PoE Switch |
|
|
FT-YRD05GP |
4-Port RJ45 PoE +1Port RJ-45 uplink Gigabit Industrial PoE Switch |
|
|
FT-YRD14GP |
4-Port RJ45 PoE+1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial PoE Switch |
|
|
FT-YRD24GP |
4-Port RJ45 PoE+2Port SFP/SC (Interface optional ) Gigabit Industrial PoE Switch |
|
|
FT-YRD08GP |
8-Port RJ45 Gigabit Industrial PoE Switch |
|
|
FT-YRD18GP |
8-Port RJ45 PoE +1Port SFP/SC/FC/ST (Interface optional ) Gigabit Industrial PoE Switch |
|
|
FT-YRD28GP |
8-Port RJ45 PoE+2Port SFP Gigabit Industrial PoE Switch |
|
|
Power supply (optional) |
FT-YRD552125-DC |
DC 52V/1.25A,120W suitable for PoE 1-4port |
|
FT-YRD55223-DC |
DC 52V/2.3A,120W suitable for PoE 1-8 port |
|
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
