FT-88-M406A-16 Solid State Relay SOP-4 Package High Reliability

Solid State Relays

FT-88-M406A-16

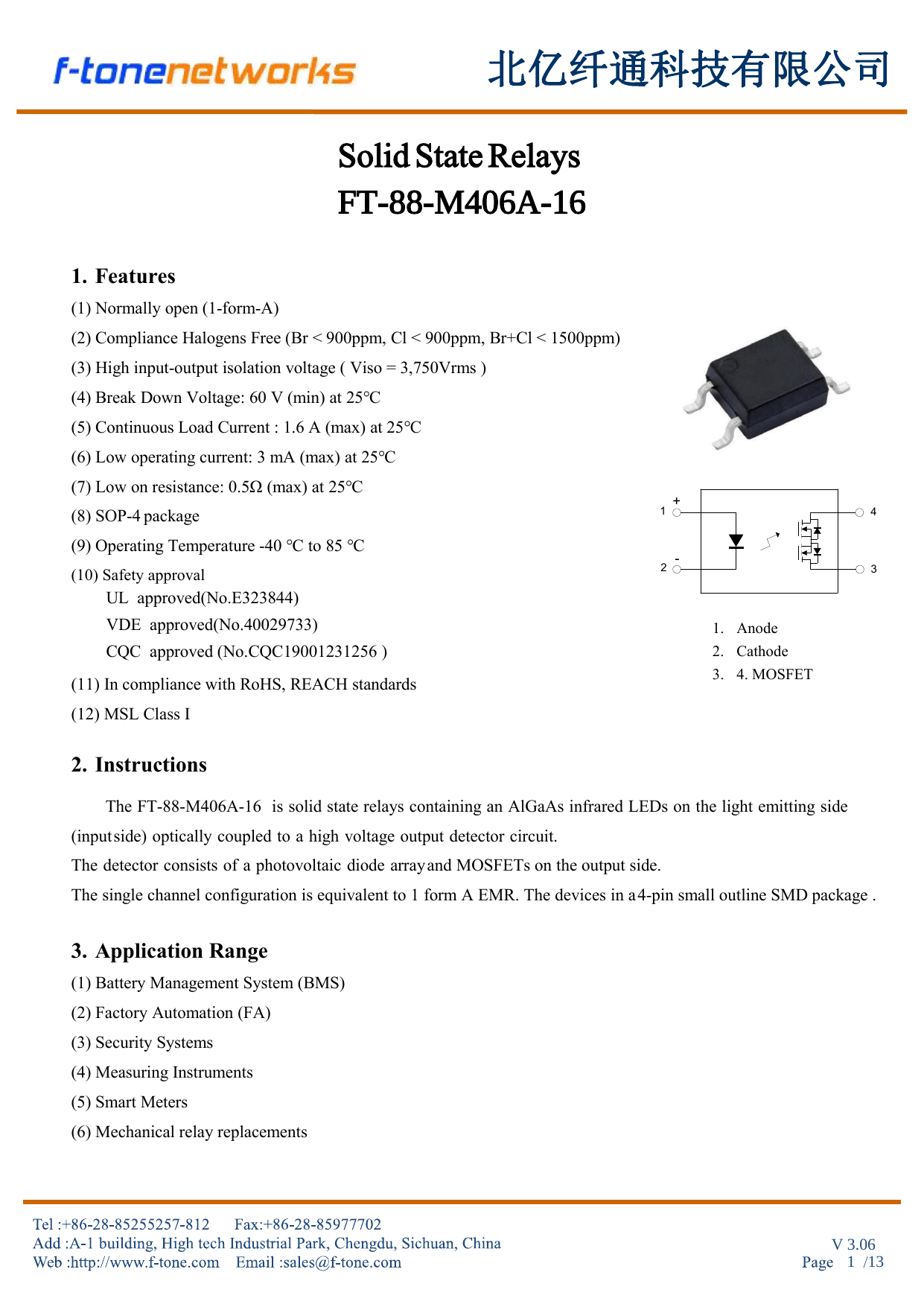

1. Features

(1)Normallyopen(1-form-A)

(2)ComplianceHalogensFree(Br<900ppm,Cl<900ppm,Br+Cl<1500ppm)

(3)Highinput-outputisolationvoltage(Viso=3,750Vrms)

(4)BreakDownVoltage:60V(min)at25℃

(5)ContinuousLoadCurrent:1.6A(max)at25℃

(6)Lowoperatingcurrent:3mA(max)at25℃

(7)Lowonresistance:0.5Ω(max)at25℃

+

(8)SOP-4package 1 4

(9)OperatingTemperature-40℃to85℃

–

(10)Safetyapproval 2 3

UL approved(No.E323844)

VDE approved(No.40029733) 1. Anode

CQC approved(No.CQC19001231256) 2. Cathode

3. 4.MOSFET

(11)IncompliancewithRoHS,REACHstandards

(12)MSLClassⅠ

2. Instructions

The FT-88-M406A-16 is solid state relays containing an AlGaAs infrared LEDs on the light emitting side

(inputside) optically coupled to a high voltage output detector circuit.

The detector consists of a photovoltaic diode arrayandMOSFETsontheoutputside.

Thesinglechannelconfigurationisequivalentto1formAEMR.Thedevicesina4-pinsmalloutlineSMDpackage.

3. Application Range

(1)BatteryManagementSystem(BMS)

(2)FactoryAutomation(FA)

(3)SecuritySystems

(4)MeasuringInstruments

(5)SmartMeters

(6)Mechanicalrelayreplacements

V 3.06

1 /13

14.Characteristics Curve

V 3.06

11/13

V 3.06

12/13

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are

typical and must be specifically confirmed in writing by F-tone Networks before they

become applicable to any particular order or contract. In accordance with the F-tone

Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or

other protective rights of F-tone Networks or others. Further details are available from any

F-tone Networks sales representative.

V 3.06

13/13
